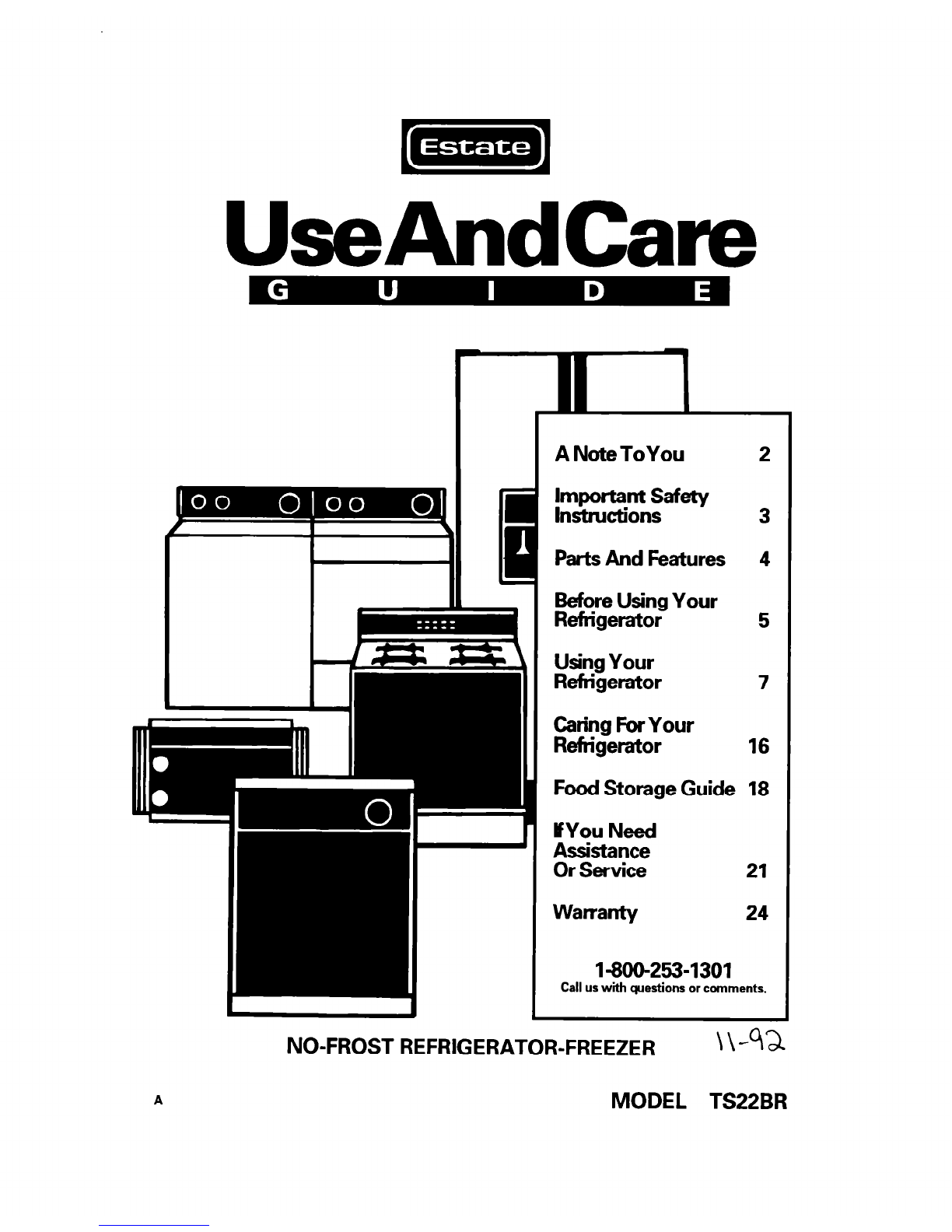

UseAndCare

A Note ToYou 2

IFZE:dw 3

Parts And Features 4

Before Using Your

Refrigerator 5

Using Your

Refrigerator 7

pp;e~o;Our 16

Food Storage Guide 18

YYou Need

~~~~~ 21

Warranty 24

1-800-253-1301

Call us with questions or comments.

NO-FROST REFRIGERATOR-FREEZER \\-Q

MODEL TS22BR

A NuteToYou

Thank you for buying an Estate appliance.

You have purchased a quality, world-class home appliance. Years of engineering experience have gone

into its manufacturing. To ensure that you will enjoy many years of trouble-free operation, we have

developed this Use and Care Guide. It is full of valuable information on how to operate and maintain

your appliance properly and safely. Please read it carefully. Also, please complete and mail the Owner-

ship Registration Card provided with your appliance. This will help us notify you about any new informa-

tion on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these symbols and

follow any instructions given. Here is a brief explanation of the use of each symbol.

This symbol will help alert you to such dangers as

personal injury, burns, fire and electrical shock. This symbol will help you avoid actions which

could cause product damage (scratches, dents,

etc.) and damage to your personal property.

Our Consumer Assistance Center number, l-800-253-1301,

is toll-free, 24 hours a day.

If you ever have a question concerning your appliance’s operation, or if you need service, first see “If

You Need Assistance Or Service” on page 21. If you need further help, feel free to call our Consumer

Assistance Center. When calling, you will need to know your appliance’s complete model number and

serial number. You can find this information on the model and serial number label (see diagram on

page 4). For your convenience, below we have included a handy place for you to record these numbers,

the purchase date from the sales slip and your dealer’s name and telephone number. Keep this book

and the sales slip together in a safe place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

Imtxwtant Safktv Instructions

To reduce the risk of fire, electrical shock, or injury when using your

refrigerator, follow these basic precautions:

Read all instructions before using the

they-will “just sit in the garage a few days.”

refrigerator.

Child entrapment and suffocation are not

problems of the past. Junked or abandoned

refrigerators are still dangerous ... even if

If you are getting rid of your old refrigerator,

do it safely. Please read the enclosed safety

booklet from the Association of Home

Appliance Manufacturers. Help prevent

accidents.

Never allow children to operate, play with, or

FOR YOUR SAFETY

crawl inside the refrigerator.

Never clean refrigerator parts with flammable

fluids. The fumes can create a fire hazard or

explosion.

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND LIQUIDS

IN THE VICINITY OF THIS OR ANY OTHER

APPLIANCE. THE FUMES CAN CREATE A

FIRE HAZARD OR EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

Install and level the refrigerator on a floor that

will hold the weight and in an area suitable for

its size and use.

Do not install the refrigerator near an oven,

radiator or other heat source.

. Do not use the refrigerator in an area where the

room temperature will fall below 55°F (13°C).

Keep the refrigerator out of the weather.

Connect the refrigerator only to the proper kind

of outlet, with the correct electrical supply and

grounding. (Refer to the Electrical Require-

ments and Grounding Instructions Sheet.)

Do not load the refrigerator with food before it

has time to get properly cold.

Use the refrigerator only for the uses described

in this manual.

Properly maintain the refrigerator.

Be sure the refrigerator is not used by anyone

unable to operate it properly.

Also, remove tape and any inside labels (except

the model and serial number label) before using

the refrigerator.

To remove any remaining glue:

Rub briskly with thumb to make a ball, then

remove.

Soak area with liquid hand dishwashing

detergent before removing glue as described

above. Do not use sharp instruments, rubbing

alcohol, flammable fluids or abrasive cleaners.

These can damage the material. See “lmpor-

tant Safety Instructions” above.

NOTE: Do not remove any permanent instruction

labels inside your refrigerator. Do not remove the

Tech Sheet fastened under the refrigerator at the

front.

Parts And Fea%wes

This section contains captioned illustrations of your appliance. Use them to become familiar with where

all parts and features are located and what they look like.

Control panel

Model and

Leveling rollers

(behind base

grille)

Before Using Your

Refrigerator

In This Section Pa* Page

Cleaning it ...........................................................5 Installing it properly ........................................5

Plugging it in .......................................................5 Leveling it .........................................................6

It is important to prepare your refrigerator for use. This section will tell you how to clean it, connect it to

a power source, install it and level it.

Cleaning it

Clean your refrigerator before using it, if neces-

sary. See cleaning instructions on page 16.

Plugging it in

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15 or 20 ampere

fused and properly grounded electrical supply is

required. It is recommended that a separate

circuit serving only this appliance be provided.

Use a receptacle which cannot be turned off with

a switch or pull chain. Do not use an extension

cord.

See Electrical Requirements and Grounding

Instructions Sheet in your Literature Package.

Sprang grounding

type wall receptacle

Refrigerator

power cord

grounding plug

Installing it properly

1. Allow l/z inch (1.25 cm) space on each side

and at the top of the refrigerator for ease of

installation.

2. If a hinged side of the refrigerator is to be

against a wall, you might want to leave extra

space on that side so the door can be opened

wider.

3. The refrigerator can be flush against the wall.

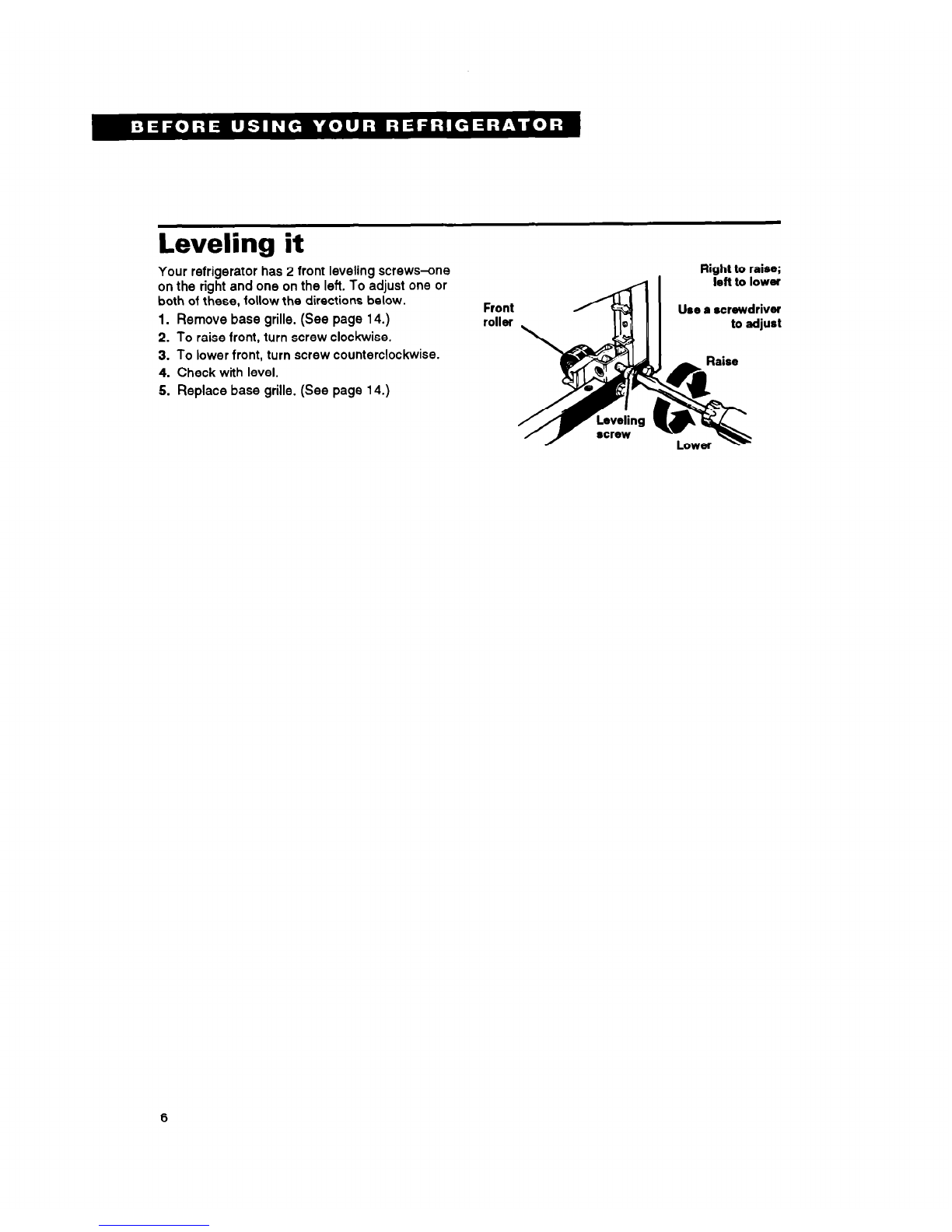

Leveling it

Your refrigerator has 2 front leveling screws-ne

on the right and one on the left. To adjust one or

both of these, follow the directions below.

Remove base grille. (See page 14.)

2. To raise front, turn screw clockwise.

3. To lower front, turn screw counterclockwise.

Check with level.

5. Replace base grille. (See page

14.)

Right to raise;

left to lower

Front

roller Use a screwdriver

Using Your Refrigerator

In This Section Page

getting the controls ........................................... .7

Changing the control settings.. ........................ .9

Adjusting the refrigerator shelves ................... .9

Removing the crisper and crisper cover.. ....... .9

Removing the meat drawer and cover.. ........... .9

Adjusting the meat drawer temperature.. ........ .9

Removing the freezer shelves

.........................

Removing the freezer bin ................................. 10

Using the automatic ice maker.. ..................... .10

Page

Removing the ice maker storage bin

...........

Using the ice dispenser ................................. 12

Solving common ice maker/

dispenser problems ....................................... 13

Removing the base grille .............................. 14

Changing the light bulbs ............................... 14

Understanding the sounds you may hear ...15

Saving energy ................................................ 15

In order to obtain the best possible results from your refrigerator, it is important that you operate it

properly. This section will tell you how to do just that.

Setting the controls

Controls for the refrigerator and freezer are in the

refrigerator. When the refrigerator is plugged in for

the first time:

1. Set the Refrigerator Control to 3.

Refrigerator Control adjustments range from

1 (warmest) to 5 (coldest).

2. Set the Freezer Control to B.

Freezer Control adjustments range from

A (warmest) to C (coldest).

3. Give the refrigerator time to cool down com-

pletely before adding food. This may take

several hours.

The settings indicated above should be

correct for normal, household refrigerator

usage. The controls will be set correctly when

milk or juice is as cold as you like and when ice

cream is firm. If you need to adjust these

settings, see “Changing the control settings” on

page 8.

NOTE: The Automatic Exterior Moisture control

continuously guards against moisture build-up on

the outside of your refrigerator cabinet. This

control does not have to be set or adjusted.

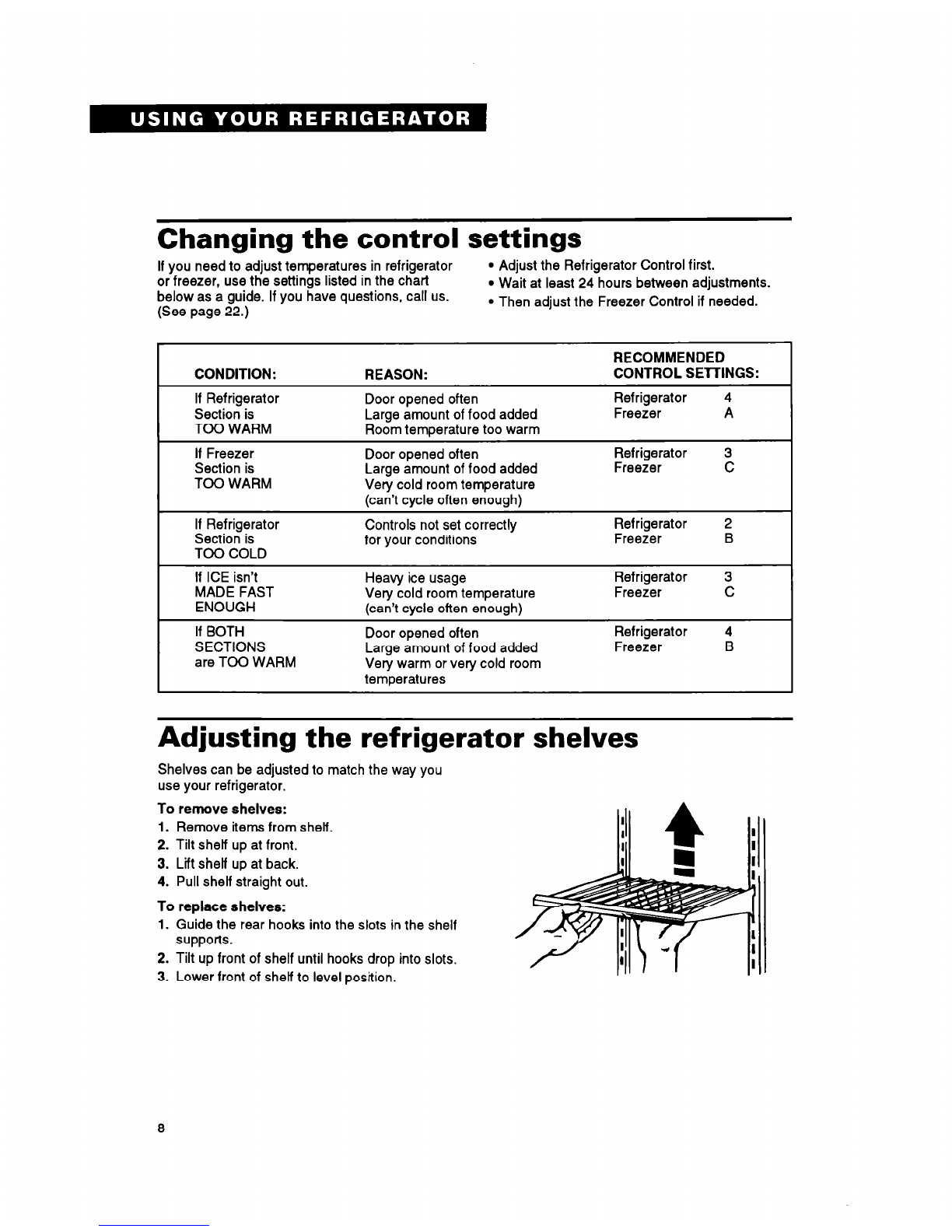

Changing the control settings

If you need to adjust temperatures in refrigerator

or freezer, use the settings listed in the chart

below as a guide. If you have questions, call us.

(See page 22.)

Adjust the Refrigerator Control first.

Wait at least 24 hours between adjustments.

Then adjust the Freezer Control if needed.

RECOMMENDED

CONDITION: REASON: CONTROL SElTINGS: I

If Refrigerator Door opened often

Section is Large amount of food added

TOO WARM Room temperature too warm

Refrigerator

Freezer i

If Freezer

Section is

TOO WARM

Door opened often

Large amount of food added

Very cold room temperature

(can’t cycle often enough)

Refrigerator 3

Freezer C

If Refrigerator

Section is

TOO COLD

Controls not set correctly

for your conditions Refrigerator 2

Freezer B

If ICE isn’t

MADE FAST

ENOUGH

Heavy ice usage

Very cold room temperature

(can’t cycle often enough)

Refrigerator 3

Freezer C

If BOTH

SECTIONS

are TOO WARM

Door opened often

Large amount of food added

Very warm or very cold room

temperatures

Refrigerator 4

Freezer B

Adjusting the refrigerator shelves

Shelves can be adjusted to match the way you

use your refrigerator.

To remove shelves:

1. Remove items from shelf.

2. Tilt shelf up at front.

3. Lift shelf up at back.

4. Pull shelf straight out.

To replace shelves:

1. Guide the rear hooks into the slots in the shelf

supports.

2. Tilt up front of shelf until hooks drop into slots.

3. Lower front of shelf to level position.

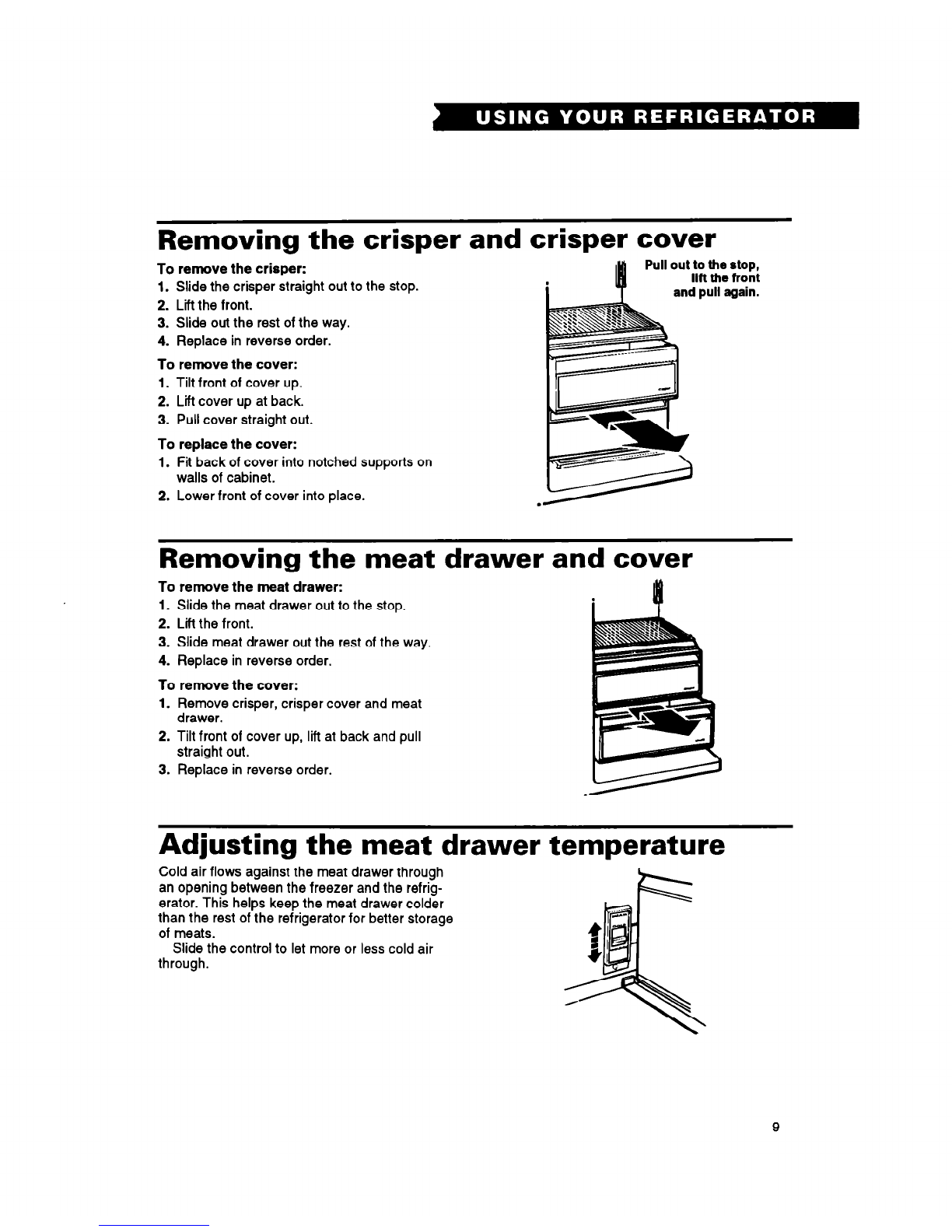

Removing the crisper and crisper cover

To remove the crisper:

1. Slide the crisper straight out to the stop.

2. Lift the front.

3. Slide out the rest of the way.

4. Replace in reverse order.

To remove the cover:

1. Tilt front of cover up.

2. Lift cover up at back.

3. Pull cover straight out.

To replace the cover:

1. Fii back of cover into notched supports on

walls of cabinet.

2. Lower front of cover into place.

Removing the meat drawer and cover

To remove the meat drawer:

1. Slide the meat drawer out to the stop.

2. Lift the front.

3. Slide meat drawer out the rest of the way.

4. Replace in reverse order.

To remove the cover:

1. Remove crisper, crisper cover and meat

drawer.

2. Tilt front of cover up, lift at back and pull

straight out.

3. Replace in reverse order.

Adjusting the meat drawer temperature

Cold air flows against the meat drawer through

an opening between the freezer and the refrig-

erator. This helps keep the meat drawer colder

than the rest of the refrigerator for better storage

of meats.

Slide the control to let more or less cold air

through.

Removing the freezer shelves

The freezer shelves can be removed for easier

cleaning.

To remove the shelves:

1. Lift right side of shelf off supports.

2. Slide shelf out of shelf support holes.

3. Replace in reverse order.

Removing the freezer bin

For proper air movement, keep the freezer bin in

place when the refrigerator is operating.

To remove the bin:

1. Slide bin out to the stop.

2. Lift bin at the front to clear the stop.

3. Slide bin out the rest of the way.

To replace the bin:

1. Place bin on the slides.

2. Make sure the stops clear the front of the

slides.

3. Slide bin in.

Using the automatic ice maker

Here are a few things you will want to know

about your automatic ice maker:

The ON/OFF lever is a wire signal arm.

Down ... to make ice automatically.

Up ... to shut off the ice maker.

NOTE: Do not turn ice maker on until

connected to the water suDDhr.lbstructlona

or Ice maker water supplv hook up are

hed to the back of the refriaerator

cabinet.

It is normal for ice crescents to be attached by

a corner. They will break apart easily.

The ice maker will not operate until the freezer

is cold enough to make ice. This can take

overnight.

If ice is not being made fast enough and more

ice is needed, turn the Refrigerator Control

toward a higher number. Wait a day and, if

necessary, turn the Freezer Control toward C.

Good water quality is important for good ice

quality. It is not recommended that the ice

maker be connected to a softened water

supply. Water softener chemicals, such as salt

from a maffunctioning softener, can damage

the ice maker mold and lead to poor quality ice.

If a softened water supply cannot be avoided, it

is important that the water softener be well

maintained and operating properly.

Raise

signal

arm to

stop ice

maker.

Lower

signal

arm to

start ice

maker.

Inhaltsverzeichnis

Andere Whirlpool Kühlschrank Handbücher

Whirlpool

Whirlpool 3XARG468WP00 Bedienungsanleitung

Whirlpool

Whirlpool ET8MHKXMB01 Bedienungsanleitung

Whirlpool

Whirlpool WRF736SDAF00 Bedienungsanleitung

Whirlpool

Whirlpool WRF560SEHB Leitfaden

Whirlpool

Whirlpool GB9FHDXWQ Montageanleitung

Whirlpool

Whirlpool WNF9 Series Bedienungsanleitung

Whirlpool

Whirlpool WRSA71CIHN Bedienungsanleitung

Whirlpool

Whirlpool REFRIGERATOR Bedienungsanleitung

Whirlpool

Whirlpool ED25DQXDB06 Bedienungsanleitung

Whirlpool

Whirlpool ETl8SC Bedienungsanleitung

Whirlpool

Whirlpool WRS325FDAW Bedienungsanleitung

Whirlpool

Whirlpool ET1NK Bedienungsanleitung

Whirlpool

Whirlpool ET1MHKXM Benutzerhandbuch

Whirlpool

Whirlpool UW6F2CWB Bedienungsanleitung

Whirlpool

Whirlpool WRS342FIAM Bedienungsanleitung

Whirlpool

Whirlpool ETl8EK Bedienungsanleitung

Whirlpool

Whirlpool W9TXNMFWB - Top Freezer Refrigerator Bedienungsanleitung

Whirlpool

Whirlpool ETl8PKXP Bedienungsanleitung

Whirlpool

Whirlpool WHR46TS1E Bedienungsanleitung

Whirlpool

Whirlpool WVE26622 NFW Bedienungsanleitung

Whirlpool

Whirlpool 2314472 Bedienungsanleitung

Whirlpool

Whirlpool ER8AHKXRB00 Bedienungsanleitung

Whirlpool

Whirlpool ED5KVEXVQ - 25' Dispenser Refrigerator Montageanleitung

Whirlpool

Whirlpool 2199009 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
