A Note To You

Thank you for buying an Estate appliance.

You have purchased a quality, worldclass home appliance. Years of engineering experience have gone

into its manufacturing. To ensure that you will enjoy many years of trouble-free operation, we have

developed this Use and Care Guide. It is full of valuable information on how to operate and maintain

your appliance properly and safely. Please read it carefully. Also, please complete and mail the Owner-

ship Registration Card provided with your appliance. This will help us notify you about any new informa-

tion on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these symbols and

follow any instructions given. Here is a brief explanation of the use of each symbol.

This symbol will help alert you to such dangers as

personal injury, burns, fire and electrical shock. This symbol will help you avoid actions which

could cause product damage (scratches, dents,

etc.) and damage to your personal property.

Our Consumer Assistance Center number, l-800-253-1 301,

is toll-free, 24 hours a day.

If you ever have a question concerning your appliance’s operation, or if you need service, first see “If

You Need Assistance Or Service” on page 20. If you need further help, feel free to call our Consumer

Assistance Center. When calling, you will need to know your appliance’s complete model number and

serial number. You can find this information on the model and serial number label (see diagrams on

pages 4 and 5). For your convenience, we have included a handy place below for you to record these

numbers, the purchase date from the sales slip and your dealer’s name and telephone number. Keep

this book and the sales slip together in a safe place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

All manuals and user guides at all-guides.com

Important Safety Instructions

To reduce the risk

fire, electrical shock, or injury when using your

refrigerator, follow these basic precautions:

Read all instructions before using the

refrigerator.

Child entrapment and suffocation are not

problems of the past. Junked or abandoned

refrigerators are still dangerous ... even ti

they will “just sit in the garage a few days.”

If you are getting rid of your old refrigerator,

do it safely. Please read the enclosed safety

booklet from the Association of Home

Appliance Manufacturers. Help prevent

accidents.

Never allow children to operate, play with, or

crawl inside the refrigerator.

Never clean refrigerator parts with flammable

fluids. The fumes can create

fire hazard or

explosion.

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND LIQUIDS

IN THE VICINITY OF THIS OR ANY OTHER

APPLIANCE. THE FUMES CAN CREATE A

FIRE HAZARD OR EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

Install and level the refrigerator on a floor that

will hold the weight and in an area suitable for

its size and use.

Do not install the refrigerator near an oven,

radiator or other heat source.

Do not install the refrigerator in an area where

the room temperature will fall below 55°F

(13%).

Keep the refrigerator out of the weather.

Connect the refrigerator only to the proper kind

of outlet, with the correct electrical supply and

grounding. (Refer to the Electrical Require-

ments and Grounding Instructions Sheet.)

Do not load the refrigerator with food before it

has time to get properly cold.

Use the refrigerator only for the uses described

in this manual.

Properly maintain the refrigerator.

Be sure the refrigerator is not used by anyone

unable to operate it properly.

Also, remove tape and any inside labels (except

the model and serial number label) before using

the refrigerator.

To remove any remaining glue:

Rub briskly with thumb to make a ball, then

remove.

Soak area with liquid hand dishwashing

detergent before removing glue as described

above. Do not use sharp instruments, rubbing

alcohol, flammable fluids or abrasive cleaners.

These can damage the material. See “lmpor-

tant Safety Instructions” above.

NOTE:

Do not remove any permanent instruction

labels inside your refrigerator. Do not remove the

Tech Sheet fastened under the refrigerator at the

front.

All manuals and user guides at all-guides.com

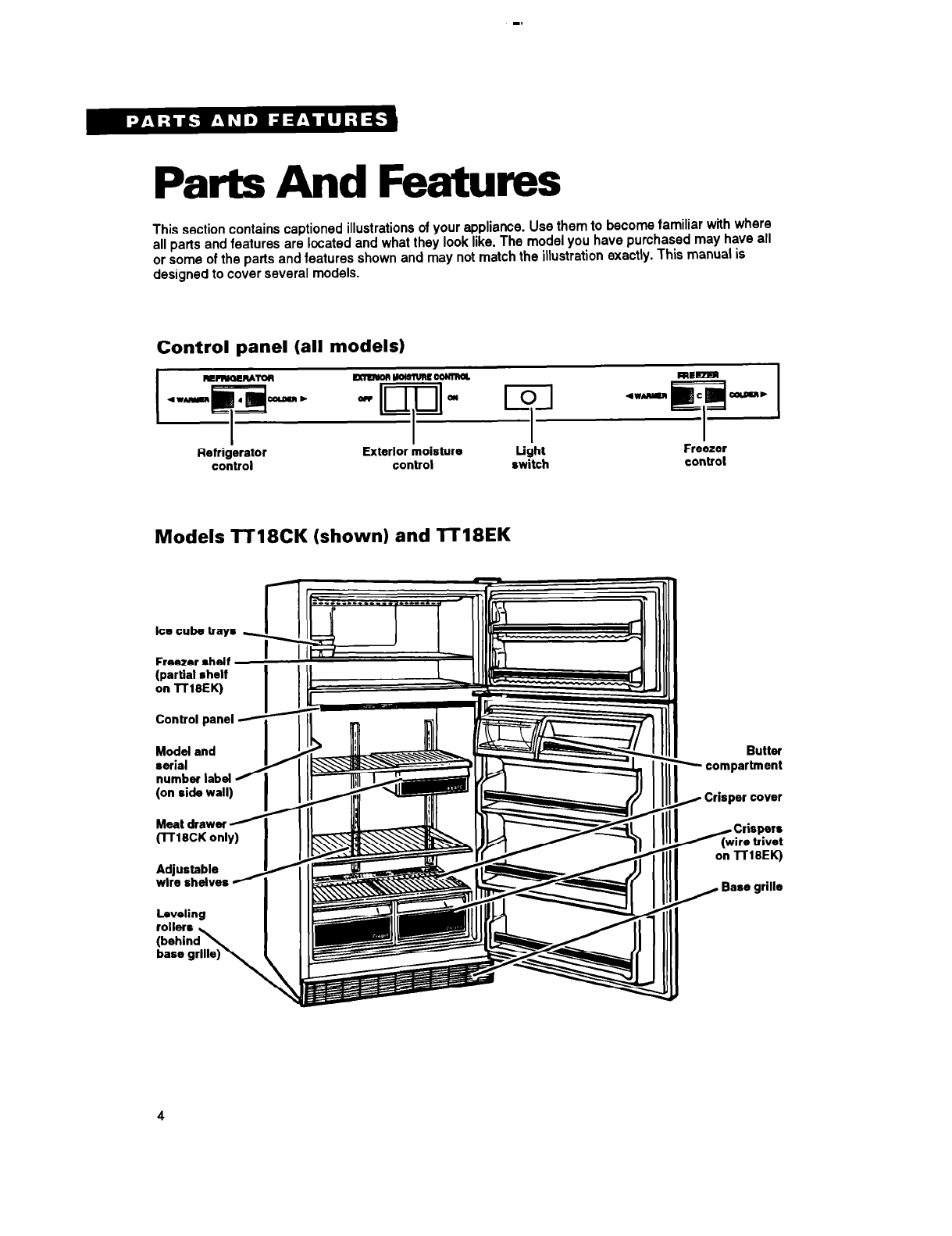

Parts And Features

This section contains captioned illustrations of your appliance. Use them to become familiar with where

all parts and features are located and what they look like. The model you have purchased may have all

or some of the parts and features shown and may not match the illustration exactly. This manual is

designed to cover several models.

Control panel (all models)

Refrigerator

control Exterior moisture

control Light

switch control

Models TT18CK (shown) and lT18EK

Model and

JJ III

Butter

- compartment

) Crisper cover

Base grille

All manuals and user guides at all-guides.com

Models TTZOAK (shown) and lT2OBK

Ice cube tray8 -

Freezer shelf -

Control panel -

Model and

8erial

number label H

(on side wall)

Meat drawer H

Adjustable

shelves -

(glass on

lT2OAK, wire

on TTPOBK)

Leveling

Butter

_ compartment

Utility

- compartment

c Crisper cover

/ Crispers

, Base grille

All manuals and user guides at all-guides.com

Before Using Your

Refrigerator

In This Section Page Page

Clean it .................................................................6 Install it properly ..............................................6

Plug it in ..............................................................6 Level it ..............................................................7

It is important to prepare your refrigerator for use. This section will tell you how to clean it, connect it to

a power source, install it and level it.

Clean it

Clean your refrigerator before using it, if neces-

sary. See cleaning instructions on page 15.

Plug it in

Recommended Grounding Method

115

Volt, 60 Hz., AC only 15 or 20 ampere

fused and properly grounded electrical supply is

required. It is recommended that a separate

circuit sewing only this appliance be provided.

Use a receptacle which cannot be turned off with

a switch or pull chain. Do not use an extension

cord.

See Electrical Requirements and Grounding

Instructions Sheet in your Literature Package.

Install it properly

Allow lh inch (1.25 cm) space on each side

and at the top of the refrigerator for ease of

installation.

2. If the hinge side of the refrigerator is to be

against a wall, you might want to leave extra

space so the door can be opened wider.

3. The refrigerator can be flush against the wall.

4. If your refrigerator has an automatic ice

maker, hook up the ice maker water supply.

(See Installation Instructions.)

&prong grounding

type wall receptacle,

Refrigerator

power cord

grounding plug

All manuals and user guides at all-guides.com

all-guides.com

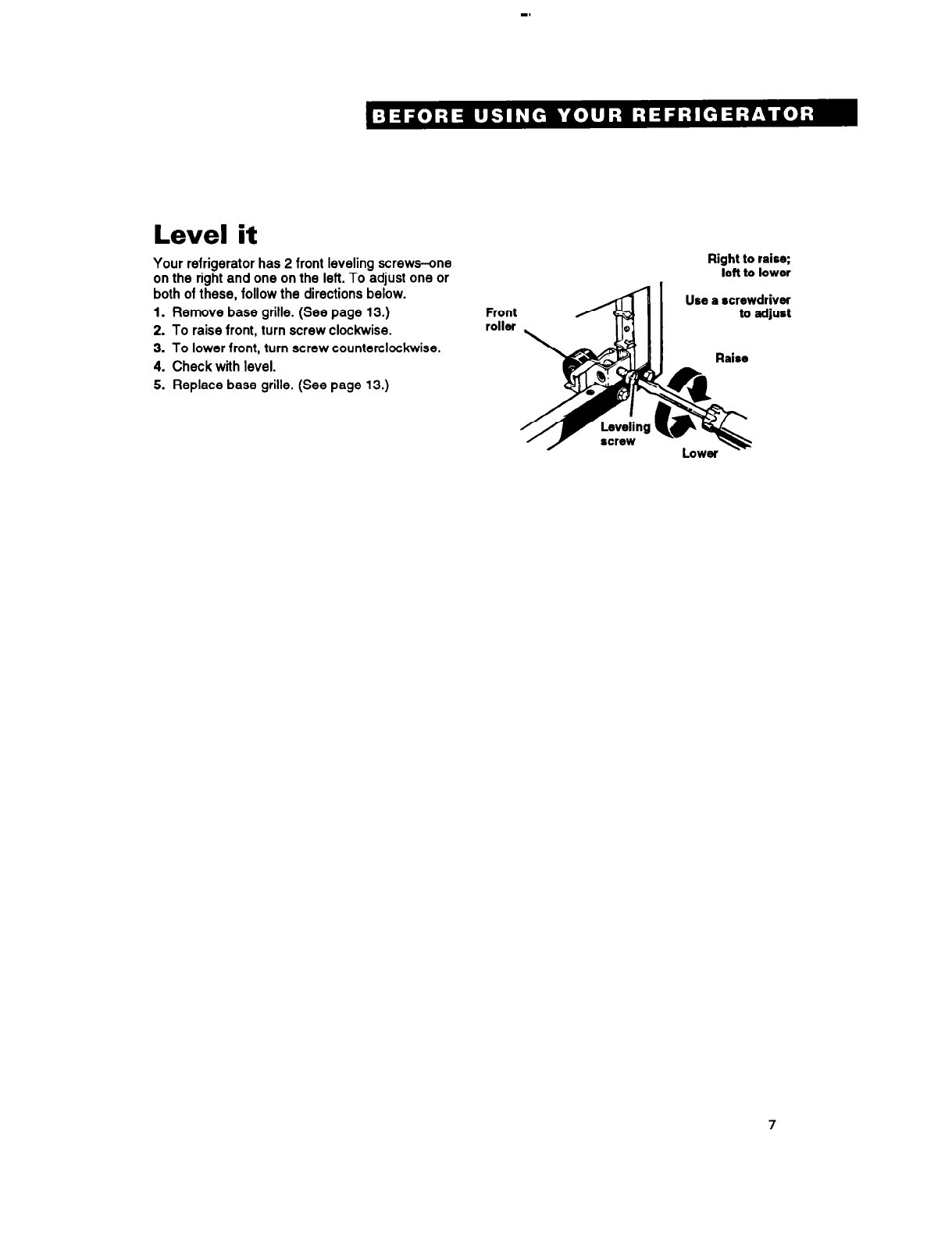

Level it

Your refrigerator has 2 front leveling screws-one

on the right and one on the left. To adjust one or

both of these, follow the directions below.

Remove base grille. (See page 13.)

2. To raise front, turn screw clockwise.

3. To lower front, turn screw counterclockwise.

Check with level.

5. Replace base grille. (See page

13.)

Right to raire;

left to lower

Front

roller

Use a rcrewdriver

All manuals and user guides at all-guides.com

Using Your Refrigerator

In This Section

Setting the control6 ............................................ 9 Using the ice cube tray6 ................................ 12

Changing the control retting6.. ........................ .9 U6ing the optional automatic ice maker.. ....12

Adju6ting the refrigerator 6helve6 ................... .9 Changing the light bulb6 ............................... 13

Removing the meat drawer and cover.. ......... .10 Removing the ba6e grille .............................. 13

Removing the crisper6 and crisper cover..

....11

Reversing the door rwing ............................. 14

Removing the trivet and cover ....................... .ll Understanding the 6ound6 you may hear .

..i 4

Removing the freezer 6helf .............................. 12 Saving energy ................................................ 14

In order to obtain the best possible resufts from your refrigerator, it is important that you operate it

properly. This section will tell you how to do just that.

Setting the controls

Temperature controls

Controls for the refrigerator and freezer are in the

refrigerator. When the refrigerator is plugged in

for the first time:

Set the Refrigerator Control to 4.

Refrigerator Control adjustments range from

1 (warmest) to 8 (coldest).

2. Set the Freezer Control to C.

Freezer Control adjustments range from

A (coldest) to D (warmest).

3. Give the refrigerator time to cool down

completely before adding food. This may take

several hours.

The settings indicated above should be

correct for normal, household refrigerator

usage. The controls will be set correctly when

milk or juice is as cold as you like and when

ice cream is firm. If you need to adjust these

settings, see “Changing the control settings”

on page 9.

Exterior moisture control

The Exterior Moisture Control operates electric

heaters around the door openings. These heaters

help keep moisture from forming on the outside

of the refrigerator cabinet.

1. Use the OFF setting when humidly is low.

2. Use the ON setting if moisture forms on the

outside of the refrigerator cabinet.

REFRIGERATOR

4 WARMER COLDER b

FREEZER

4 WARMER COLDER F

I I 1 I

EXTERIORMOISTURECONTROL

OFF ON

All manuals and user guides at all-guides.com

Changing the control settings

If you need to adjust temperatures in refrigerator

or freezer, use the settings listed in the chart

below as a guide. If you have questions, call our

Consumer Assistance Center number. (See

page 21.)

Adjust the Refrigerator Control first.

Wait at least 24 hours between adjustments.

Then adjust the Freezer Control if needed.

CONDITION:

If Refrigerator

Section is

TOO WARM

If Freezer

Section is

TOO WARM

If Refrigerator

Section is

TOO COLD

REASON:

Door opened often

Large amount of food added

Room temperature too warm

Door opened often

Large amount of food added

Very cold room temperature

(can’t cycle often enough)

Controls not set correctly

for your conditions

RECOMMENDED

CONTROL SETTINGS:

Refrigerator 6

Freezer D

Refrigerator

Freezer :

Refrigerator 2

Freezer A

If ICE isn’t

MADE FAST

ENOUGH

Heavy ice usage

Very cold room temperature

(can’t cycle often enough)

Refrigerator

Freezer ii

Door opened often

Large amount of food added

Very warm or very cold room

temperatures

Refrigerator

Freezer E

Adjusting the refrigerator shelves

Shelves can be adjusted to match the way you

use your refrigerator. Glass and wire shelves are

strong enough to hold bottles, milk and other

heavy food items.

remove shelves:

Remove items from shelf.

2. Tilt shelf up at front.

3. Lii back of shelf.

4. Pull shelf straight out.

replace shelves:

Guide the rear shelf hooks into the slots in the

shelf supports on cabinet wall.

Gla66 shelves are heavy.

Handle them with care.

2. Tilt shelf up at front until hooks drop into slots.

Lower front of shelf to level position.

All manuals and user guides at all-guides.com

Removing the meat drawer and cover

Models TTZOAK and lT2OBK

To remove the meat drawer:

Slide meat drawer out to the stop.

2. Lift front of meat drawer.

3. Slide meat drawer out the rest of the way.

4. Replace in reverse order.

To remove the cover:

Tilt front of cover up.

2. Lift back of cover.

3. Pull cover straight out.

4. Replace cover in reverse order.

Model TTlSCK

The meat drawer and cover can be removed for

cleaning or moved to another shelf, if desired.

Remove the meat drawer first.

To remove the meat drawer:

Slide the drawer straight out to the stop.

2. Lift the front.

3. Slide drawer out the rest of the way.

4. Replace in reverse order.

To remove the cover:

Remove the meat drawer.

2. Tilt front of cover up.

3. Pull cover up and out.

To replace the cover:

Fit bottom notches of cover over rear and

center cross bars of shelf.

2. Lower cover into place.

3. Replace the meat drawer.

Pull out to the rtop, lift

the front and pull again.

Lift the front

then the back.

the front and pull again.

All manuals and user guides at all-guides.com

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Kühlschrank Handbücher

Whirlpool

Whirlpool Gold GD5VVAXTY Bedienungsanleitung

Whirlpool

Whirlpool 6WRI 24 Bedienungsanleitung

Whirlpool

Whirlpool WRS537SIAW Bedienungsanleitung

Whirlpool

Whirlpool ET18GK Bedienungsanleitung

Whirlpool

Whirlpool W10325088A Bedienungsanleitung

Whirlpool

Whirlpool TS22AQXGN00 Montageanleitung

Whirlpool

Whirlpool ET8WTKXVB00 Bedienungsanleitung

Whirlpool

Whirlpool Gold GB2SHDXP Gebrauchsanweisung

Whirlpool

Whirlpool W10297006B Bedienungsanleitung

Whirlpool

Whirlpool ROPER RS22AQXKQ00 Bedienungsanleitung

Whirlpool

Whirlpool REFRIGERATOR Bedienungsanleitung

Whirlpool

Whirlpool WF-L200V Bedienungsanleitung

Whirlpool

Whirlpool ADN 213 Bedienungsanleitung

Whirlpool

Whirlpool WAR488BSL Bedienungsanleitung

Whirlpool

Whirlpool WF1D061RXG Series Bedienungsanleitung

Whirlpool

Whirlpool ED5KVEXVB - 25CF Texture Dr Plastic HANDLMECHANICAL... Montageanleitung

Whirlpool

Whirlpool SIDE BY SIDE REFRIGERATOR Bedienungsanleitung

Whirlpool

Whirlpool ET18NKXSW08 Bedienungsanleitung

Whirlpool

Whirlpool G32026PEKS5 Bedienungsanleitung

Whirlpool

Whirlpool T2WG2 Bedienungsanleitung

Whirlpool

Whirlpool GC3SHEXNS - 23 cu. ft Bedienungsanleitung

Whirlpool

Whirlpool TT14DKXBN11 Bedienungsanleitung

Whirlpool

Whirlpool NO-FROST TOP FREEZER REFRIGERATOR Bedienungsanleitung

Whirlpool

Whirlpool 2225408 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
