R E F R I G E R AT O R

USER'S

OPERATION

MANUAL

Model

WRO34U*

IMPORTANT: Before installing and operating the unit, please read,

understand and follow the Warnings and Instructions. Retain for future

reference.

TABLE OF CONTENTS

1. Description of your Whirlpool Refrigerator.........................................3

2. Warning and Safety Precautions.......................................................5

3. Getting Started..................................................................................7

4. Operating your Whirlpool Refrigerator...............................................8

5. Care and Maintenance......................................................................9

6. Food Storage Tips........................................................................... 11

7. Trouble shooting.............................................................................. 12

8. Reversing the door.......................................................................... 13

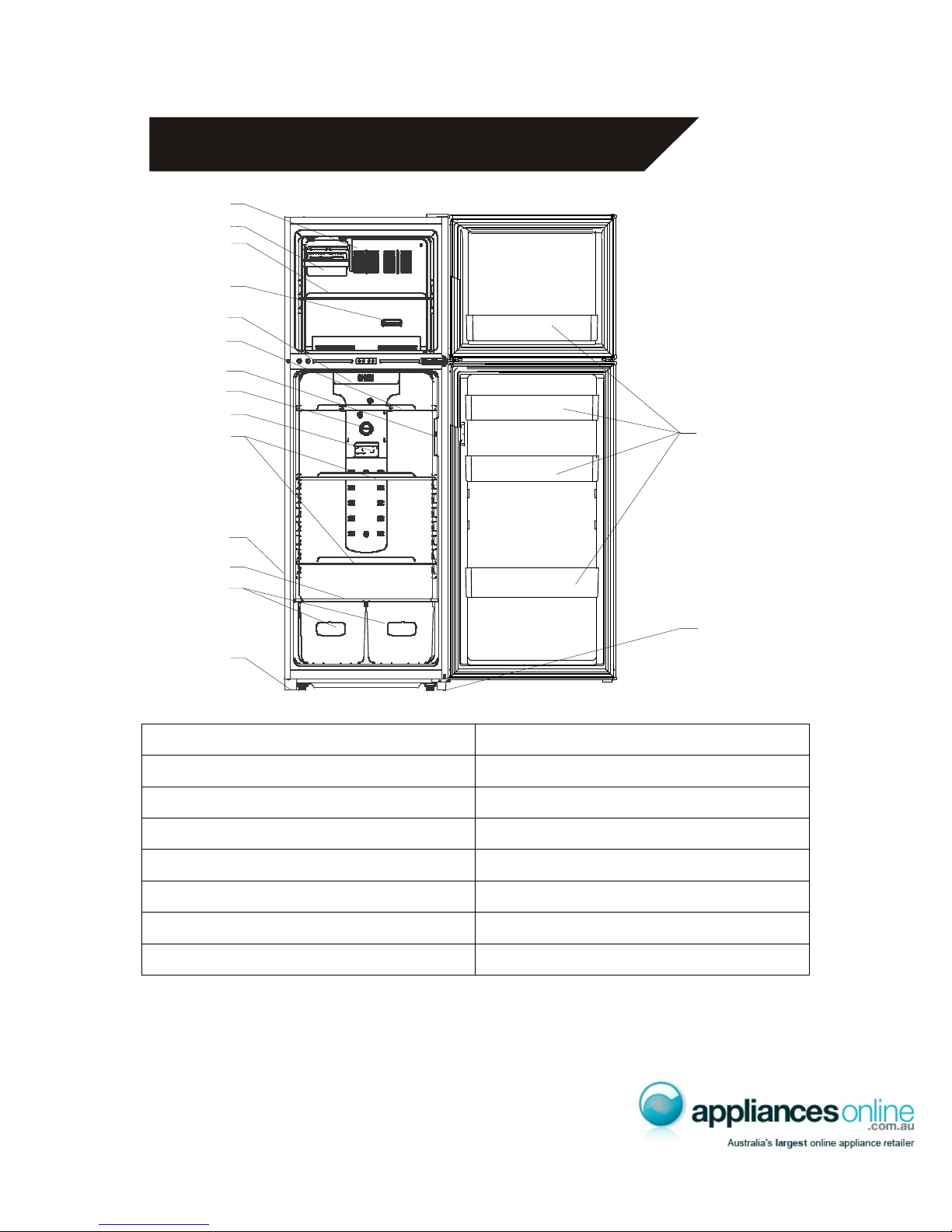

1. Description of your Whirlpool Refrigerator

1. Air Flow Cover 9. Lamp Cover

2. Ice Tray 10. Refrigerator Shelf B

3. Freezer Shelf 11. Side Plate

4. Freezer Temperature Controller 12. Crisper Cover

5. Controller 13. Crisper

6. Refrigerator Shelf A 14. Front Levelling Foot

7. Door Light Switch 15. Door Shelf

8. Temperature Adjustment Control 16. Front Levelling Foot

Note: Due to constant development, your refrigerator may be slightly different from the model illustrated in this

Instruction Manual. Please note the Instructions remain the same

Your Whirlpool refrigerator has two special storage zones. Each one separately balanced at the correct

temperature for a specific function.

1. Door Shelves: There are three adjustable shelves suitable for the storage of eggs, bottled liquids, packaged

food, etc. Please lift the shelves vertically to remove.

2. Adjustable shelves: There are three adjustable shelves in the refrigerator compartment. The shelves can

be easily taken out to be cleaned.

3. Vegetable Crispers: There are two crispers in the refrigeration chamber. Each vegetable crisper is

suitable for the storage of fruits and vegetables.

4. Freezer Compartment: The freezer compartment is suitable for freezing and storing frozen foods.

2. Warning and Safety Precautions

Important: Please read, understand and follow the Instructions and Warnings.

Retain for future reference.

Your safety and the safety of others is very important.

We have provided many important Safety Warnings in this manual and on the appliance. Always read and

follow all Safety Warnings.

This is a Safety Alert Symbol.

This symbol alerts you to hazards that can be fatal or hurt you and others.

All safety messages will be preceded by the safety alert symbol and the word

“DANGER” or “WARNING”.

These words mean:

You will be killed or seriously injured if you do not follow instructions

You can be killed or seriously injured if you do not follow instructions

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell

you what can happen if the instructions are not followed.

Appliance Safety

R600a Refrigerant Warning

•This appliance contains a small quantity of R600a refrigerant which is environmentally

friendly, but flammable. It does not damage the ozone layer, nor does it increase the

greenhouse effect.

•During transportation and installation, ensure that the tubing of the refrigerant circuit is not

damaged.

•Leaking refrigerant can ignite and may damage the eyes.

•In the event any damage does occur, avoid exposure to open fires and any device which

creates a spark. Disconnect the appliance from the mains power.

•Thoroughly ventilate the room in which the appliance is located for several minutes.

•Notify Whirlpool Customer Service for necessary action and advice.

•The room for installing the appliance must be at least 1 cubic metre per 8 grams of

refrigerant. The refrigerant quantity contained in this appliance is 45 grams; it is also noted

on the Rating Plate of the appliance.

•It is hazardous for anyone other than an Authorised Service Person holding a Gas

Work Authorisation for hydrocarbon refrigerants, to carry out Servicing or repairs

which involve the removal of covers.

WARNING:

•This appliance must be earthed.

•Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of

obstruction.

•Do not use mechanical devices or other means to accelerate the defrosting process, other

than those recommended by the manufacturer.

•Do not damage the refrigerant circuit.

•Do not use electrical appliances inside the food storage compartments of the appliance,

unless they are of the type recommended by the manufacturer.

•This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a person responsible for

their safety.

•Children should be supervised to ensure that they do not play with the appliance.

WARNING:

•Do not store explosive material in the appliance or any other products containing

propellants such as spray cans, explosive liquids or flammable liquids. During

operation, thermostats produce sparks which could pose a fire hazard, as flammable

liquids could cause an explosion.

•Do not use any electrical equipment within the appliance, such as ice cream makers,

due to the danger of sparking and explosion.

•Do not use sharp edged objects to remove ice and frost, separate frozen food within the

appliance, which could cause damage to the evaporator and cause serious damage to

the appliance.

•Do not use defrosting sprays as they could contain harmful substances which could

react and damage plastic parts.

•Do not use steam cleaning devices to clean. Pressurised steam vapour could enter

electrical components, causing a short circuit.

Disposal of your appliance

•Disconnect the appliance from the mains power.

•Cut the power cable at the point where it exits the refrigerator and destroy the plug or render

it unusable to prevent misuse and not pose a hazard.

•Remove the doors and the shelves so that children cannot easily climb inside, as they can

get trapped and suffocate.

•Ensure that the appliance does not present any danger to children while being stored

temporarily for disposal.

•Before and during transportation for disposal, ensure that the tubing of the refrigerant circuit

is not damaged.

•Leaking refrigerant can damage the eyes.

•This appliance contains insulation formed with flammable blowing gases. Avoid any safety

hazards by following appropriate disposal procedures noted above.

•Ensure that the appliance is disposed of as per the appropriate local guidelines for

appliances containing hydrocarbon refrigerants.

Note: The manufacturer is not responsible for any damage caused by non-compliance with

the Warning and Safety Instructions.

3. Getting Started

Getting Started

Installation

•Unpack your refrigerator and select a dry well ventilated location close to an electrical point.

•Allow sufficient clearance for dissipation of heat, a minimum of 50 mm at the back and 30

mm on the sides and top.

•Keep the refrigerator away from direct sunlight and other high temperature sources like an

oven and a cooking range. Avoid damp, exposed locations.

•Ensure that the electrical point is properly earthed. Do not use extension cords.

•Ensure that the power cable is not damaged during installation.

•Power cable modification or replacement must only be carried out by qualified personnel.

•Do not damage the tubing of the refrigerant circuit.

•Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of

obstruction. Regularly keep the openings clean.

•Avoid carpeted areas. A stable installation minimizes noise and prevents tilting.

•Shift the refrigerator into place by raising the front slightly and sliding it on the rear castors.

•Rotate the two levelling feet, provided below your refrigerator at the front corners,

clockwise/anticlockwise to raise/lower the front. The front should be slightly raised above

the rear – so that the door shuts gently when left open.

Getting Connected

•The refrigerator is only suitable for single-phase alternating current of 220-240V, (50±1) Hz.

•Do not extend or fold the power cord. Keep the power cord away from the compressor.

•Set the temperature controls in the refrigerator and freezer sections.

•Run the refrigerator for 5 to 6 hours, to enable it to cool sufficiently before loading food inside.

Warning

To avoid the risk of children becoming trapped and suffocating, do not allow them to play or hide

inside the appliance.

4. Operating your Whirlpool Refrigerator

Adjusting the temperature within the refrigerator compartment

The temperature regulator controls the thermostat of your refrigerator. A control knob is provided in

the refrigerator section. Adjust the knob according to the room temperature, frequency of door

opening and storage load. A gentle turn to the left or right enables you to change the temperature

of your refrigerator.

Adjusting the temperature within the freezer compartment

The temperature regulator allows you to regulate the temperature inside the Freezer. A slider control

is provided in the freezer section. Adjust the slider according to the room temperature, frequency

of door opening and storage load. Sliding the slider enables you to change the temperature of the

freezer.

MAX MIN

Caution:

•Do not keep hot (more than 60 °C) or heavy (more than 10 kg) objects on top of the

refrigerator.

•Do not keep lit candles on top of the refrigerator as this can cause a fire.

•Do not chill liquids and carbonated drinks in glass containers in the freezer compartment or

they will freeze and burst.

•Do not keep glass bottles in the freezer for too long or they will freeze and burst.

•Check local voltage before installation.

Ice tray

•Your Whirlpool refrigerator comes with a twist ice function.

•To make ice, pour water into the ice tray until it is 4/5 full.

•Place ice trays in the ice making chamber for a minimum of 2 hours.

•To use twist ice function, simply twist the ice tray.

5. Care and Maintenance

Cleaning your Whirlpool Refrigerator

•Before cleaning, always switch-off the power supply and remove the plug from the

socket.

•Remove all food items from the refrigerator.

•Do not remove all the shelves at the same time to prevent children from easily climbing

inside. The same care should be followed when going on vacation.

•To remove refrigerator shelves, gently push the rear of the shelf upwards and then pull out.

•Remove the refrigerator and the freezer door bins by pushing upwards and pulling out.

•Hold the vegetable crisper using the handle, raise the front slightly and pull out.

•Use a soft cloth and mild detergent to clean the refrigerator thoroughly. Take care not to

damage the door seals.

•Allow the refrigerator time to dry, by leaving the door open for some time.

•Dry the parts and place them back in the refrigerator.

•Plug the power cord in and switch the mains on. Allow the refrigerator time to cool before

placing food inside.

•Keep the surrounding area around the appliance clean to prevent cockroaches or other

insects from entering the appliance. Damage caused by cockroaches or other insects

will not be covered by the Warranty.

Caution

•Do not splash water directly on the refrigerator.

•Do not work with flammable sprays or solvent based cleaners. The fumes could cause

fires or explosions.

•Be sure to check the voltage before inserting the power supply cord into the socket.

•Be sure not to re-insert the power supply socket within 5 minutes of removing it from the

socket.

•Ensure that water does not get into the light bulb socket or other electrical components of

your refrigerator.

•Do not allow water to collect at the bottom of the refrigerator.

•Do not store volatile chemicals such as ether and benzene in the refrigerator. The fumes,

besides damaging food, can build up and cause an explosion.

Going on vacation

Short vacation

During an average short length vacation, it is usually best to leave the refrigerator and freezer

in regular operation.

Long vacation

For a vacation of extended duration, perform the following steps:

•

Remove all food items from the refrigerator and freezer.

•

Switch-off the mains and disconnect the power cord from the socket.

•

Use a soft, damp cloth to wipe the refrigerator clean from the inside and outside.

•

Leave both doors open to prevent odours.

•

Do not allow children to play or hide inside the appliance due to the risk of them becoming

trapped and suffocating.

Moving your refrigerator

•Switch-off the mains and disconnect the power cord from the socket.

•Remove all food items from the refrigerator and freezer.

•Use a soft, damp cloth to wipe the refrigerator from the inside and outside.

•Fasten the doors and interior components by using tape to prevent them from moving or

opening during transportation.

•Lift the refrigerator slightly from the front and slide using the castors at the rear.

Changing the light bulb

•Before removing the light bulb, disconnect the refrigerator at the main power supply.

Failure to do so could result in electric shock or serious injury.

•Use a Phillips head screwdriver to remove the screw of the light cover. Remove the light

cover by gently pushing upwards.

•Unscrew the bulb.

•Replace the bulb with a 10 Watt-refrigerator bulb that is of the same shape and size.

•Replace the light cover and refit the screw.

Inhaltsverzeichnis

Andere Whirlpool Kühlschrank Handbücher

Whirlpool

Whirlpool G2IXEFMW - 2-20-09 Gebrauchsanweisung

Whirlpool

Whirlpool ET22MT Bedienungsanleitung

Whirlpool

Whirlpool ET20MK Bedienungsanleitung

Whirlpool

Whirlpool NO-FROST TOP FREEZER REFRIGERATOR Bedienungsanleitung

Whirlpool

Whirlpool ET8CHMXKQ04 Bedienungsanleitung

Whirlpool

Whirlpool ART 841/G Bedienungsanleitung

Whirlpool

Whirlpool GC5SHGXKB00 Bedienungsanleitung

Whirlpool

Whirlpool YET18TKXJW00 Bedienungsanleitung

Whirlpool

Whirlpool ARC 4360 IX Bedienungsanleitung

Whirlpool

Whirlpool EB2SHKXVQ03 Bedienungsanleitung

Whirlpool

Whirlpool Bottom Mount Refrigerator Bedienungsanleitung

Whirlpool

Whirlpool GB2FHDXWB Montageanleitung

Whirlpool

Whirlpool 3955884-W Gebrauchs- und Wartungshandbuch

Whirlpool

Whirlpool ER2MHKXPB06 Bedienungsanleitung

Whirlpool

Whirlpool Gold GSS30C6EY Bedienungsanleitung

Whirlpool

Whirlpool ED22DF Bedienungsanleitung

Whirlpool

Whirlpool WBA34983 DFC W Betriebsanleitung

Whirlpool

Whirlpool 2252895-D-WH Gebrauchsanweisung

Whirlpool

Whirlpool GB2FHDXW - 7-27-09 Bedienungsanleitung

Whirlpool

Whirlpool WBE 34162 TS Bedienungsanleitung

Whirlpool

Whirlpool GSS30C6EYB Montageanleitung

Whirlpool

Whirlpool WAR488BSL Bedienungsanleitung

Whirlpool

Whirlpool ED5FVGXSS02 Bedienungsanleitung

Whirlpool

Whirlpool ET16AK Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
