Whirlpool Cabrio WTW6200S Handbuch

®Automatic Washer

PRODUCT MODEL NUMBERS

DRAIN SYSTEM OPTIONS

WTW6200S

WTW6300S

Electrical: 120-volt, 60 Hz, AC-only,

15- or 20-amp electrical supply. A time-delay fuse

or circuit breaker and separate circuit is

recommended.

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. 8566930

06-26-06

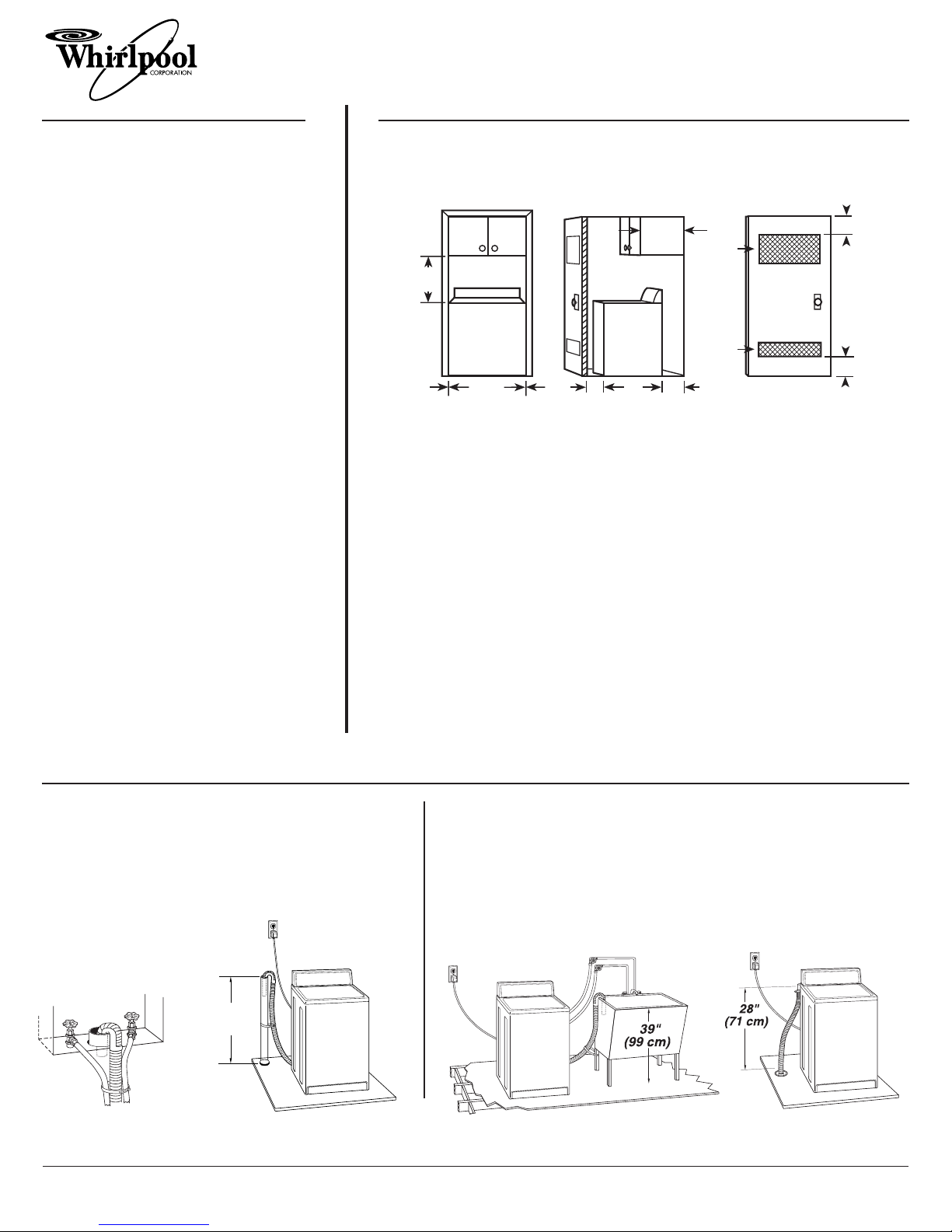

RECESSED AREA AND CLOSET INSTALLATION

For closet installation, with a door, the minimum ventilation openings in the top and

bottom of the door are required (view 2). Louvered doors with equivalent air ventilation

openings in the top and bottom are acceptable.

Standpipe drain system - wall or floor (view 1 & 2)

The standpipe drain requires a minimum diameter standpipe of

2" (5 cm). The minimum carry-away capacity can be no less

than 17 gal. (64 L) per minute.

The top of the standpipe must be at least 39" (99 cm) high and

no higher than 96" (244 cm) from the bottom of the washer.

Laundry tub drain system (view 1)

The laundry tub needs a minimum

20 gal. (76 L) capacity. The top of the

laundry tub must be at least 39" (99 cm)

above the floor and no higher than

96" (244 cm) from the bottom of the

washer.

Floor drain system (view 2)

The floor drain system requires a siphon

break that may be purchased separately.

The siphon break must be a minimum of

28" (71 cm) from the bottom of the

washer. Additional hoses might be

needed.

39"

(99 cm)

Front view Side view Closet door with vents

12 3

17"

(43.2 cm)

(2.5 cm)

27-1/2"

(69.9 cm)

(2.5 cm)

27"

(68.6 cm)

(12.7 cm)

14" max.

(35.6 cm) 48"2

(310 cm2)

24"2

(155 cm2)

(7.6 cm)
