Whirlpool GSQ9612KQ0 Bedienungsanleitung

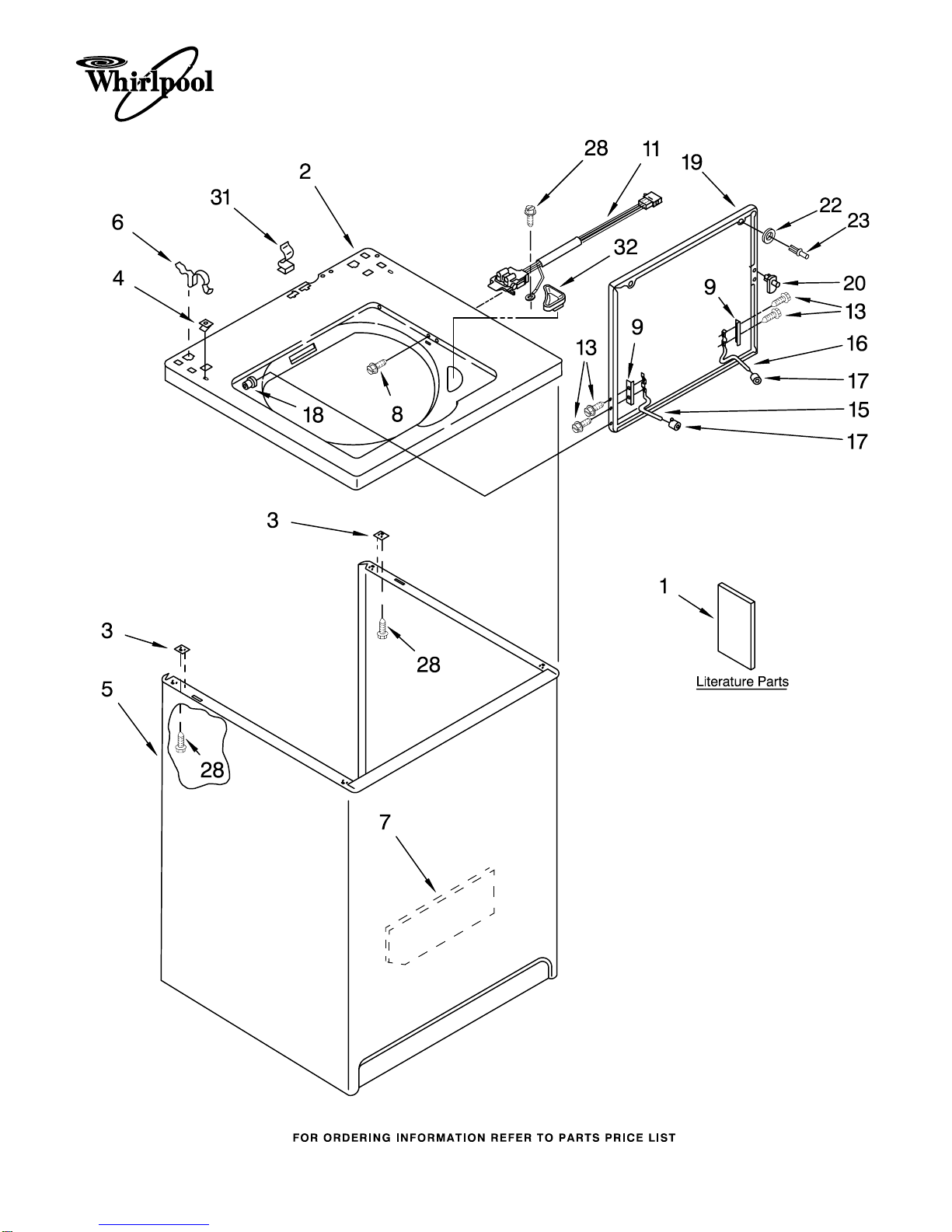

TOP AND CABINET PARTS

For Models: GSQ9612KQ0, GSQ9612KT0

(Designer White) (Biscuit)

3−01 Litho in U.S.A.(djc) Part No. 8179614

AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Models: GSQ9612KQ0, GSQ9612KT0

(Designer White) (Biscuit)

8179614

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

Installation

Instructions

LIT3952817

English

LIT3951578

French

Use & Care Guide

LIT3955154

English

LIT3954820

French

LIT3954543

Energy Guide

LIT3954723

Wiring Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT4313896

Manual, Washer

2 Top

8271383 White

8271385 Biscuit

3 62750 Spacer, Cabinet To

Top (4)

4 357213 Nut, Push−In (2)

5 Cabinet

63424 White

3954357 Biscuit

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

7 3349654 Cabinet−Sound

Damper

8 3356311 Screw & Washer,

Lid Switch (2)

9 21097 Pad, Hinge

11 3949237 Switch, Lid

13 3351355 Screw, Lid Hinge

Mounting (4)

15 54584 Hinge, Lid (L.H.)

16 91770 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid

Hinge (2)

19 Lid

3362335 White

3362336 Biscuit

20 358684 Strike, Lid Switch

22 3360787 Bumper, Lid (2)

23 356907 Rivet, Plastic

28 3390631 Screw, 10−16 x 3/8

31 90016 Clip, Harness

32 3362952 Dispenser, Bleach

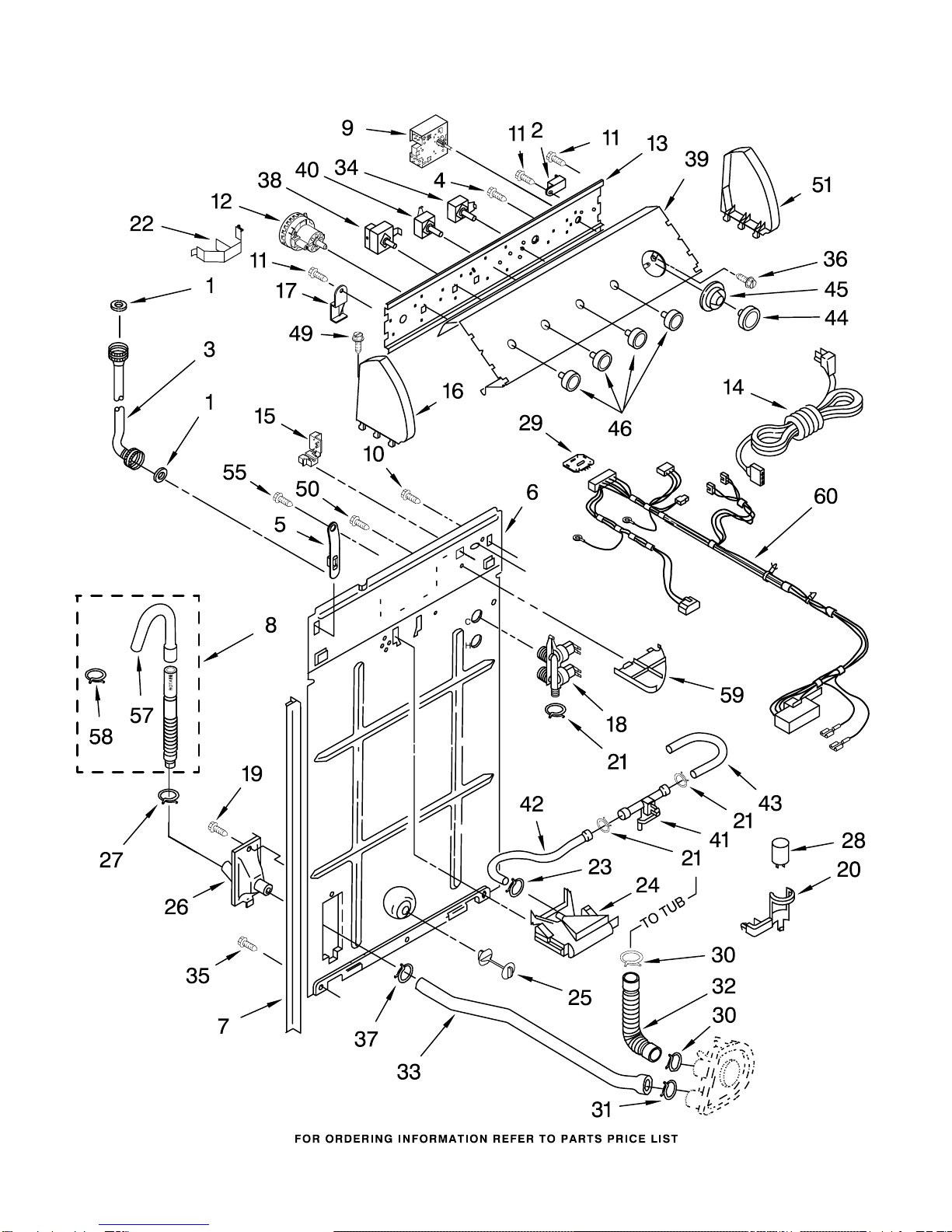

CONTROLS AND REAR PANEL PARTS

For Models: GSQ9612KQ0, GSQ9612KT0

(Designer White) (Biscuit)

8179614

CONTROLS AND REAR PANEL PARTS

For Models: GSQ9612KQ0, GSQ9612KT0

(Designer White) (Biscuit)

8179614

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3976300 Washer, Water

Inlet Hose (4)

(1−1/16 x 5/8)

2 694419 Mini, Buzzer

3 Hose, Water

Inlet (2)

3949368 Blue Coupler

3949369 Red Coupler

4 3400073 Screw, Ground

5 8318255 Strap, Console (2)

6 8528062 Panel, Rear

7 62747 Pad, Rear Panel

8 3951609 Hose, Drain

(4 ft.)

661577 Hose, Drain

(9 ft.)

(Not Included)

3357090 Extension

Drain Hose

(21 Inches)

(Not Included)

9 3954071 Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

10 3351614 Screw, 10−24 x 3/8

11 90767 Screw, 8−18 x 3/8

12 3366845 Switch,

Water Level

13 3948608 Bracket, Control

14 3948063 Cord, Power

15 3952821 Strain Relief,

Power Cord

16 Cap, End (L.H.)

8271365 White

8271368 Biscuit

17 8283343 Retainer, Harness

18 3952164 Valve, Water

Mixing

19 90864 Screw, 10−24 x 1/2

20 8318201 Clip, Capacitor

21 370451 Clamp, Hose

22 8055003 Clip, Harness

& Pressure Hose

23 371503 Clamp, Hose

24 387606 Break, Vacuum

25 8519200 Support, Rear

Panel

26 3361809 Connector−Drain

Hose

27 3366912 Clamp, Hose

28 661605 Capacitor,

Motor Start

29 3407125 Control, ETC

30 3363366 Clamp, Hose

31 371507 Clamp, Hose

32 3951449 Hose, Pump To Tub

(Includes #30)

33 3359816 Hose, Pump To

Drain, Connector

34 661613 Switch, Rotary

35 62863 Screw, 10−16 x 3/8

36 3400064 Screw, Timer

Mounting (2)

37 356138 Clamp, Hose

38 3950358 Switch,

Temperature

39 Panel, Console

3955365 White

3955366 Biscuit

40 661613 Switch, Rotary

41 3352282 Sensor, ETC−Inline

42 3349365 Hose, Sensor

Upper

43 3357319 Hose, Vacuum

Break

44 Knob, Timer

8274290 White

8274293 Biscuit

45 Dial, Timer

8271351 White

8271370 Biscuit

46 Knob, Control (4)

8271339 White

8271348 Biscuit

49 388326 Screw,

8−18 x 1 1/4

50 9740848 Screw, 8−18 x 1/2

51 Cap, End (R.H.)

8271359 White

8271362 Biscuit

55 3390647 Screw, 8−18 x 1/2

57 3357027 Nozzle, Hose

Drain

58 3366913 Clamp, Drain

Hose

59 3348424 Shield, Suds

60 3955197 Harness, Wiring

(For Detail See

Pages 9 & 10)

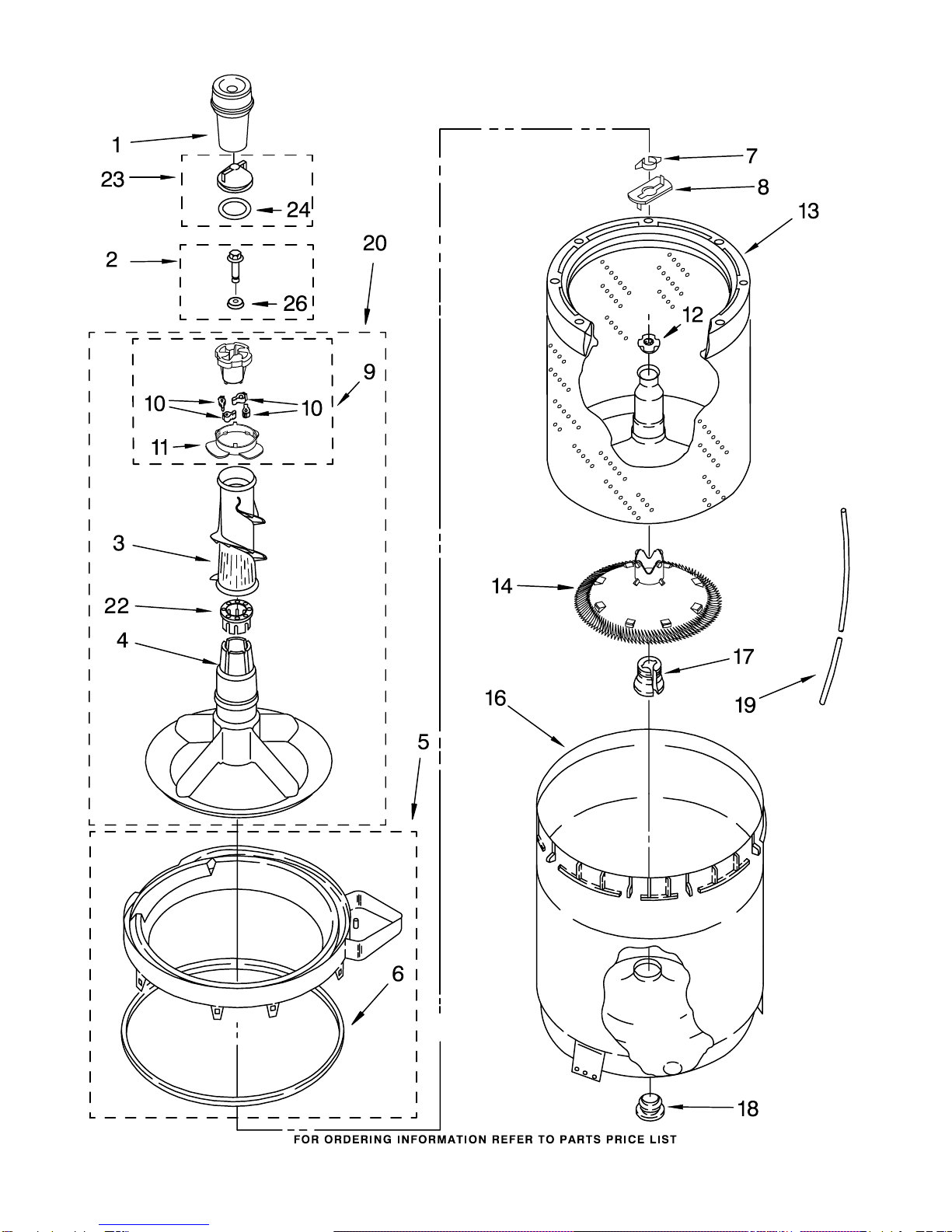

AGITATOR, BASKET AND TUB PARTS

For Models: GSQ9612KQ0, GSQ9612KT0

(Designer White) (Biscuit)

8179614

AGITATOR, BASKET AND TUB PARTS

For Models: GSQ9612KQ0, GSQ9612KT0

(Designer White) (Biscuit)

8179614

Illus. Part

No. No. DESCRIPTION

1 63580 Dispenser

2 358237 Screw & Washer

(5/16−24 x 1)

3 3363003 Clothes Mover

4 3951632 Agitator

5 63851 Tub Ring & Gasket

6 3359585 Seal, Tub Ring

7 3354845 Clip, Agitator

8 3355921 Washer, Agitator

9 3951682 Cam Driven

10 3366877 Dog, Agitator

Clutch

11 3952374 Bearing−Driven

Cam

12 21366 Nut, Spanner

13 3951983 Basket & Balance

Ring

(Also Order #14)

14 3952746 Plate, Filter

16 63849 Tub

17 389140 Block, Basket

Drive

18 383727 Gasket, Centerpost

19 3347780 Hose, Pressure

Switch

20 3951744 Agitator

(Complete)

22 3951608 Spacer, Thrust

23 3354733 Cap, Barrier

24 3348855 Seal, Inner Cap

26 3949550 Washer

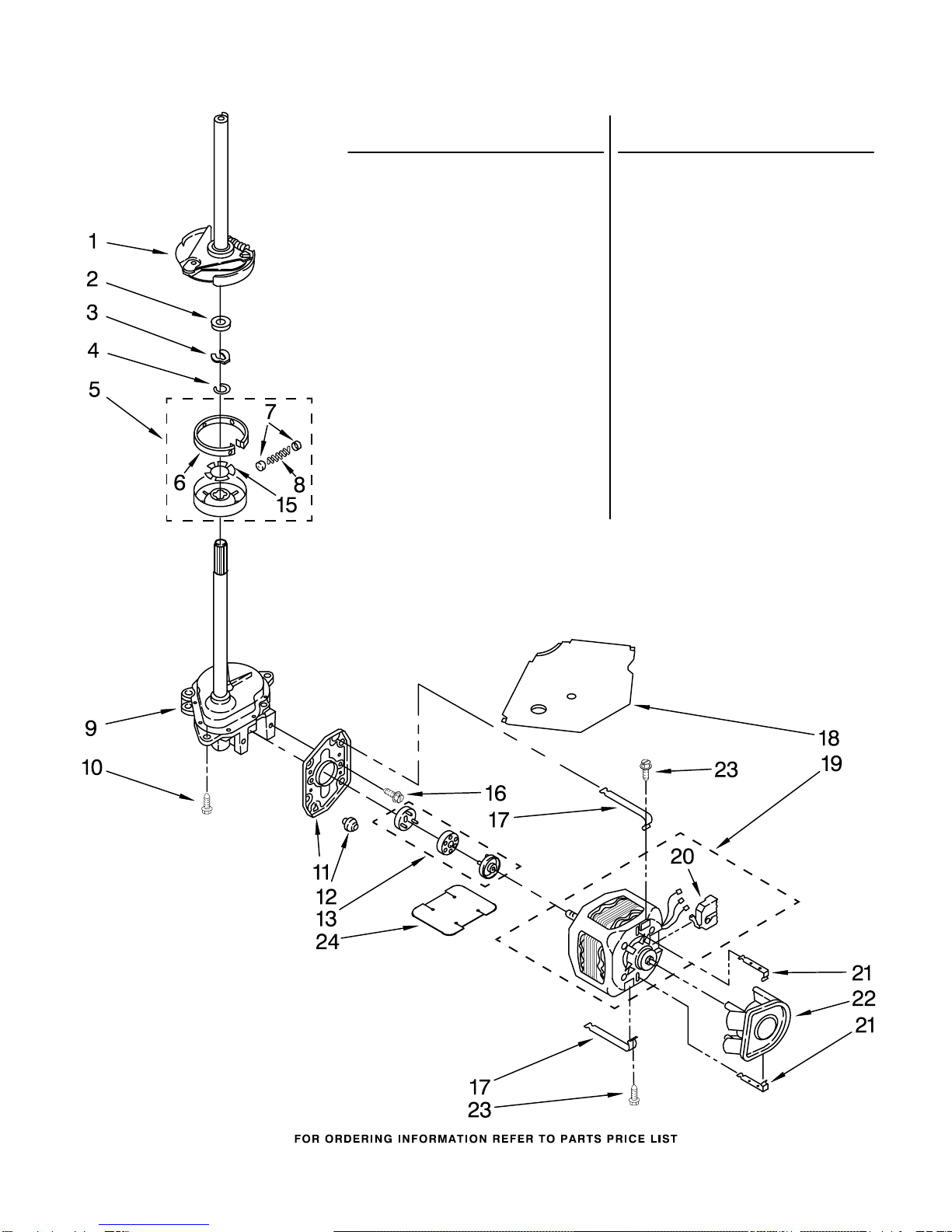

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Models: GSQ9612KQ0, GSQ9612KT0

(Designer White) (Biscuit)

8179614

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 388952 Brake & Drive

Tube (Complete)

(Refer to Page 11

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3951311 Clutch (Complete)

6 3951308 Band & Lining,

Clutch (Includes

Illus. 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3946792 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page 12

For Further

Breakdown)

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 3364003 Coupling, Motor

& Isolation

15 3355454 Clip,

Anti−Rattle

16 3400516 Screw

17 3349637 Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 3352287 Motor, Main

Drive

20 62850 Switch, Main

Drive Motor

21 62700 Retainer, Pump (2)

22 3363892 Pump (Complete)

23 3387485 Screw, 10−16 x 5/8

24 3946532 Shield, Motor

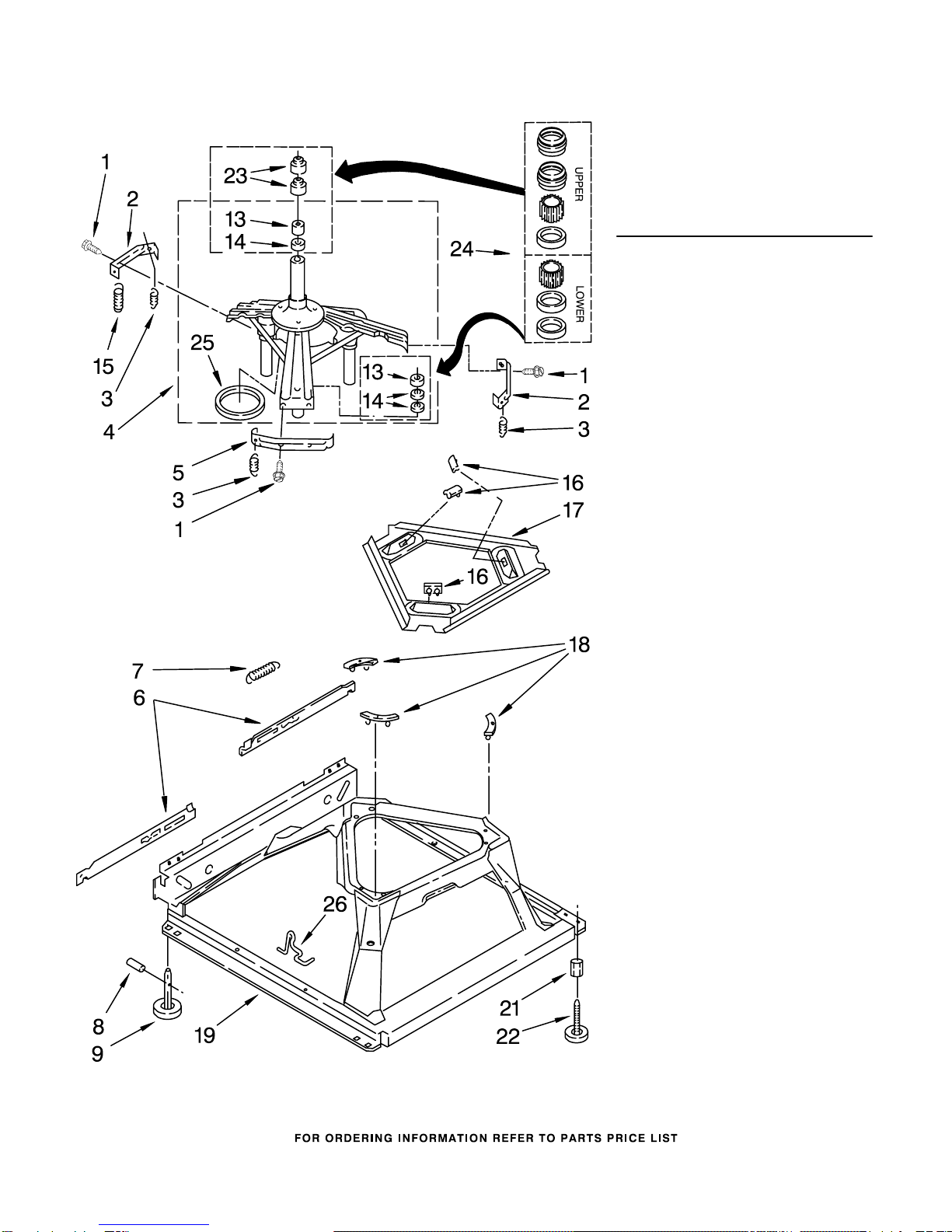

MACHINE BASE PARTS

For Models: GSQ9612KQ0, GSQ9612KT0

(Designer White) (Biscuit)

8179614

Illus. Part

No. No. DESCRIPTION

1 3400076 Screw, Bracket

Mounting

(10−32 x 5/8)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring

Suspension,(3)

4 3362087 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 63466 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

13 3347047 Bearing,

Centerpost (2)

14 357409 Seal, Centerpost (3)

15 388492 Spring,

Counterweight

16 62568 Pad, Plate

17 3946509 Plate, Suspension

(Includes Illus. 16)

18 3363660 Pad, Base

19 3946512 Base Assembly

(Includes Illus, 6,

7, 8, 9,16,17,18,

& 26.)

21 3359452 Nut, Lock

(3/8−16)

22 389102 Foot, Front (2)

23 356934 Seal, Centerpost (2)

24 285203 Centerpost

Bearing Kit

(Includes Illus.

13, 14 & 23)

25 63134 Ring, Sound

Deadening

26 63806 Retainer,

Suspension Spring

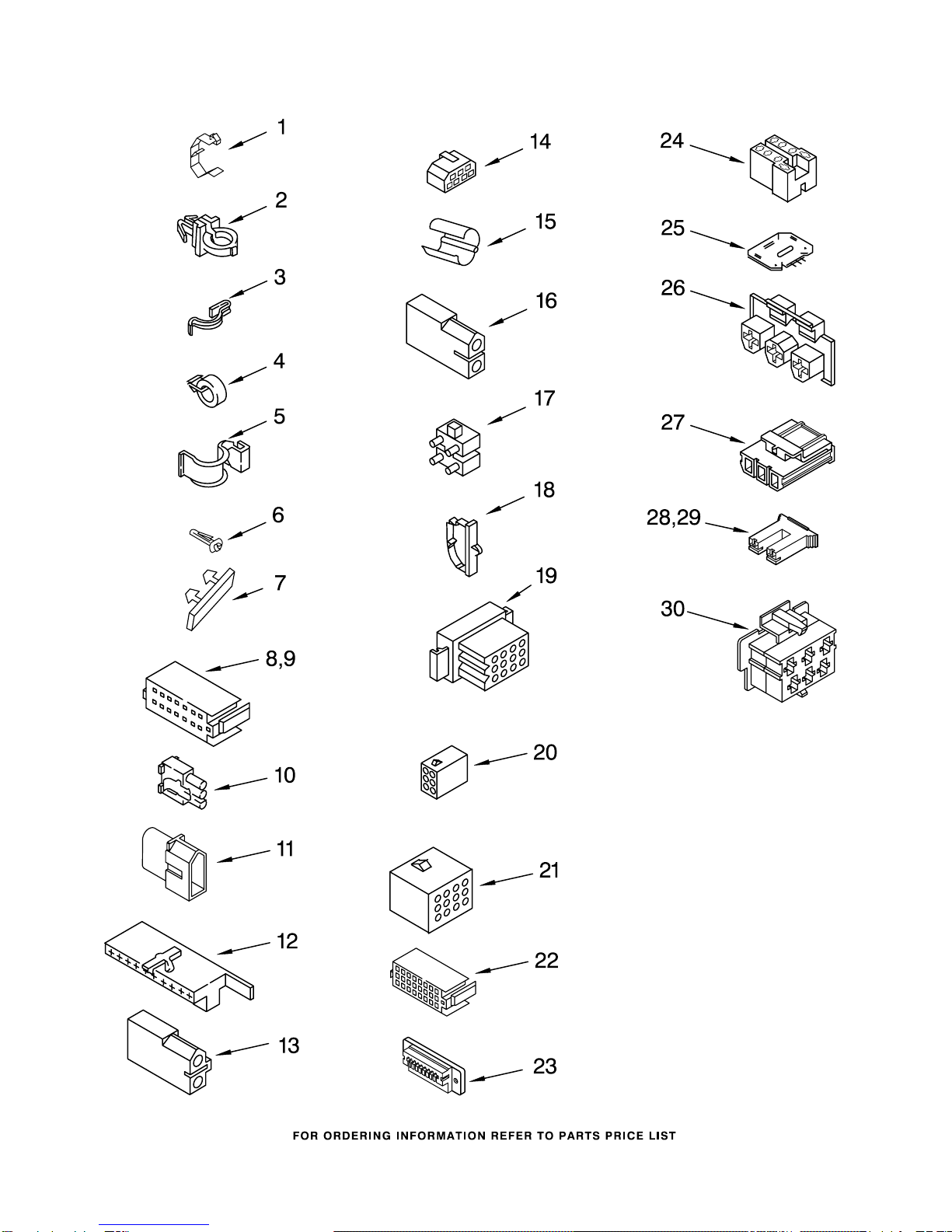

WIRING HARNESS PARTS

WH2G

For Models: GSQ9612KQ0, GSQ9612KT0

(Designer White) (Biscuit)

8179614

WIRING HARNESS PARTS

WH2G

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

FOR COMPLETE WIRING HARNESS REFER TO

CONTROL AND REAR PANEL PARTS PAGE

1 3349557 Clip, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

5 90016 Clip, Harness

6 3390496 Clip, Harness

7 389379 Retainer,

(Suds Models)

8 352090 Timer, Block

Disconnect

(White)

9 352089 Timer, Block

Disconnect

(Black)

10 62889 Receptacle,

Terminal

(3−Way)

(Lid Switch)

(Use Term.94613)

Or 94614.)

11 353424 Plug, Terminal

(3−Way)

(Power Cord)

(Use Term.94613)

12 62505 Block, Disconnect

(Motor 2 Speed)

(Use Term.352088)

13 3348075 Block, Disconnect

(Motor 3 Speed)

(Use Term. 94613

Or 94614.)

14 3347243 Block, Disconnect

(Use Term. 352088)

15 63523 Protector

16 717252 Connector

(2−Way)

(Use Term.94614)

17 387566 Plug, Terminal

(4−Way)

(Power Cord)

(Use M3 Screws)

18 3352944 Clip, Harness

19 3390423 Block, Disconnect

(12−Way)

(Timer)

(Use Term. 94613)

20 3347730 Receptacle

(6−Way)

(Use Term. 94613)

21 388818 Plug, Terminal

(12−Way)

(Use Term. 94613

Or 94614.)

22 3369366 Timer, Block

Disconnect

(Black) (Amp)

(Use Term.3369365)

23 3349494 Connector, Etc

24 60687 Connector, Relay

(Use Term.308569)

25 3407125 E.T.C. Control

26 3948617 Connector (T.P.A.)

(3−Circuit)

(Lid Switch)

(Use Term. 3948619

OR 3948620.)

27 3360056 Connector (T.P.A)

(3−Circuit)

(Pressure Switch)

(Use Term.3948619

OR 3948620.)

28 3354925 Block, Connector

(Cold Valve)

(Use Term.693217)

29 3354926 Block, Connector

(Hot Valve)

(Use Term.693217)

30 3948615 Connector (T.P.A.)

(6−Circuit)

(Temp. Switch)

(Use Term.3948619

OR 3948620.)

For Models: GSQ9612KQ0, GSQ9612KT0

(Designer White) (Biscuit)

8179614
