AUTOMATIC
WASHER
Super Capacity
Model
LA5668XS
hen. Clothes Dryers. Freezers. Relriperator-Freezers. lee Makers Dishwashers. Built-In Ovens and SurTace Units. Ranper, Microwave Ovens. Trash compaclol
Contents
Page
PARTS AND FEATURES 2
IMPORTANT SAFETY
INSTRUCTIONS. 3
OPERATING INSTRUCTIONS.. 4
Starting Your Washer 4
What Happens in Each Cycle 6
OTHER OPERATING
INSTRUCTIONS.. 10
For a Rinse and Spin 10
Page
For a Drain and Spin 10
Liquid Bleach Dispenser 11
MAGIC CLEAN” Lint Filter 11
CARING FOR YOUR WASHER 12
Winterizing.. 13
IF YOU NEED SERVICE OR
ASSISTANCE 14
WASHER WARRANTY.. 16
01987 Whirlpool Corporation
Parts and features
LOAD LAUNDRY CYCLE MAGIC CLEAN@
SIZE INFORMATION CONTROL LINT FILTER
SELECTOR / CENTER
/ KNOB
(not shown)
MODEL AND SERIAL
NUMBER PLATE
(not shown)
Copy your Model and Serial Numbers here
When you need service or call with a
question, have this information ready:
1. Complete Model and Serial Numbers Model Number
(from plate under the lid near the
hinge]. serio, Number
2. Purchase date
from
sales
slip.
Copy this information in these spaces. P~rchose Dcte
Keep this book, your”Laundry Guide” and
sales
slip in the Laundry Information
Center.
Service Company
Phone Number
Please complete and mall the Owner Reglstration Card furnished with
this product.
Remove the Consumer
Buy Guide label. It will be
easier to remove before the
washer is used.
You should wipe out the
basket with a damp cloth
before using to remove dust
from storing or shipping.
1
2
Additional Safety Insfrucfions and Your Responsibilities
ALWAYS store detergent, laundry aids
and other materials in a cool, dry
place where children can’t reach
them- in a locked cabinet if possible.
ALWAYS read and follow instructions
on packages of detergent and laun-
dry aids - especially warnings and
precautions.
HAZARDOUS FUMES can be formed if
chlorine bleach is used in the same
wash as ammonia or acids such as
vinegar or rust remover,
ALWAYS unplug the power supply
cord before attempting to service the
washer.
DO NOT machine wash glass fiber
materials. Small particles can stick to
fabrics washed in following loads
and cause skin irritation.
You are personally responsible for
making sure that your washer:
l
is used only for jobs normally ex-
pected of home automatic washers.
l
is not run by children or anyone un-
able to operate it properly. 3
Operating instructions

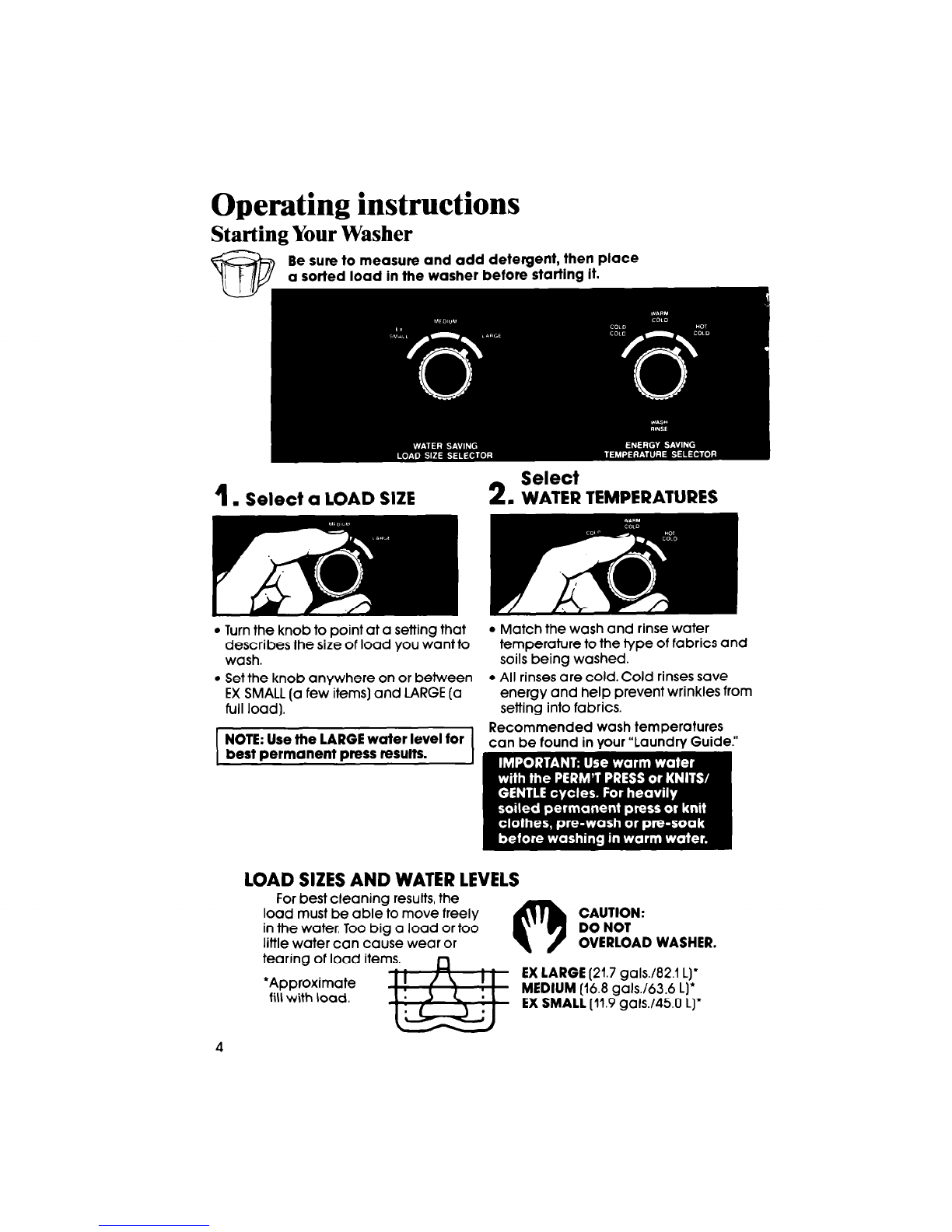

Starting Your Washer
Be sure to measure and add detergent, then place
a sorted load in the washer before starting it.
I. Select a LOAD SIZE
2
Select
. WATER TEMPERATURES
l
Turn the knob to point at a setting that
describes the size of load you want to
wash.
l
Set the knob anywhere on or between
EX SMALL (a few items) and LARGE (a
full load).
NOTE: Use the LARGE water level for
best permanent press results.
l
Match the wash and rinse water
temperature to the type of fabrics and
soils being washed.
l
All rinses are cold. Cold rinses save
energy and help prevent wrinkles
from
setting into fabrics.
Recommended wash temperatures
can be found in vour “Laundrv Guide.”
LOAD SIZES AND WATER LEVELS
For best cleaning results, the
load must be able to move freely
in the water. Too big a load or too
little water can cause wear or
tearing of load items. 0
CAUTION:
DO NOT
OVERLOAD WASHER.
*Approximate
fill with load.
EX LARGE (21.7 galsJ82.1 L)’
MEDIUM (16.8 galsI63.6 L)’
EX SMALL [Il.9 gals.lP5.0 L)’
A

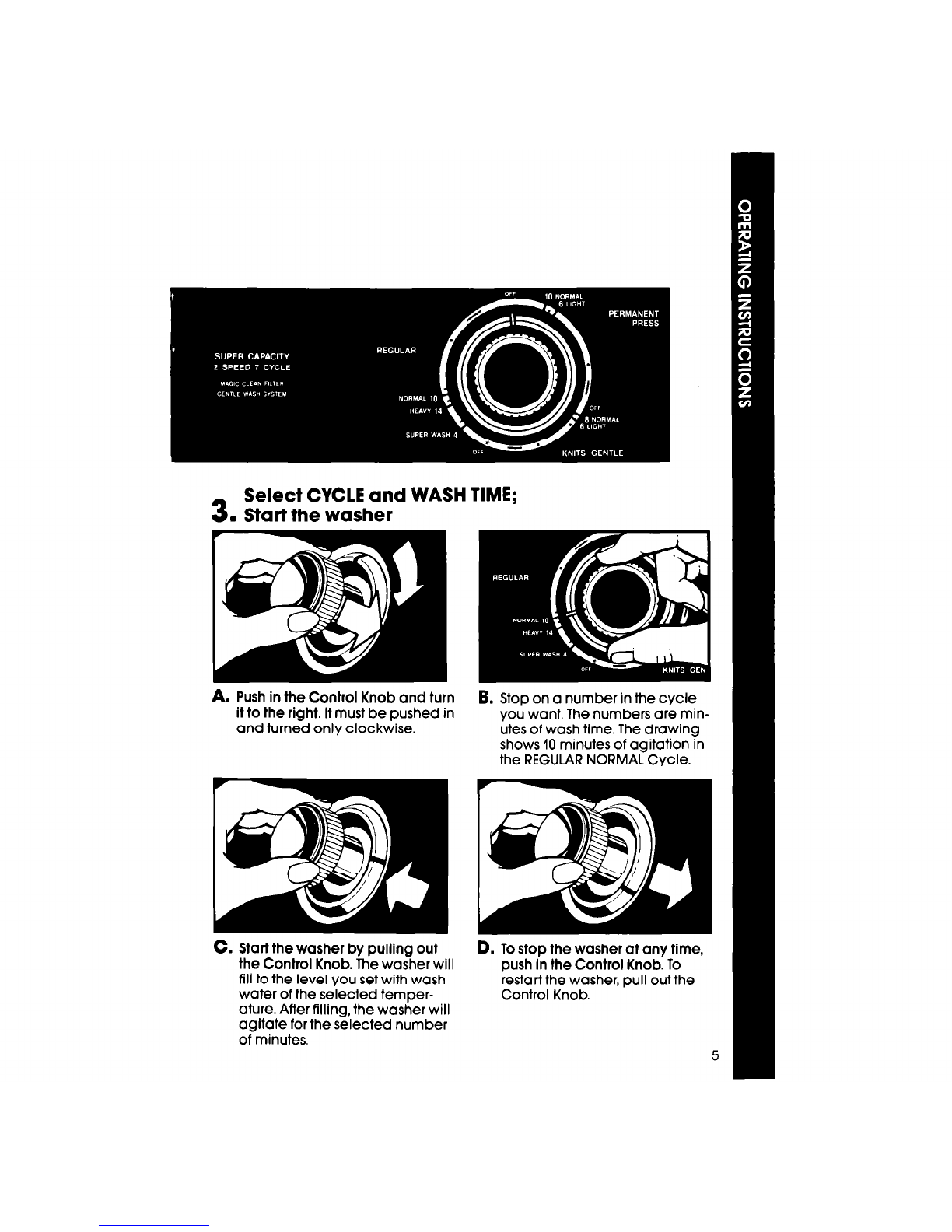

3.
Start the washer
A.
Push in the Control Knob and turn
it to the right.
It must be pushed in
and turned only clockwise.
B.
Stop on a number in the cycle
you want. The numbers are min-
utes of wash time. The drawing
shows 10 minutes of agitation in
the REGULAR NORMAL Cycle.
C.
Start the washer by pulling out
the Control Knob.
The washer will
fill to the level you set with wash
water
of the selected temper-
ature. After filling, the washer will
agitate forthe selected number
of minutes.
D.
Tostop the washer at any time,
push in the Control Knob.
To
restart the washer, pull out the
Control Knob.
5

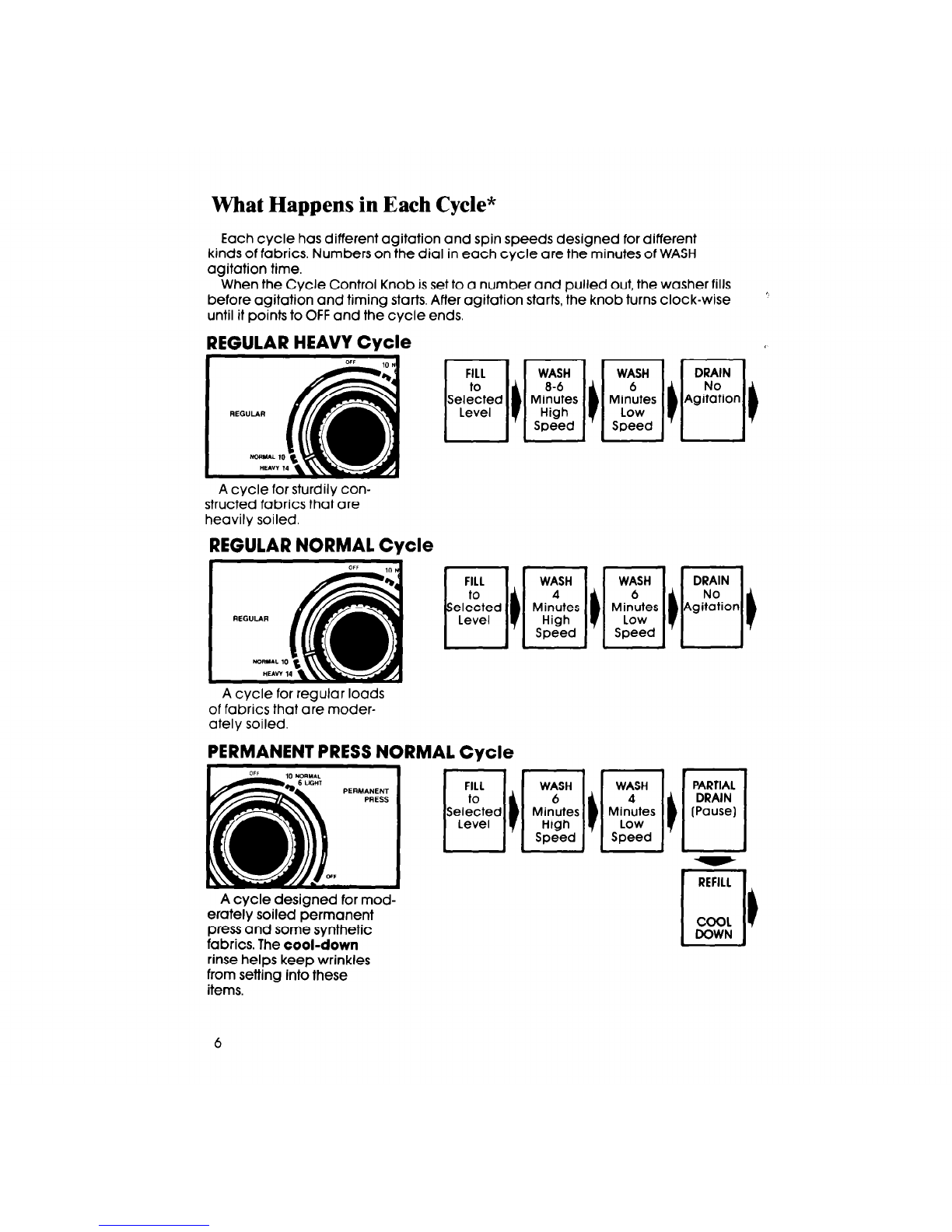

What Happens in Each Cycle*
Each cycle has different agitation and spin speeds designed for different
kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH
agitation time.
When the Cycle Control Knob is set to a number and pulled out, the washer fills
before agitation and timing starts. After agitation starts, the knob turns clock-wise
until it points to OFF and thecycle ends. -
REGULAR HEAVY Cycle
A cycle for sturdily con-
structed fabrics that are
heavily soiled.
REGULAR NORMAL Cycle
A cycle for regular loads
of fabrics that are moder-
ately soiled.
PERMANENT PRESS NORMAL Cycle
WASH
6
L
Minutes
High
Speed
A cycle designed for mod-
erately soiled permanent
press and some synthetic
fabrics. The cool-down
rinse helps keep wrinkles
from setting into these
items.
REFILL
q
COOL
DOWN
6
NOTE: You may hear the sound of water spraying during the spin parts of some
cycles. In some cycles, cold water is sprayed on the spinning load to help with
the rinsing.
Gentle Wash System
For better fabric care in the REGULAR and PERMANENT PRESScycles, the
agitation speed is reduced during the last few minutes of wash time.
SPIN
High
, Speed
1 Spray
Rinse
WASH
Low
rl
Speed
I 1

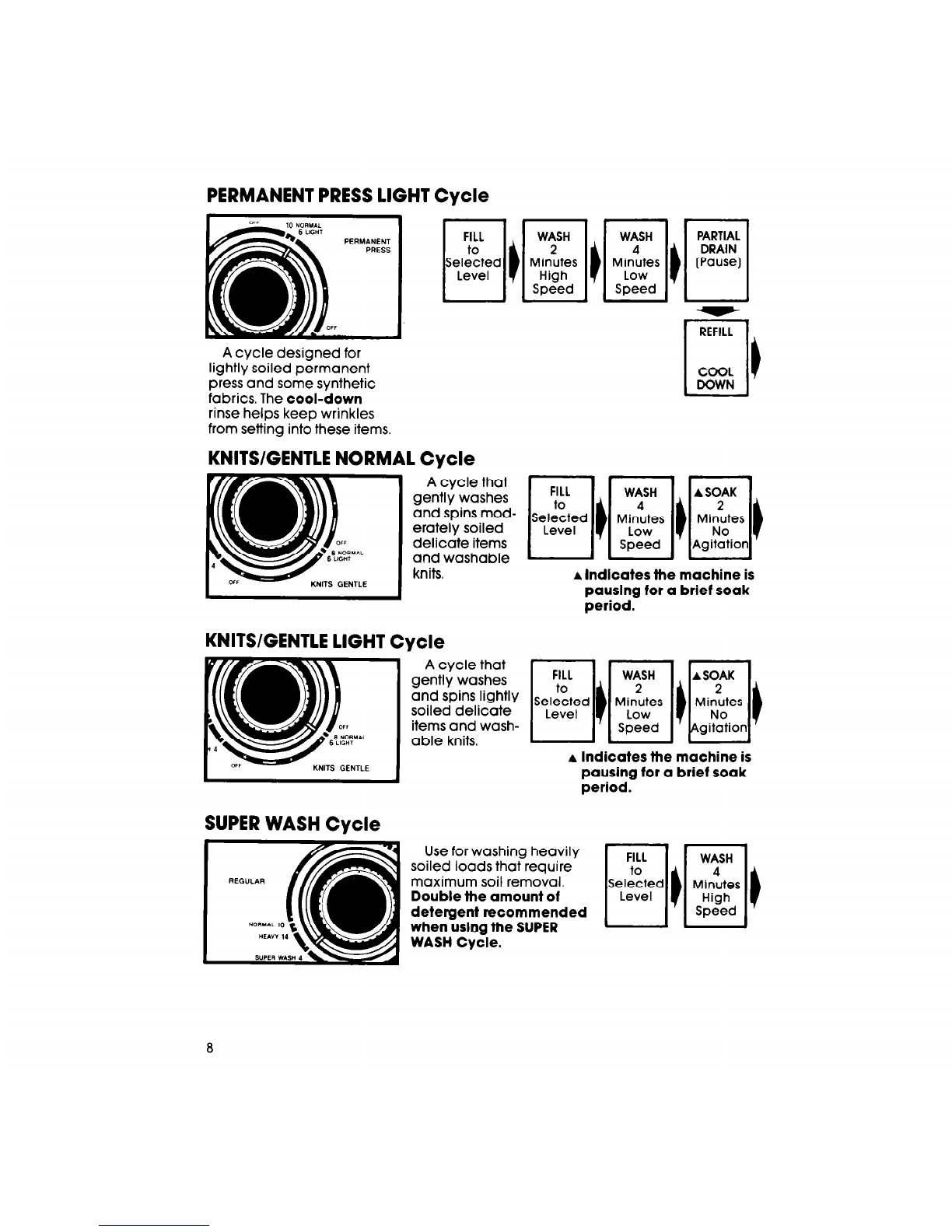

PERMANENT PRESS LIGHT Cycle
A cycle designed for
lightly soiled permanent
press and some synthetic
fabrics. The cool-down
rinse helps keep wrinkles
from setting into these items.
KNITS/GENTLE NORMAL Cycle
REFILL
rl
COOL
DOWN
A lndlcates the machine is
pauslng for a brief soak
period.
KNITS/GENTLE LIGHT Cycle
A Indicates the machine is
pausing for a brief soak
period.

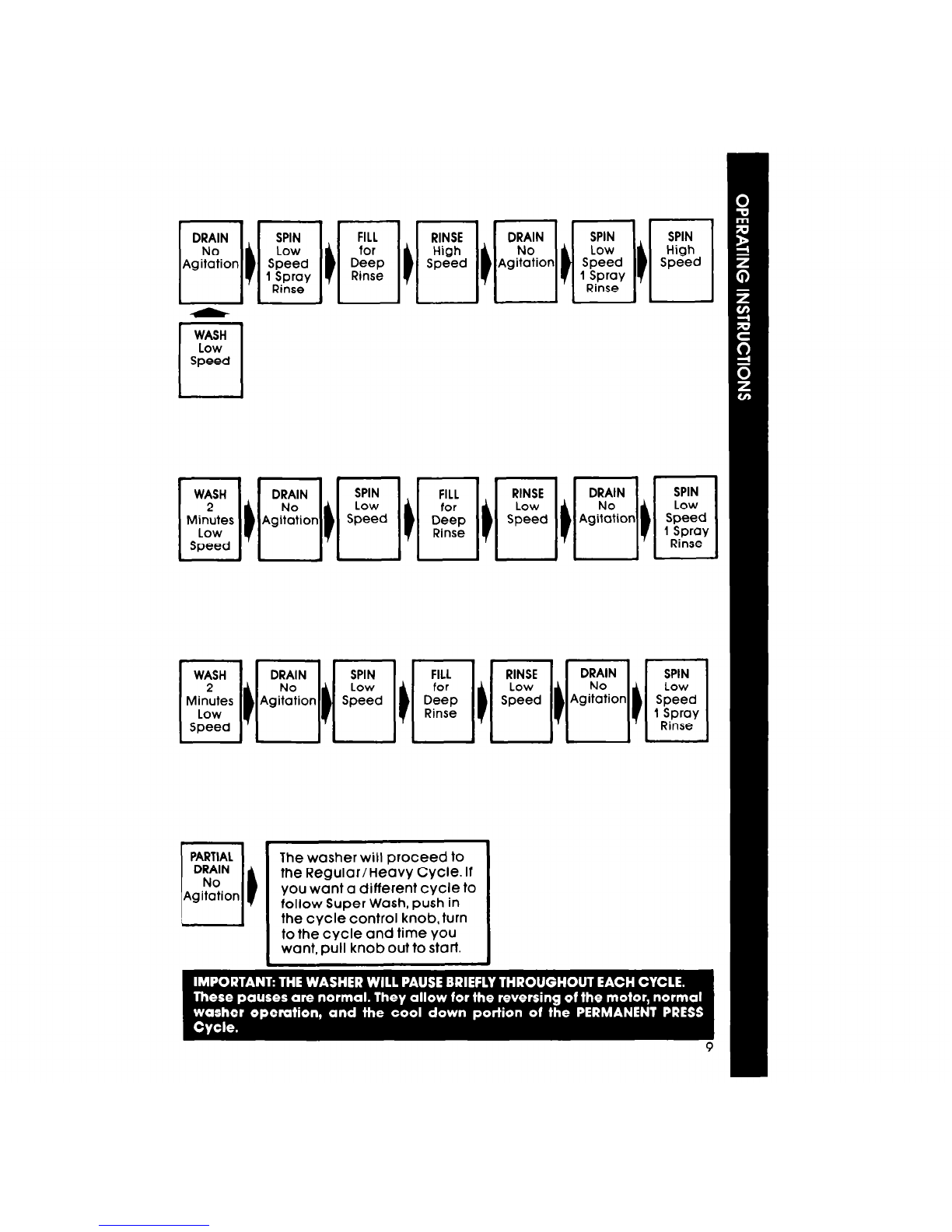

SUPER WASH Cycle
Use for washing heavily
soiled loads that require
maximum soil removal.
Double the amount of
detergent recommended
when using the SUPER
WASH Cycle.
FILL WASH
ml
Se;k$d ) t4m-i~ )
WASH
rl
Low
Speed
PARTIAL
DRAIN
No
Agitation
The washer will proceed to
the Regular/Heavy Cycle. If
you want a different cycle to
follow Super Wash, push in
the cycle control knob, turn
to the cycle and time you
want, pull knob out to start.
SPIN
Low
Speed
’ R”,g
Other operating instructions
You may need an extra rinse and
spin for heavily soiled loads which
need more detergent. (Extra detergent
can require an extra rinse.)
1. Push Control Knob in.
2. Turn clockwise to any
l
on the dial.
See above drawing.
3. Pull Control Knob out. The washer
will fill to selected level; agitate 2
minutes; drain and spin.
Your washer can be set to drain and
spin out water.
1. Push Control Knob in.
2. Turn clockwise to the bar just before
the OFF area in any cycle. See
above drawing.
3. Pull Control Knob out. The washer
will drain and spin.
For agitation and spin speeds in each cycle, see pages 6-9.
10
