WHISPER KOOL EXTREME 5000TIR Bedienungsanleitung
5000ti EXTREME
OWNER’S MANUAL
The Coolest Thing In Wine Storage
FOR:
5000ti
5000tiR
Page 2 PT-EXPL5000 060311
Copyright © 2011. WhisperKOOL. All rights reserved.
This manual, the product design, and the design concepts are copyrighted by WhisperKOOL, with all rights reserved. Your
rights with regard to the hardware and manual are subject to the restrictions and limitations imposed by the copyright laws
of the United States of America. Under copyright laws, this manual may not be copied, reproduced, translated, transmit-
ted, or reduced to any printed or electronic medium or to any machine-readable form, for any purpose, in whole or in part,
without the written consent of WhisperKOOL.
Every eort has been made to ensure that the information in this manual is accurate. WhisperKOOL is not responsible for
printing or clerical errors.
WhisperKOOL reserves the right to make corrections or improvements to the information provided and to the related hard-
ware at any time, without notice.
Vinothèque and WhisperKOOL are registered trademarks, and ECE is a trademark of WhisperKOOL. All rights reserved.
Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a recom-
mendation. WhisperKOOL assumes no liability with regard to the performance or use of these products.
6.03.11
Page 3
TABLE OF CONTENTS
WhisperKOOL Extreme Series Quick Reference Guide . . . . . . . . .
Controller Quick Reference Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fan Speed Reference .........................................
Introduction .................................................
Receiving & Inspecting The Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick Start Guide ............................................
Preparing the Wine Cellar ....................................
Installation ..................................................
Through-The-Wall Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Options .........................................
Liquid Measuring Thermostat System . . . . . . . . . . . . . . . . . . . . . . . . .
Remote Controller ...........................................
Multi Speed Control ..........................................
System Operation: Standard and Remote . . . . . . . . . . . . . . . . . . . . .
Standard Control Functions ..................................
Standard Wire Schematic .....................................
Remote Controller Functions .................................
Remote Wire Schematic ......................................
Maintenance Schedule .......................................
Troubleshooting Guide .......................................
Technical Assistance .........................................
Accessories for Cooling Unit ..................................
Installation Terms and Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
5
6
7
8
9
10
15
16
19
20
21
23
24
25
28
29
32
33
34
36
36
37
We manufacture, test and certify 100% of our wine cooling units in
the USA. By sourcing the best components and closely controlling our
manufacturing processes, we can assure the highest-quality, lowest
defect manufacturing rates in the industry.
Page 4 PT-EXPL5000 060311
HIGH
MED
LOW

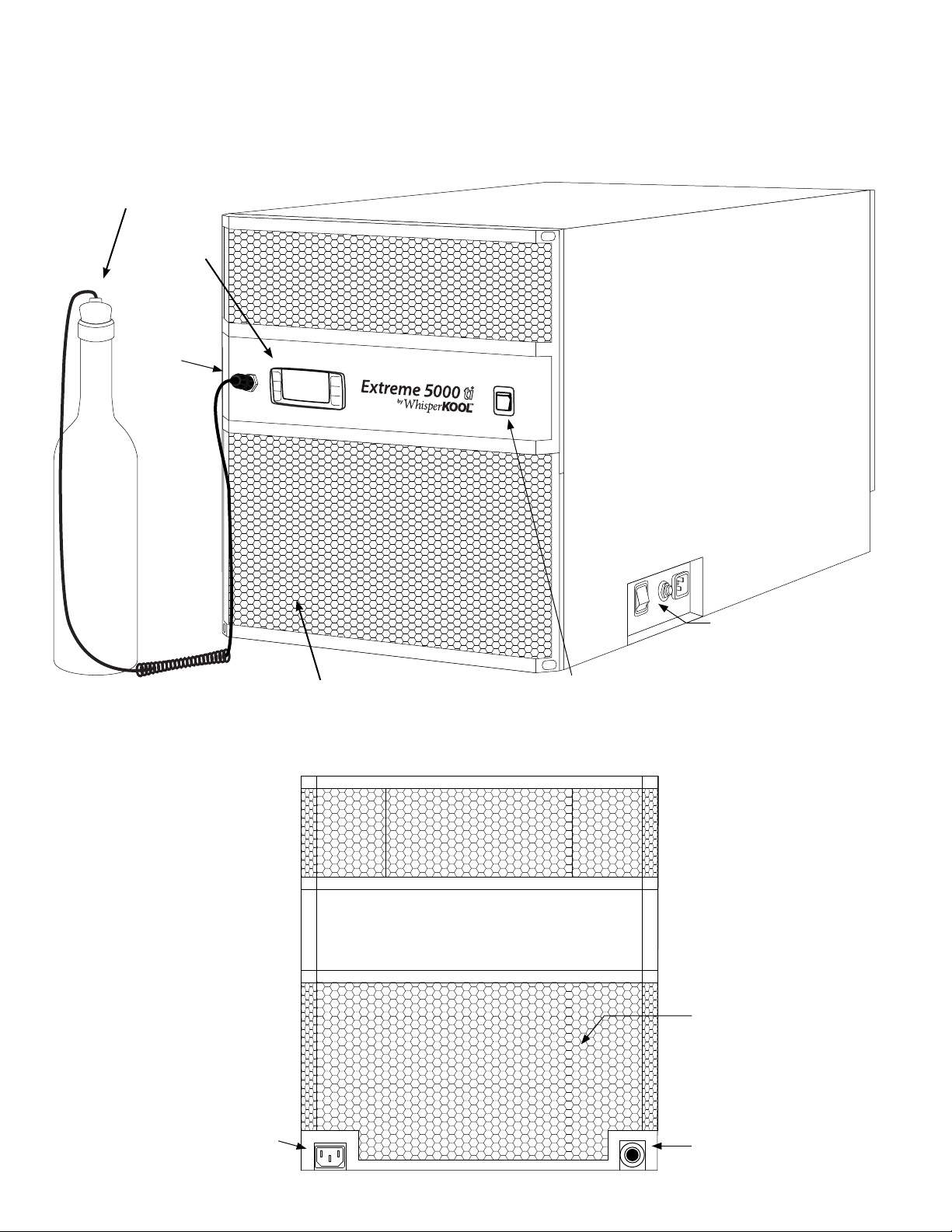

WHISPERKOOL Series QUICK REFERENCE GUIDE
Front / Side View
Rear View
Controller
Bottle Probe
Probe Input
Front Grille
Control Panel
(see page 15 for details)
Speed Control
Posterior Grille
Drain Port
Rear Power Option
Page 5
Evaporator and Condenser Fan
Set Buon
•View Set Point
1
•Change Set Point
3-5
•SET + Down = CPSM
10-15
•Reset Hi & Lo Buon
3-5
ALARM Pre-Chill Display
Evap. Coil is 26°, turns off
when coil reaches 40°
Control “ON/OFF” Buon
•Turns the Cooling Unit
“ON/OFF”
1
Defrost Compressor
Energy Reducon
Hi Bole Temp History & Scroll
Buon
1
Low Bole Temp History & Scroll
Buon
Push to see the min. stored temperature.
In programming mode use to browse the
parameter codes or decrease
the displayed value.
1
Energy Saving
Buon
1
Display and modify set point. In
programming mode it selects a
parameter conrms an opera-
tion. Hold for 3 seconds when
the min or max temperature is
displayed to RESET.
Cellar “Pre-Chill” Buon
3-5
Push to see the max stored temperature.
In programming mode use to browse the
parameter codes or increase the display
value. Hold for 3 seconds to start fast
freezing cycle.
Evaporator and Condenser Fan
Set Buon
•View Set Point
1
•Change Set Point
3-5
•SET + Down = CPSM
3 - 5
•Reset Hi & Lo Buon
3-5
ALARM Pre-Chill Display
Control “ON/OFF” Buon
•Turns the Cooling Unit
“ON/OFF”
1
Defrost Compressor
Hi Bole Temp History & Scroll
Buon
1
Cellar “Pre-Chill” Buon
3-5
Low Bole Temp History & Scroll
Buon
Push to see the min. stored temperature.
In programming mode use to browse the
parameter codes or decrease
the displayed value.
1
Inacve
Display and modify set point. In
programming mode it selects a
parameter conrms an opera-
tion. Hold for 3 seconds when
the min or max temperature is
displayed to RESET.
Push to see the max stored temperature.
In programming mode use to browse the
parameter codes or increase the display
value. Hold for 3 seconds to start fast
freezing cycle.
DIXELL

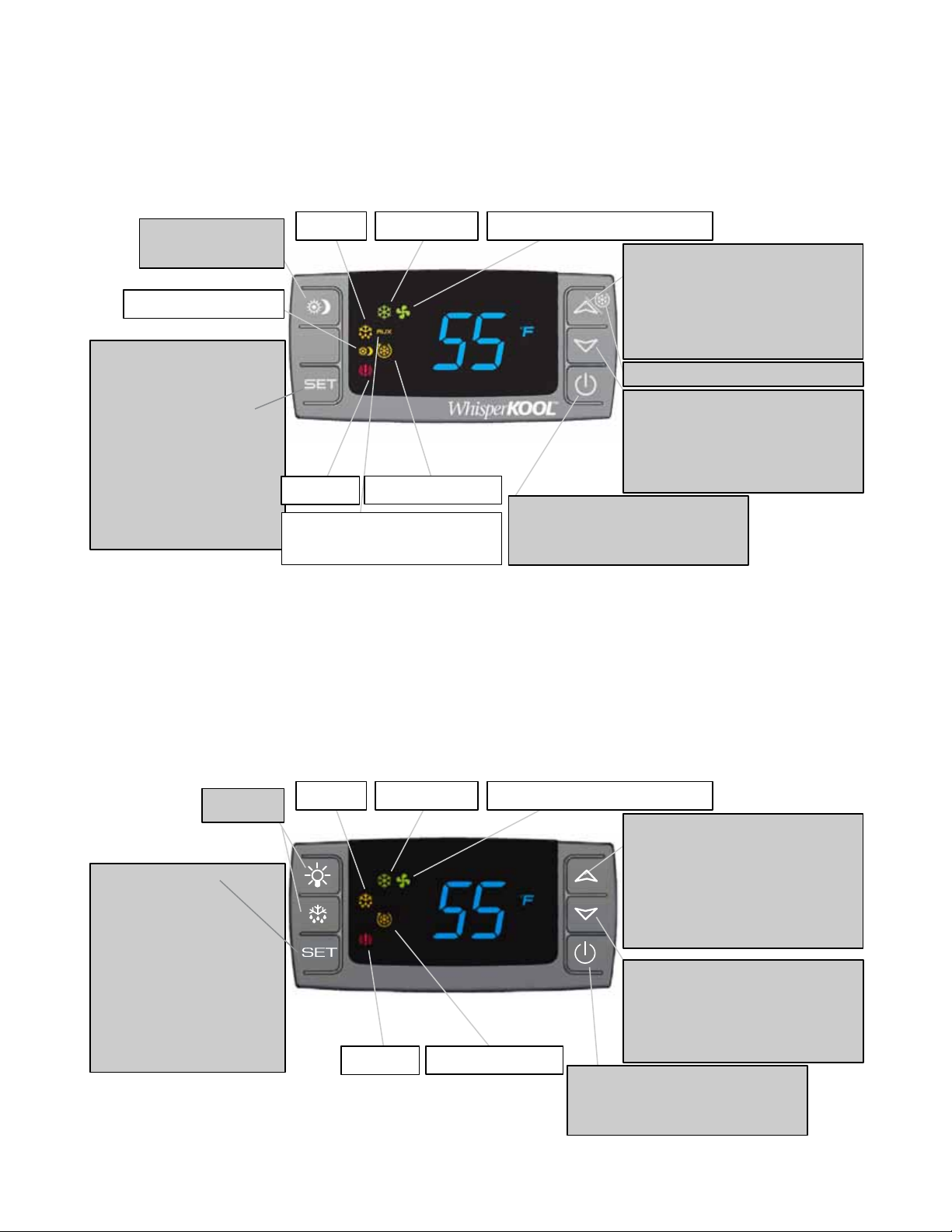

QUICK CONTROLLER REFERENCE GUIDE
Standard Controller Layout - XR70CX
If your unit is installed through the wall and does not have a remote keypad you will have the XR70CX Controller
Remote Controller Layout - XW260K
If your unit has a remote keypad then you will have the XW260K controller
Note: The 1 or 3-5 qualies the amount of time in seconds that the button must be pushed to activate the
feature. Refer to page 25-27 for complete instructions.
Note: The 1 or 3-5 qualies the amount of time in seconds that the button must be pushed to activate the
feature. Refer to page 29-31 for complete instructions.
Page 6 PT-EXPL5000 060311
Model 5000ti & 5000tiR
Cellar Size 1000 cu. ft.
Dimensions 14.25”W x 16”H x 28”D
Weight 96 lbs
AMPS (running) 9
dBA 54 low 60 med 68 high
Installation Through-the-Wall, partially ducted, fully ducted
Thermostat Standard Unit: Dixell XR70CX Remote Version: Dixell XW260K
Temp. Delta 55°F temperature dierential
(maintains proper cellar temperature when exhaust environment does not exceed 110°F)
Outside Venting Can be done if the outside temperature does not exceed 110°F, the external grille
cover is required.
Ducting Options Unit can be fully ducted.
Warranty 2 year parts and labor / 5 year compressor
FAN SPEED REFERENCE
(Extreme 5000ti or 5000tiR)
UNIT SPECIFICATION
Your fan speed selection will depend on the amount of heat that needs to be removed from the cellar, as well
as the application of the unit (Thru the Wall Installation or Ducted). If the unit is going to be ducted you would
need to use the highest fan speed (The higher fan speed is designed to support the reduction in airow created
by the ductwork) For the thru the wall application, the fan speed selection will depend on the cellar size, insula-
tion factor, door seal and desired wine temperature. When initially installing the unit, set the fan speed to the
highest setting for a quick chill down. Once the temperature of the cellar reaches the desired temperature, you
may be able to select a lower fan speed to handle the normal load. In the event the temperature outside goes
above 90 degrees, (when exhausting to the outside) you may need to select the higher fan speed.
Speed CFM DBA BTU
Evaporator/Condenser
Low 147 51/51 2967
Medium 180 58/57 3142
High 256 66/65 3360
* To get a feeling for decibels, a food blender at 3ft is 90 dBA, garbage disposal at 3ft is 85 dBA, vacuum cleaner at
10ft is 75 dBA, normal speech at 3ft is 79 dBA, dishwasher in the next room is 55dBA, Quiet night is 35dBA
Page 7
INTRODUCTION
Customer Service
Thank you for purchasing a WhisperKOOL Extreme Series cooling unit. We strive to provide the highest quality prod-
ucts and the best possible customer service. If you have any questions about your WhisperKOOL unit, please call us
at 1(800) 343-9463.
Using the Manual
This User’s Manual is intended to assist in the proper installation and maintenance of the WhisperKOOL Extreme
cooling system. In order to ensure the longevity of your cooling unit, the equipment should be installed properly and
have a proper care and maintenance schedule. Please read and review this manual carefully and keep it for future
reference.
What Is the WhisperKOOL Extreme Series Cooling System?
The WhisperKOOL Extreme Series system is a specialized refrigeration unit designed for one purpose only: to main-
tain the optimal temperature and humidity levels conducive to the proper storage and aging of ne wines. It is a
self-contained cooling unit designed to be used as a forced-air through-the-wall unit or as a remote mount unit with
external ductwork connections.
How Does the WhisperKOOL Extreme Series Work?
The WhisperKOOL Extreme Series cooling system is especially designed for the use and application to maintain opti-
mal conditions for wine storage and aging. The system is fully self-contained and can be installed as a “Thru-The-Wall’
application, or the unit is capable of an even more exible “Ducted” application, which allows the unit to be placed in
an indoor remote site, resulting in a quiet airow. The standard “Through-the-Wall” and ducted units are temperature
controlled via a bottle probe, and the ducted system comes standard with a remote key board that can be located up
to 50 ft from the cooling system (Note: Remote Unit comes standard with a 50 ft bottle probe and 50 ft. of cable for
the remote keypad, additional lengths are optional).
Temperature Setting
The WhisperKOOL Extreme unit can be set at any temperature within the acceptable wine-aging range of 50°F to
67°F. It is designed to cool up to 55°F cooler than the ambient temperature of the space to which it is exhausting.
Page 8 PT-EXPL5000 060311
Customer Warranty Registration
PLEASE COMPLETE AND RETURN THE WARRANTY CARD UPON RECEIPT OF THE UNIT.
By completing the Product Registration Card, you will be conrmed in our customer database ensuring that
your information is on le to help you obtain ecient warranty service.
Please refer to pages 37 - 39 for complete terms and conditions, warranty guidelines, and policy for your Whis-
perKOOL Extreme Series cooling unit.
Receiving and Inspecting the Unit
• Lift only at the designated handhold locations on the shipping container or fully support the unit from
underneath. A shipment may include one or more boxes containing accessories.
• Before opening the container, inspect the packaging for any obvious signs of damage or mishandling.
• Write any discrepancy or visual damage on the Bill of Lading before signing.
• Place the box containing the WhisperKOOL unit on a tabletop to prepare it for testing prior to installing.
• Sit upright for 24 hours.
Note: WhisperKOOL Extreme units are manufactured in the USA and tested prior to shipment.
Review the Packing Slip to Verify Contents
• Check the model number to ensure it is correct.
• Check that all factory options ordered are listed.
If any items listed on the packing slip do not match your order information, contact WhisperKOOL Customer
Service immediately.
Check the Box for the following contents:
Mounting Bracket 14 ¼” (2)
Mounting Bracket 15 ¾” (2)
Accessory Kit One:
• WhisperKOOL Extreme Series Owner’s Manual
• Registration / Warranty Card
Accessory Kit Two:
• Power Cord
• Mounting Bracket Insulation Foam 14 ¼” (2)
• Mounting Bracket Insulation Foam 15 ¾” (2)
• Bottle Temperature Probe (Standard Unit)
Accessory Kit Three:
• 1 ¾ Standard Screws (9)
• ½ Self-Tapping Screws (9)
• ½ x ½ Barbx MNPT Fitting
• Drain Line tube (1)
• Connection “T” (1)
Please leave the WhisperKOOL unit in its original box until you are ready for installation. This will allow you to
move the product safely without damaging it. When you are ready to remove the product from the box, refer to
page 15 for installation instructions.
Note: Save your box and all packaging materials. They provide the only safe means of transporting/shipping
the unit.
RECEIVING & INSPECTING THE UNIT
Page 9
QUICK START GUIDE
This guide is meant to serve as a quick reference for installation of the WhisperKOOL unit. The
remainder of this Owner’s Manual will provide more detailed information and instructions.
Upon receiving the WhisperKOOL unit:
1. Inspect the unit before installation. If damage is found, please contact your distributor or
WhisperKOOL Customer Service at 1.800.343.9463 ext 799.
2. The unit should remain in an upright position for 24 hours prior to operation.
3. The WhisperKOOL unit requires a dedicated 120-volt 20-amp circuit. Use a surge protector with
the WhisperKOOL unit. Do not use a GFI (Ground Fault Interrupter) line.
4. For your convenience, the Whisperkool unit has two power inlets, one on the side of the unit and the
other on the back. Use the selector switch, located on the right side of the unit, to select the inlet
you would like to use.
5. The unit is designed to gently cool down the temperature of the cellar over time by cycling cooler
and cooler air throughout. Test the unit prior to installation. Operate unit for twenty minutes.
While the unit is running and working properly, the air discharged from the front should be 10 -
15°F cooler than the air in the room. This means that in an environment where the air is 80°F, the
unit will discharge air that is 65-70°F.
6. It is REQUIRED to install a drain line to remove excess condensation from the unit.
7. The WhisperKOOL unit is intended for use in properly designed and constructed wine cellars.
Hire a professional wine storage consultant with a valid contractor’s license to build your wine
cellar. Refer to the “How to Build a Wine Cellar” video available on the Whisperkool website at www.
whisperkool.com.
8. Install the foam strips along the inside edge of the unit’s flange to assure a proper seal against the wall.
Never try to open the WhisperKool unit, repair it yourself, or use a service company without
WhisperKool’s authorization. This will void your warranty.
If you encounter a problem with your WhisperKool unit, please refer to the Troubleshooting
Guide on pages 34-35. If you have any further questions, concerns, or need assistance, please
contact WhisperKool Customer Service at 1.800.343.9463 ext. 799. Please be sure all testing has
been completed prior to contacting Customer Service. Please have your results ready for your
representative.
Page 10 PT-EXPL5000 060311
The performance and life of your WhisperKOOL unit are contingent upon the steps you take in preparing the
wine cellar.
Note: Improperly preparing your enclosure or incorrectly installing your WhisperKOOL unit may cause unit fail-
ure, leaking of condensation, and other negative side eects.
IT IS HIGHLY RECOMMENDED THAT YOU OBTAIN THE ASSISTANCE OF A
WINE STORAGE PROFESSIONAL.
Wine storage professionals work with licensed contractors, refrigeration technicians, and racking companies to
build well-insulated, beautiful, and protective wine cellars. WhisperKOOL has put together some useful tips to
assist in the installation process. Our recommendations are meant to act as a guide in the process of building a
proper enclosure. Your intended location may have specic needs that we do not address.
Wall & Ceiling Framing
Build wine cellar walls using standard 2x4 or 2x6 construction methods and ceiling joists following the guide-
lines of local and state codes in your area. As a general rule, the thicker the walls and the higher the insulation
value in your cellar, the better it will be at maintaining a consistent temperature.
Insulation
Insulation is REQUIRED with the use of the WhisperKOOL product. Standard berglass or rigid foam insulation
is normally used in cellar construction or, in some cases, “blown-in” insulation is used. It is very important that all
walls and ceilings are insulated to keep the cellar temperature as consistent as possible during the summer and
winter months. The R-value, or quality of insulation, is determined by the rate at which heat passes through the
insulation. The higher the R-value, the more resistant the insulation is to conducting heat. Using higher R-values
in insulation will lower your operating costs and unit run time.
Vapor Barrier
Vapor Barrier is REQUIRED to prevent the intrusion of water vapor so that the cellar can be kept at the correct
temperature and humidity. 6 mm plastic sheeting (recommended) should be applied to the warm side of the
cellar walls. The vapor barrier must also be applied to the outside walls and ceiling. If it is impossible to reach
the outside, then the plastic must be applied from within the cellar. The most common method is to wrap the
entire interior, leaving the plastic loose in the stud cavity so the insulation can be placed between each stud. All
of the walls and ceiling must be wrapped in plastic for a complete vapor barrier.
In areas of high humidity, such as Southern and Gulf States, the vapor barrier will prevent inltration of warm
moist air. The moist air can cause mold to form, and standing water in drain pans promote microbial and fungal
growth that cause unpleasant odors and indoor air quality problems. If mold is found, remove it immediately
and sanitize that portion of the unit.
PREPARING THE WINE CELLAR
Dieses Handbuch passt für folgende Modelle
1
Inhaltsverzeichnis
Andere WHISPER KOOL Weinkühler Handbücher
WHISPER KOOL
WHISPER KOOL PLATINUM MINI Bedienungsanleitung
WHISPER KOOL
WHISPER KOOL Slimline 2500 Bedienungsanleitung
WHISPER KOOL
WHISPER KOOL Mini Split Bedienungsanleitung
WHISPER KOOL
WHISPER KOOL Platinum Split Bedienungsanleitung
WHISPER KOOL
WHISPER KOOL SC 2000i Bedienungsanleitung
WHISPER KOOL
WHISPER KOOL Platinum Split Version 4 Bedienungsanleitung
WHISPER KOOL
WHISPER KOOL Ceiling Mount H.E. CM4000 Bedienungsanleitung
WHISPER KOOL
WHISPER KOOL Platinum Split 4000 Bedienungsanleitung
WHISPER KOOL
WHISPER KOOL Ceiling Mount 4000 Montage- und Bedienungsanleitung
WHISPER KOOL
WHISPER KOOL SS4000 Bedienungsanleitung
WHISPER KOOL
WHISPER KOOL SLIMLINE LS Bedienungsanleitung
WHISPER KOOL
WHISPER KOOL Extreme Platinum Series Bedienungsanleitung
WHISPER KOOL
WHISPER KOOL QUANTUM Series Bedienungsanleitung
WHISPER KOOL
WHISPER KOOL Twin Ceiling Mount H.E. CM9000 Bedienungsanleitung
WHISPER KOOL
WHISPER KOOL Platinum Mini Split Bedienungsanleitung
WHISPER KOOL
WHISPER KOOL Platinum Split Bedienungsanleitung
WHISPER KOOL
WHISPER KOOL PLATINUM 8000ti Bedienungsanleitung
WHISPER KOOL
WHISPER KOOL Self-Contained Extreme Ti Bedienungsanleitung
WHISPER KOOL
WHISPER KOOL 2000i Bedienungsanleitung
WHISPER KOOL
WHISPER KOOL Mini Platinum Split H.E. PSMINI Bedienungsanleitung
