Wiha DHT0003 Bedienungsanleitung

BEDIENUNGSANLEITUNG

INSTRUCTION MANUAL

4V CORDLESS HOT GLUE GUN

4V AKKU-HEISSKLEBEPISTOLE

Item No.: DHT0003 / D890410

EN................ 2

DE................. 16

Overview of Contents

1 General safety warnings............................................................................................................................3

2 Symbols and explanation of terms............................................................................................................5

3 Contents.......................................................................................................................................................7

4 Know your tool ...........................................................................................................................................7

5 Technical data.............................................................................................................................................9

6 Use...............................................................................................................................................................10

7 Storage, cleaning and maintenance.........................................................................................................13

8 Troubleshooting ..........................................................................................................................................14

9 Waste disposal ...........................................................................................................................................14

10 Warranty .....................................................................................................................................................15

Overview of Contents

4VCordlessHotGlueGun-DHT0003-EN-01Original instruction manual

1 General safety warnings

To reduce the risk of injury, the user must read and understand this instruction manual.

WARNING: Read all safety warnings, instructions, illustrations and speciﬁcations pro-

vided with this tool. Failure to follow all instructions listed below may result in electric shock, ﬁre and/or

serious injury.

Keep all warnings and instructions for future reference.

NOTE: The charger mentioned in the safety instructions is not included/part of the scope of supply.

1.1 Safety instructions

›Do not allow persons unfamiliar with this tool or the instructions to operate the tool.

›The tool and charger are not intended for use by children or persons with physical, senso-

ry or mental limitations or a lack of experience or knowledge. Otherwise, there is a risk of

operating errors and injuries.

›The tool and charger may be used by children aged 8 or older, or by persons who have

physical, sensory or mental limitations or a lack of experience or knowledge if a person

responsible for their safety supervises them or has instructed them in the safe operation of

the tool and charger and they understand the associated dangers. Otherwise, there is a risk

of operating errors and injuries.

›Supervise children. This will ensure that children are not allowed to play with the tool or the

charger.

›Children must not be allowed to clean or perform maintenance on the tool or charger wit-

hout supervision.

General safety warnings

09/06/21 Original instruction manual

General safety warnings

›Always check the tool, charger, cables and plugs before using the tool. Stop using the

tool or charger if you discover any damage. Do not open the tool or the charger your-

self, and have it serviced only by a qualiﬁed repair technician using only original repla-

cement parts. Damaged tools, chargers, cables or plugs increase the risk of electric shock.

›Do not leave the tool unattended while it is switched on.

›Protect the tool against heat, e.g. against continuous sunlight, ﬁre, water, and moisture.

There is a risk of explosion.

›Do not throw the glue stick into ﬁre.

›Safely place the tool down after use and let it cool completely before packing it away.

The hot nozzle can cause damage.

›Only use chargers recommended by the manufacturer to charge the tool. Doing otherwise

poses a ﬁre hazard.

›Keep the charging socket on the tool and on the charger away from other metal objects

such as paper clips, coins, keys, nails, screws or other small metal objects that can crea-

te a connection from one terminal to another. Shorting the battery terminals together may cause

burns or a ﬁre.

›If used incorrectly or if the battery is damaged, ﬂammable liquid may be ejected from

the battery. Contact with this liquid should be avoided. If contact accidentally occurs,

rinse oﬀ with water. If the liquid comes into contact with your eyes, additionally seek

medical attention. Liquid ejected from the battery may cause irritation or burns.

›Do not touch the hot nozzle or the silicone cap. There is a risk of burns.

4VCordlessHotGlueGun-DHT0003-EN-01Original instruction manual

Symbols and explanation

1.2 Important safety rules for the charger

›Do not operate the charger on an easily ignited surface (e.g. paper, textiles, etc.) or in

aﬂammable environment. There is a risk of ﬁre due to the charger heating up during operation.

›Keep the charger clean. Dirt poses a risk of electric shock.

›Do not expose the charger to rain or wet conditions. Water entering a power tool will increase

the risk of electric shock.

2 Symbols and explanation of terms

Some of the following symbols may be used on the tool. Please familiarise yourself with them and learn their

meaning. Proper interpretation of these symbols will allow you to operate the tool better and more safely.

V volts ~ alternating current

A amperes direct current

Hz hertz Ah ampere-hours

Wwatts Li-ion lithium-ion battery

Wh watts-hours Ø diameter

n0no-load speed /min revolutions per minute

To reduce the risk of injury, the

user must read the instruction

manual (this manual).

safety alert symbol

09/06/21 Original instruction manual

Symbols and explanation

Always wear eye protection. WARNING Read carefully. Warnings must

be followed – not doing so could

endanger your and others‘ lives

and health.

Do not throw it in ﬁre. CAUTION Read carefully – when using the

tool, this information could be

important with regard to health,

safety and regional regulations.

Do not throw it into water. NOTE Important hints for using and set-

ting the tool

Conformity with EU safety stan-

dards

The tool should be recycled; do

not throw into the waste container.

4VCordlessHotGlueGun-DHT0003-EN-01Original instruction manual

Contents / Know your tool

3 Contents

›1 cordless hot glue gun (with permanently installed rechargeable Li-ion battery)

›1 USB charging cord (USB type-C)

›7 glue sticks ø 7 mm (each: transparent, yellow, orange, purple, blue, green, pink)

›2 spring holders

›1 instruction manual (this manual)

4 Know your tool

Read the instruction manual (this manual) and all warnings and instructions.

4.1 Intended use

The cordless hot glue gun (also named “glue gun”) is the ideal tool for crafts, decorating and making repairs.

Suitable for: paper, cardboard, wood, cork, plastics, foam textiles, ceramics, leather, etc. This tool is intended

for private use.

The tool is operated with standard 7 mm glue sticks for glue guns, but not with any other sticks.

Any other use is deemed to be a case of misuse. The user and not the manufacturer will be liable for any da-

mage or injuries of any kind caused as a result of this.

Please note that the tool has not been designed for use in commercial, trade or industrial applications. Our

warranty will be voided if the tool is used in commercial, trade or industrial applications or for equivalent

purposes.

09/06/21 Original instruction manual

Know your tool

4.2 Overview

2 4

Fig. 1: Overview

Glue nozzle USB charging cord

ON/OFF switch Backside LED / LED indicator light

USB TYPE C charging socket Stand bar

Glue stick Trigger lever

Spring holder LED working light

1 6

2 7

3 8

4 9

5 10

4VCordlessHotGlueGun-DHT0003-EN-01Original instruction manual

Technical data

5 Technical data

Item No. DHT0003

Model No. D890401

Weight w/o packaging Approx. 300 g

Rated voltage 3.6V DC

Heating-up time Approx. 15 seconds

Automated switch-oﬀ After 2 minutes of non-use

Temperature 160 °C

Glue stick diameter 7 mm

Glue stick length 150 mm

Battery type Li-ion battery

Battery capacity 4Ah

Number of batteries 1

Recommended charger 5V/2A

09/06/21 Original instruction manual

6 Use

6.1 Charging procedure

NOTE: The tool is not fully charged when it leaves the factory. Fully charge the tool before ﬁrst use.

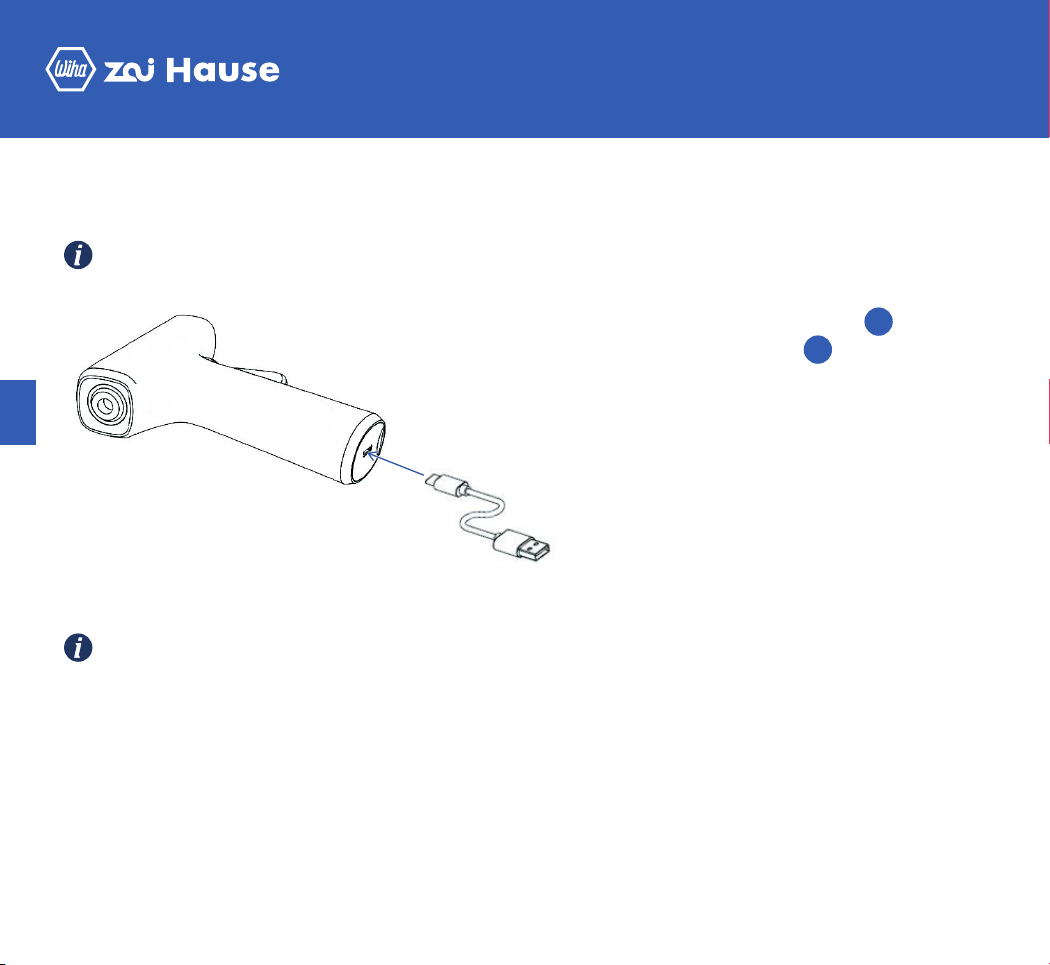

Fig. 2: USB charging cord

1. Insert the charging plug (Fig. 1/ 6) into the

charging socket (Fig. 1/ 3) and ensure that

they are connected correctly (Fig. 2).

2. Insert the USB plug into the computer‘s USB

port, or plug in the power adapter and con-

nect the power adapter to the power socket.

3. When the blue light of the backside LED re-

mains lit; this means the charging is completed.

NOTE: Unplug the power adapter and USB charging cord in time. Do not charge for more than 24 hours

continuously.

Use

4VCordlessHotGlueGun-DHT0003-EN-01Original instruction manual
