WGT-168 GPS Speaker/Microphone
User’s Manual
Contents
Introduction ………………………………p.1
Controls/Functions ………………………..p.3
Assembly/ Battery Charging ……………p.5
Icons guide ………………………………p.6
Menu Chart ………………………………p.8
Function List ………………………………p.10
Finder ………………………………p.10
Track ………………………………p.15
Waypoint ………………………………p.17
Satellite ………………………………p.20
Compass ………………………………p.21
Status ………………………………p.22
Messages ………………………………p.23
Setting ………………………………p.25
Extras ………………………………p.30
-1-
Introduction
The breaking innovative microphone speaker
integrates smart GPS features, transmits data
through two-way communication. Wintec
WGT-168 provides the best assistant in group
communication for climbing teams, hunting
activities, wildlife games, rescue teams, and
fleet management, . .etc
Features:
◎Support major brands of radio
(ex. Motorola, Wintec, Yaesu, Kenwood,
Icom, Hyt…)by optional types of cable.
◎LCD display：
120 x 160 4 level grayscale screen
◎Built in GPS ATMEL chipset receiving 16
parallel channels(WAAS/EGNOS-enabled).
◎Built in electronic compass.
◎Radio-transmitted coordinates, the instant
gourp position,distance, and direction
tracking, max. 10 persons.
◎Track-log records up to 50,000 points.
Increasable max.100 waypoints provided,
◎Group ID communication.
◎Target Finding function.
-2-
◎Powered by USB cable with or w/o battery
to be a G-mouse and PC-supported
navigation.
◎WGT-168 Workbench is a free PC software
available for uploading and managing the
tracks, waypoints, as well as upgrading
MCU firmware. The parameters setting is
provided on WGT-168 Workbench, and the
uploaded tracks can be convertible into
different formats like Google Earth KMZ,
GPX, Virtual Earth.
-3-

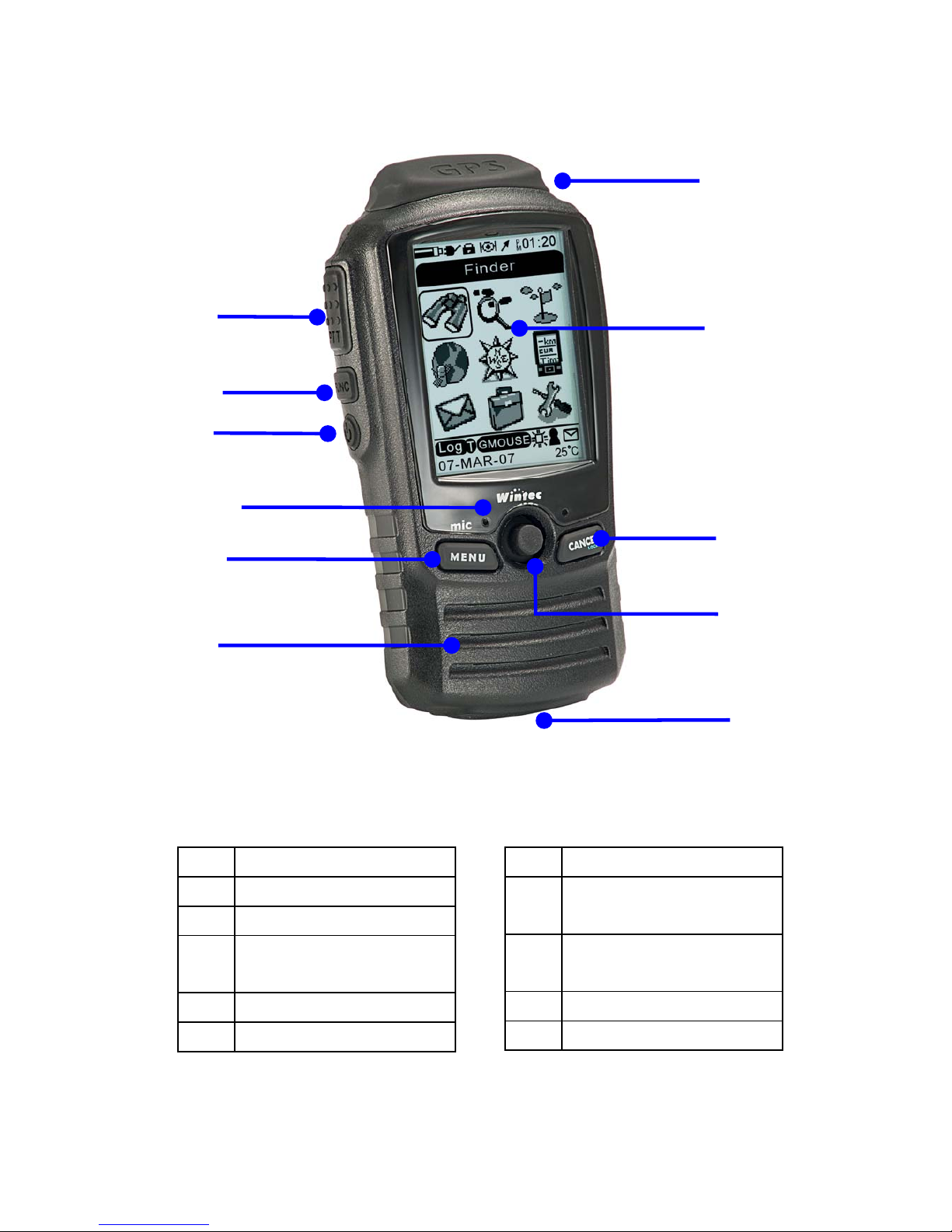

Controls/Functions
1 GPS Antenna
2 PTT; Push To Talk
3 Function Key
4 Power On/Off
button
5 Microphone
6 Return / SOS GID
7 Speaker
8 USB Port / Radio
interface
9 Five Position Switch
push to enter
10 Cancel / Lock
11 LCD Display
(3)
(4)
(2)
(5)
(6)
(7)
(9)
(10)
(
8
)
(11)
(1)
-4-
Button Function
zSOS GID function:
If SOS GID function is enabled it will
automatically send geographic data in every 30
sec for all group members.
PTT
Push to talk over 0.8sec, release PTT
will send geographic data
automatically , the PTT function is
always be used
FUNC Press to cycle over function pages
Press to enable backlight On/Off
Press and hold to turn the unit On/Off
MENU Press to return
Press and hold to open SOS GID
function
Press to select
Press and hold cycling the selection
ENTER
Press to enter
Press and hold for two seconds to
mark your current location on a track
*( Add the Mark need to open
Track Log function and GPS
must be Fixed)
CANCEL /
LOCK Press to delete / information switch
Press and hold to lock/unlock unit,
without PTT & & cancel
-5-

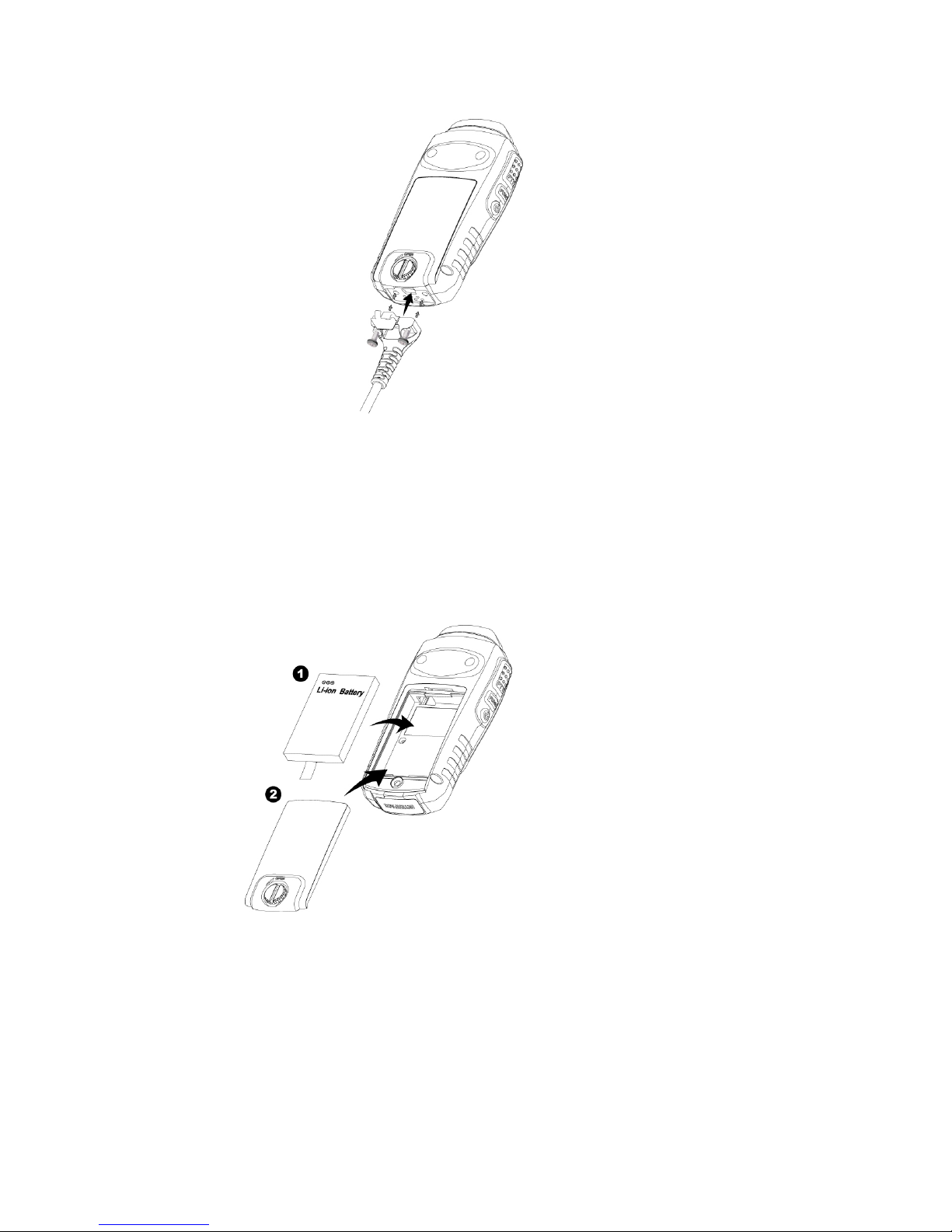

Assembly
Insert radio interface cable as in illus #1.
#1
Remove the battery case and place the
battery properly.
Then rotate the screw of battery case tightly
as in illus #2..
#2
Charging
For battery charging, the internal battery of
WGT-168 can be powered by USB port,
just plug in the USB cable from WGT-168
connected to any USB port for charging.
-6-
Icons guide
(1)
(2) (3) (4) (5) (6)
(8)
(9)
(16)
(10)
(11)
(15)
(14)
(13)
(7)
(17)
(12)
-7-
1
Battery power indication
Battery power run out and unit will be
automatically turn Off
Full Battery
20% 40% 60%
80%
2 Powered from USB
3 Keypad lock
4 GPS status
2D Fix 3D Fix No Fix
GPS disables
5 Data TX/RX
6 Local time
7 Function headline
8 Function icon
9 Log enable
10 Track log mode
Auto Time Range
11 G-mouse mode Enable and NEMA data out from
USB port
12 Backlight ON
13 Received waypoint data.
14 Received messages
15 Local date
16 Temperature
17 Temperature
-8-

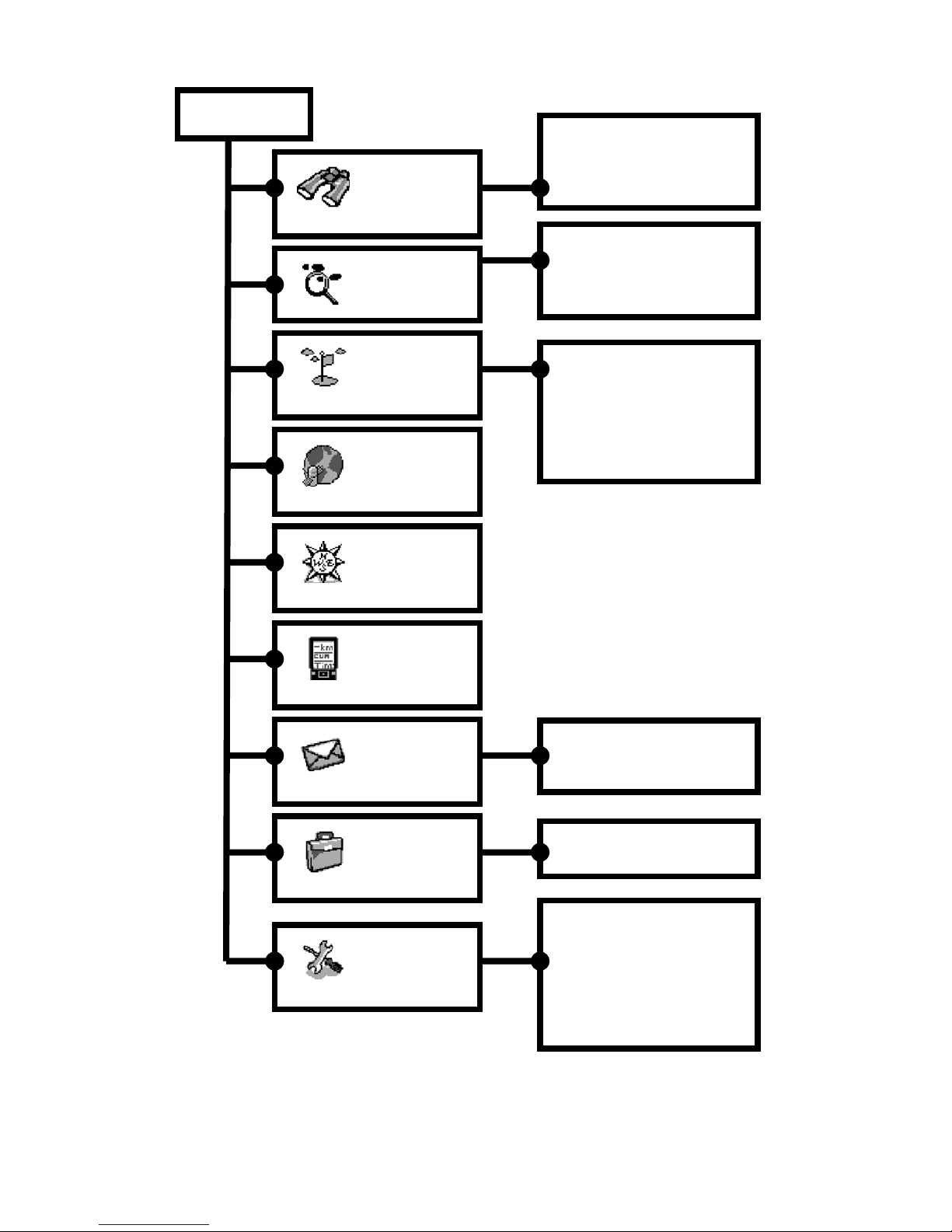

Menu Chart
MENU
Compass
Finder
Extras
Status
Setting
INBOX
WRITE NEW
WATCH GROUP
GROUP LIST
GROUP ID
Satellite
Ｗaypoint
Tracks
Messages
A
DD TRACK
TRACK LIST
DELETE ALL
USER NAME
TIME/DATE
CONTRAST
UNITS
SYSTEM
CALENDAR
A
DD WAYPOINT
WAYPOINT LIST
DELTET ALL
WAYPOINT
INBOX
