DOCUMENT CONVENTIONS

This document contains general safety, installation, and operation instructions for the Wisdom

Audio Sage P20m Loudspeaker. It is important to read this document before attempting to use

this product. Pay particular attention to:

WARNING: Calls attention to a procedure, practice, condition or the like that, if not

correctly performed or adhered to, could result in injury or death.

CAUTION: Calls attention to a procedure, practice, condition or the like that, if not

correctly performed or adhered to, could result in damage to or destruction of part of or the

entire product.

Note: Calls attention to information that aids in the installation or operation of the product.

SAGE P20m WISDOMAUDIO.COM

Introduction

Congratulations on purchasing your Wisdom Audio system. It incorporates many

design features engineered to give you decades of pleasure and performance. Many

of these design choices are uncommon among loudspeaker manufacturers and bear

some explanation. See the following section entitled “Overview” for more

information.

Our unique driver designs and our emphasis on achieving real-world performance

account for the “system” approach taken. These are not speakers that are simply

connected to speaker wires and promptly forgotten. We recognize that setting up a

Wisdom Audio system can be a bit more involved than connecting a common set

of loudspeakers, which is why we recommend that our systems be engineered and

calibrated by Factory Personnel

Your Sage P20m series loudspeaker is specifically designed to avoid the

compromises inherent in conventional speaker designs. There are no passive

crossover components inside the speaker. Instead, there are direct connections

from the amplifiers to their respective High-Pass and Low-Pass drivers and an

external active crossover is used, such as the ones inside of our Wisdom SA-DSP

(Digital Signal Processing) Amplifiers. It is truly a “system” design, and not merely a

collection of loudspeaker drivers in a box. Please contact us to learn which

products/amplifiers/ surround processors outside of our DSP Amplifiers will work

with our speakers and subwoofers. [email protected]

Overview

Your Sage P20m loudspeakers take advantage of several critical technologies to

deliver a level of performance that has never been available in a loudspeaker that

intruded so modestly on your living space. In fact, this level of performance has

rarely been attained, regardless of the space and budget at one’s disposal.

Since several of these technologies cannot readily be found elsewhere, we will take

the time to describe them in more detail than would be necessary for more

conventional designs.

Our planar magnetic drivers use an advanced, thin film membrane to move the air.

This film can respond instantly to the smallest detail in the signal. It has vastly less

SAGE P20m WISDOMAUDIO.COM

inertia than traditional “cone & dome” drivers, so the signal is never blurred in any

way.

One of the most remarkable things about the sound of well-designed planar

magnetic speakers is their lack of thermal or dynamic compression. There are

several reasons for this:

• The lightweight diaphragm responds quickly to even the smallest signals yet

is robust enough to handle a great deal of power. !

• The voice coil is laid out at and is exposed to the air on both sides; the large

resulting surface area dissipates heat extremely quickly and efficiently. !

• Since heat does not build up in the voice coil (as it does in conventional

dynamic drivers), the load seen by the amplifier does not change at high

power levels. !

When you become accustomed to the sound of your new Sage P20m speakers,

conventional speakers sound a bit bland and lifeless. You may also discover

yourself hearing details at even modest levels on the Sage P20m that were

previously inaudible even at loud volumes on more conventional speakers. !

The “voice coil” in the planar magnetic driver is spread out over a large, at area

that is exposed to the open air. As such, when a huge transient comes along, !any

heat that is generated is immediately dissipated. This compares quite favor- ably to

other designs in which the voice coil is buried inside a massive piece of metal,

where the heat has effectively no place to go.

The excellent heat dissipation of these drivers makes them remarkably reliable.

Planar magnetic speakers can handle a great deal of power without undue stress or

audible strain. In fact, for a given size, they can handle many times the power of a

traditional dynamic driver.

Because the conductor of a planar magnetic driver is essentially a long, thin wire, it

presents a purely resistive load to the amplifier. This is comparable to the simple

test loads that amplifier companies use when measuring their amplifiers to show

how terrific they are. As such, you can be assured that your amplifiers will sound

and work their best.

Authoritative, deep bass requires that you move a lot of air. We have chosen to use

dynamic woofers for the bass because they can provide excellent performance at

lower frequencies.

SAGE P20m WISDOMAUDIO.COM

To get comparable bass performance from a planar magnetic design, you would

need to have a huge speaker that would be impractical in most domestic living

spaces. It simply makes more sense to use the best transducer technology in each

area of the reproduced spectrum. One of Wisdom Audio’s strengths is in seamlessly

blending these technologies – particularly important given the high standards set by

our planar magnetic drivers.

Of course, the dynamic woofers themselves must be rather extraordinary to “keep

up” with the planar magnetic drivers right up to the crossover frequency.

Our woofers are different because they must be to do their job. Specifically, we

need highly dynamic, uncompressed bass (to keep up with the planar magnetic

drivers) that does not depend on a critical amount of enclosure volume (since these

speakers are mounted in your wall and use the space inside the wall as their

“enclosure”). These two design goals require rather extraordinary attention to

myriad details.

Many speakers include a mid-bass “bump” in their response to give the illusion of

going deeper in the bass than they actually do. Unfortunately, this “bump” makes

blending them seamlessly with a high-quality subwoofer almost impossible.

All Sage Series speakers have been designed to optimally crossover at

80 Hz, which is the most-common crossover frequency used with subwoofers.

Unpacking and Installing the P20m

The Wisdom Audio Sage P20m freestanding speaker is a substantial piece of

equipment. Please exercise caution when unpacking your P20m to ensure that you

do not strain yourself from its (perhaps unexpected) weight.

CAUTION: Do not attempt to lift your P20m while bending or twisting from the

waist. Use your legs for lifting, not your back. Always stand as straight as possible

and keep the P20m close to your body to reduce strain on your back.

The speaker is shipped in a “telescoping” box (two five-sided boxes, one of which

fits snugly inside the other). Gently roll the box over so that its bottom is facing up.

Then carefully cut the tape along the bottom of the box on all four sides. Roll the

box over again so the bottom is on the floor and lift off the top. With one person at

each end, carefully lift the speaker out of the box and lay it on a soft surface (carpet

or similar).

SAGE P20m WISDOMAUDIO.COM

We do not recommend removing the grille on your new loudspeakers. The grille is

an integral part of the design; moreover, the planar magnetic film should never be

touched, as it is tensioned precisely at the factory. The grille plays an important

protective role as well as an aesthetic one.

After unpacking your P20m, keep all packing materials for future transport. If you

need to ship your speaker, only the original, purpose-designed shipping carton is

acceptable. Any other method of shipping this product runs a significant risk of

damage to the speaker – damage that would not be covered by the warranty. (If

you lose your packaging and need to ship your speakers, replacement packaging

can be purchased from Wisdom Audio.)

Mounting the P20m on the Wall

The mounting bracket that mounts to the wall is shipped attached to the back of the

loudspeaker. It is removed by pulling “down” on it relative to the end of the

speaker that will be “up” when installed on the wall. (Note that for horizontal

center channel speakers, this means the bracket is pulled across the narrow

dimension of the speaker.) It is recommended to place a screw into every open

mounting hole so to avoid the bracket possibility resonating once the speaker is

mounted to the wall.

Please note that this guide assumes the wall surface is flat. If not, shims must be

applied to the rear of the mounting bracket so that the mounting bracket is

uniformly secured to the wall and flat (not distorted). The mounting steps are as

follows:

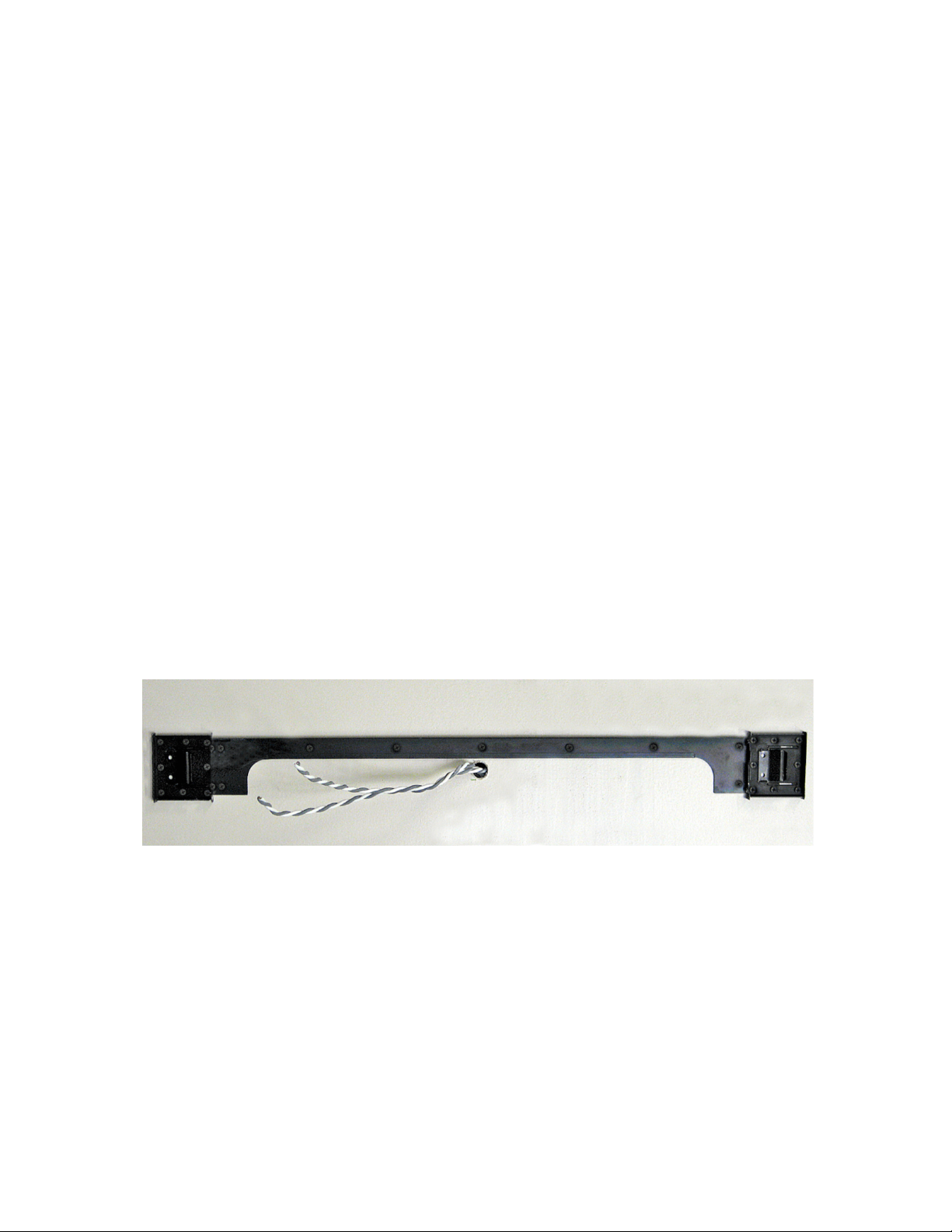

1. Locate the area with the two sets of high- and low-pass speaker cables

coming out of the wall.

2. The inside face of the bracket assembly has arrows stamped into it

indicating which direction must be “up” when it is mounted on the wall.

Align the center screw hole in the mounting bracket next to the speaker

SAGE P20m WISDOMAUDIO.COM

cables and attach somewhat loosely using a dry-wall screw (or similar),

so you can adjust the bracket for plumb.

3. Using a bubble level to ensure that the mounting bracket is plumb, mark

screw holes for EZ-Toggle screws in end clips, using the bracket itself as

your template. You can use any opposing (diagonal) set of holes for

mounting of the two EZ-Toggle screws in each end clip.

4. Rotate the bracket out of the way and install two of the supplied EZ-Toggle

screws in each mounting bracket end clip as follows:

a. Using a #2 Phillips bit in your cordless drill, spin the E-Z Toggle Anchor

into the drywall until the head of the anchor is seated flush and the

arrows on the head of the anchor point up and down. Repeat this

process for each anchor location.

b. To “set” the clamp behind the drywall, place the mounting screw into

the anchor and push or tap firmly until approximately 1" (2.5 cm) of

screw is protruding (do not rotate). Then remove the screw. Repeat for

each anchor location.

c. Rotate the mounting bracket back over the E-Z Toggles, insert the screw

and continue to turn until fastened tightly. The screw stops when the

toggle bar secures itself against the opposite side of the drywall (inside

the wall). Repeat for each anchor location.

5. Install screws suitable for the specific wall material (e.g., sheetrock, brick,

concrete, etc.) in all the remaining holes in the mounting bracket to ensure

secure attachment to wall and avoid any resonance from mounting bracket.

Snug down the center screw as well.

6. Using assistance, while holding the speaker away from the wall, connect

both high- and low-pass speaker cables to the rear mounted connectors. Pay

close attention to connect the correct wires (high- and low-pass) to their

respective speaker connectors while attending to proper polarity.

7. Fix the speaker into the mounting bracket end clips and press down until

you hear the speaker lock into the mounting bracket clips. When properly in

place, it will snap into position and remain held quite firmly.

8. Install the security set screw in the end cap, snugging down to the mounting

clip with the supplied Allen driver. This setscrew prevents the speaker from

coming loose by eliminating the vertical movement required to free the

speaker from the bracket.

If you need to remove the speaker from the bracket for any reason, first remove the

security screw using the supplied Allen wrench. A sharp upward rap with the base

SAGE P20m WISDOMAUDIO.COM

of one hand or even a non-marring, dead blow hammer will help jar it loose.

(Make sure the speaker itself is being supported by an assistant so it does not come

free from the wall unexpectedly.)

Important! Do not use the P20m as a shelf! While its mounting system is quite

rugged, it is designed to securely support the weight of the speaker itself. Do not

place additional objects on it, and do not climb on it.

Making the P20m Connections

As with any system, you should make changes to the connections only when the

power is turned off to avoid any chance of inadvertently causing a problem (such

as a short-circuit).

Two sets of speaker wires are required for each Sage P20m loudspeaker: one for

the woofer (low pass) section, and a separate one for the planar magnetic (high

pass) section that handles the midrange and treble.

We recommend using heavy-gauge speaker wire, the gauge will vary dependent on

your speaker run length. Please consult an authorized dealer to determine what

gauge would be best for your application.

Connect the outputs of your Wisdom Audio SA-series amplifier to the appropriate

woofer sections, taking care to get both the channel assignments and the polarity

correct. Connect the positive (+) terminals on the SA Series amplifier to the positive

(+) terminals for the woofer on the loudspeaker; likewise, connect the negative (–)

terminals on the amplifier and the speaker, respectively.

Next connect the outputs of your chosen amplifier for the midrange/treble to the

Sage P20m planar sections in a similar fashion, taking care with both channel

assignments and polarity.

SAGE P20m WISDOMAUDIO.COM

Care & Maintenance

To remove dust from the front of your P20m, use a feather duster or a lint-free soft

cloth.

Never attempt to clean the drivers themselves.

North American Warranty

Standard Warranty

When purchased from and installed by an authorized Wisdom Audio dealer,

Wisdom Audio loudspeakers are warranted to be free from defects in material and

workmanship under normal use for a period of 10 years from the original date of

purchase.

Furthermore, the transducers (“drivers”) in your Wisdom Audio speakers are

warranted to be free from defects in material and workmanship under normal use

for a period of 10 years from the original date of purchase.

Harsh Conditions Use

Wisdom Audio loudspeakers are designed for installation and operation in

environmentally controlled conditions, such as are found in normal residential

environments. When used in harsh conditions such as outdoors or in marine

applications, the warranty is three years from the original date of purchase.

During the warranty period, any Wisdom Audio products exhibiting defects in

materials and/or workmanship will be repaired or replaced, at our option, without

charge for either parts or labor, at our factory. The warranty will not apply to any

Wisdom Audio products that has been misused, abused, altered, or installed and

calibrated by anyone other than an authorized Wisdom Audio dealer.

Caution!

Do not touch the surface of the planar magnetic drivers, under any circumstances.

The thin film has been carefully pre-tensioned at the factory; any subsequent

contact can only damage it.

SAGE P20m WISDOMAUDIO.COM

Any Wisdom Audio product not performing satisfactorily may be returned to the

factory for evaluation. Return authorization must first be obtained by either calling

or writing the factory prior to shipping the component. The factory will pay for

return shipping charges only if the component is found to be defective as

mentioned above. There are other stipulations that may apply to shipping charges.

There is no other express warranty on Wisdom Audio products. Neither this

warranty nor any other warranty, express or implied, including any implied

warranties of merchantability or fitness, shall extend beyond the warranty period.

No responsibility is assumed for any incidental or consequential damages. Some

states do not allow limitations on how long an implied warranty lasts and other

states do not allow the exclusion or limitation of incidental or consequential

damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights,

which vary from state to state. This warranty is applicable in the United States and

Canada only. Outside of the U.S. and Canada, please contact your local,

authorized Wisdom Audio distributor for warranty and service information.

Obtaining Service

We take great pride in our dealers. Experience, dedication, and integrity make

these professionals ideally suited to assist with our customers’ service needs.

If your Wisdom Audio loudspeaker must be serviced, please contact your dealer.

Your dealer will then decide whether the problem can be remedied locally, or

whether to contact Wisdom Audio for further service information or parts, or to

obtain a Return Authorization. The Wisdom Audio Service Department works

closely with your dealer to solve your service needs expediently.

IMPORTANT: Return authorization must be obtained from Wisdom Audio’s

Service Department BEFORE a unit is shipped for service.

It is extremely important that information about a problem be explicit and

complete. A specific, comprehensive description of the problem helps your dealer

and the Wisdom Audio Service Department locate and repair the difficulty as

quickly as possible.

A copy of the original bill of sale will serve to verify warranty status. Please include

it with the unit when it is brought in for warranty service.

Inhaltsverzeichnis

Andere Wisdom Sprecher Handbücher

Wisdom

Wisdom Sage C38i Bedienungsanleitung

Wisdom

Wisdom Sage Cinema Series Montageanleitung

Wisdom

Wisdom Sage ICS7a Bedienungsanleitung

Wisdom

Wisdom SAGE-CinemaLine-4 Bedienungsanleitung

Wisdom

Wisdom Sage L100m Bedienungsanleitung

Wisdom

Wisdom Sage C150i Bedienungsanleitung

Wisdom

Wisdom Sage Cinema Series Montageanleitung

Wisdom

Wisdom Sage P20 Bedienungsanleitung

Wisdom

Wisdom Ls3 Bedienungsanleitung

Wisdom

Wisdom Insight P7m-LCR Bedienungsanleitung

Wisdom

Wisdom Sage ICS7a Bedienungsanleitung

Wisdom

Wisdom Sage Cinema Series Bedienungsanleitung

Wisdom

Wisdom Sage L150i Bedienungsanleitung

Wisdom

Wisdom Insight P2i Bedienungsanleitung

Wisdom

Wisdom Sage Cinema Line 4 Series Bedienungsanleitung

Wisdom

Wisdom LS3m Series Bedienungsanleitung

Wisdom

Wisdom Sage L75m Bedienungsanleitung

Wisdom

Wisdom LS3i Bedienungsanleitung

Wisdom

Wisdom Sage C225i Bedienungsanleitung

Wisdom

Wisdom Sage Cinema Line 2 Series Bedienungsanleitung

Wisdom

Wisdom Insight L8i Bedienungsanleitung

Wisdom

Wisdom Sage C150m Bedienungsanleitung

Wisdom

Wisdom LS3i Bedienungsanleitung

Wisdom

Wisdom Sage P38m Bedienungsanleitung

Beliebte Sprecher Handbücher anderer Marken

argon audio

argon audio IE20 Bedienungsanleitung

Denon

Denon SC-N7 Bedienungsanleitung

Gemline

Gemline Ace 3952 Bedienungsanleitung

Focal

Focal ON WALL 300 Bedienungsanleitung

HEADRUSH

HEADRUSH Maximus HRSP 5024 Bedienungsanleitung

SoundLogic

SoundLogic BCCS-6/6395 Bedienungsanleitung

Peavey

Peavey DTH 218 Bedienungsanleitung

Avantree

Avantree Pluto Air Bedienungsanleitung

Morel

Morel Integra Series INTEGRA OVATION 4 Bedienungsanleitung

Oppo

Oppo SONICA Bedienungsanleitung

Bose

Bose SoundLink Wireless Music System Bedienungsanleitung

Rocksteady

Rocksteady Stadium Bedienungsanleitung

Bowers & Wilkins

Bowers & Wilkins 4 Bedienungsanleitung

Sonance

Sonance SONOS OUTDOOR Series Bedienungsanleitung

Electro-Voice

Electro-Voice EVID FM4.2 Bedienungsanleitung

Pioneer

Pioneer XW-HTD630 Bedienungsanleitung

Onn

Onn BWA16AA002 Bedienungsanleitung

HP GL313AA - USB Speakers PC Multimedia Bedienungsanleitung
