WisyCom MTP40 Bedienungsanleitung

MTP40 Lite User Manual

Wideband Wireless

Professional Pocket

Transmitter

SN: ________________

Rev.02 (rif. FW 1.10.0L)

Author: Support

Date: 22 October 2014

MTP40

E-series

MTP40 Lite User Manual

Rev.02

Front LED color is the same

of power switch.

INTRODUCTION

“MTP40

Lite

is an extremely small and light pocket transmitter especially designed for

professional wireless microphone applications”

Very easy and quick to use thanks to OLED display, dedicated buttons and a joggle selector.

MTP40 Lite benefits also of the latest Wisycom RF technology along with an enhanced

robustness against noise and inter-modulation.

Fig. 1

❶

Switch to enable wireless transmission, it

also indicates the battery status and

peak/mute operation (with PTT)

❷

In order to allow front visibility same colour

information on (1) is replicated with this LED

❸

Oled display for transmitter setup

❹

<ch>, <gain> and 3 positions <selector>

❺

Battery holder

❻

Cover (to open push side buttons)

1. Fig. 2

Turn on wireless:

Move the Wireless power switch in

“I” position: switch becomes green

(red indicate PTT/MUTE).

A green blinking gives you

indications on battery status.

Open MIC Body:

Push the side buttons and flip down the cover, to access

internal setup controls and batteries.

Turn on display:

Push <select switch> and hold it.

MTP40 Lite User Manual

Rev.02

SAFETY INSTRUCTION

Read this safety instruction and the manual first

Follow all instructions and information.

Do not lose this manual.

Do not use this apparatus under the rain or near the water.

Do not install the apparatus near heaters or in hot environments, do not use outside the

operating temperature range.

Do not open the apparatus, only qualified service technician are enabled to operate on it.

The apparatus needs servicing when it is not properly working or is damaged by liquids,

moisture or other objects are fallen in the apparatus.

Use only accessories or replacement parts authorized or specified by the manufacturer.

Clean the apparatus only with dry cloths, do not use liquids.

Report the serial number and the purchasing date in front of the manual. It is needed to

have proper replacement parts or accessories from the manufacturer.

When replacement parts are needed, use only replacement parts authorized from the

manufacturer. Substitution with not authorized parts could result in electric shock,

hazards or fire.

Keep attention on all the labels with warnings or hazards on the apparatus.

LED INDICATIONS

Led indication with bi-colour led (red & green) on wireless power switch (1) and in front led (2):

- Wireless transmission status: green when RF transmission power is on.

- Battery status: green steady, slowly blinking (< 25%), quickly blinking (<12%).

- Modulation peek (if activated): red.

- Ptt status: red if active (push to talk “pushed”).

BATTERIES

MTP40 Lite is working with 2 AA alkaline or NiMH batteries (select correct type on setup

controls). Battery status can be checked on internal OLED display or looking to LED status on

power switch (see 1.1).

BATTERY SUBSTITUTION

Open transmitter cover and insert batteries following polarity indicated.

Attention: always replace both the batteries

MTP40 Lite User Manual

Rev.02

POWERING UP

Move the wireless power switch (see Fig. 1) in “I” position to activate wireless transmission: a

green LED lights up (blinking when battery is low!)

SETUP CONTROL

Open transmitter Body to access the “display and controls” area (Fig. 3):

A. Graphics Display (OLED)

B. Channel selection buttons (ch)

C. MIC gain setup buttons (gain)

D. 3 position selector (up / down / click)

Fig. 3

OLED POWER UP (OLED IS IN OFF CONDITION)

Pushing down selector (click), oled turns on. A first menu with serial NO and brand logo is

displayed, then <status> menu enters automatically.

Pushing and holding selector (click) > 2 sec, serial NO menu is displayed till (-/+) is selected.

OLED POWER DOWN (OLED IS IN ON CONDITION)

Pushing and holding selector (click) > 2 sec, display is turned off.

Display turns off automatically after 15 sec, unless in <IRDA> menu or in <AUDIO> menu (with

audio level < 5% from nominal).

CLICK

MTP40 Lite User Manual

Rev.02

DISPLAY MENU

Setup menu are accessed in sequence:

STATUS

PRESET

Current

Load from FACTORY/USER/PRESET1/2/3/4/5/6/7/8

Save to USER

TUNING

CH 00-59

GR 00-39

Freq

G: 470.000÷566.000

H: 542.000÷640.000

I: 566.000÷686.000

L: 678.000÷798.000

K:520.000÷640.000

Name

AUDIO

AF In Gain -20÷40 dB (1dB step)

HPass Filter flat/60/80/120/170/250/400Hz

MIC

Mode 2 wires/2wires+bias/3 wires/

2wires&pha/2 w + bias&pha

Phase 0/180

PTT Disable/Normal/Muting/No Data

RF Power Power High/Low

NOISE RED ENC-Wisy/ENR-Wisy

OTHERS Led Light 0-16

Led Mode None/ModPeak/PTT

Battery Alkaline/NiMH

IRDA

Lock

Preset parameters

MTP40 Lite User Manual

Rev.02

CLICK

Using <+/-> selector all menus can be accessed in sequence, push <click> to enter edit mode:

<+/-> to setup field

<click> again to confirm changes and exit.

exit without confirmation if no button is pressed after a few seconds time out.

<START UP> menu

These menus are displayed during power up for few seconds.

First one gives information of antenna to be used. The

number displayed is the center-band of the antenna to

be used.

Keep selector pushed to hold

this menu!

The second menu gives indication on product:

product id (MTP40), a letter which identify the

working band

470-566 MHz

542-640 MHz

566-686 MHz

678-798 MHz

520-640 MHz

a number which identify the hardware version, the

firmware release (110.0F), the band in extended format

and the serial number.

<STATUS> menu

This is the first menu displayed after power up.

Major info are displayed:

-Current channel/group (i.e. CH:00 GR:08)

-Current frequency (i.e. 566.075 MHz)

-Mic gain (i.e. AF: -04 dB) and high pass filter (i.e.

HP:60 Hz)

-“RF H” or “RF L” on top right if RF transmission is

on at high or low power respectively

-On bottom battery bar is displayed

<PRESET> menu

This menu can be entered by scrolling selector, or pushing at the same time both quick

channel setup buttons (<ch> & <gain>).

MTP40 Lite can recall configuration presets. “FACTORY”

recall the Wisycom factory configuration. “USER” recall

the user configuration (the transmitter configuration is

copied into the USER using the “save to” submenu). All

“USER” menus are not locked by default,

thus this is quick way to unlock features!

The other 8 configuration presets are user programmable thru the infrared and the

PC interface (using the programmer UPK 300 or the receiver MRK950/MRK960).

All parameters can be “left unchanged”, “changed” or “changed and lock”,

allowing a very flexible way to pre-program MTP40 Lite configuration.

MTP40 Lite User Manual

Rev.02

<TUNING> menu

This menu can be entered by scrolling selector or using quick channel setup buttons (<ch>).

In this menu current channel/group and frequencies can

be setup. Use the selector to change values (<+/->) and

<click> to confirm.

Sync group is a quick self-settable channel synchronized

by receiver.

<AUDIO> menu

This menu can be entered by scrolling selector or using quick gain setup buttons (<gain>).

“AF In Gain” setup to tune audio input sensitivity:

To help proper audio gain setting, an audio bar

is supplied with peak hold bar) indicating the

headroom to audio peak (0 dB).

AF gain is shown with 2 different unit of

measurements dB (gain in dB of MTP40

Lite

amplifiers) or in dBu peak.

“HighPass Filter” applies different audio HP filter:

Flat / 60Hz / 120Hz / 170Hz / 250Hz / 400Hz.

Use the selector to change values (<+/->) and <click> to

confirm.

<MIC> menu

This menu can be entered by scrolling selector.

Following Mic mode can be setup (for LEMO option)

-2 wires: (PTT is possible) for external audio input

-2 wires + bias: (PTT is possible) for most 2 wires MIC

-3 wires: (no PTT) for most 3 wires MIC

-2 wires & pha: to connect a wired mic thru a 48V

adapter (PHA48)

-2 wires+bias & pha: Allow to connect a ‘2 wires + bias’ MIC

or a ‘2 wires & phantom’ MIC (with PHA48)

Additional field to setup

- Phase: is audio phase can be 0/180 deg.

- PTT operation mode:Normal (pushing make a

remote switch)/Muting (pushing mute the audio)

Use the selector to change values (<+/->) and <click> to

confirm.

NOTE: For DPA option (2 pin microdot audio connector), even if the MIC mode menu allows to

set one of the 5 MIC modes, only 2 wires or 2 wires+bias mode are possible.

<RF POWER> menu

This menu can be entered by scrolling selector.

RF power can be setup to High (50 mW ERP) or Low (10

mW ERP).

Use the selector to change values (<+/->) and <click> to

confirm.

MTP40 Lite User Manual

Rev.02

<NOISE RED> menu

This menu can be entered by scrolling selector.

MTP40 Lite supports 2 different type of “Companding

systems”

ENR: designed for maximum noise reduction

ENC: designed for maximum audio fidelity (use this in

case of special vocal application or to remote

instruments)

<OTHERS> menu

This menu can be entered by scrolling selector.

Power switch green LED brightness can be setup LED

light. Modulation peak LED on power switch (become

RED when audio get close to saturation) can be

enabled/disabled.

Battery type can be setup in Alkaline or NiMH.

<IRDA> menu

This menu can be entered by scrolling selector.

While is this menu MIC can be connected to IRDA for

setup or firmware upgrades.

NOTE: while in this menu display is not automatically

turned off.

<LOCK> menu

This menu can be entered by scrolling selector.

Long pressing (2 sec.) selector button (click) it locks

MTP40 Lite in transmission mode.

To unlock, long pressing (2 sec.) selector button again.

<BOOTLOAD> menu

This menu can be entered only turning on the transmitter while pushing at the same time both

quick channel setup buttons (<ch> & <gain>).

Device is forced in bootloader mode to allow FIRMWARE

UPDATE.

MTP40 Lite User Manual

Rev.02

The following table sums up which parameters can be set and the related range settings.

PARAMETER

MEANING

RANGE SETTINGS

TUNING

Channel

0 ÷ 59

Group

0 ÷ 39 + SYNC GROUP

Freq

Frequency

depends on the MTP40 Lite Model:

G 470-566

H 542-640

I 566-686

L 678-798

K520-640

AUDIO

AF In Gain

Gain of the

audio signal

depends on the mic mode setting

(ex. -40dB ÷ 40dB step of 1 dB)

High Pass Filter

High Pass filter

Flat/60/80/120/170/250/400 Hz

MIC

Mode

MIC type

’2 wires’

‘2 wires + bias’

‘3 wires’

‘2 wires & phantom’

‘2 wires + bias & phantom’

Phase

Audio signal

phase

0° or 180°

PTT Mode

It defines how

and what

information the

transmitter has

to send

Disable:when the PTT button is pushed, nothing

happen. (the transmitter sends AF+Tone

squelch)

Normal: when the PTT button is pushed, the

transmitter send a different RF signal. According

to the receiver configuration the audio can be

enabled/disable on LINE (and/or COM).

Muting: the transmitter doesn’t send the audio.

The voice is cut, it doesn’t enter to the

microphone

No Data: the transmitter sends neither tone

squelch nor battery data.

RF POWER

RF Power

High (50 mW ERP) or

Low (10 mW ERP)

NOISE RED.

NRSYS

Noise reduction

ENR: Wisycom Extended-NR,noise optimized

ENC: Wisycom Extended-NC,voice optimized

OTHERS

Led Light

Power switch

green

brightness

0 ÷ 16

Led Mode

It defines when

the power

switch led (see

Fig. 3) has to

become RED

None: never

ModPeak: when audio get close to saturation

PTT: when the PTT button is pushed

Battery

Battery type

Alkaline or NiMH

MTP40 Lite User Manual

Rev.02

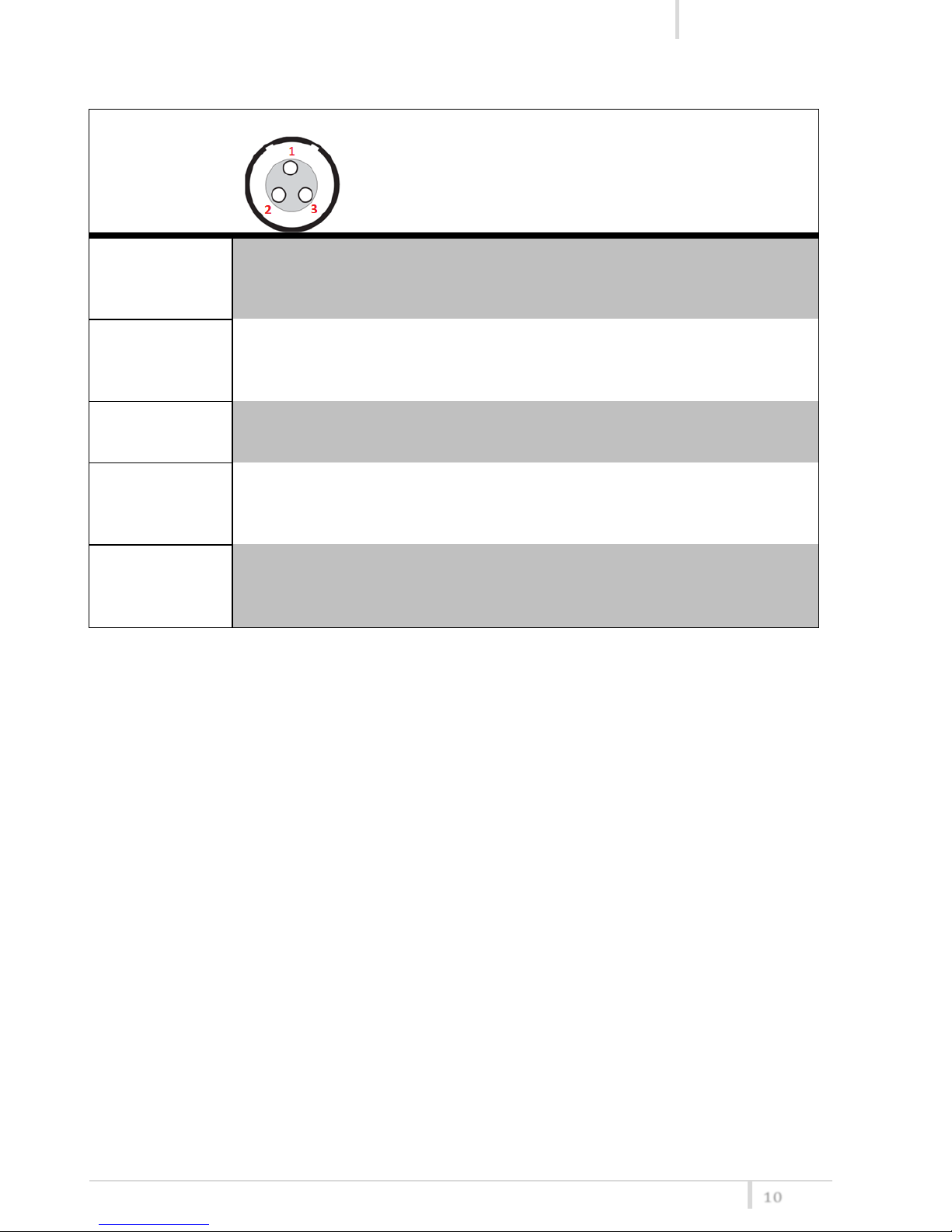

MIC Mode setting (only for LEMO option):

MIC Mode:

Pin out

Gain

PTT

Led Mode

’2 wires’:

1=GND

3=AF

-40/40 dB

Disable

Normal

Muting

No data

None

Mod. Peak

PTT

‘2 wires + bias’:

1=GND

3=AF+5.5V

-20/40 dB

Disable

Normal

Muting

No data

None

Mod. peak

PTT

‘3 wires’:

1=GND

2=5.5V

3=AF

-40/40 dB

Disable

No data

None

Mod. peak

‘2 wires &

phantom’:

1=GND

2=3.1V (power for

PHA48)

3=AF

-40/40 dB

Disable

No data

None

Mod. peak

‘2 wires + bias &

phantom’:

1=GND

2=3. 1V (power for

PHA48)

3=AF+5,5V

-20/40 dB

Disable

No data

None

Mod. peak

Andere Handbücher für MTP40

Inhaltsverzeichnis

Andere WisyCom Sender Handbücher

WisyCom

WisyCom MTP61 Bedienungsanleitung

WisyCom

WisyCom MTB40S Gebrauchsanweisung

WisyCom

WisyCom CST38 Bedienungsanleitung

WisyCom

WisyCom MTP60 Gebrauchsanweisung

WisyCom

WisyCom MTK982 Bedienungsanleitung

WisyCom

WisyCom MTB40 Bedienungsanleitung

WisyCom

WisyCom MTH410 Bedienungsanleitung

WisyCom

WisyCom MTP60 Bedienungsanleitung

WisyCom

WisyCom MTP51-JP Bedienungsanleitung

WisyCom

WisyCom MPR30-IEM Bedienungsanleitung

WisyCom

WisyCom CTK38 Bedienungsanleitung

WisyCom

WisyCom RTE25 Bedienungsanleitung

WisyCom

WisyCom MTP40S Bedienungsanleitung

WisyCom

WisyCom MTP41 Bedienungsanleitung

WisyCom

WisyCom MTP40S Gebrauchsanweisung

WisyCom

WisyCom MTB40S Bedienungsanleitung

WisyCom

WisyCom MTB40 Bedienungsanleitung

WisyCom

WisyCom MTP30 Gebrauchsanweisung

WisyCom

WisyCom MTH400 Bedienungsanleitung

WisyCom

WisyCom MTH400 Bedienungsanleitung

WisyCom

WisyCom RPU500-Tx Bedienungsanleitung

WisyCom

WisyCom MTK952 Bedienungsanleitung

WisyCom

WisyCom MTP60 Bedienungsanleitung

WisyCom

WisyCom MTP40S Bedienungsanleitung

Beliebte Sender Handbücher anderer Marken

NIVELCO

NIVELCO EasyTREK SCA-300 Series Betriebsanleitung

Honeywell

Honeywell 5816WMBR Bedienungsanleitung

Kamstrup

Kamstrup READy MTU Betriebsanleitung

Omega

Omega ZW Series Bedienungsanleitung

ABB

ABB Field 264H Leitfaden

Alinco

Alinco DJ-V17T Bedienungsanleitung

Dejero

Dejero EnGo 3x Bedienungsanleitung

Rosemount

Rosemount 4600 Bedienungsanleitung

Speaka Professional

Speaka Professional 2342740 Bedienungsanleitung

trubomat

trubomat GAB 1000 Bedienungsanleitung

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Bedienungsanleitung

Rondish

Rondish UT-11 Bedienungsanleitung

MG 10JRE Bedienungsanleitung

Burkert

Burkert 8177 Bedienungsanleitung

Firetide

Firetide HotPort 3203 Handbuch

Tele Radio

Tele Radio T9-02 Bedienungsanleitung

Rotronic

Rotronic HygroFlex HF3 Series Bedienungsanleitung

Jamara

Jamara FCX6 Pro Tel Bedienungsanleitung
