User Manual

WolfPack 8K 4x2 HDMI Matrix

Switch

MODEL No. HDTVHDMX0016M1（Includes separate audio）

HDTVHDMX0017M1（No audio）

WolfPack 8K 4x2 MATRIX FEATURES:

HDTVHDMX0016M1（Includes audio)

Picture 1.0 Front Panel

No.

Description

Introduction

①

Mini USB port

Only for factory upgrade

②

HDMI input

indicators for

channel A

The selected input channel indicator will light up.

③

HDMI output

indicator for

channel A

Lit when HDMI OUT A has signal output.

④

HDMI input

indicators for

channel B

The selected input channel indicator will light up.

⑤

HDMI output

indicator for

channel B

Lit when HDMI OUT B has signal output.

⑥

ARC status

indicator

Lit when ARC on.

⑦

IR receiving window

Receive the commands sent by the infrared remote control.

⑧

EDID mode

indicators

Include three audio EDID modes: PASS/2CH/5.1CH

⑨

Audio source

channel indicator

Lit when Audio output is to HDMI OUT A. Light is off is to HDMI

OUT B.

⑩

Input selection key

of channel A

Loop to select the input channel of HDMI OUT A

⑾

Input selection key

of channel B

Loop to select the input channel of HDMI OUT B

⑿

ARC on/off key

HDMI ARC (Audio return channel) function on/off.

⒀

EDID mode

selection key

Supports three audio EDID mode switching: PASS/2CH/5.1CH.

⒁

Power status

indicator

Lit when power on.

①

②

③

④

⑤

⑦

⑩

⑾

⒁

⒂

⑥

⑧

⑿

⒀

⑨

⒂

Power switch

Power self - lock switch, turn on when pressed, turn off when

pressed.

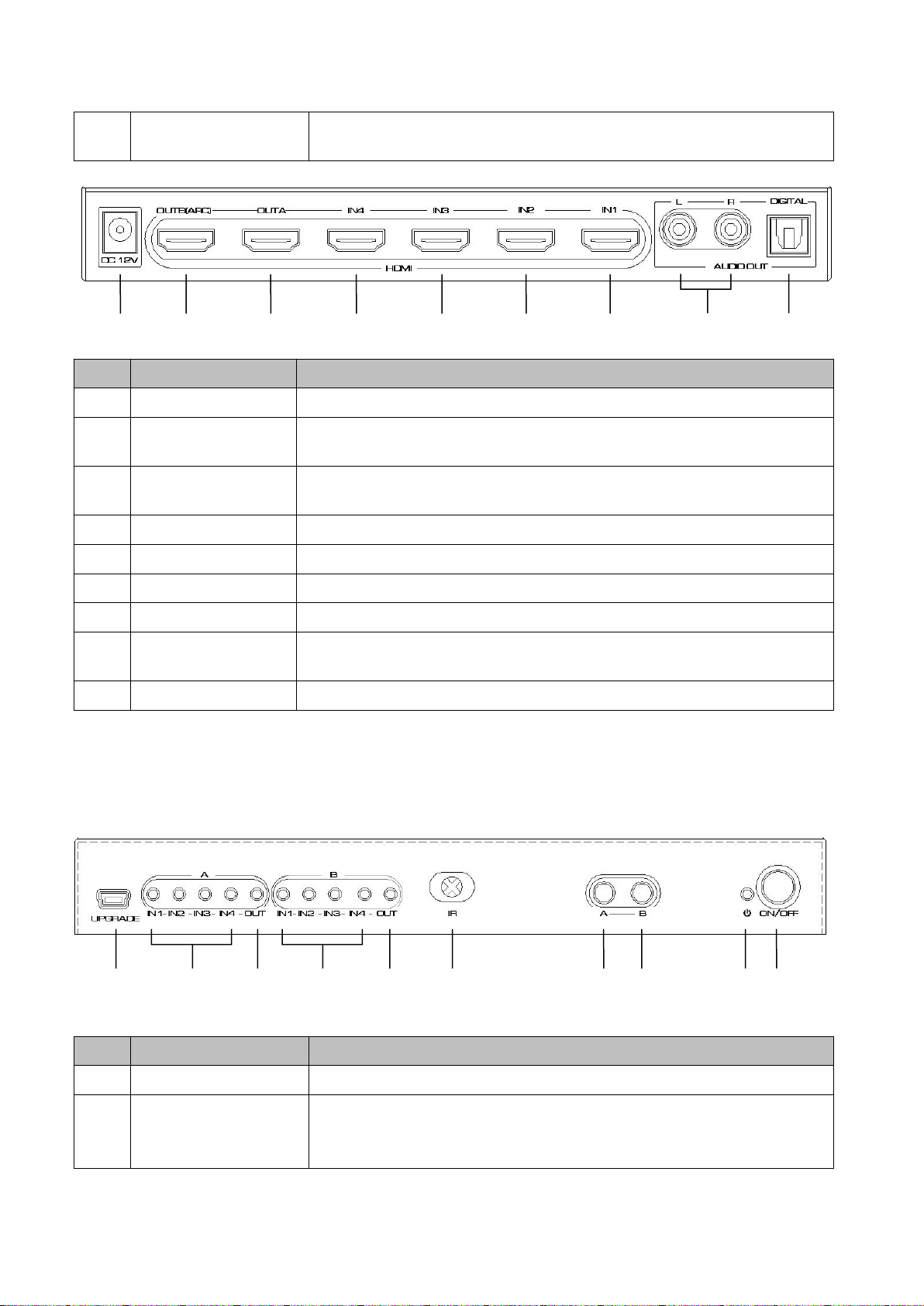

Picture 1.1 Rear Panel

No.

Description

Introduction

①

Power jack

Requires 6-12V power supply

②

HDMI output port

Connects to monitor with HDMI port. This port also supports

ARC.

③

HDMI output port

Connects to monitor with HDMI port

④

HDMI input port 4

Connects to your source device by WolfPack 8K HDMI cable.

⑤

HDMI input port 3

Connects to your source device by WolfPack 8K HDMI cable.

⑥

HDMI input port 2

Connects to your source device by WolfPack 8K HDMI cable.

⑦

HDMI input port 1

Connects to your source device by WolfPack 8K HDMI cable.

⑧

Analog audio

ports

Synchronized output stereo analog audio which contains left

and right channels.

⑨

Digital audio port

Synchronized output digital audio by fiber optic.

HDTVHDMX0017M1（No audio）

Picture 1.2 Front Panel

No.

Description

Introduction

①

Mini USB port

Only for factory upgrade

②

HDMI input

indicators for

channel A

The selected input channel indicator will light up.

①

②

③

④

⑤

⑥

⑦

⑧

⑨

①

②

③

④

⑤

⑥

⑦

⑧

⑨

⑩

③

HDMI output

indicator for

channel A

Lit when HDMI OUTA has signal output.

④

HDMI input

indicators for

channel B

The selected input channel indicator will light up.

⑤

HDMI output

indicator for

channel B

Lit when HDMI OUT B has signal output.

⑥

IR receiving window

Receive the commands sent by the infrared remote control.

⑦

Input selection key

of channel A

Loop to select the input channel of HDMI OUT A

⑧

Input selection key

of channel B

Loop to select the input channel of HDMI OUT B

⑨

Power status

indicator

Lit when power on.

⑩

Power switch

Power self - lock switch, turn on when pressed, turn off when

pressed.

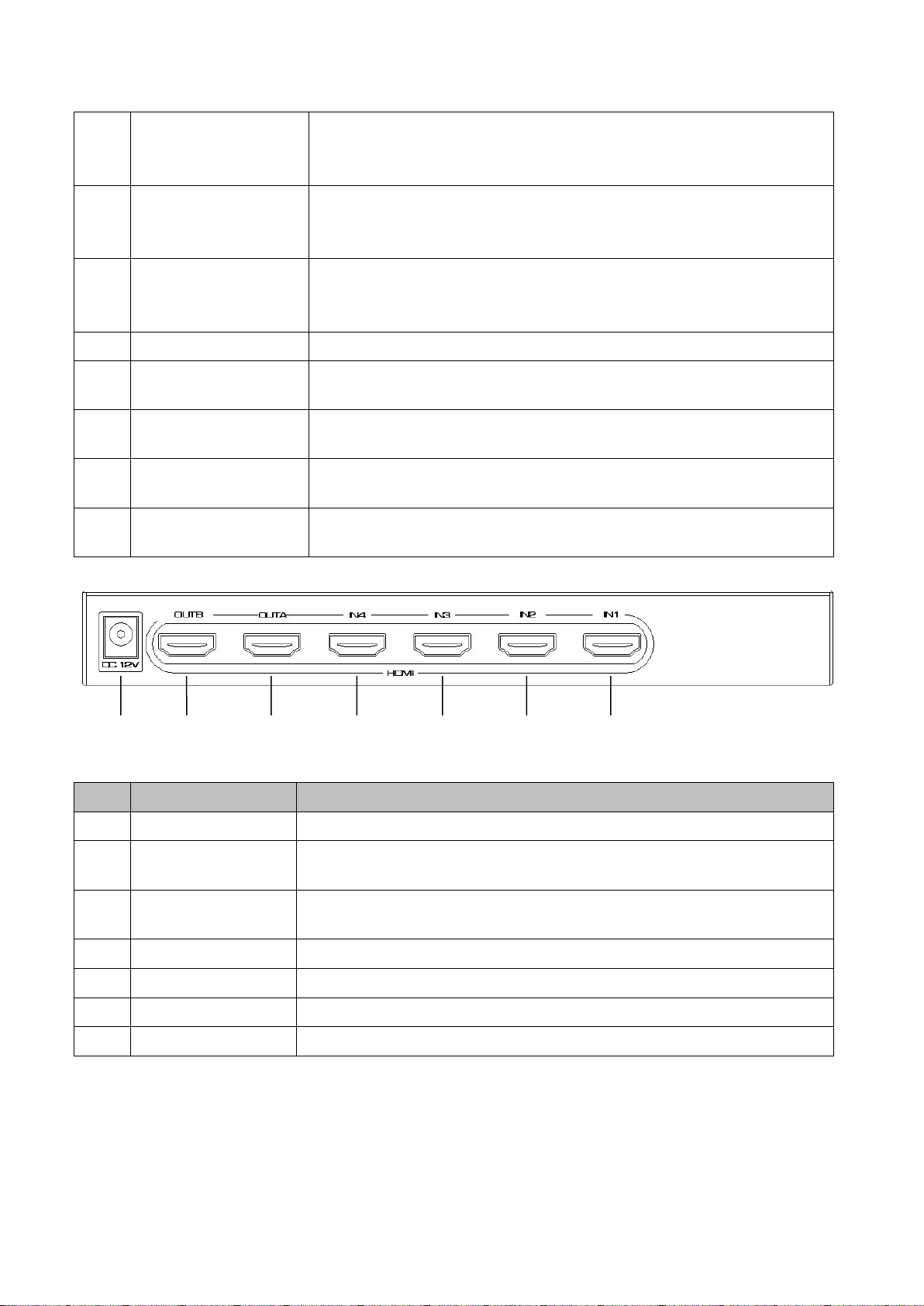

Picture 1.3 rear panel showing

No.

Description

Introduction

①

Power jack

Requires 6-12V power supply

②

HDMI output port

Connects to monitor with HDMI port. This port also supports

ARC.

③

HDMI output port

Connects to monitor with HDMI port

④

HDMI input port 4

Connects to your source device by WolfPack 8K HDMI cable.

⑤

HDMI input port 3

Connects to your source device by WolfPack 8K HDMI cable.

⑥

HDMI input port 2

Connects to your source device by WolfPack 8K HDMI cable.

⑦

HDMI input port 1

Connects to your source device by WolfPack 8K HDMI cable.

①

②

③

④

⑤

⑥

⑦

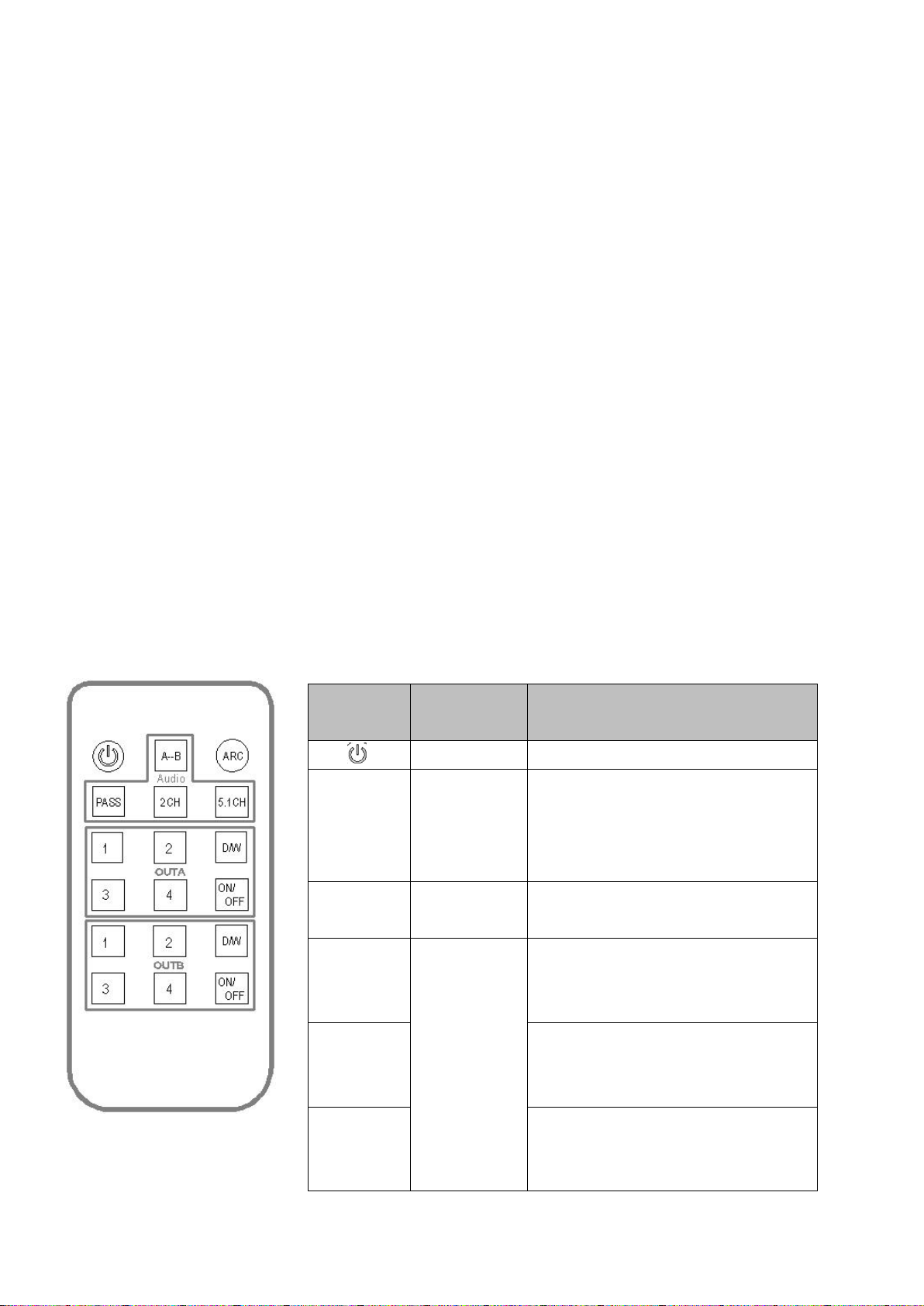

Picture 1.4 IR panel showing and function introduction

Remote

keys

Panel keys

Functional description

Power standby on/off button

A-B

Press AUDIO

key more

than 3

seconds

Select A/B for the audio output source

channel

ARC

Press ARC

key

ARC turn on / turn off

PASS

Press AUDIO

key

Audio EDID PASS mode.

The audio output format is determined

by the EDID information of the TV.

2CH

Audio EDID 2CH mode.

Priority output stereo audio in this

mode.

5.1CH

Audio EDID 5.1CH mode.

Priority output 5.1 channel bit stream

in this mode. The analog output ports

* Please take out the film at the rear of the remote before you use. Please insert the film to

remote rear if you do not use the remote for long time.

WolfPack 8K 4x2 HDMI Matrix Switch Connection and Operation:

have no output now.

1/2/3/4

Press A/B key

Input source selection of A/B output channel.

D/W

Press A/B key

more than 3

seconds

HDMI1.4 compatibility mode turn on/off

Try to turn on this mode when there is a

problem using both HDMI1.4 signal source and

HDMI2.0 TV. When turned on, the 5 LEDs in

group A/B will flash 4 times at the same time,

and flash twice when turned off

ON/OFF

HDMI A/B output port enabled or disabled

NOTE:

1. Please use 8K HDMI cables and connect the cables before powering the equipment.

2. In the matrix mode (In this mode, the outputs of A and B are different), output ports

A and B cannot output 8K signals at the same time. Only one group is allowed to output 8K

and the other group output 4K or less.

3. The product has power off memory function. The setting state of the output channel

is recorded and saved. After the power is off, the saved data will be automatically retrieved

for configuration.

4. The optional AUDIO OUT is a set of multiplexed ports that allows you to select HDMI

PO W ER

SU PPL Y

PS5

X boxX

N vidia

3 0 7 0 / 3 0 8 0 / 3 0 9 0

C ableB ox

8 K H DM IC able

R C A audio cable

A udio fibercable

Poweramplifier

HDTVHDMX0016M1/HDTVH

DMX0017M1

OUT A & B sounds by using the "A-B" key.

5. The Audio EDID mode selection is also available for multiplexing. When the audio

source selects channel A, the audio EDID mode is valid for channel A. When the audio

source selects channel B, the audio EDID mode is valid for channel B.

6. Analog audio can only be outputted when the audio format is LPCM, so choose the

EDID mode in 2CH mode when using the analog audio output.

7. If you want to use ARC or CEC, you must connect the TV to the OUTA port. Before

using ARC, make sure your TV HDMI port supports ARC and the ARC have been turned on.

WolfPack 8K 4x2 HDMI MATRIX SWITCH SPECIFICATIONS:

Model No.

HDTVHDMX0016M1 (Includes separate audio)

HDTVHDMX0017M1 (No separate audio)

Model name

8K HDR 4x2 HDMI True Matrix Switch

Input ports

4–HDMI

Output ports

2–HDMI

RCAX2, Optical X1 (Only for HDTVHDMX0016M1)

Video format

480p/720p/1080p/2160p@24/25/30/50/60/100/120Hz

Up to 4320p@50/60Hz. Supports HDR & Dolby Vision

Deep color

8/10/12/16Bit@2160p

8/10bit@4320p

Audio format

Dolby HD/DTS HD/Dolby Atmos/Dolby AC3/DTS/LPCM Etc.

Transmission bandwidth

1200MHz Max.

Transmission rate

48Gbps Max.

IR distance

≤5m

Input cable length

2160P/AWG 26 ≤5m；1080P/AWG 26 ≤10m

Output cable length

2160P/AWG 26 ≤5m；1080P/AWG 26 ≤12m

Power adapter

specification

Input: AC 100~240V

Output: DC 12V/1.5A

Max working current

500mA

Working temperature

range

-5 ~ +40℃

Working humidity range

5 to 85%RH（No Condensation）

Storage temperature

-15 to 55℃

Storage humidity

5 ~95%RH (No Condensation)

Size

250x75x30 (mm)

Weight

440g

Accessories

Manual, Remote, Power Adaptor
