WOOSIM WSP-R240 Bedienungsanleitung

http://www.woosim.com

MODEL WSP-R240

WOOSIM SYSTEMS Inc.

#501, Daerung Technotown 3th,

448, Gasan-Dong, GeumChun-Ku,

Seoul, Korea

Tel : +82-2-2107-3700

Fax : +82-2-2107-3707

URL: http://www.woosim.com

(2inch Mobile Printer)

Rev. 2.0

All specifications are subjected to change without notice

WSP-R240 Rev. 2.0

http://www.woosim.com 2



WSP-R240 2inch mobile printer operator’s manual.

The information contained in this manual is the property of Woosim

Systems Inc.

And may not be reproduced in whole or in part without the prior written

permission of Woosim Systems Inc.



Trademark

a registered trademark of Woosim Systems Inc.

All other trademark are the properties of their respective companies.



Caution

Some semiconductor devices are easily damaged by static electricity. You

should turn the printer “OFF”, before you connect or removed the cable on

the rear side, in order to guard the printer against the static electricity.

If the printer is damaged by the static electricity, you should turn the

printer “OFF”.



Notice

The contents of this manual are subject to change without notice.

WSP-R240 Rev. 2.0

http://www.woosim.com 3



Introduction

The WSP-R240 is suitable designed for use with a growing variety of mobile

devices. Bluetooth/Serial interfaces make the WSP-R240 the perfect comrade for

applications such as point of transaction warehousing, distribution, point of sales,

hospitality, gaming and healthcare.

The general features of WSP-R240 printer are as follows:

 Pocket size (79.5 X 114.3 X 43.6mm)

 Light weight (217g) for true mobility.

 Very silent printing thru direct thermal printing method.

 High speed(80mm/sec, MAX)

 High resolution(203dpi : 8dots/mm)

 UART(RS-232C or TTL), Bluetooth Ver 2.1 + EDR

USB [option] Interface

 Intuitive LED’s indicate Power(on/off),Error, Bluetooth status, Battery status

 Support Magnetic Stripe Reader [option].

 Support text and graphic printing.

 Easier paper loading by CLAMSHELL design.

 Easier maintenance with self-diagnostics.

 In field programming – Update Firmware, Download Fonts and Logos

 Microsoft Windows XP / VISTA / 7 / CE / Linux / Android compatible.

 Free fall: 1.5 meter onto concrete

 Flow control : Software (XON/XOFF)

※ Hardware flow control not supported in printer.

WSP-R240 Rev. 2.0

http://www.woosim.com 4



Operating Precautions

Please follow the precautions below to enjoy and maintain the full performance

of the printer.

 Using the Printer

● Be careful not to drop or bump the printer on a hard surface.

● Do not install the printer in direct sunlight or such areas.

Suitable environment for the use of the printer is as follows:

◆ Operating temperature :-10°C to 50°C

◆ Relative humidity : 30% to 80%

● Do not install the printer near devices that generate strong

electromagnetic fields such as a copy machine.

● Do not open the platen cover during printing .

● Do not remove or reinstall the communication cable during printing

or transmission.

● Do not touch the connectors of the communication during printing.

● Switch the POWER OFF when not in use.

● Do not use alcohol or other solvent.

● The AC adapter, the battery charger and the battery pack may

become warm when in use. This is normal and is not a malfunction.

● When the battery pack is used at low temperature, the length of time

the printer can be used may be shortened.

 Thermal Paper Handling

● Store the thermal paper in a cool, dry and dark place.

● Do not rub the paper with hard object.

● Do not leave the paper with hard object.

● Do not allow plastic film, erasers, or adhesive tape to touch the paper

for long periods.

● Do not stack the thermal paper with diazo copies immediately

after copying or wet-type copies.

● Do not use chemical glue.

● Always use the clean thermal paper.

WSP-R240 Rev. 2.0

http://www.woosim.com 5



Note

FCC ID : QDDWSP-R240

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 the FCC Rules.

These limits are designed to provide reasonable protection against harmful

interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful

interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or more of the following

measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Modifications not expressly approved by the manufacturer could void the user’s

authority to operated the equipment under FCC rules.

This Device has been evaluated to comply with RF exposure requirement for

general use limit in portable condition. It is safe to be used in sold condition.

WSP-R240 Rev. 2.0

http://www.woosim.com 6

CONTENTS

1. Outline ..........................................................................................................................................7

1.1. Model classifications..........................................................................................................7

1.2. Product Part Number System...........................................................................................7

1.3. Specifications.......................................................................................................................8

2. Setting up the printer.............................................................................................................10

2.1. Printer & Accessories.......................................................................................................10

2.2. Printer Features.................................................................................................................11

2.3. Replacing the paper roll..................................................................................................13

2.4. Power supply .....................................................................................................................14

2.4.1. Internal power supply.............................................................................................14

2.4.2. Installing the Battery ..............................................................................................14

2.4.3. Recharging the battery ..........................................................................................15

2.5. Set operation mode.........................................................................................................16

3. Interface......................................................................................................................................20

3.1. UART(RS-232C or TTL) or USB .......................................................................................20

3.2. Bluetooth............................................................................................................................21

3.3. Card Reading.....................................................................................................................21

4. Using the printer......................................................................................................................22

4.1. Control panel.....................................................................................................................22

4.2. The self test .......................................................................................................................23

5. Consumable Parts ....................................................................................................................24

5.1. Recommended paper ......................................................................................................24

5.2. Printing position ...............................................................................................................24

6. Revision History .......................................................................................................................25

WSP-R240 Rev. 2.0

http://www.woosim.com 7

WSP-R240 ( ) ( )

Model

Interface

A1:UART/Bluetooth

Power

None : DC 8.4V

Model name / Interface Spec.

Example) 1. Porti-S40 UART/Bluetooth Part No. ⇒ S40/A1

2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1

Note) The above table is the interface format which is supported.

But some of the interfaces are not supported according to the product

and please contact us, if you have any questions regarding the interface.

S40

SC30

W25

Wired Wireless

A RS-232C 1 Bluetooth

B TTL 2 IrDA

C USB 0 None

D RS-485

E Parallel

Z None

WSP-R240 Rev. 2.0

http://www.woosim.com 8

Item Specification

Printing method Direct thermal line printing

Characters per line 42cpl (MAX)

Character size Eng. : 9*24dots, 12*24dots Kor. : 16*24dots, [24*24dots]

Optional Characters Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Turkish,

Greek, Japanese, Persian, Latin9 and Others upon request.

Resolution 203dpi, 8dots/mm

Print width 2-inch (48mm, 384dots)

Printing speed 80mm / sec (MAX)

Dimensions 79.5 X 114.3 X 43.6mm (Standard)

79.5 X 118.2 X 43.6mm (MSR option)

Weight 217g (Including battery)

Interface UART(RS-232C or TTL) , Bluetooth Ver2.1 + EDR

USB[option]

Paper supplied Thermal roll paper, Label roll (58mm wide, 40ø)

Barcode supplied

1-dimension : Code128, Code39, I2/5, Code93 UPC, EAN, KAN,

JAN, CODABAR

2-dimension : PDF417, QR Code, DATA Matrix, Micro PDF417,

Truncated PDF417

Driver Microsoft Widows XP / VISTA / 7

Windows CE, Linux, Android OS driver compatible

Black mark Support black mark detection

H/W spec. MCU : 32bits CISC, FLASH : 64Mbits, RAM : 128Mbits

Receive buffer size 1M bytes

MSR [option] ISO 7810 / 7811 / 7812 Triple tracks(1&2&3) Reading

Battery Rechargeable 7.4V DC , 1100mAh (Li-ion)

Battery duration 1 hour continuous printing

Battery Charger Input (100~250V AC 50~60Hz)

Output(8.4VDC/0.8A), 4hours full charge time

(Continue…)

WSP-R240 Rev. 2.0

http://www.woosim.com 9

Item Specification

Temperature -10°C ~ 50°C (operating)

-10°C ~ 70°C (storage) Environment

Conditions Humidity 30% - 80% (operating)

10% - 90% (storage)

Mechanical 37,000,000 lines MCBF (Mean Cycle

Between failure) Head Approximately 50 Km

< Table 1 >

WSP-R240 Rev. 2.0

http://www.woosim.com 10

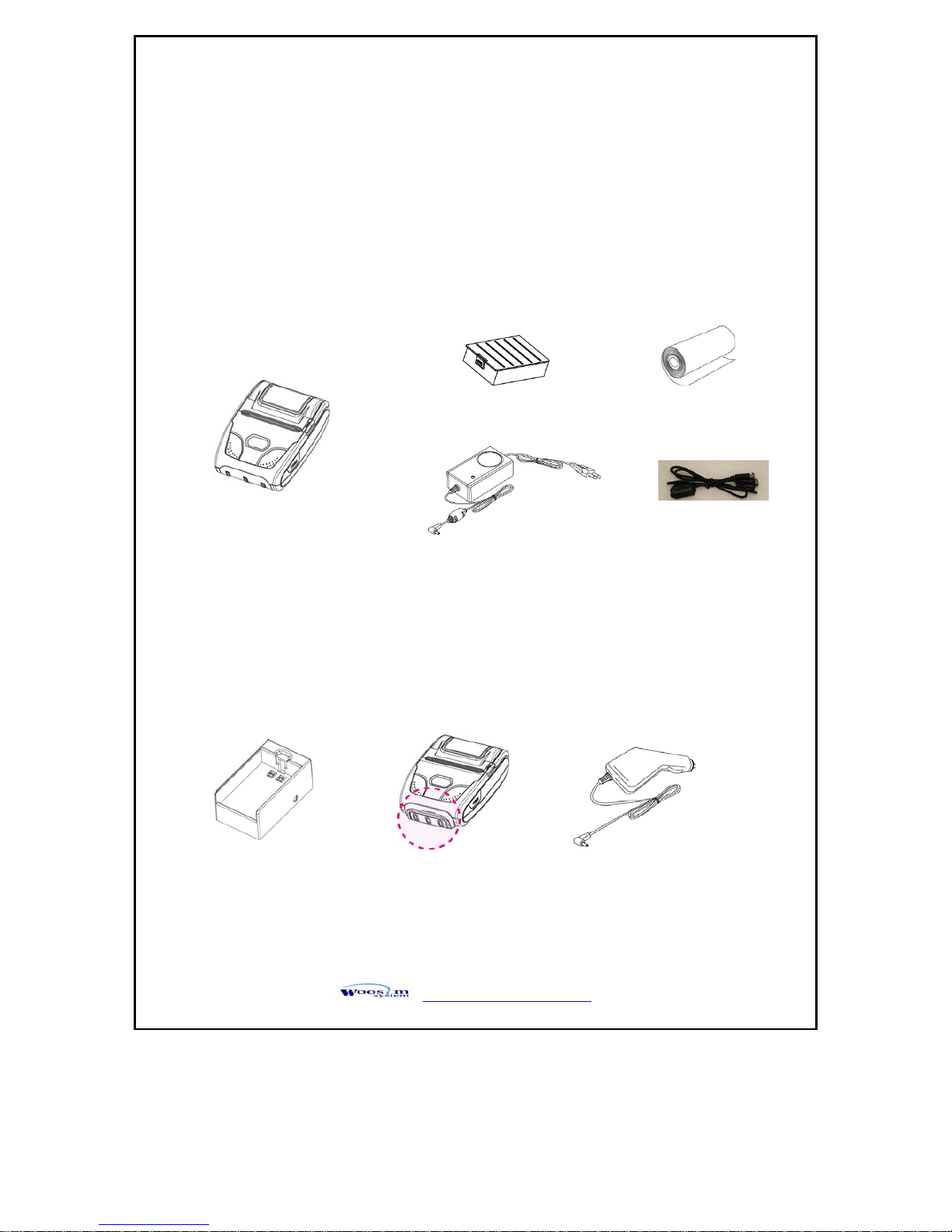

Your printer box should include these items. If any items are damaged or missing, please

contact your dealer for assistance.

Battery charger adaptor

▼ OPTIONAL

Car charger

Thermal roll paper

WSP-R240

Communication cable

Battery Pack

External Battery Cradle
