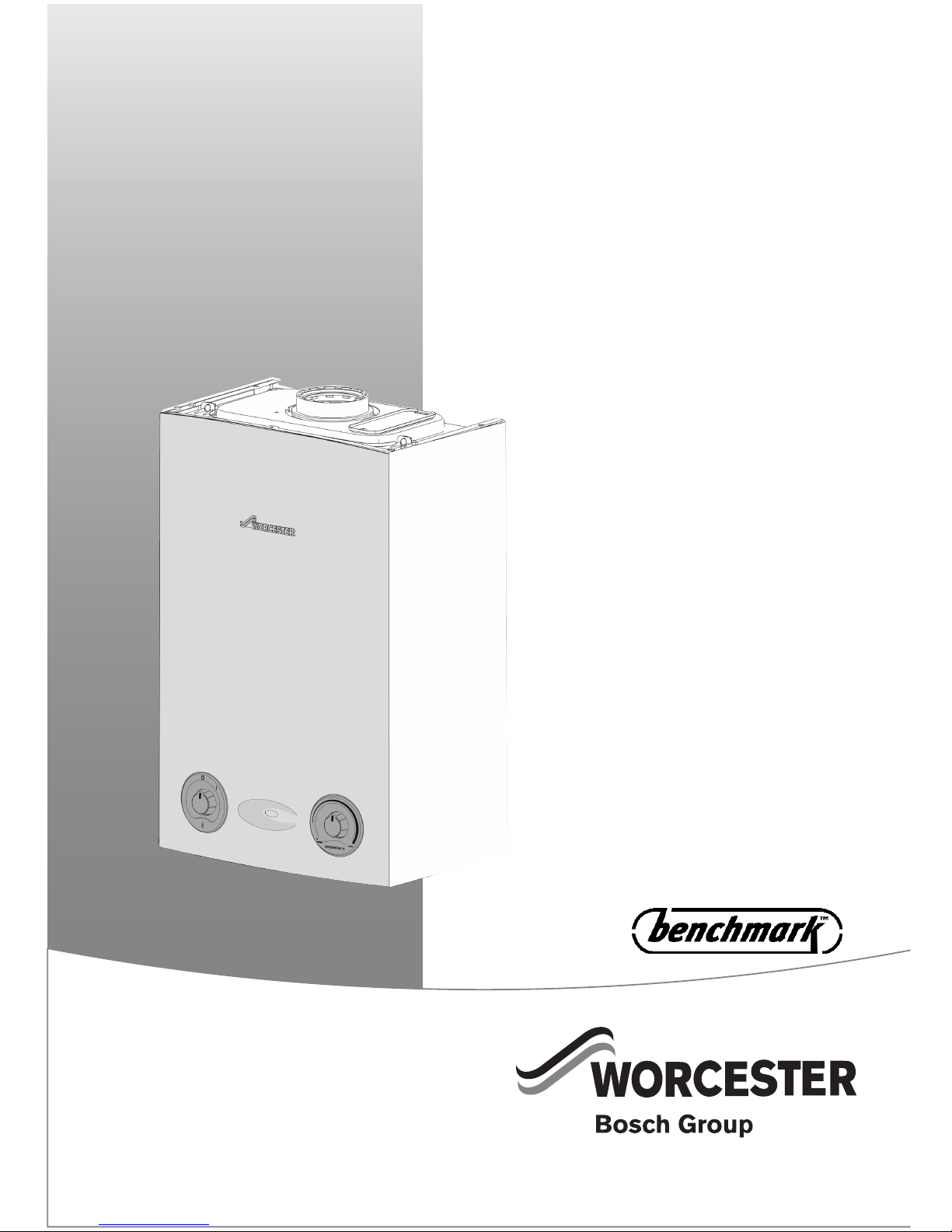

Worcester Greenstar Ri Bedienungsanleitung

Greenstar Ri

WALL HUNG GAS-FIRED BOILER

FOR OPEN VENT & SEALED CENTRAL HEATING SYSTEMS & INDIRECT FED DOMESTIC HOT WATER

USER INSTRUCTIONS &

CUSTOMER CARE GUIDE

THIS BOILER IS USED WITH

NATURAL GAS OR LPG (Cat II 2H3P TYPE C13, C33 & C53)

NATURAL GAS 12 Ri GC NUMBER: 41 311 63

15 Ri GC NUMBER: 41 311 75

18 Ri GC NUMBER: 41 311 77

24 Ri GC NUMBER: 41 311 65

LIQUID PETROLEUM GAS 12 Ri GC NUMBER: 41 311 64

15 Ri GC N U M B E R: 41 311 76

18 Ri GC N U M B E R: 41 311 78

24 Ri GC NUMBER: 41 311 66

CONTACT INFORMATION

WORCESTER BOSCH:

TECHNICAL: 08705 266241

SERVICE: 08457 256206

LITERATURE: 01905 752556

SALES: 01905 752640

WEBSITE: www.worcester-bosch.co.uk

USER INSTRUCTIONS & CUSTOMER

CARE GUIDE

PLEASE READ THESE INSTRUCTIONS

CAREFULLY BEFORE OPERATING

YOUR BOILER

THESE INSTRUCTIONS ARE

APPLICABLE TO THE WORCESTER,

BOSCH GROUP BOILER MODEL(S)

STATED ON THE FRONT COVER OF THIS

MANUAL ONLY AND MUST NOT BE

USED WITH ANY OTHER MAKE OR

MODEL OF BOILER.

THE INSTRUCTIONS APPLY IN THE UK

ONLY AND SHOULD BE FOLLOWED

EXCEPT FOR ANY STATUTORY

OBLIGATION.

IF YOU ARE IN ANY DOUBT CONTACT

THE WORCESTER, BOSCH GROUP

TECHNICAL SUPPORT.

DISTANCE LEARNING AND TRAINING

COURSES ARE AVAILABLE FROM

WORCESTER, BOSCH GROUP.

THIS BOILER MUST BE INSTALLED BY A

CORGI REGISTERED, COMPETENT

PERSON. FAILURE TO INSTALL

CORRECTLY COULD LEAD TO

PROSECUTION.

PLEASE LEAVE THIS GUIDE, THE

INSTALLATION INSTRUCTIONS AND

THE COMPLETED BENCHMARK

CHECKLIST WITH THE USER.

NOTE: THE BENCHMARK CHECKLIST

AND SERVICE INTERVAL RECORD CAN

BE FOUND AT THE REAR OF THE

INSTALLATION, COMMISSIONING AND

SERVICE INSTRUCTIONS.

ABBREVIATIONS USED IN THIS BOOK:

NG - Natural Gas

LPG - Liquid Petroleum Gas

CH - Central Heating

SEDBUK - Seasonal Efficiency of Domestic

Boilers in the United Kingdom

USER INSTRUCTIONS &

CUSTOMER CARE GUIDE

GREENSTAR Ri

8 716 115 172a (06/2008)

CONTENTS

GREENSTAR Ri

8 716 115 172a (06/2008) 1

CONTENTS

INTRODUCTION

DEDICATED TO HEATING COMFORT 1

SAFETY PRECAUTIONS 2

GENERAL NOTES 3

USING YOUR BOILER

CONTROLS 6

OPERATING THE BOILER 7

Switching the boiler on/off 7

Setting the central heating temperature 7

Controlling central heating 7

Frost protection 7

Fault condition 8

MAINTENANCE

MAINTAINING YOUR BOILER 9

FAULT FINDING 9

FAULT OR BREAKDOWN 10

GENERAL OPERATING NOTES 11

ENERGY SAVING

TIPS ON ENERGY SAVING 13

GUARANTEE

YOUR GUARANTEE 14

GUARANTEE REGISTRATION 15

INTRODUCTION

USING YOUR

BOILER

GUARANTEE

Dedicated to heating comfort

Thank you for purchasing a Greenstar gas-fired condensing boiler manufactured by

Worcester, Bosch Group. The company prides itself on manufacturing boilers to the strictest

quality control standards throughout every stage of production. Worcester, Bosch Group has

led the field in innovative boiler design and performance for more than 40 years. This

heritage means all products are of exceptional quality and proven reliability.

The Greenstar range in particular, is extremely energy efficient, offering low running costs

and value for money. It sits in SEDBUK band A, and is therefore amongst the top energy

rated boilers available.

There is also the reassurance of our no-nonsense 2 years parts and labour guarantee - backed

up by Worcester Total Cover, an optional complete maintenance scheme, to keep your boiler

operating at peak condition and efficiency.

To f i n d o u t m o r e a b o u t Wo r c e s t e r , B o s ch G r o u p l o g o n t o w w w. w o r c e s t e r - b o s c h . c o . u k .

ENERGY

SAVING MAINTENANCE

SAFETY PRECAUTIONS GREENSTAR Ri

8 716 115 172a (06/2008)

IF YOU SMELL GAS!

!DO NOT SMOKE OR STRIKE MATCHES

!DO NOT TURN ELECTRICAL SWITCHES ON OR OFF

"PUT OUT NAKED FLAMES

"OPEN DOORS AND WINDOWS

"KEEP PEOPLE AWAY FROM THE AREA AFFECTED

"TURN OFF THE CONTROL VALVE AT THE METER

"CALL YOUR GAS COMPANY

COMBUSTIBLE AND CORROSIVE MATERIALS

Do not store or use any combustible materials (paper, thinners, paints etc.) inside or within

the vicinity of the boiler.

Chemically aggressive substances can corrode the boiler and invalidate any warranty.

FITTING & MODIFICATIONS

Fitting the boiler and any controls to the boiler or removal of the outer casing may only be

carried out by a competent engineer in accordance with the Gas Safety (Installation and Use)

Regulations.

Flue systems must not be modified in any way other than as described in the fitting instructions

Any misuse or unauthorised modifications to the boiler, flue or associated components and

systems could invalidate the warranty.

The manufacturer accepts no liability arising from any such actions. This does not affect your

statutory rights.

SAFETY PRECAUTIONS

INTRODUCTION

GENERAL NOTES

GREENSTAR Ri

8 716 115 172a (06/2008)

GENERAL NOTES

INTRODUCTION

SERVICING

The boiler must be serviced regularly by a competent, qualified person, such as a Worcester

service engineer or alternatively a British Gas or other CORGI registered person.

Always use original spares, to help maintain the economy, safety and reliability of the boiler and

to have the Service Record completed in the Benchmark checklist.

IMPORTANT: - Ensure that the service engineer completes the Service Record in the

Benchmark checklist after each service.

The completed Benchmark checklist will be required in the event of any

warranty work and may be required by the local Building Control Inspector.

NOTE: The Benchmark checklist and service interval record can be found at the

rear of the Installation, Commissioning and Servicing Instructions.

BENCHMARK STANDARD

‘Benchmark’ is a code of practice for correctly installing, commissioning and servicing of

domestic water heating boilers.

A Benchmark checklist is provided by the manufacturer for the installer to complete ALL details

together with their CORGI registration number and sign to confirm that the boiler has been

installed and commissioned according to the manufacturer’s instructions.

HEALTH & SAFETY

No asbestos or other hazardous substances are used in the construction process that

contravene the COSHH Regulations (Control of Substances Hazardous To Health Regulations

1988).

+ 30mm

above elbow

5mm

600mm**

200mm

20mm*

GENERAL NOTES

To get the best from your boiler please

read these instructions carefully.

SEALED HEATING SYSTEMS

If this boiler is fitted to a sealed heating

system which is pre-pressurised. Your

installer will advise you of the minimum

and maximum pressure which should be

indicated on the system pressure gauge.

Check regularly that the pressure is

maintained and contact your installer or

maintenance engineer if a permanent

significant drop in pressure is indicated

on the pressure gauge. If the system

loses pressure it should be re-pressurised

and the cause of the fall investigated.

CENTRAL HEATING SYSTEMS

During the first few hours of operation of

the central heating system, check that all

radiators are being heated evenly. If the

top of a radiator is at a lower temperature

than the bottom then it should be vented

by releasing air through the venting screw

at the top of the radiator. Ask your

installer to show you how this is done.

This boiler is fitted to a sealed system;

repeated venting will reduce the quantity

of water in the system and this must be

replenished for safe and satisfactory

operation of the boiler.

Should water leaks be found in the

system or if excessive venting is required,

then a service engineer must be

contacted to inspect the installation and

rectify any fault.

Only additives that are compatible with

aluminium may be used in the system. Any

incompatible additive used will invalidate

the guarantee.

CONDENSATE DRAIN

This is a condensing boiler and the

terminal will, at times give out a plume of

water vapour. This is quite normal.

The boiler also produces quantities of

condensate which is discharged regularly

by a syphon within the boiler via a pipe to

drain. This pipe must not be blocked or

altered in any way.

CLEARANCES - VENTILATED

COMPARTMENT

Your installer will have provided adequate

space around the boiler for safety and

servicing access. Do not restrict this

space with the addition of cupboards,

shelves etc. next to the boiler.

GENERAL NOTES

ROOM THERMOSTAT

A room temperature controller and

programmer should be fitted to control the

central heating. Refer to the instructions

supplied with the thermostat for

information on siting and setting.

THERMOSTATIC RADIATOR VALVES

It is recommended that this type of valve is

fitted to all but one of the radiators (or at

least those in the sleeping

accommodation). The remaining radiator,

which must be where the room thermostat

is located, should be un-controlled and

must be left open. The thermostatic

radiator valves should conform to the

requirements of BS2767:10.

INTRODUCTION

*600mm service clearance required to a fixed surface

(**20mm from removable door or panel)

GREENSTAR Ri

8 716 115 172a (04/2008)

SAFETY PRECAUTIONS 5

BOILER CLEARANCES -

UNVENTILATED COMPARTMENT

The diagram opposite shows the

minimum space required to install and

service the boiler inside an unventilated

compartment.

** Space required for unventilated areas

with a removable door or panel.

*** 600mm clearance required to a fixed

surface for servicing.

* The boiler must have more clearance in

the unventilated compartment compared

to the ventilated compartment.

Two examples are shown opposite, refer

to the “Installation, commissioning and

servicing instruction manual” for further

information.

Do not add cupboards, shelves etc. to

restrict the space around the boiler.

VENTILATION

This is a room sealed boiler and does not

require any air for combustion from inside

the property. If the boiler is fitted into a

cupboard or a compartment is built

around the boiler after installation, then

the compartment must be separated from

the boiler space by a perforated non-

combustible partition as described in BS

6798.

Notwithstanding the requirements of BS

6798 and BS 5440 there is no need for

ventilation openings to be provided in the

compartment because of the low heat

loss from the boiler casing, if the

clearances shown are maintained.

Do not operate the boiler if the flue

terminal fitted on the outside wall or roof

is obstructed or damaged.

PUMP ANTI-SEIZURE

If there has been no heating demand for

24 hours the boiler will run the system

pump for a few seconds to reduce the

possibility of pump seizure during long

periods of inactivity, which is usually more

frequent during the summer months.

GENERAL NOTES

INTRODUCTION

+ 30mm

above elbow

200mm*

100mm**

600mm***

200mm

***

GREENSTAR Ri

8 716 115 172a (06/2008)

CONTROLS GREENSTAR Ri

8 716 115 172a (06/2008)

CONTROLS

1. MAIN POWER “OFF/ON” KNOB

2. CENTRAL HEATING

TEMPERATURE CONTROL KNOB

3. INDICATOR/DIAGNOSTICS LIGHT

“MAINS ON/OFF” (BLUE)

4. BURNER “ON” INDICATOR LIGHT

(GREEN)

IMPORTANT: DO NOT PRESS THE

INDICATOR

LIGHT TO

RESET THE BOILER

USING YOUR

BOILER

OPERATING THE BOILER

GREENSTAR Ri

8 716 115 172a (06/2008)

SWITCHING THE BOILER ON/OFF

Switching on

Switch on ( I ) the boiler at the main

power knob.

The indicator light shows blue.

Switching off

Switch off ( O )the boiler at the main

power knob.

The blue indicator light goes out.

SETTING THE CENTRAL HEATING

TEMPERATURE

Turn the central heating temperature

control to the desired level, the

range is between approximately

35°C and 82°C.

When the burner is lit, the green

indicator light underneath the on/off

knob is illuminated.

CONTROLLING CENTRAL HEATING

Set the timer to the correct time.

Set room thermostat to the desired

room temperature.

Set the thermostatic radiator valves

to the desired settings.

FROST PROTECTION

Leave main power knob on.

If the temperature falls to below 5°C

within the boiler the boiler will fire

periodically to avoid the possibility of

freezing.

If remote pipework is exposed to

low temperatures, ensure that the

installer has added a frost

thermostat.

OPERATING THE BOILER

35°C 82°C

USING YOUR

BOILER

OPERATING THE BOILER GREENSTAR Ri

8 716 115 172a (06/2008)

FAU LT CONDITION

In the unlikely event of a fault occurring

while the boiler is in operation:

The mains indicator will flash at different

speeds dependant on fault.

To r e s e t f a u l t t u r n t h e t h e r m o s t a t /

reset knob fully anticlockwise to

“reset” and then return the knob to

the desired temperature setting.

The indicator will stop flashing and

the boiler will function normally,

dependant on programmer and

room thermostat settings.

If the electrical power to the boiler has

been interrupted a “reset fault”

condition will exist. Reset the boiler as

described above.

If the fault remains and cannot be

cleared:

Call Worcester, Bosch Group for

assistance, giving a description of

the fault and, if possible the fault

flashing sequence from the mains

indicator.

OPERATING THE BOILER

USING YOUR

BOILER

Andere Handbücher für Greenstar Ri

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Worcester Kessel Handbücher

Worcester

Worcester 12/18 Bedienungsanleitung

Worcester

Worcester GREENSTAR 30CDi Classic System ErP 41-406-37 Benutzerhandbuch

Worcester

Worcester Greenstar 12i System ErP Bedienungsanleitung

Worcester

Worcester GREENSTAR UTILITY 18/25 Bedienungsanleitung

Worcester

Worcester GREENSTAR UTILITY 32/50 Bedienungsanleitung

Worcester

Worcester 26CDi Xtra Benutzerhandbuch

Worcester

Worcester 27i System Compact Benutzerhandbuch

Worcester

Worcester GB162-50 Bedienungsanleitung

Worcester

Worcester Greenstar Heatslave 12/18kW Bedienungsanleitung

Worcester

Worcester Greenstar 8000 Life Series Bedienungsanleitung

Worcester

Worcester Greenstar 4000 Bedienungsanleitung

Worcester

Worcester Greenstar Si Compact ErP Series Bedienungsanleitung

Worcester

Worcester Greenstar Highflow 440 Bedienungsanleitung

Worcester

Worcester GREENSTARHIGHFLOW 440 CDi Bedienungsanleitung

Worcester

Worcester GR8700iW 30 S NG Bedienungsanleitung

Worcester

Worcester Greenstar CDi Bedienungsanleitung

Worcester

Worcester 47 311 43 Kurzanleitung

Worcester

Worcester GB162-50 Benutzerhandbuch

Worcester

Worcester Greenstar 36LXi Bedienungsanleitung

Worcester

Worcester Greenstar Danesmoor External Regular ErP Bedienungsanleitung

Worcester

Worcester GREENSTAR 24i junior Bedienungsanleitung

Worcester

Worcester User instructions Bedienungsanleitung

Worcester

Worcester Combi RSF 240 Benutzerhandbuch

Worcester

Worcester HIGHFLOW 400 ELECTRONIC RSF Bedienungsanleitung

Beliebte Kessel Handbücher anderer Marken

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Bedienungsanleitung

Radijator

Radijator BIO max 23.1 Bedienungsanleitung

Brunner

Brunner BSV 20 Bedienungsanleitung

Buderus

Buderus Logamax GB062-24 KDE H V2 Bedienungsanleitung

Potterton

Potterton 50e Datenblatt

UTICA BOILERS

UTICA BOILERS TriFire Bedienungsanleitung

Joannes

Joannes LADY Series Handbuch

ECR International

ECR International UB90-125 Gebrauchsanweisung

Froling

Froling FHG Turbo 3000 Bedienungsanleitung

Froling

Froling P4 Pellet 8 - 105 Bedienungsanleitung

U.S. Boiler Company

U.S. Boiler Company K2 Bedienungsanleitung

Henrad

Henrad C95 FF Bedienungsanleitung

NeOvo

NeOvo EcoNox EF 36 Bedienungsanleitung

Potterton

Potterton PROMAX SL 12 Bedienungsanleitung

Eco Hometec

Eco Hometec EC 25 COMPACT Bedienungsanleitung

Viessmann

Viessmann VITODENS 200 Leitfaden

Baxi

Baxi Prime 1.24 Bedienungsanleitung

REXNOVA

REXNOVA ISA 20 BITHERMAL Bedienungsanleitung
