Workplace Products TUFF HEAVY DUTY STORAGE WORKBENCH Bedienungsanleitung
Workplace Products, Timmis Road, Lye, Stourbridge, West Midlands DY9 7BQ, United Kingdom
Information, data & specifications are correct at time of writing. E&OE. AK24072020.
TUFF HEAVY DUTY STORAGE WORKBENCHES
Page 1 of 4
• Once step one is completed, the next step is to do
the exact same with the other side of the middle
frame and the second leg frame.
• You can then add the second middle frame and
do the same.
ASSEMBLY INSTRUCTIONS
Parts Required
• Start with laying your worktop from an upside
down perspective.
• Place one leg frame and one middle frame
together. Use an allenkey and screws to join both
parts together. As displayed in right image.
• Once the middle frames are joirned to the legs,
you can then drill in to the holes provided to fix
the frame on to the worktop. Shown in the right
image above.
• Once the middle frames are joirned to the legs,
you can then drill in to the holes provided to fix
the frame on to the worktop. Shown in the right
image above.
Workplace Products, Timmis Road, Lye, Stourbridge, West Midlands DY9 7BQ, United Kingdom
Information, data & specifications are correct at time of writing. E&OE. AK24072020.
TUFF HEAVY DUTY STORAGE WORKBENCHES
Page 2 of 4
ASSEMBLY INSTRUCTIONS
• With the worktop still upside down, it’s time to add
the cupboard or drawers. Place the storage unit
in to one of the corners of the workbench. It’s
recommended that you think about what side is
best for your use.
• Using the two beams shown in the image to the left
(next to the door), you can then place these inside
the storage unit. Alligning the drills holes, you can
then drill to connect in each corner.
Adding Storage Units
Workplace Products, Timmis Road, Lye, Stourbridge, West Midlands DY9 7BQ, United Kingdom
Information, data & specifications are correct at time of writing. E&OE. AK24072020.
TUFF HEAVY DUTY STORAGE WORKBENCHES
Page 3 of 4
ASSEMBLY INSTRUCTIONS
• Please note that for drawer units. The process will
be similar. However, take out the drawers before
adding the unit. This is easily done through
pushing either latch on the drawers.
• You can then add a middle drawer unit and then a
third to the side if required.
• Once the units have been fitted, you can now
safely turn your workbench over.
Workplace Products, Timmis Road, Lye, Stourbridge, West Midlands DY9 7BQ, United Kingdom
Information, data & specifications are correct at time of writing. E&OE. AK24072020.
TUFF HEAVY DUTY STORAGE WORKBENCHES
Page 4 of 4
CONGRATULATIONS!!!

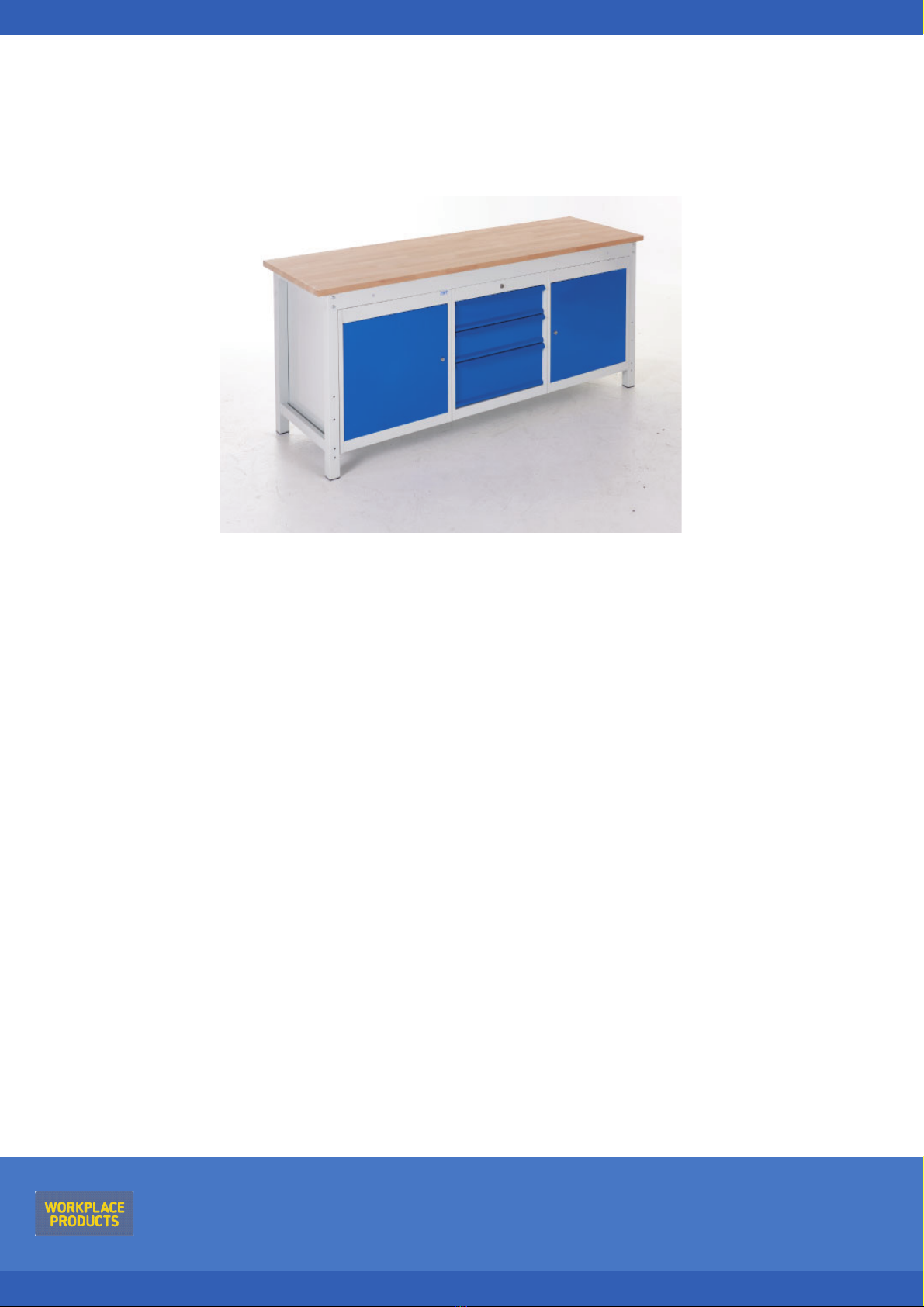

You should now have your workbench assembled and it should look like the above image ^ or of course slightly
different depending on the storage options you went for.
We’re aware that the real work for you starts now so we wish you all the productivity, success and will power to
make the most out of our TUFF Heavy Duty Storage Workbench.
All the best,
Workplace Products Team
