RS-232 Serial Bar Code Reader

QuickStart and Installation Guide

WDR Reader

WDR Reader Installation - Host & Terminal

If you attach the WDR R22 Reader between your computer and a terminal,

as shown below, using the F45-1 Serial Y Cable, bar code data will display

on the terminal as if it had been typed.

The F45-1 Serial Y Cable

assumes you already have a

dumb ASCII terminal connect-

ed to a host computer. Unplug

the host cable from the termi-

nal and plug it into the DB25

Female cable end on the F45-1

cable. Connect the other 25

pin end of the F45-1 Y Cable

to the terminal (where the host

cable was plugged previously).

The WDR R22 now sits in-

between the terminal and host

acting as a wedge reader; data

scanned is echoed back by the

host to the terminal screen.

The WDR reader must be con-

figured so that the Baud Rate,

Data Bits, Stop Bits and Parity

match the settings on the ter-

minal. You may need to consult your terminal’s documentation to deter-

mine how those settings are viewed on the terminal. Once you know what

the settings are, you can use the bar coded WDR Setup Menu to make any

necessary changes.

For configuration settings and details, see the PDF Users Guide on the

Utility CD provided with the reader.

Introduction

Worth Data's WDR Readers are versatile serial bar code readers designed

for use with all micro and minicomputers. The WDR Model R22 can be

attached between your computer and a terminal, sending bar code data

along with keyboard data with LINUX, UNIX and PICK.

The R22 WDR can be ordered a variety of scanners, including CCD and

Laser scanners and can automatically read and discriminate between Code

39, Full ASCII Code 39, 2 of 5, I 2 of 5, UPC-E, UPC-A, EAN-8, EAN-13,

Codabar, Code 93, MSI, Plessey, RSS-14, LabelCode 4&5, StorageTek

Tape Code, Code 128, UCC-128, and EAN-128..

Up to 32 WDR R22 Readers can be connected to a dedicated serial port,

with each unit accessed separately through polling from your computer.

If you are installing the WDR Reader on a dedicated PC serial port (as

opposed to installing it between a PC serial port and a terminal) you should

consider Worth Data’s program PortKey.

WDR Reader Components

The contents of your WDR Reader shipment should include the following:

1. A WDR R22 decoder box plus:

a. Velcro strips which can be used to conveniently attach the reader to

the side of your computer, monitor or desk.

b. If ordered, one of the appropriate serial Cable Selections:

F34 null-modem female DB-25 cable

F36 straight-through female DB-9 cable

F45-1 serial “Y” cable for connection between terminal and host

c. A scanner (F52 wand, LI50 CCD, LZ300 Laser or LZ400 Laser)

d. A scanner holder.

e. A 5-volt power supply (Don't use a non-Worth Data power supply; it

will fry the board!).

f. A laminated Reader Setup Menu sheet (or slot scanner card deck)

g. A CD-ROM with the Windows WDR Test Program on it.

WDR Reader Installation

Insert the scanner's telephone-

style connector into the WDR

Reader's scanner port. You'll

hear a click when it is properly

inserted. (If you have a

MagStripe slot scanner, see the

Users Guide for installation

instructions.)

Connect the power adapter to

the WDR Reader. You can then

plug the Power Adapter into an

outlet. You'll hear three beeps

as the reader performs its self-test, and the LED will flash red to green.

WDR Reader Installation - PC Serial Port

The WDR Reader can be directly attached to a spare serial port as shown

below. Your software will need to read the serial port as a separate device,

unless you're using an IBM-compatible computer and Worth Data’s

PortKey software, which makes serial-port data look to your computer as if

it had been typed at the keyboard.

If you specified a 25-pin null-modem cable (part number F34) or a 9-pin

cable (part number F36) when you placed your order, you can cable direct-

ly from the “SERIAL” port to the matching serial port on your computer.

Dieses Handbuch passt für folgende Modelle

Andere Worth Data Barcode-Lesegerät Handbücher

Worth Data

Worth Data TriCoder t53 Bedienungsanleitung

Worth Data

Worth Data 530-2D-USB Bedienungsanleitung

Worth Data

Worth Data LZ360-USB Bedienungsanleitung

Worth Data

Worth Data LZ202-RF Bedienungsanleitung

Worth Data

Worth Data SLV-USB Bedienungsanleitung

Worth Data

Worth Data P11/12 Bedienungsanleitung

Worth Data

Worth Data 5000 TriCoder s Bedienungsanleitung

Worth Data

Worth Data T5000 TriCoder Bedienungsanleitung

Worth Data

Worth Data LZ360-RF Bedienungsanleitung

Worth Data

Worth Data 5000 TriCoder s Bedienungsanleitung

Worth Data

Worth Data LZ400-RF Bedienungsanleitung

Worth Data

Worth Data LZ160-USB Bedienungsanleitung

Worth Data

Worth Data LZ160-USB Bedienungsanleitung

Worth Data

Worth Data 510-2D Bedienungsanleitung

Worth Data

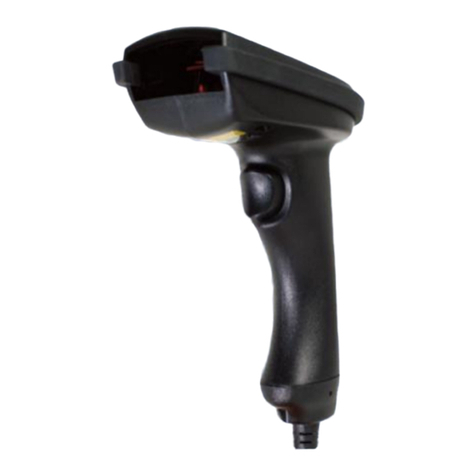

Worth Data 5202D Scanner Bedienungsanleitung
