Woxcon CE-EX60-H2 Bedienungsanleitung
CE-EX60-H2
18G HDMI V2.0 Cost-effective Extender Set over CAT5e/CAT6
The CE-EX60-H2 is a cost-effective point-to-point extender set for HDMI V2.0 and IR signals;
this kit supports 4K/UHD video @ 60 Hz with 4:4:4 Chroma sampling, as well as HDMI data
rates up to 18Gbps, HDCP 2.2 compliant; It provides HDMI transmission up to 230 feet (70
meters) for 4K@60Hz 4:4:4 or 1080p, over single CAT5e/6 cable. It supports video resolution
down-scaling, the 4K input can be automatically downscale to 1080p output for compatibility
with 1080p display.
Features
§ Supports HDMI V2.0, up to 4K@60Hz 4:4:4, HDR, 18G, HDCP 2.2.
§ Extends 4K or 1080p HDMI signal up to 230 feet (70m) over a single CAT5e/6 cable.
§ HDMI loop out on transmitter.
§ Bi-directional IR pass-through.
§ Supports video resolution down-scaling, the 4K input can be automatically degraded to
1080p output on receiver for compatibility with legacy 1080p display device.
§ Features visually lossless compression with no latency.
§ EDID pass-through.
§ Compact design, easy to install and simple to operate.
Packing List
§ 1x Transmitter (Tx)
§ 1x Receiver (Rx)
§ 1x IR Receiver
§ 1x IR Emitter
§ 2x Velcro Tape
§ 1x Power Adaptor (12V DC 1A)
§ 1x User Manual

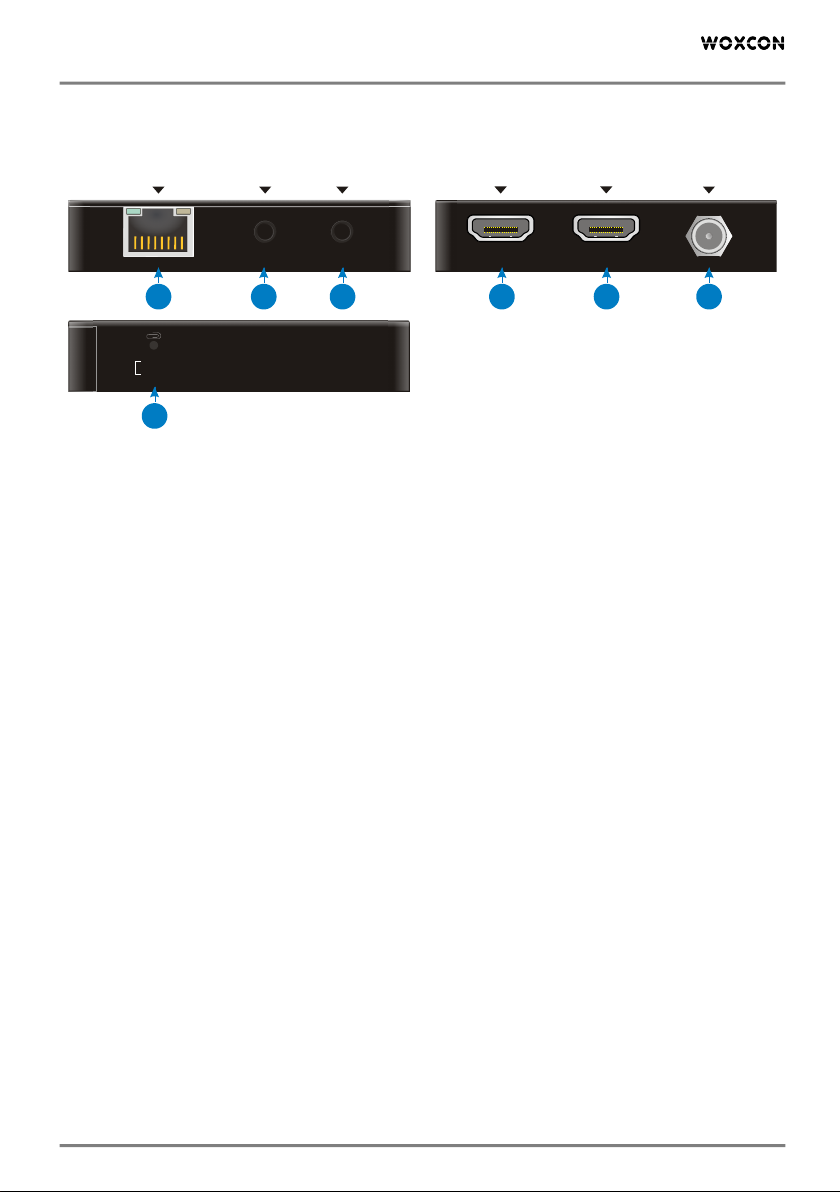

Transmitter Panel Description
1.
CATx OUT:
RJ45 port to connect the CATx IN port of receiver by CATx cable. It supports
12V PoC to power the receiver. The orange LED illuminates when there is a valid HDMI
signal input. The green LED illuminates when power is applied.
2.
IR IN:
3.5mm mini jack to connect IR receiver for IR pass-through.
3.
IR OUT:
3.5mm mini jack to connect IR emitter for IR pass-through.
4.
DISPLAY:
Type-A female HDMI port to connect HDMI display device.
5.
SOURCE:
Type-A female HDMI port to connect HDMI source device.
6.
DC 12V:
DC connector for the power adapter connection.
7.
EDID Management:
§ EDID BYPASS: Press the button with paper clip or other sharp tool to learn the EDID
from the remote display connected to the Receiver’s HDMI out.
§ EDID COPY Tx/3s: Press and hold the button for 3 seconds to copy the EDID from
the local display connected to the Transmitter’s HDMI out.
§ DEFAULT: The source device learns EDID from the TV which has the lowest
resolution. Press and hold the button while powering off, and then release it after 6
seconds of power on to restore the default.
EDID BYPASS
EDID COPY Tx/3s
IR OUTIR IN
CATx OUT DISPLAY SOURCE DC 12V
123456
7

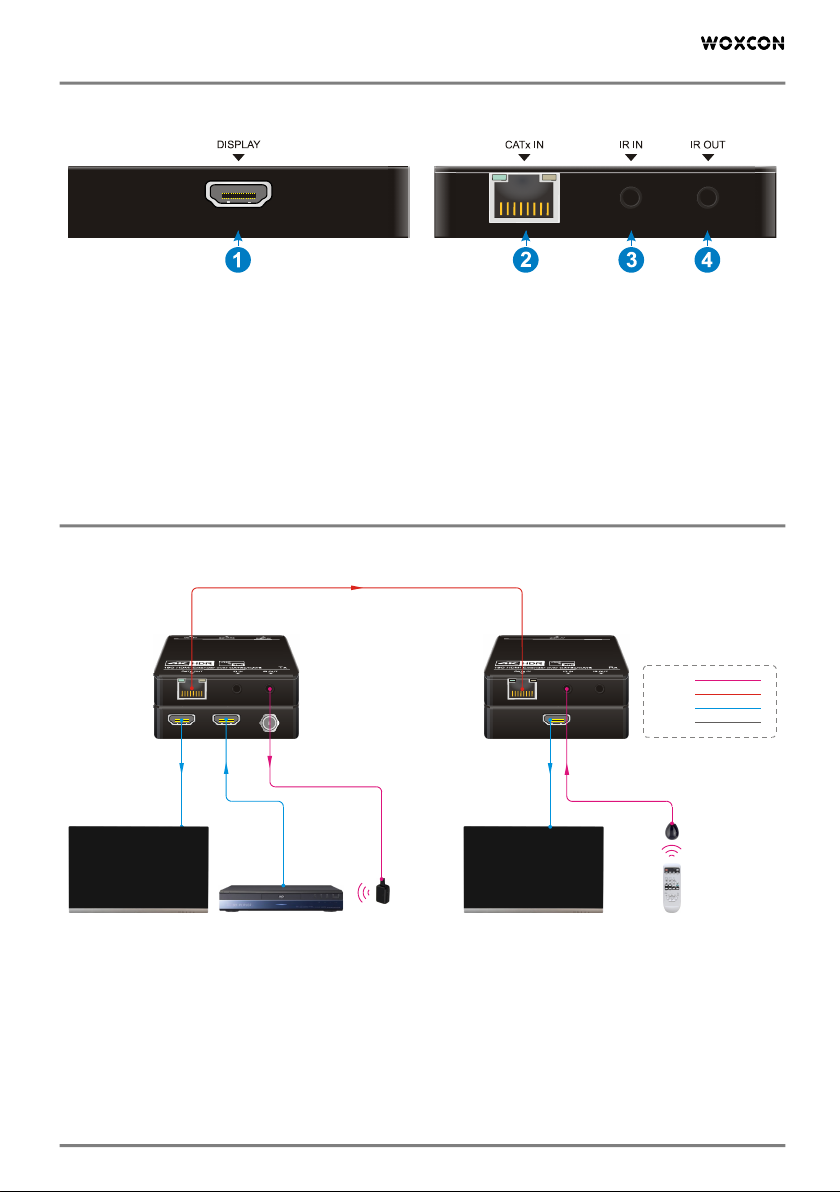

Receiver Panel Description
1.
DISPLAY:
Type-A female HDMI port to connect HDMI display device.
2.
CATx IN:
RJ45 port to connect the CATx OUT port of transmitter by CATx cable. It
supports 12V PoC and the receiver can be powered from the transmitter. The orange
LED illuminates when there is a valid HDMI signal input. The green LED illuminates when
power is applied.
3.
IR IN:
3.5mm mini jack to connect IR receiver for IR pass-through.
4.
IR OUT:
3.5mm mini jack to connect IR emitter for IR pass-through.
Connection Diagram
IR Emitter
Blu-Ray Remote
IR
Receiver
Bedroom TV4K Blu-Ray
Tx Rx
Living Room TV
Power:
IR:
HDMI:
Catx:
Specifications
Transmitter
Input
(1) SOURCE
Input Connector
(1) 19-pin type-A female HDMI
Output
(1) DISPLAY, (1) CATx OUT
Output Connector
(1) 19-pin type-A female HDMI, (1) RJ45
Control
(1) IR IN, (1) IR OUT
Control Connector
(2) 3.5mm mini jacks
Receiver
Input
(1) CATx IN
Input Connector
(1) RJ45
Output
(1) DISPLAY
Output Connector
(1) 19-pin type-A female HDMI
Control
(1) IR IN, (1) IR OUT
Control Connector
(2) 3.5mm mini jacks
General
Video Resolution
Up to 4K@60Hz 4:4:4, HDR
Transmission Distance
4K/1080p ≤ 70 meters (230ft)
HDMI Version
Up to HDMI V2.0
HDCP Version
Up to HDCP 2.2. The HDCP of output follows the
HDCP version of display device.
EDID Pass-through
Supported.
Power Supply
Input: 100VAC~240VAC, 50/60Hz;
Output: 12VDC 1A
Power Consumption
4W (Max)
Operation Temperature
-5~55℃
Storage Temperature
-25~70℃
Relative Humility
10%-90%
Dimensions (W*H*D)
80mm x 16.8mm x 80mm
Net Weight
Tx/Rx: 70g
Note: The extender set does not support HBR audio.
