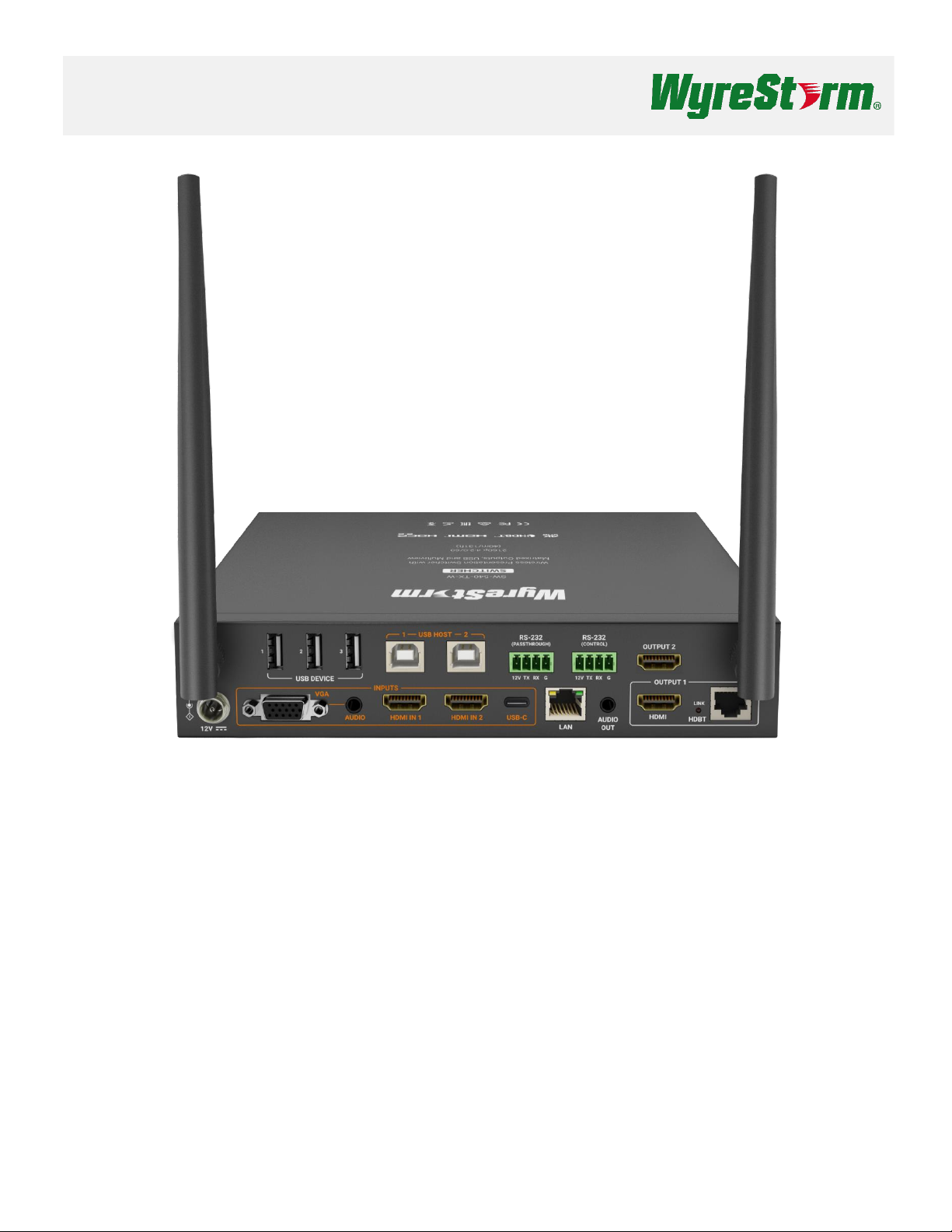

Wyrestorm SW-540-TX-W Bedienungsanleitung

SW-540-TX-W

User Manual

v1.0

SW-540-TX-W User Manual | 210908

2 of 12

Technical Support: 844.280.WYRE (9973)

Support@WyreStorm.com

Contents

Contents ...................................................................................................................................................................... 2

Connections ..............................................................................................................................................3

USB Behavior & Performance ...................................................................................................................4

Security .....................................................................................................................................................4

Multiview ..................................................................................................................................................5

Input Switching & Modes..........................................................................................................................6

Wireless Access Point & Casting ...............................................................................................................7

Output Settings.........................................................................................................................................9

Adjusting EDID ........................................................................................................................................10

Display Control........................................................................................................................................11

Splash Screen ..........................................................................................................................................12

SW-540-TX-W User Manual | 210908

3 of 12

Technical Support: 844.280.WYRE (9973)

Support@WyreStorm.com

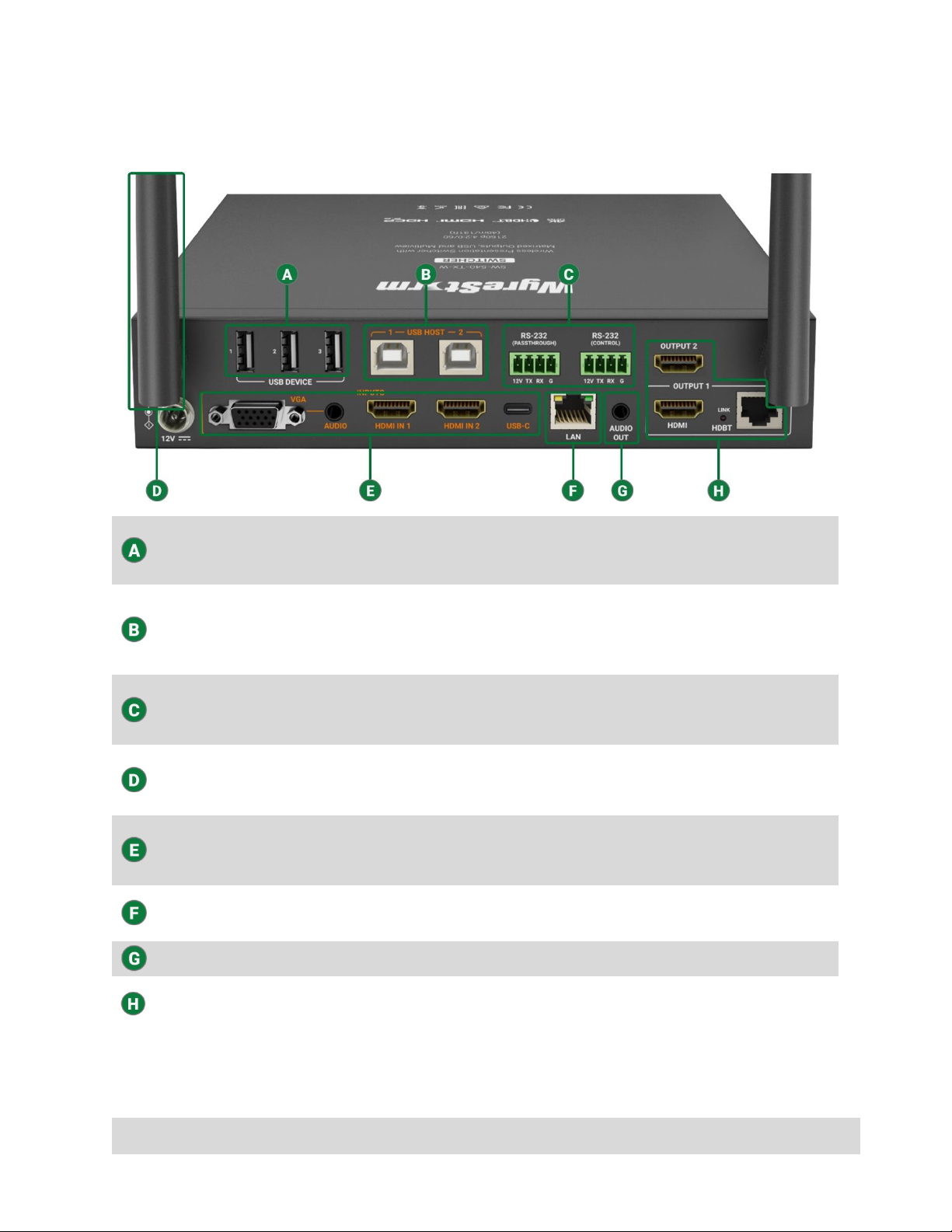

Connections

USB Device Ports

Allows you to connect local USB peripheral devices to the switcher such as a

keyboard/mouse, speakerphone, camera etc.…these devices will connect to a

host PC via the USB-B or USB-C port.

USB Host Ports

USB 2.0 Type B host ports for accessing devices connected either to the 3 x

device ports on the switcher or USB devices connected over an HDBaseT

connection. The host ports can be set as auto-switch to follow video sync or

manually assigned via the web UI.

RS232 Connectors

RS232 Passthrough allows a serial signal to transmit over an HDBaseT link to

control a peripheral device such as a display or projector. The RS232 Control port

allows serial control of the switcher via API commands.

Wi-Fi Antennas

Wi-Fi antennas for casting to the switcher wirelessly. The built-in access point

can be configured via the web UI based on application requirements.

A/V Inputs

Video inputs for PCs and mobile devices. The USB-C port supports alt-mode

meaning it can transmit A/V and also act as a USB Host for accessing connected

peripheral USB devices.

LAN

Allows access to the integrated web interface for configurations. Can also be

used for connecting to the API for controlling the switcher.

Audio Output

3.5mm stereo audio de-embed which will follow Output 1.

A/V Outputs

Output 1 features a mirrored HDMI and HDBaseT output. Output 2 is a semi-

discrete matrix output (details on limitations below).

SW-540-TX-W User Manual | 210908

4 of 12

Technical Support: 844.280.WYRE (9973)

Support@WyreStorm.com

USB Behavior & Performance

The SW-540-TX-W features 3 x USB host ports. Two ports are USB-B 2.0 connections and the third utilizes the USB-C

port. By default, the switcher is configured to auto-switch the active USB host based on the selected video input

port.

USB-B Host 1 is tied to the VGA and HDMI 1 inputs and USB-B Host 2 is tied to HDMI 2.

For example, if the active video input on the switch is HDMI 1 the active USB host port will be USB-B 1. If the active

video input is the USB-C connection, then the USB-C connection becomes the active host port.

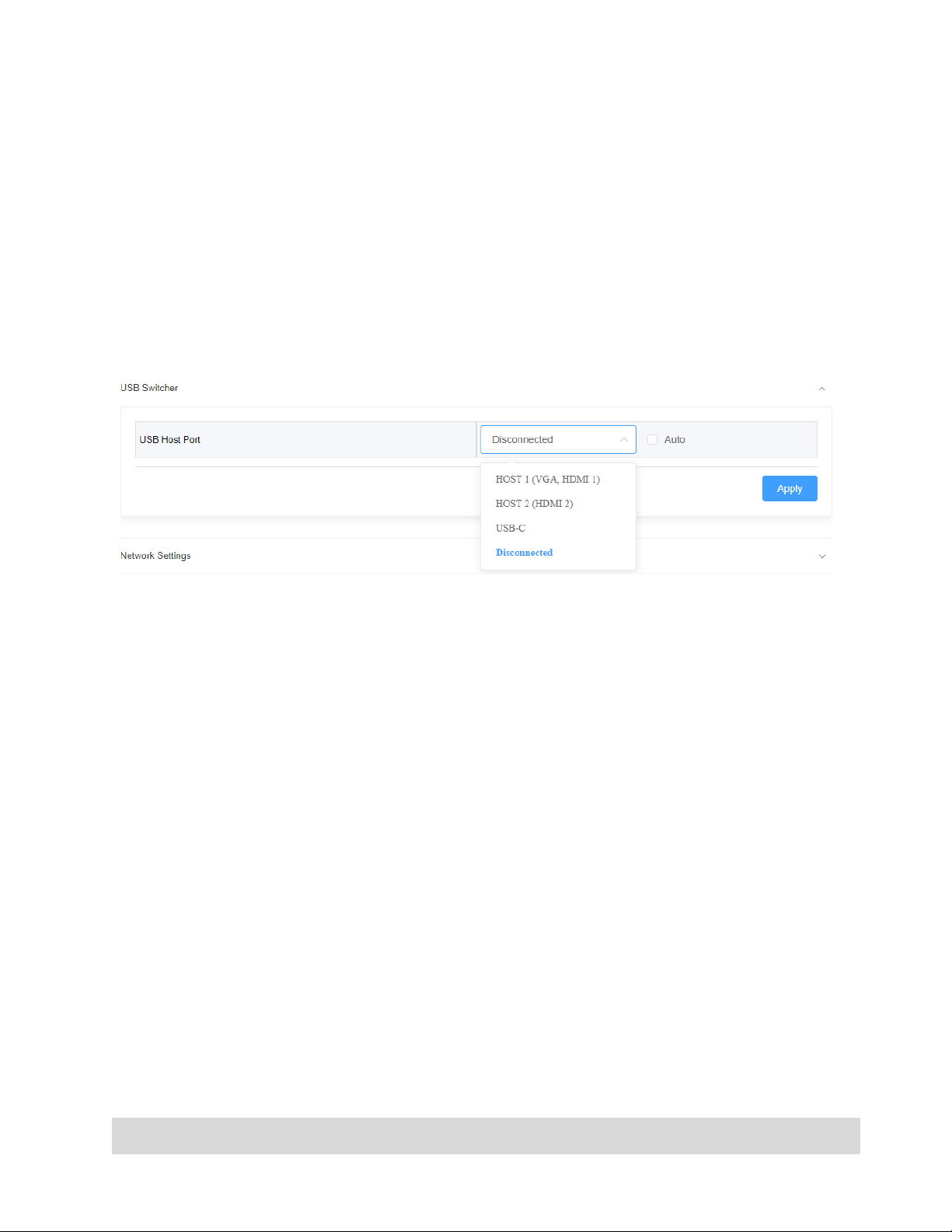

This auto-switch behavior can be manipulated via the web interface of the switcher. If you do not want the USB host

to follow an active video input, you can uncheck the Auto check box and manually choose which host port will

always be active.

The 3 x USB device ports integrated into the switcher support full USB 2.0 data speeds. The SW-540-TX-W is

equipped with HDBaseT spec 2.0 and can transmit USB over the Category output to a compatible receiver (RX-500

recommended). In this scenario, due to limitations with HDBaseT, USB 2.0 bandwidth is restricted to 190Mbps vs

the full 480Mbps. Keep this limitation in mind when connecting isochronous devices such as webcams over

HDBaseT. WyreStorm has tested our own FOCUS webcams and CAM-200-PTZ to work with the SW-540-TX-W over

HDBaseT. WyreStorm cannot guarantee performance or compatibility of 3rd-party webcams.

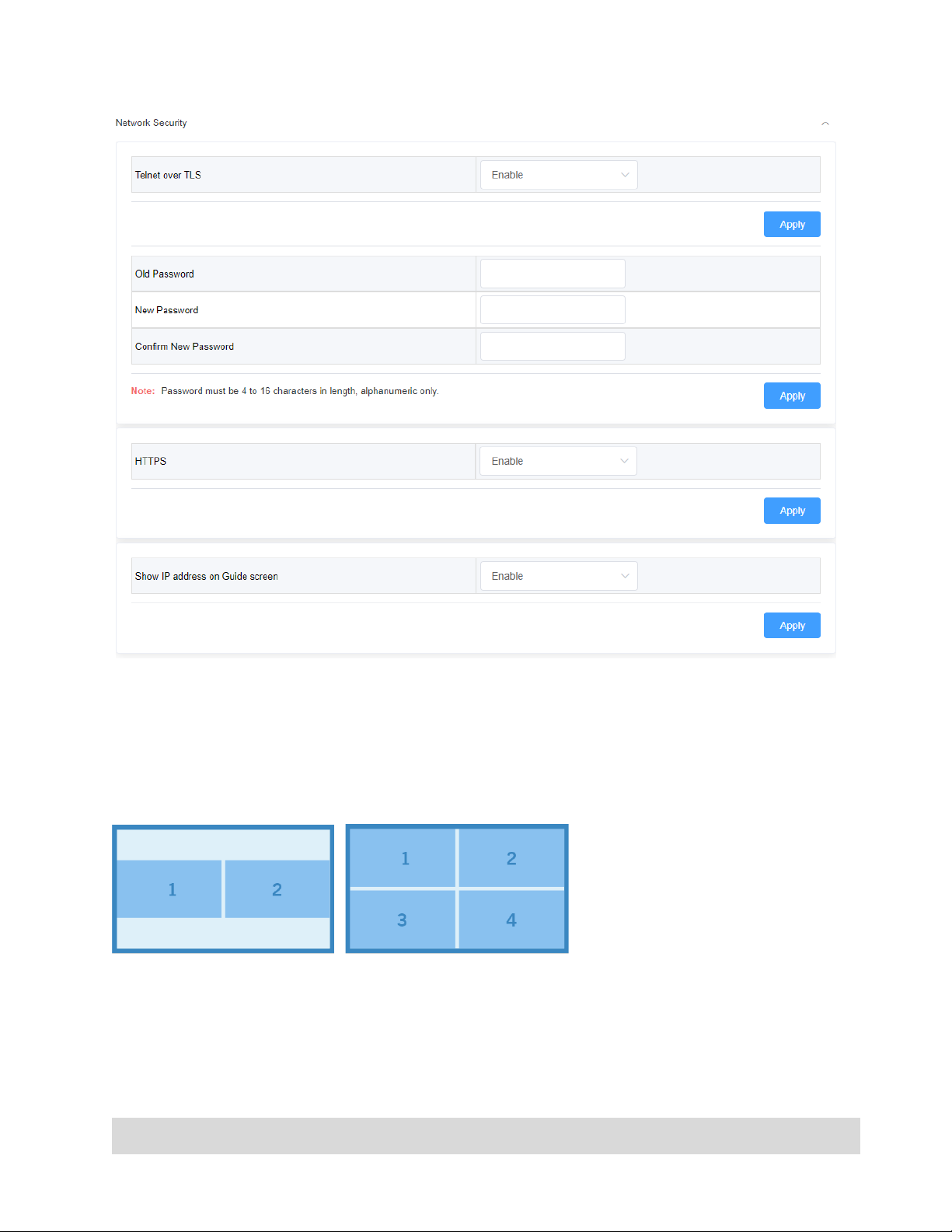

Security

Security protocols are implemented on the SW-540-TX-W including HTTPS for secure access to the switcher’s web

interface and TLS for accessing the API.

HTTPS is enabled by default but can be disabled if required. TLS is disabled by default and the switcher uses a

standard Telnet connection to access the API. If a secure connection to the API is required, TLS can be enabled. The

TLS connection allows you to change the default password to a custom value. Keep in mind that WyreStorm drivers

will use default credentials. It is recommended to keep the default credentials unless you are writing a custom driver

for the switcher.

Connection information and API commands can be found in the SW-540-TX-W’s API document available at

wyrestorm.com.

SW-540-TX-W User Manual | 210908

5 of 12

Technical Support: 844.280.WYRE (9973)

Support@WyreStorm.com

Multiview

The SW-540-TX-W is capable of processing up to four inputs on a single display in a multiview layout. By default, the

switcher automatically builds the multiview layout based on the number of simultaneous sources that are

connected. For example, if two laptops are connected via HDMI 1 and HDMI 2 the switcher will automatically build a

split screen layout. If four devices are connected the screen will be split into quadrants. Examples are shown below.

Multiview sources can be any combination of wired and wireless devices (Airplay & Miracast). For example, an iPad

casting via AirPlay and a hardwired connection via HDMI can be in a split screen layout. Any combination is possible

but limited to four simultaneous streams.

Multiview layouts can be customized via API commands if a specific layout is required. Refer to the API document

for details.

SW-540-TX-W User Manual | 210908

6 of 12

Technical Support: 844.280.WYRE (9973)

Support@WyreStorm.com

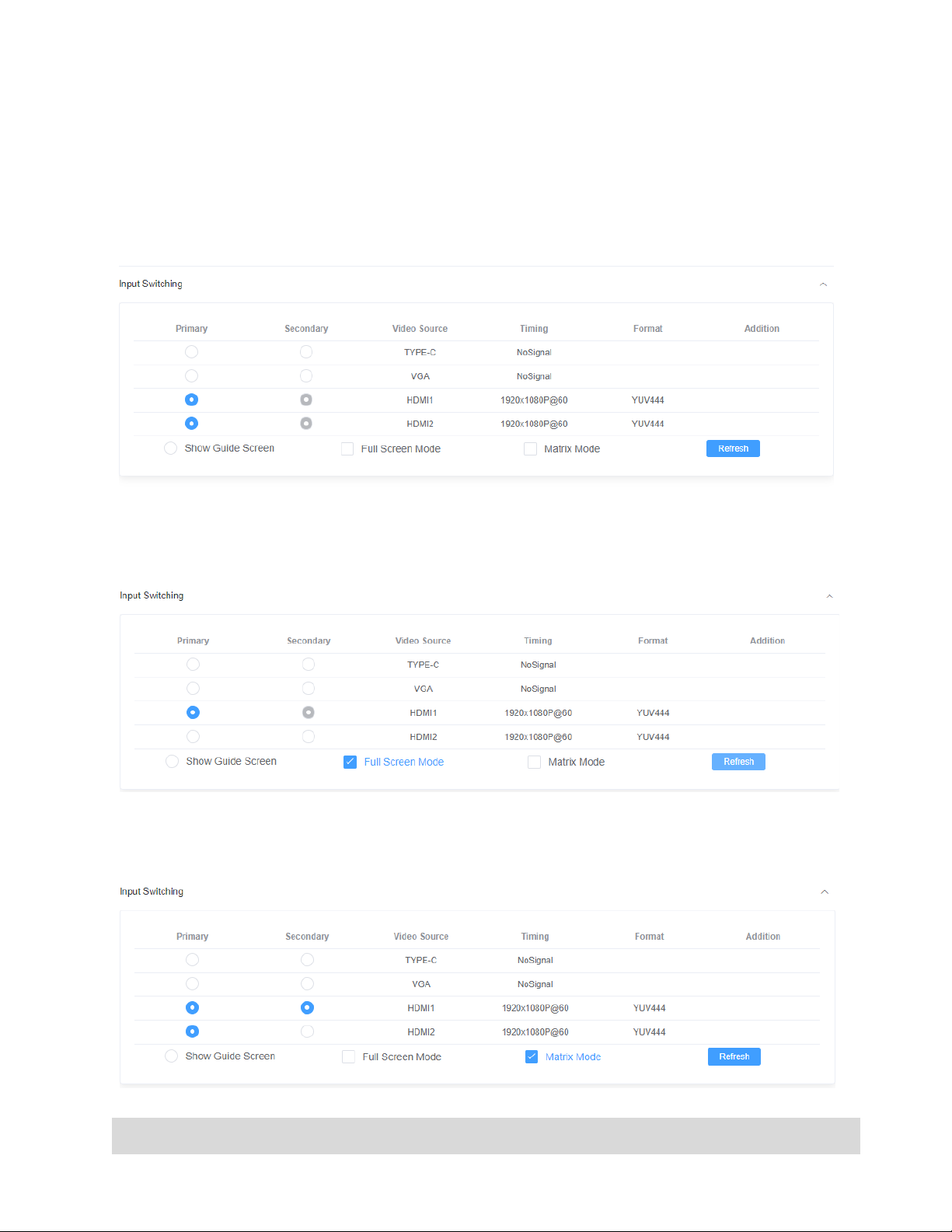

Input Switching & Modes

The SW-540-TX-W features three unique switching modes.

Standard: This is the default mode of the switcher. It supports full screen and multiview processing. Multiview

layouts are automatically built by the switch when it detects a second, third or fourth input. When the switch is in

multiview mode you will be able to select or de-select multiple inputs for the Primary output (output 1). The Primary

and Secondary outputs are mirrored in this mode.

Full Screen: Multiview processing is not supported in this mode. Both the Primary and Secondary outputs will mirror

the same content.

Matrix: In this mode, the Secondary output (output 2) can be matrix switched independently from output 1.

However, when in matrix mode output 2 does not support multiview processing. Only a single full screen input can

be selected and displayed on output 2. The Primary output can still process multiview.

SW-540-TX-W User Manual | 210908

7 of 12

Technical Support: 844.280.WYRE (9973)

Support@WyreStorm.com

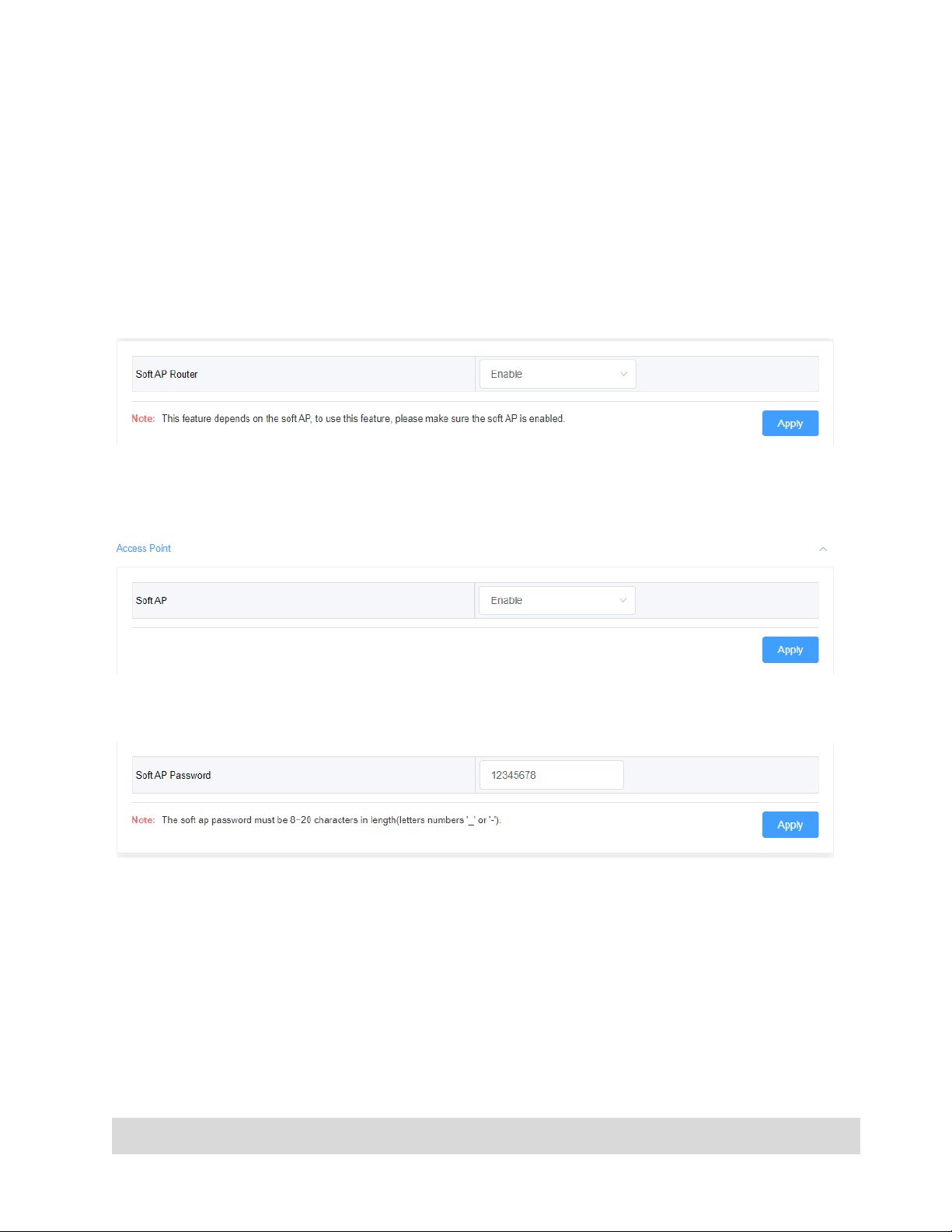

Wireless Access Point & Casting

This switcher has a built-in wireless access point that can be used to cast content via AirPlay or Miracast. There are

three modes for the AP.

Router Mode: This is the default mode. When connecting to the AP in this mode, the switcher acts as a bridge to an

existing network via its LAN connection. This is useful if there is no existing Wi-Fi network available and you wish to

use the switcher as the primary wireless AP.

Router Disabled: This mode doesn’t allow the switcher to bridge the wireless connection to its LAN port. This mode

is useful if you wish to isolate the wireless casting from an enterprise/existing network. When clients connect to the

switcher’s AP in this mode, they will only be able to wirelessly cast content. They will not have internet access.

AP Disabled: This mode completely disables the built-in AP. This mode should be used when you plan to use an

existing network’s access point(s). This requires a LAN connection to the switcher in order for it to be found and

discoverable on the existing network.

There are a number of additional settings related to the AP and screen casting. The AP password can be set to a

custom value. This must be an alphanumeric value. It cannot contain special characters or spaces.

Casting can be discretely enabled or disabled separately to the access point. If you wish to leave the access point

enabled but disable Airplay and Miracast abilities, disable the BYOD functionality.

Also related to screen casting is an access code. By default, no access code is set, however you can enable this

feature as an extra layer of security to prevent accidental or malicious casting. The access code can be either a static

4-digit number or uniquely generated each time a new casting session is attempted by checking the Auto box.

SW-540-TX-W User Manual | 210908

8 of 12

Technical Support: 844.280.WYRE (9973)

Support@WyreStorm.com

You can change the AP SSID/screen cast name by changing the Device Name field and clicking apply. The AP also

allows for adjusting the wireless channel it broadcasts on. This is adjustable for both the 2.4 and 5Ghz bands.

WyreStorm recommends leaving this set on the default values. Only change a wireless channel if severe interference

is occurring or connection problems arise.

Before changing the wireless channel, it is best practice to perform a radio frequency search to show you the

surrounding area’s Wi-Fi. This can show you what channels are already occupied so you can appropriately choose

the best option available.

inSSIDer is a great free software that can analyze Wi-Fi signals and usage.

SW-540-TX-W User Manual | 210908

9 of 12

Technical Support: 844.280.WYRE (9973)

Support@WyreStorm.com

Output Settings

Each output features a scaler that can be used to force a specific video timing to a display. By default, the switcher is

set to auto-negotiate the output timing based on a display’s EDID. However, if you experience compatibility

problems you can choose to force a resolution and refresh rate. Also, by forcing an output timing you may

experience slightly faster switching times.

Note: Forcing an output timing does not affect the HDBT output, only the HDMI ports.

If you are using the 3.5mm stereo audio output and experience lip-sync problems, you can adjust the latency on the

Output Settings webpage as well. Simply enter in a value between 0-200ms and click apply.

SW-540-TX-W User Manual | 210908

10 of 12

Technical Support: 844.280.WYRE (9973)

Support@WyreStorm.com

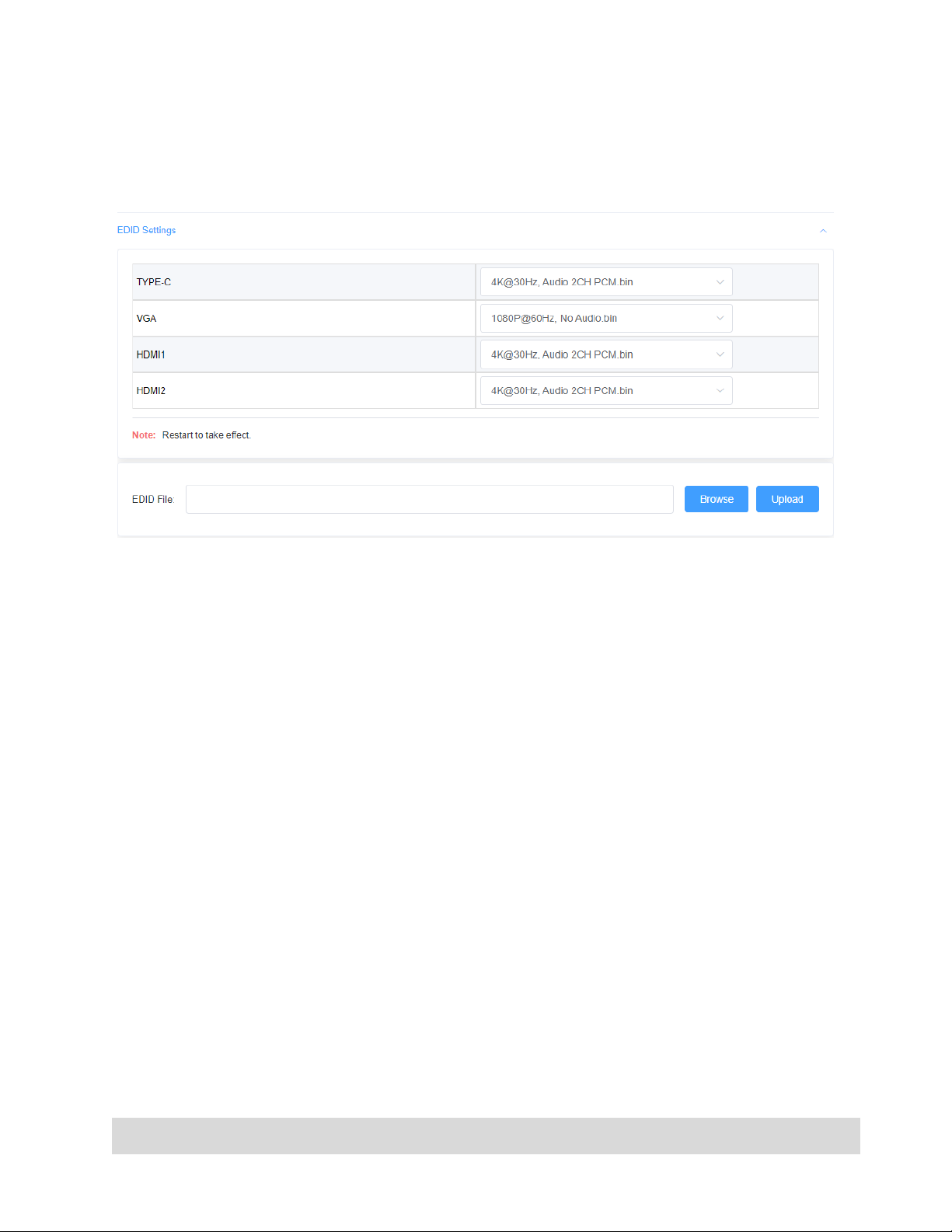

Adjusting EDID

Each input allows for manual assignment of an EDID. If you experience compatibility problems with a device, you can

adjust the EDID for the input port respectively. You can also upload a custom EDID binary file if the pre-loaded files

do not meet a timing requirement.
