Xiaomi Mi Drone Bedienungsanleitung
Mi Drone
Before using the device read the instructions carefully
1
Precautions
• Persons under 18 years old and incapable persons are prohibited to use quadcopter.
• During use ensure a safe distance between quadcopter and people, animals, trees, cars and buildings. Manage your device carefully if there are
people nearby.
• Do not use quadcopter near airelds, railways, highways, high-rise buildings, power lines and other dangerous objects.
• Do not use quadcopter close to the cellular base stations, antennas of ultrahigh power and other areas of electromagnetic signals.
• Place of take-o, height and distance of the ight of quadcopter must meet legal regulations and restrictions.
• Do not use quadcopter in places, where the operation is prohibited by law and not violate time limits its use.
• In order to protect the legitimate rights and interests of users, follow the safety rules of quadcopter use.
Scan and install Mi Drone АРР
Introductory course of ight
Online map
Real time Aerial Photography
XIAOMI-MI.COM
Device and accesories
2

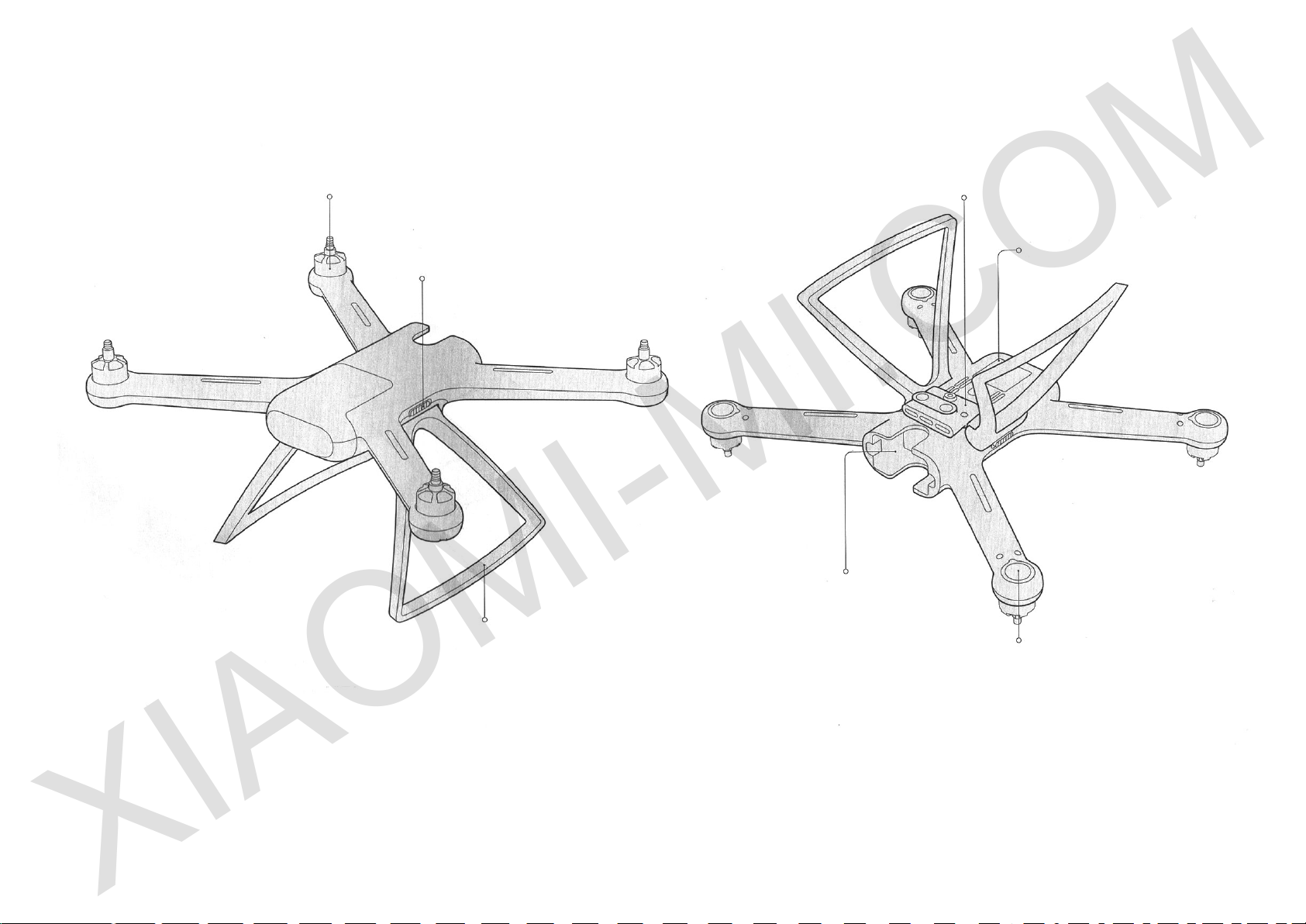

Quadcopter
Motor
Switch of landing gears
Landing gears
Note: In the package landing gears are folded.
Supporting clamp
Built-in PTZ camera
Battery cell
Flight indicator
XIAOMI-MI.COM
3
Device and accesories

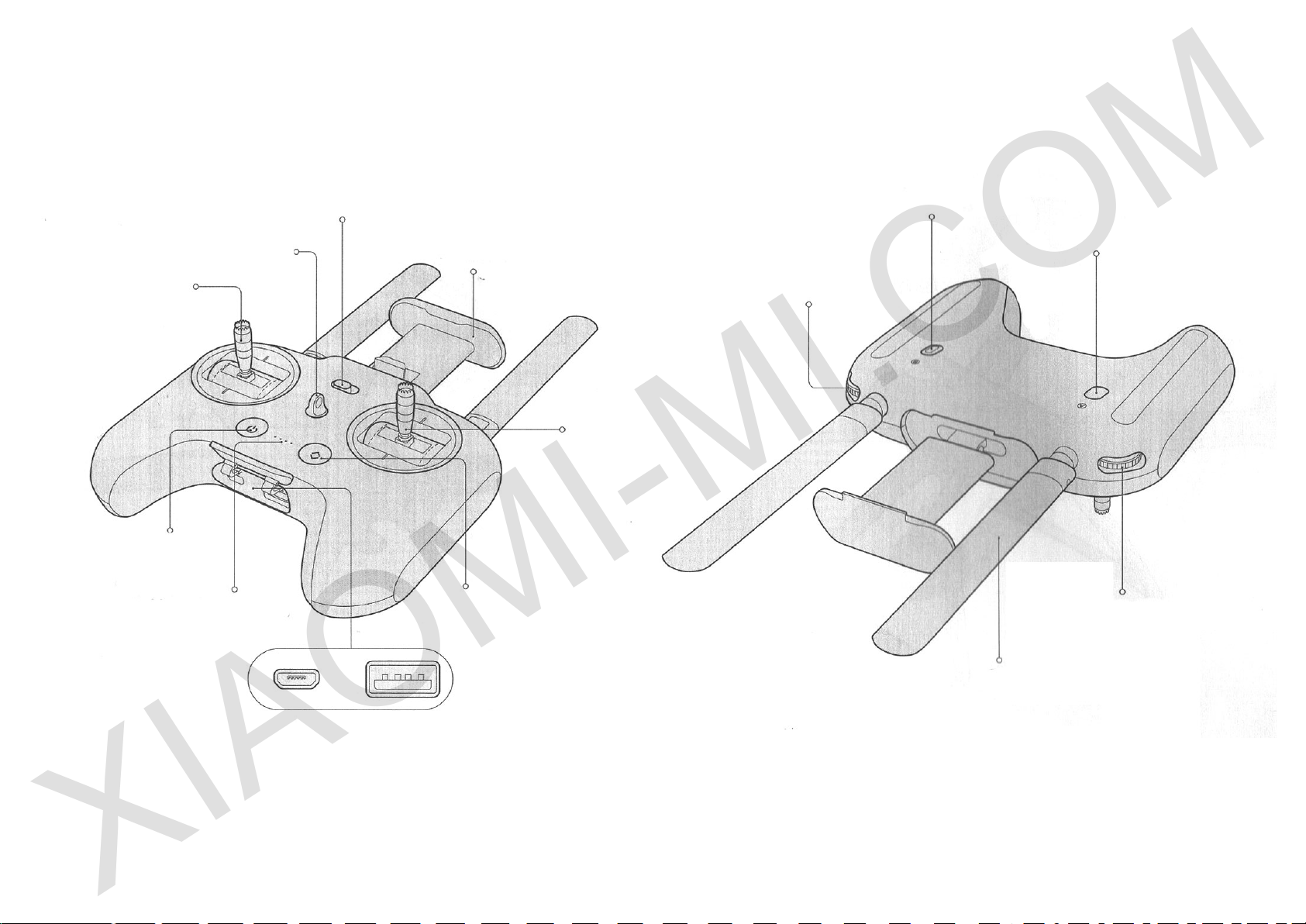

Remote control
Standard ight/Back ight switch
button
The hole for hanging Smartphone clamp
Left stick
Right stick
Power button
Charge indicator
Automatic take o/
Automatic landing
Charging port USB port for smartphone
Video recording
Photo shooting
Left wheel
Right wheel
Antenna
Note: It is necessary to coordinate the use of the left button for video and
photo / video recording button of PTZ camera.
XIAOMI-MI.COM
4

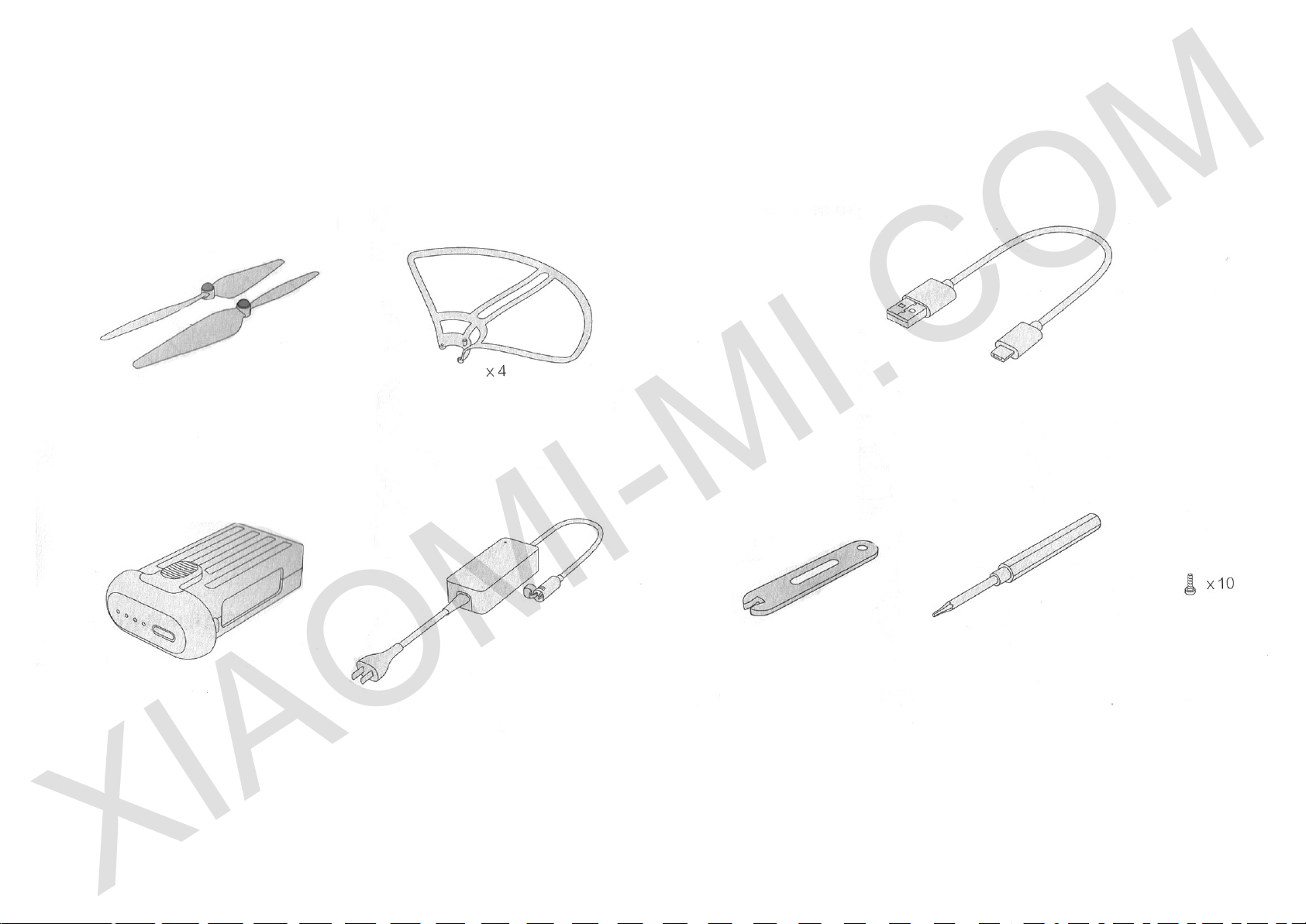

Device and accesories
Self-tightened propeller x4
direct / reverse rotation.
Protective covers
Battery х1 Charging device х1
USB cable
Wrench Screwdriver Screws
XIAOMI-MI.COM
5

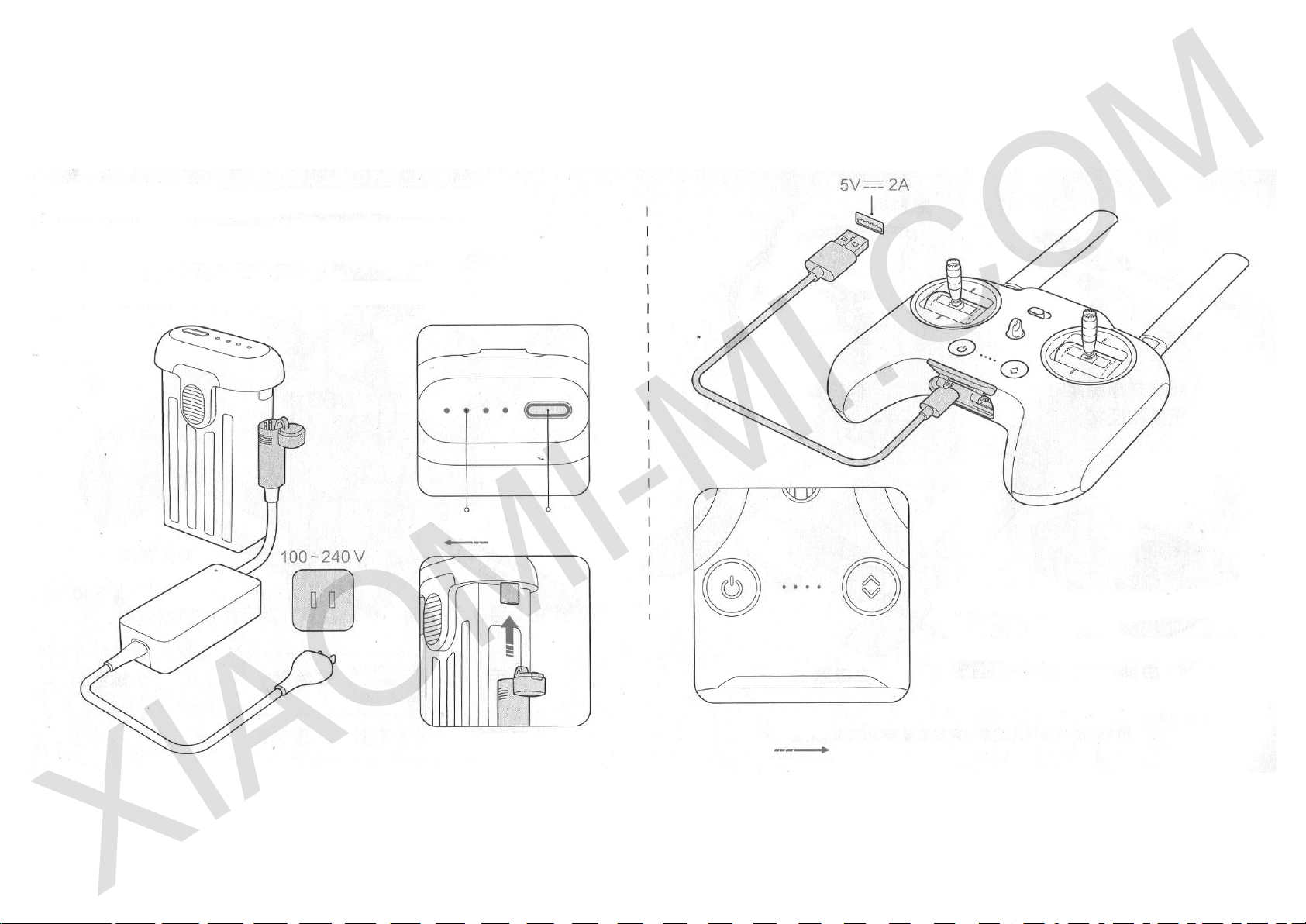

Charging
Charging a quadcopter battery
Connect the battery with a power adapter and plug it into a power
supply as shown below.
During charging indicator blinks to indicate a current charge level.
After full charging lamp does not lit.
Charge level Power button
Note: You may connect battery to adapter from both sides.
Charging the remote control
Connect remote control adapter as
shown above.
During the charging indicator blinks to
indicate the current charge level.
After full charging lamp does not lit.
Charge level
XIAOMI-MI.COM
6
Installation and disassembly
Quadcopter

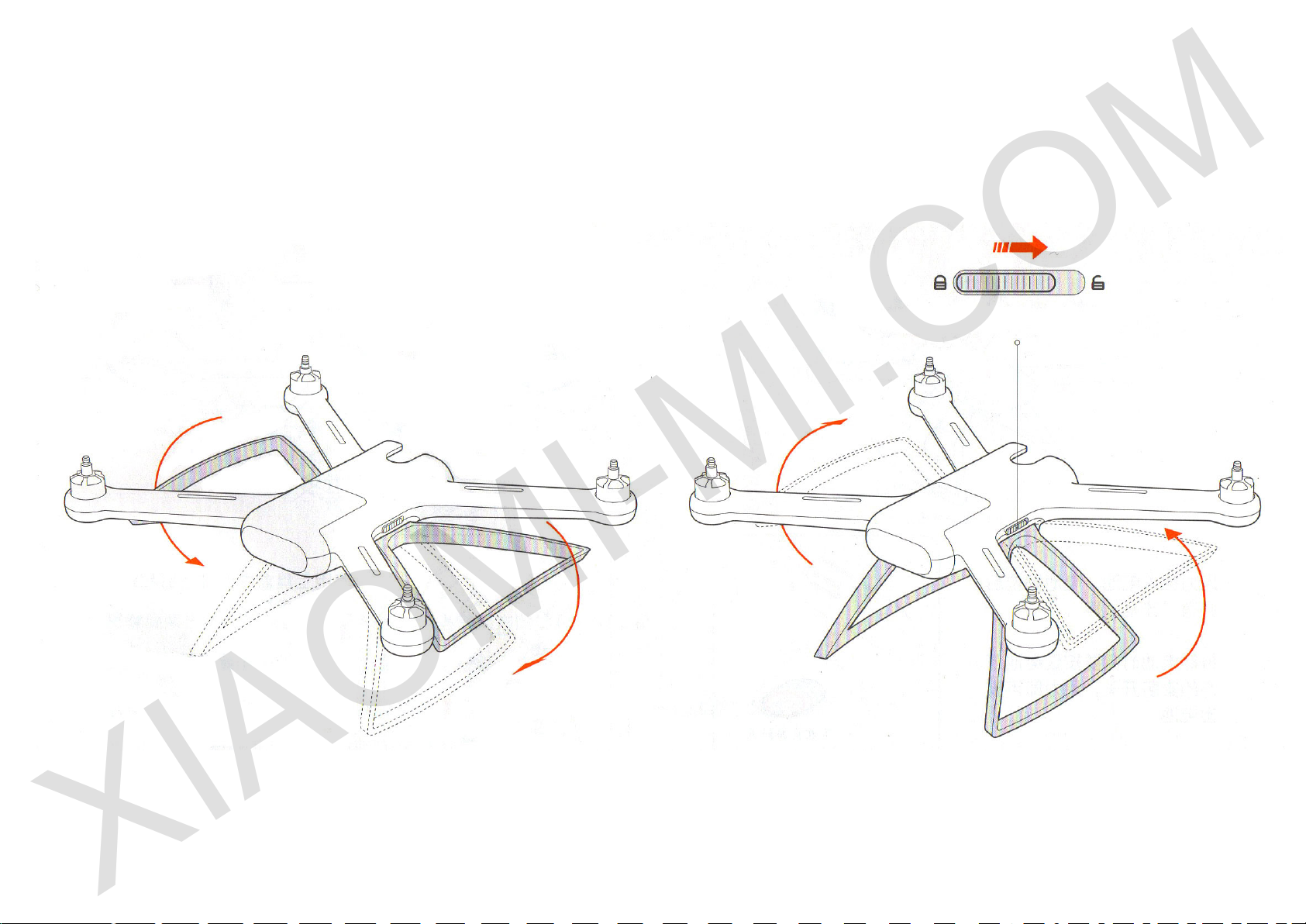

a) Landing gears
Put down landing gears until it clicks, then they will x in one
position.
Note: landing gears have an embedded compass, so make sure to
install and x them properly.
Switch of landing gears
Unlock landing gears using a special switch, then remove them from
the device.
XIAOMI-MI.COM
7
Installation and disassembly

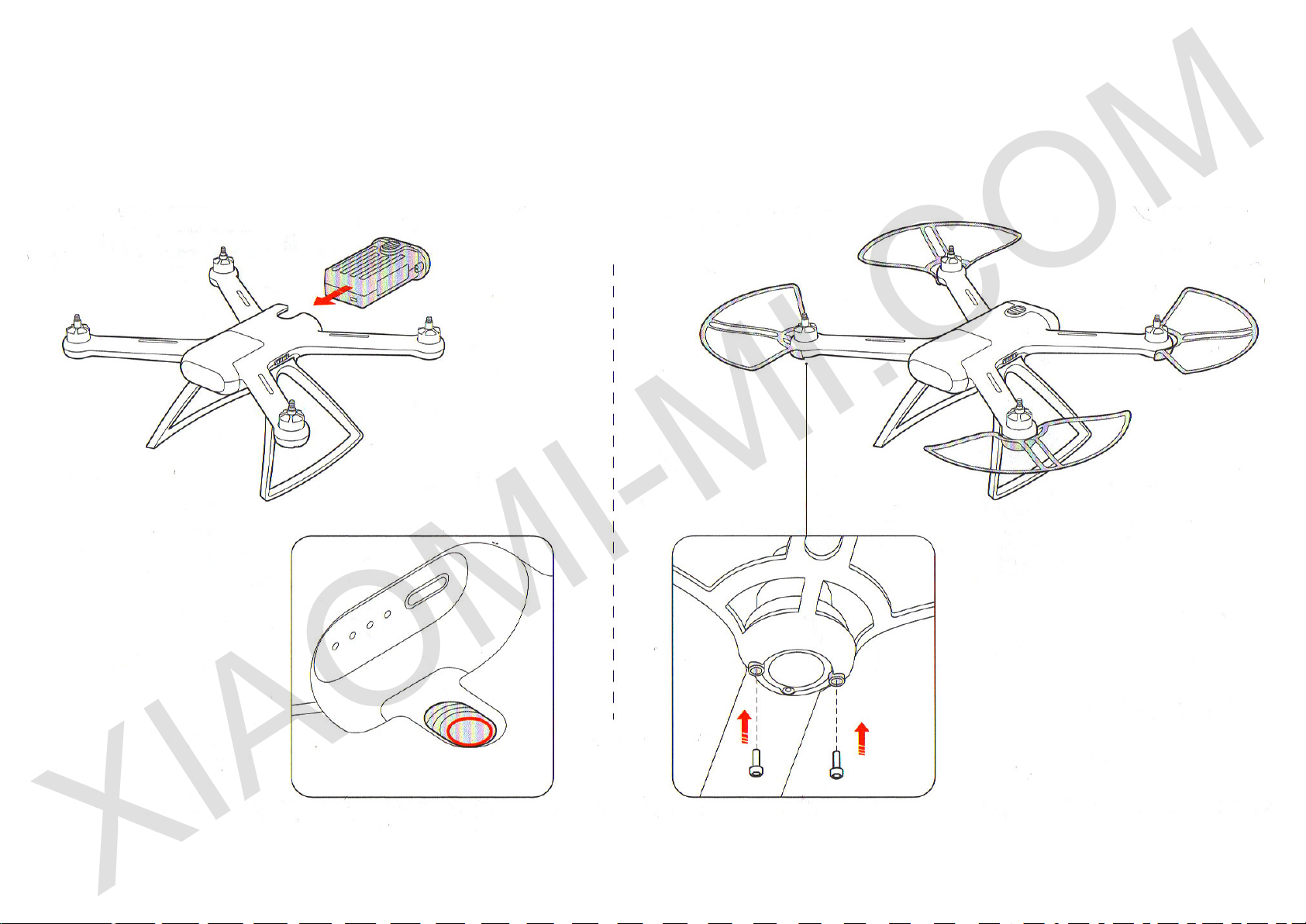

b) Battery
Using force, insert a battery in until it clicks.
To remove a battery from the device you need to press down lower
switch of a battery. Remove a battery, using force.
c) Protective covers
To install protective covers use screws and a screwdriver.
You will need 2 screws for each protective cover.
Note: To unscrew screws and remove the protective cover,
use a screwdriver.
XIAOMI-MI.COM
8
Installation and disassembly

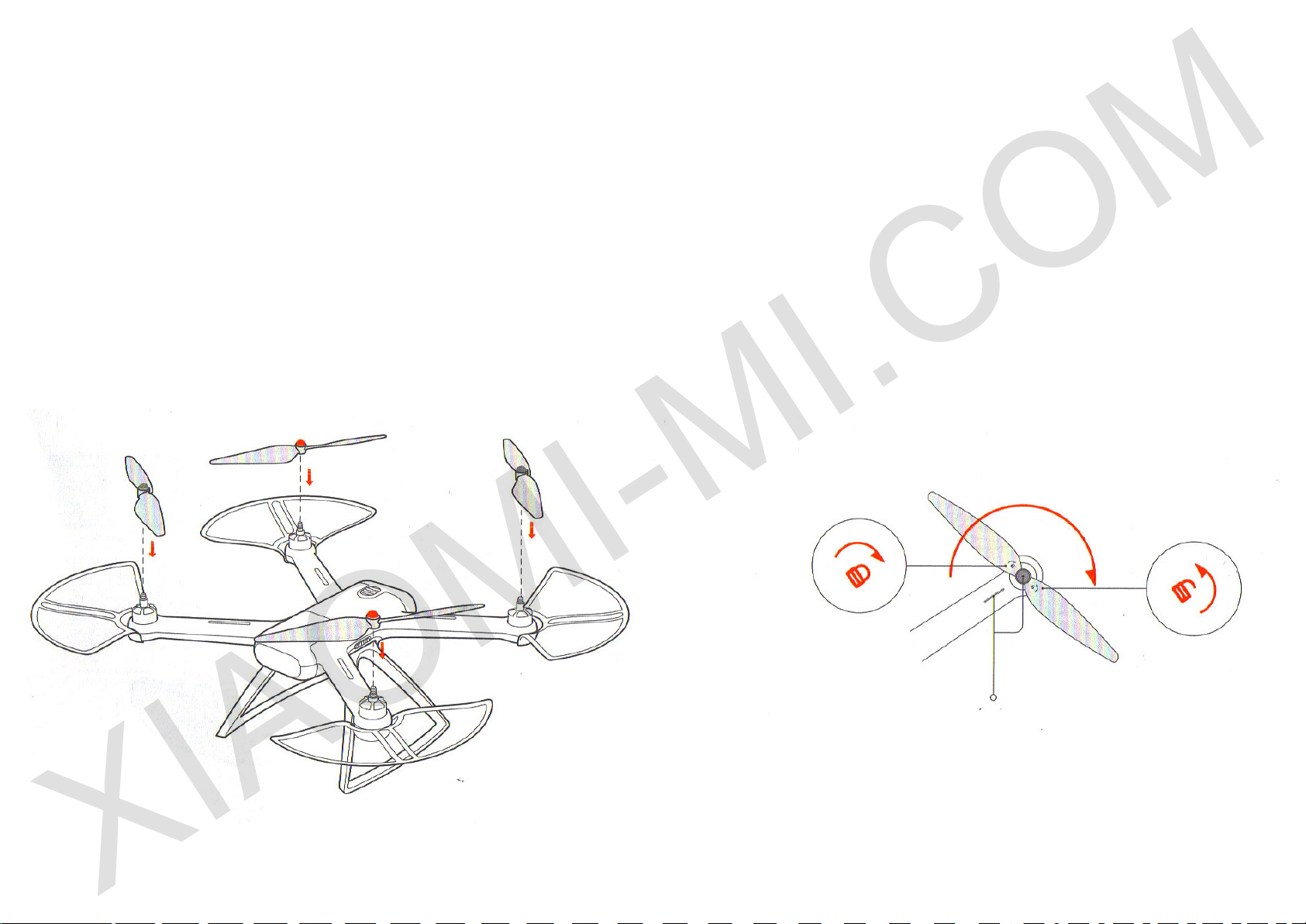

d) Propeller
Set propellers according to colored labels on them. Secure the propeller
scrolling aside its image of a closed lock.
In ight, propellers can automatically scroll. Make sure its strongly xed.
When disassembling the propeller, please use a wrench that comes with
the kit to clamp the motor and blades put aside an image of an open lock.
Lock a propeller Unlock a propeller
Color label
Note: If propeller is damaged, replace it for ecient and safe
ight.
XIAOMI-MI.COM
9
Installation and disassembly

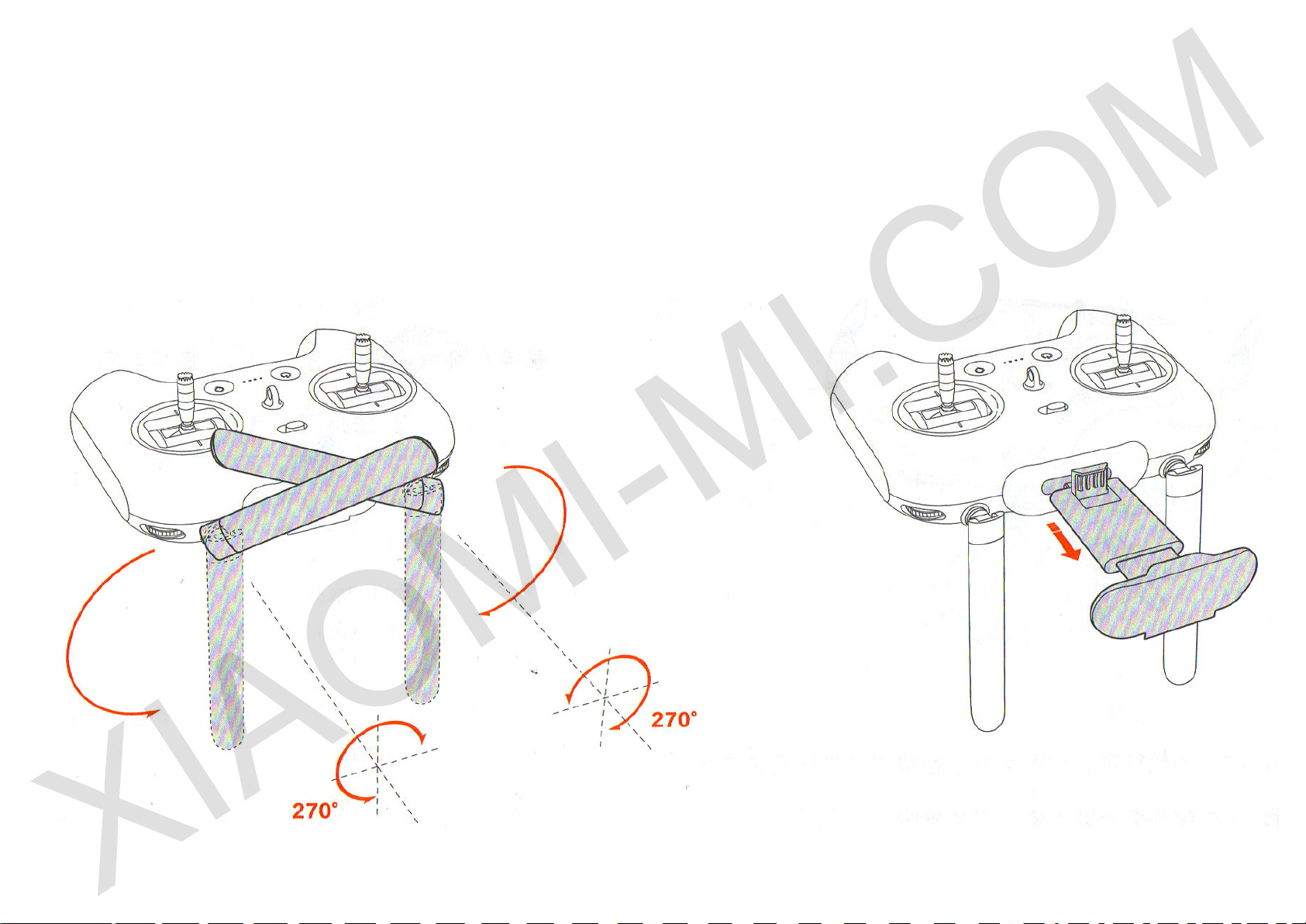

Remote control
Place antennas of remote control as shown below.
WARNING:
1. Antenna rotates only within 270 degrees. Gently rotate it, not to break it.
2. For a more stable signal point remote antennas toward the quadcopter.
Pull out smartphone dock
XIAOMI-MI.COM
10
Installation and disassembly

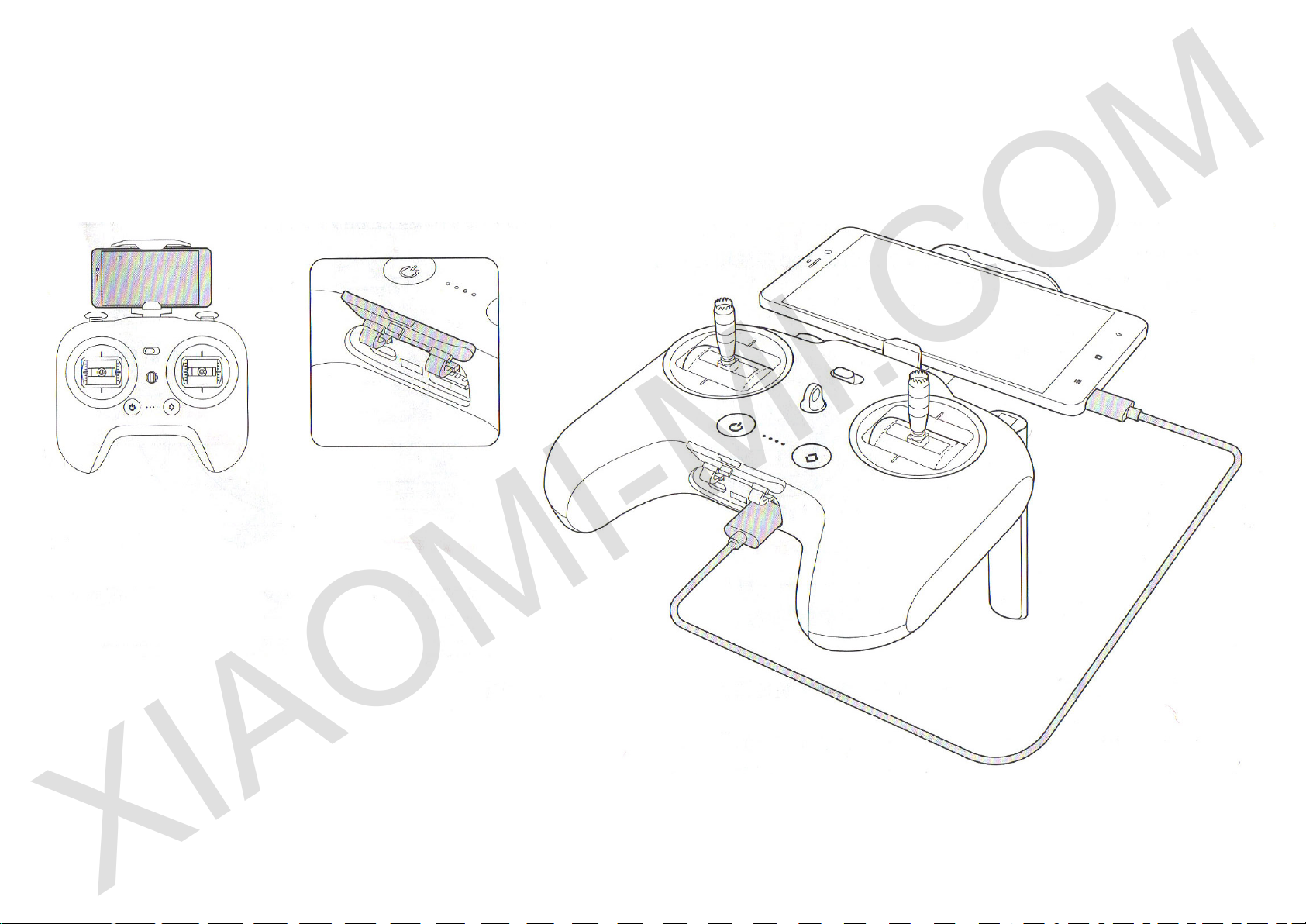

• Firmly place the phone in its dock. Please make sure
that bottom edge of the lock does not presses buttons of a
phone.
• Open bottom panel of the remote control.
• Connect your phone to the remote control via a USB
cable.
• According to guidelines of Mi Drone App, create a
connection between devices, make control settings and
update rmware.
Note: You get a Micro USB cable with the device. Other means of communication are not included as standard.
Some phones do not t the dock because of their size.
XIAOMI-MI.COM
