Introduction

When it comes to control hardware, it is necessary to provide an easy yet

powerful interface for the personnel in charge. XPanel Touch is created

with this purpose in mind. The menu names and control parameters are

programmable via our software provided along with the device. As a matter

of fact, the XPanel Touch is so flexible that it not only allows the user

to define what parameters to be controlled, but the min/max of the

parameters’ range by drag-n-drop operation in the easy-to-use PC GUI,

XPanel Design. Working with the X-Series processors, it allows the

processors to create a control network not only with computers, but also

with the XPanels. Multiple XPanels, processors and computers can exist

in the same network. It yields total control to the user with tremendous

power and flexibility beyond imagination.

(***edited from original introduction of XPanel)

Specifications

Display, LCD

Size: 7”

Resolution: 800 x 480dpi

Screen: Capacitive, multi-point touch, Max 5 control points

Ratio: 16:9

Language: English, Chinese

OS: Android 4.0.3

Network

Wifi: compatible with 802.11 b/g/n

Battery

Type: Li-ion, 3,000mA

External Power Supply: DC 5V/1.5A

Chassis

Material: Composite

Color: Black

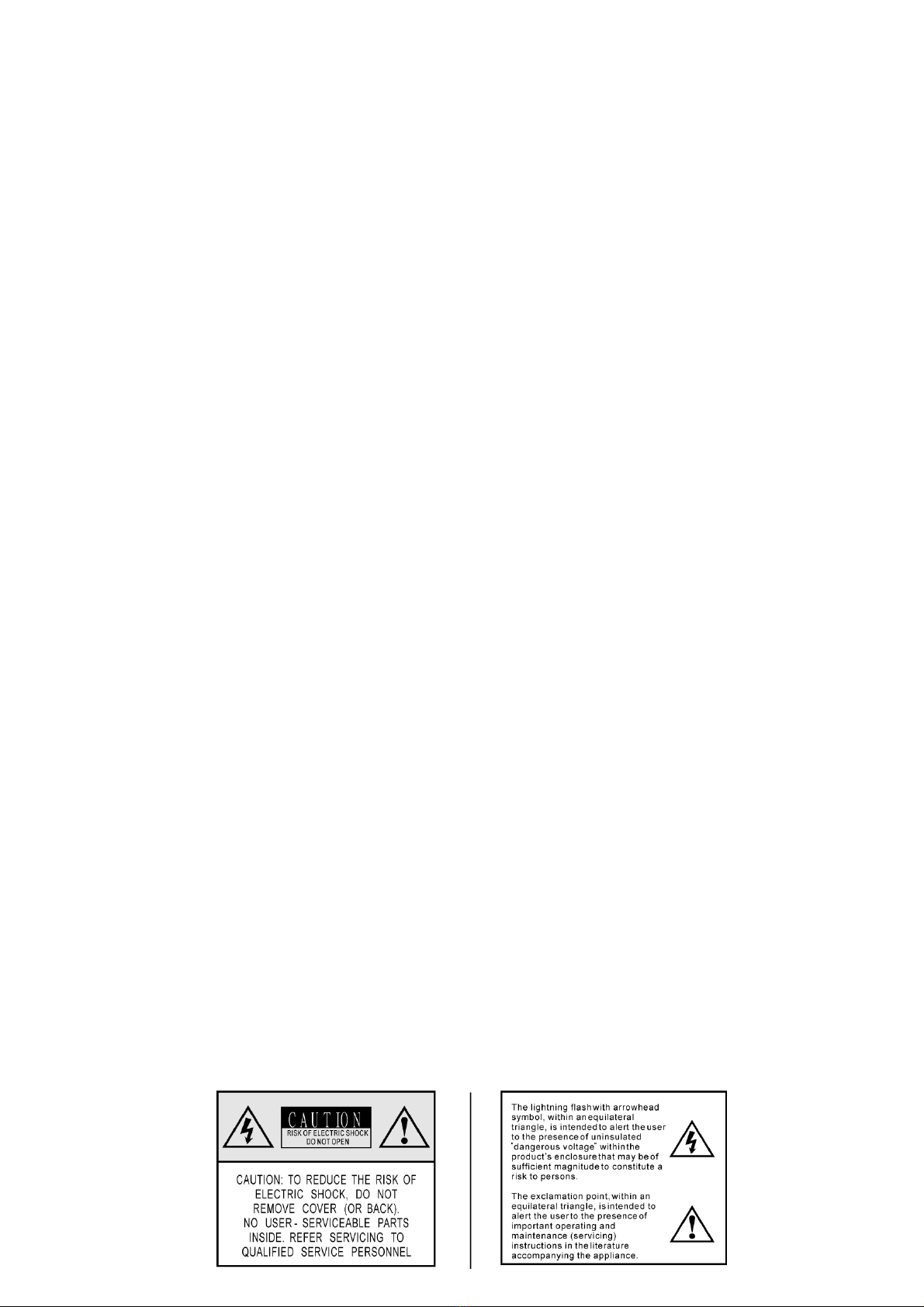

AWARE!

1. READ THE INSTRUCTIONS THOROUGHLY

2. KEEP THE INSTRUCTIONS FOR FUTURE REFERENCE

3. HEED ALL WARNINGS

4. FOLLOW ALL INSTRUCTIONS WITH CARE

5. STAY AWAY FROM WATER

6. DO NOT BLOCK ANY VENTILATION OPENINGS

To prevent any internal damage overheating, do not block the vent at the rear of

the machine. The product should ALSO not be placed in a built-in installation

such as a bookcase or rack unless proper ventilation is provided or the

manufacturer’s instructions have been adhered to.

7. DO NOT PLACE IT ANYWHERE HIGHER THAN ROOM TEMPERATURE

It is recommended that this product should be situated away from heat sources

such as radiators, stoves, or other products (including amplifiers) that produces

heat.

8. DO NOT DEFEAT THE SAFETY PURPOSE OF THE POLARIZED OR

GROUNDING-TYPE PLUG

A Polarized plug has two blades with one wider than the other. A grounding-type

plug has two blades and a third grounding prong. The wide blade or the third

prongs are provided for your safety. If the provided plug does not fit into your

outlet, consult an electrician for replacement of the obsolete outlet.

9. PROTECT THE POWER CORD FROM BEING WALKED ON OR PINCHED

PARTICULARLY AT PLUGS, CONVENIENCE RECEPTACLES, AND THE

POINT WHERE THEY EXIT FROM THE APPARATUS.

10. ONLY USE ATTACHMENTS/ACCESSORIES SPECIFIED BY THE

MANUFACTURER.

11. USE ONLY WITH CART, STAND, TRIPOD, BRACKET, OR TABLE SPECIFIED

BY THE MANUFACTURER, OR SOLD WITH THE APPARATUS. WHEN A

CART IS USED, USE CAUTION WHEN MOVING THE CART/APPARATUS TO

AVOID INJURY FROM TIP-OVER.

Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit

may fall, causing serious injury to someone, and serious damage to the appliance.

A unit and cart combination should be moved with care. Quick stops, excessive

force, and uneven surfaces may cause the product and cart combination to

overturn.

12. UNPLUG THIS APPARATUS DURING LIGHTNING STORMS OR WHEN

UNUSED FOR LONG PERIODS OF TIME.

For added protection for this unit during a lightning storm, or when it is left

unattended and unused for long periods of time, unplug it from the wall outlet and

disconnect the antenna or cable system. This will prevent damage to the unit due

to lightning and power line surges.

13. REFER ALL SERVICING TO QUALIFIED SERVICE PERSONNEL. SERVICING

IS REQUIRED WHEN THE APPARATUS HAS BEEN DAMAGED IN ANYWAY,

SUCH AS WHEN THE POWER SUPPLY CORD OR PLUG IS DAMAGED,

LIQUID HAS BEEN SPILLED OR OBJECTS HAVE FALLEN INTO THE

APPARATUS, THE APPARATUS HAS BEEN EXPOSED TO RAIN OR

MOISTURE, DOES NOT OPERATE NORMALLY, OR HAS BEEN DROPPED.

14. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT

EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

15. APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND

NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED

ON THEAPPARATUS.

A. XPanelDesign Installation

Double click the XPanel file to start the installation; select the directory of where you

would like to install the PC GUI.After installing, user can now design and define the

control objects via drag-n-drop operation.

B. Configuration

XPanel Touch provides both wireless and Ethernet cable connection with

processor and computer. For more detailed setup, please refer to below,

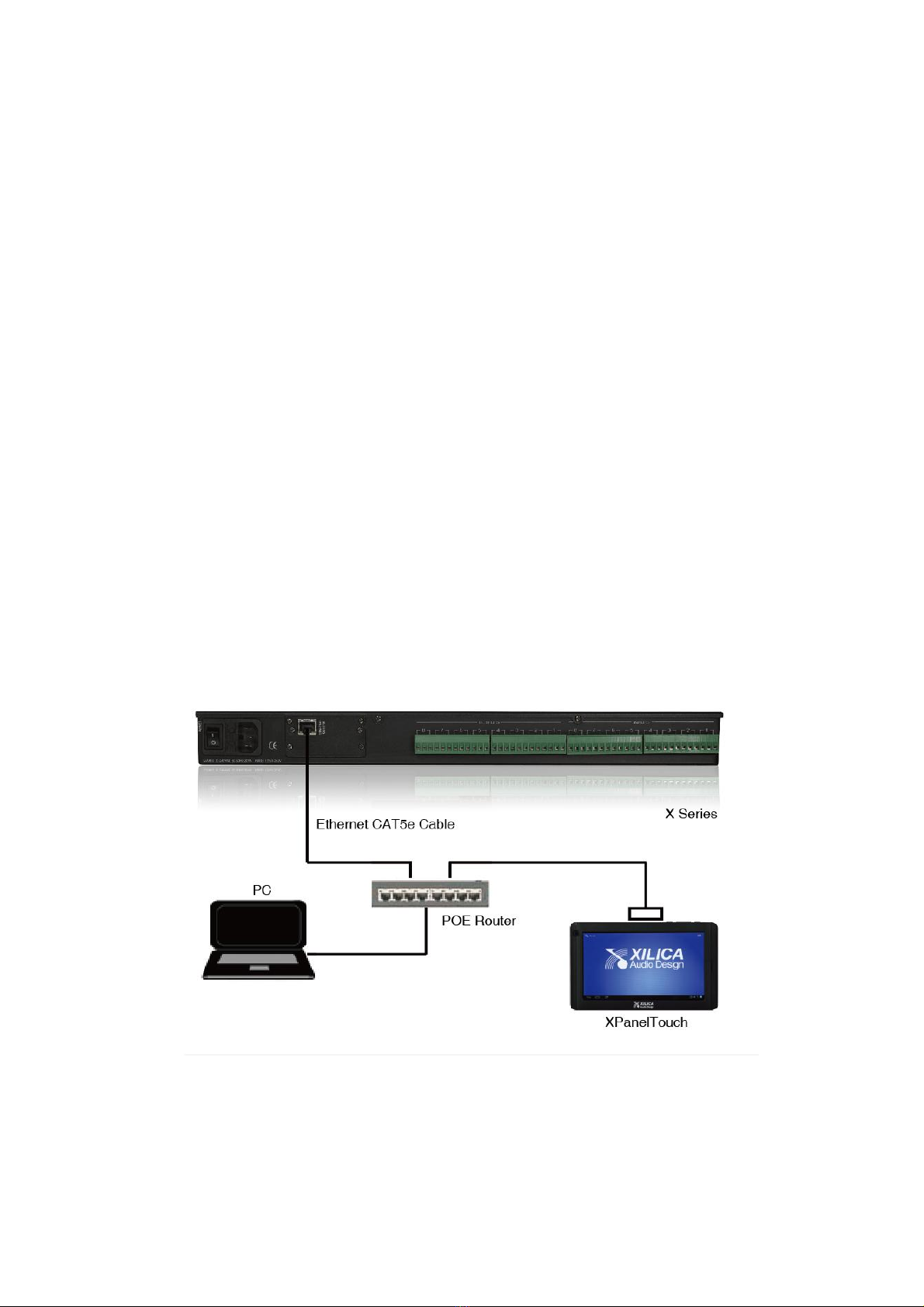

1. Ethernet Connection

For Ethernet connection, a router or switch is required for cable link

between a processor, computer and the panel, illustrated as follows.

(B-1)

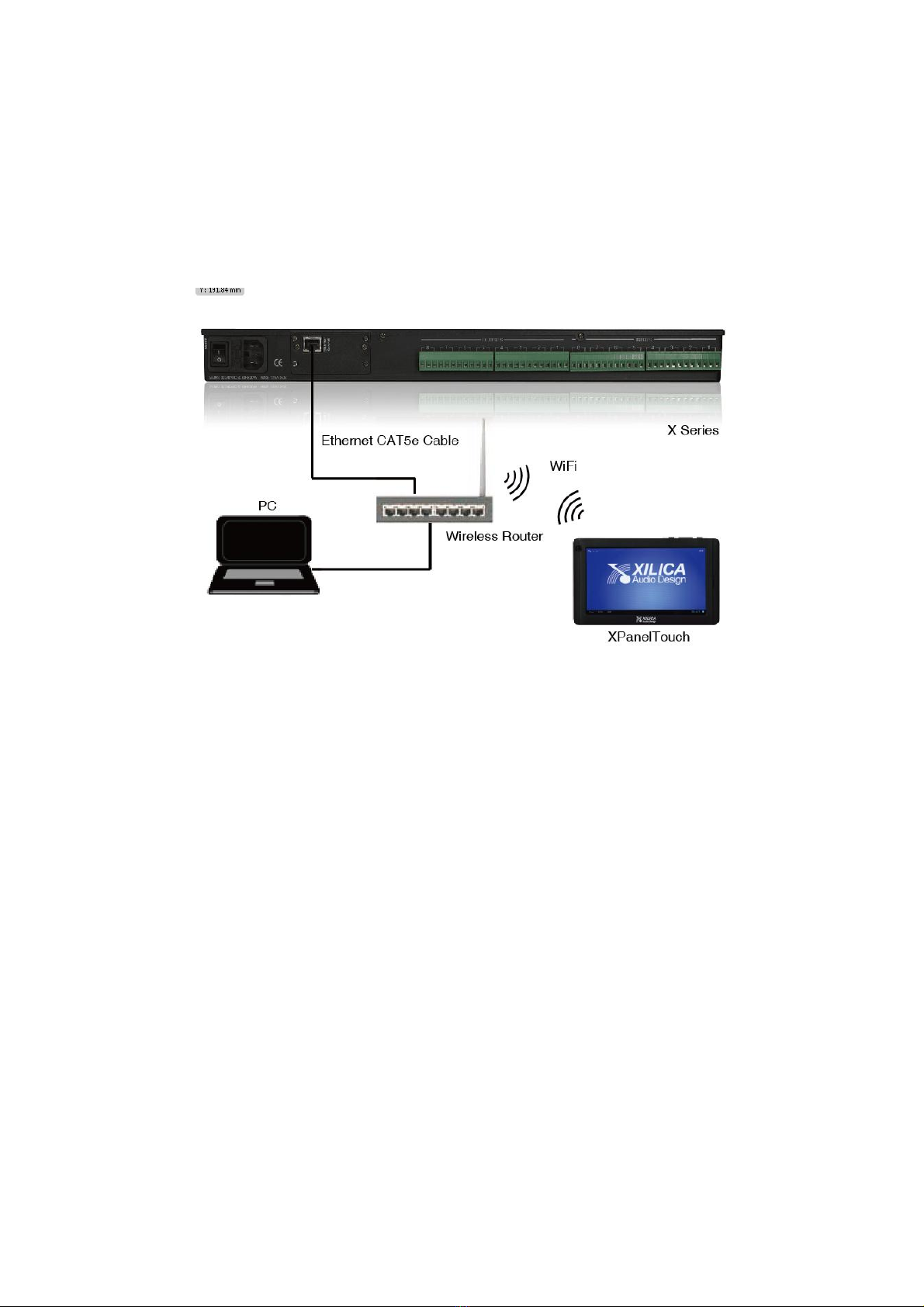

2. Wireless Connection

(B-2)

While for wireless application, one router with Wi-Fi 802.11 b/g/n standard is required,

and for a better result, 802.11 n is recommended for quicker data exchange.

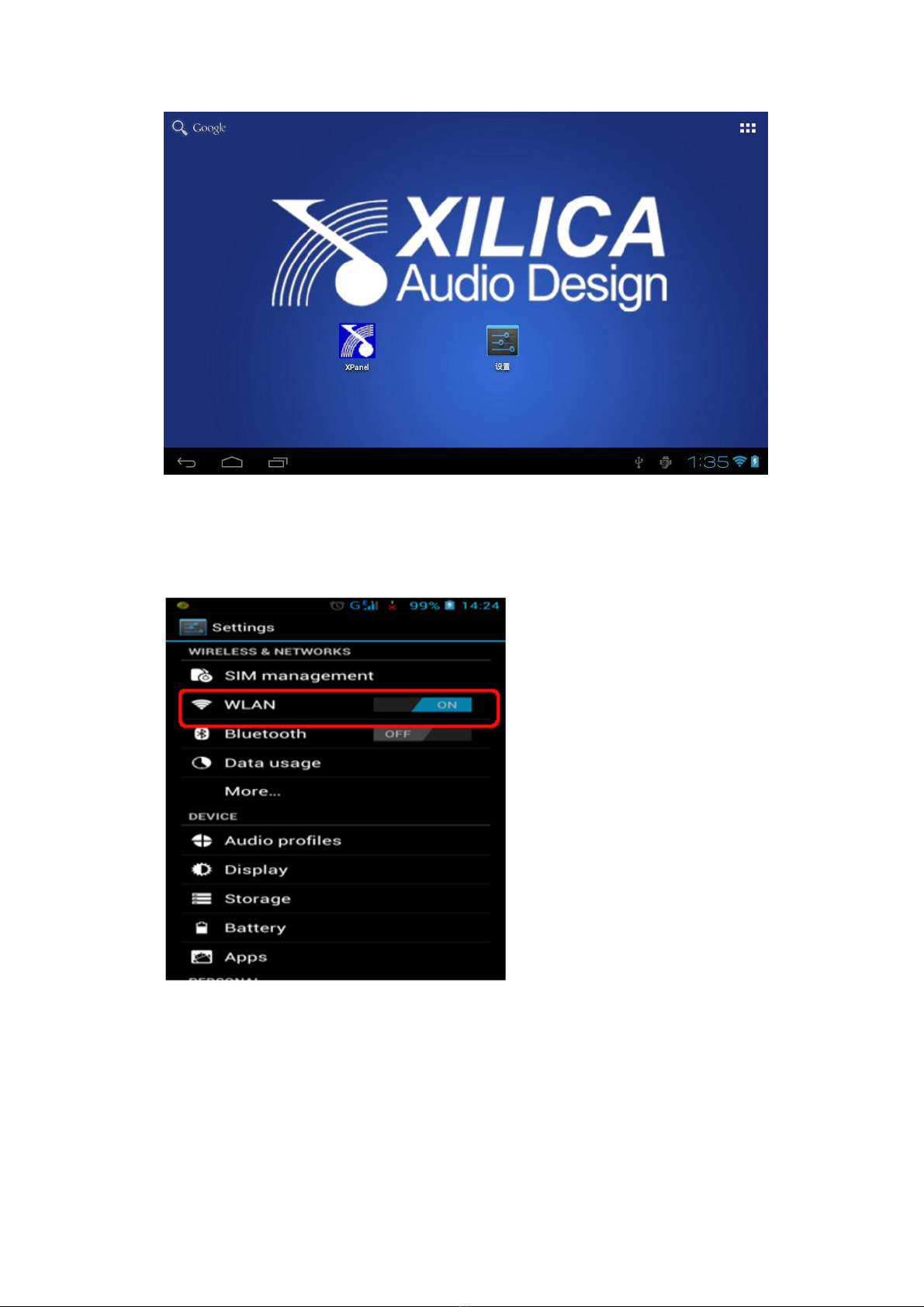

To connect via Wi-Fi, you must turn on and configure the wireless network properties in

Setup menu at first, then follow below to complete.

(B-3)

Detect and connect the correct router linked with processor to proceed. At times, input

of password is needed for connection security.

(B-3)

Click to start XPanelDesign on PC and run theAndroid app XPanelTouch on the panel.

If the connection is correct, i.e. both the PC and the panel are within a same network;

the panel will be automatically detected and displayed on the XPanelDesign.

(B-4)

If the panel cannot be detected in XPanelDesign, please check your network

configurations.

C. Project design

3.1 Quick instance:

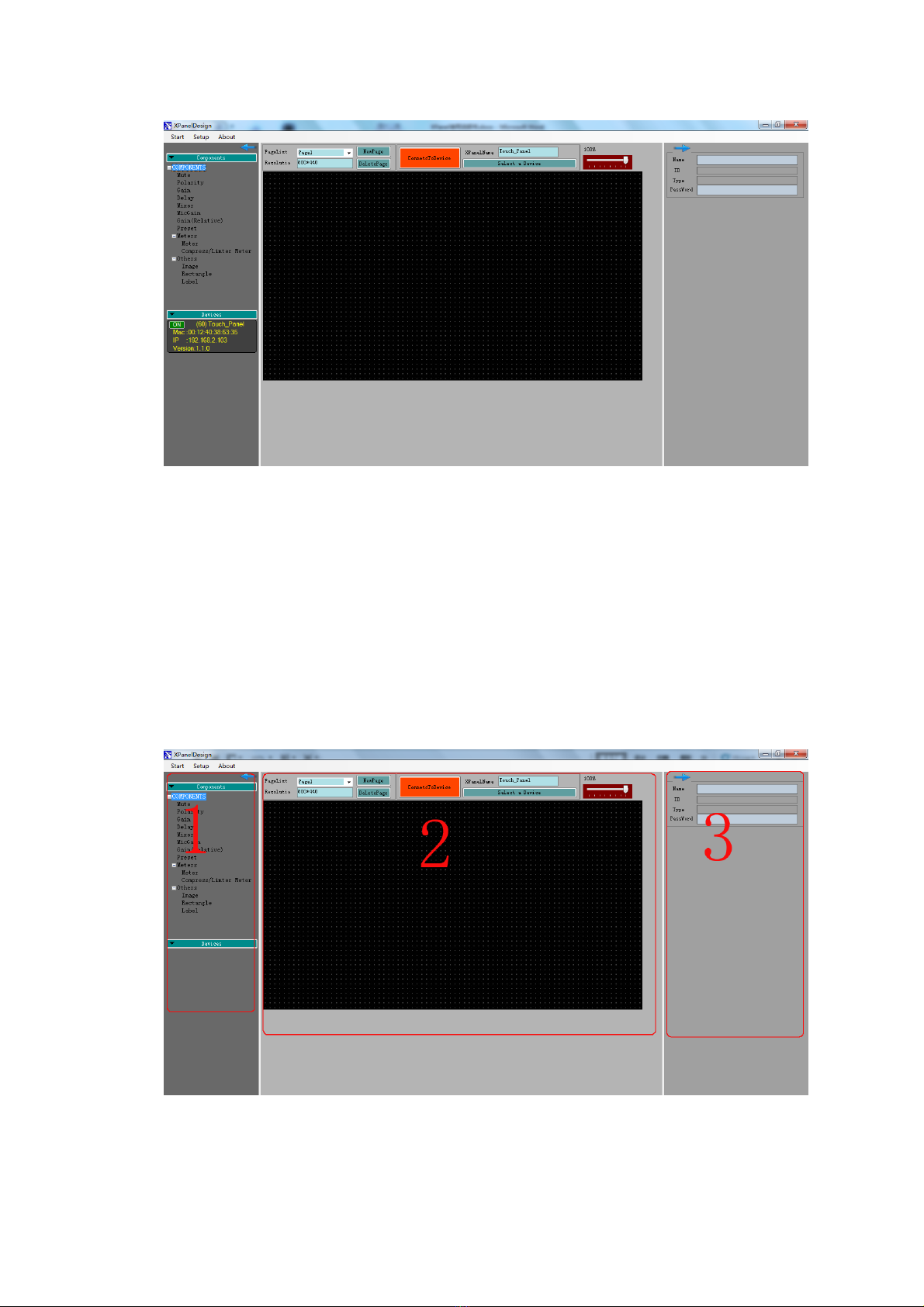

XPanelDesign window consists of three functional blocks, that’s the control object and

device list to the left, design zone in the middle and the properties menu to the right.

(C-1)

Below will show you how to design a project to mute channel 1 on device ID no.1.

I.Design：

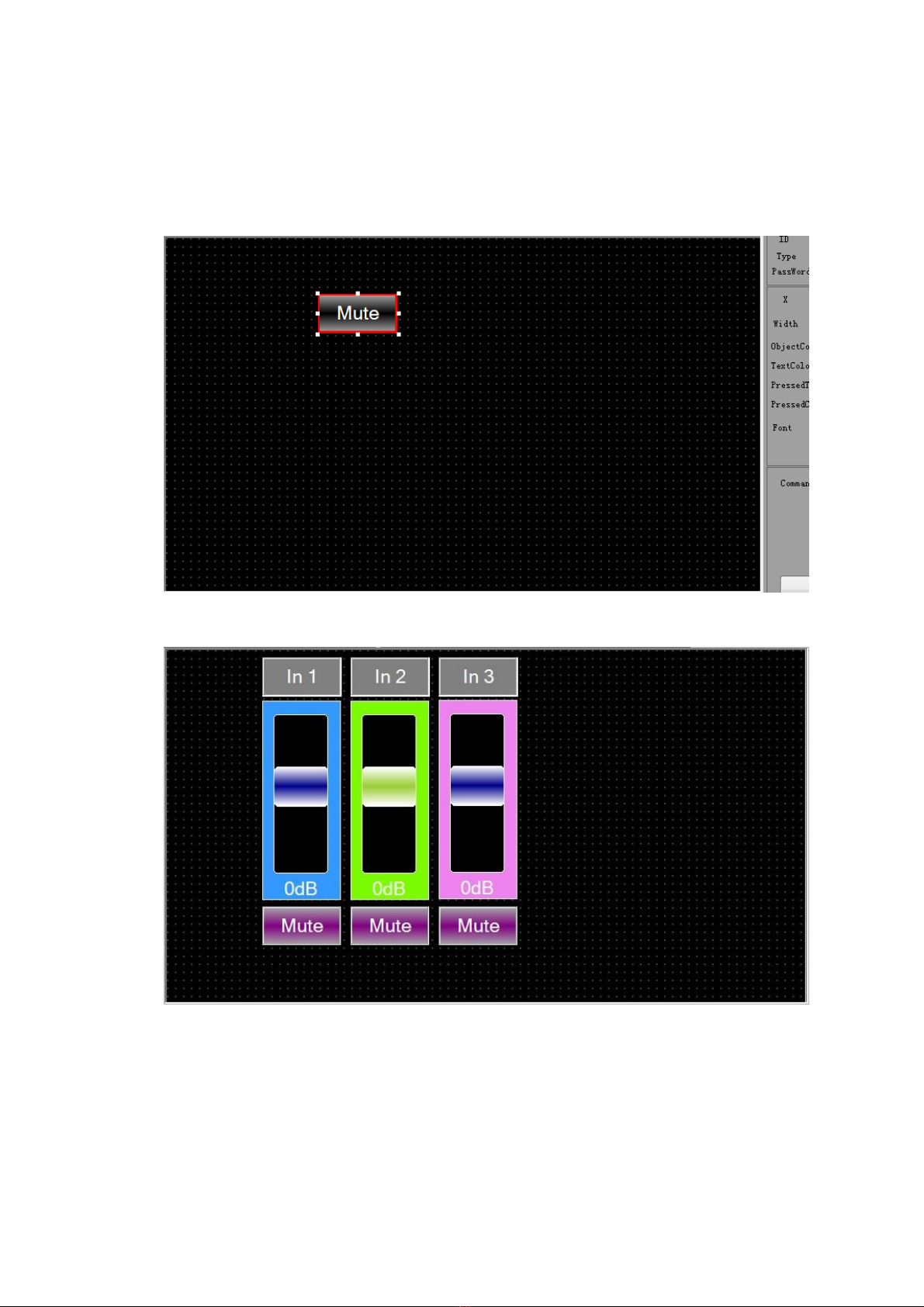

First select the <Mute> object from the control liston the left and drag to the design

zone in middle.

(C-2)

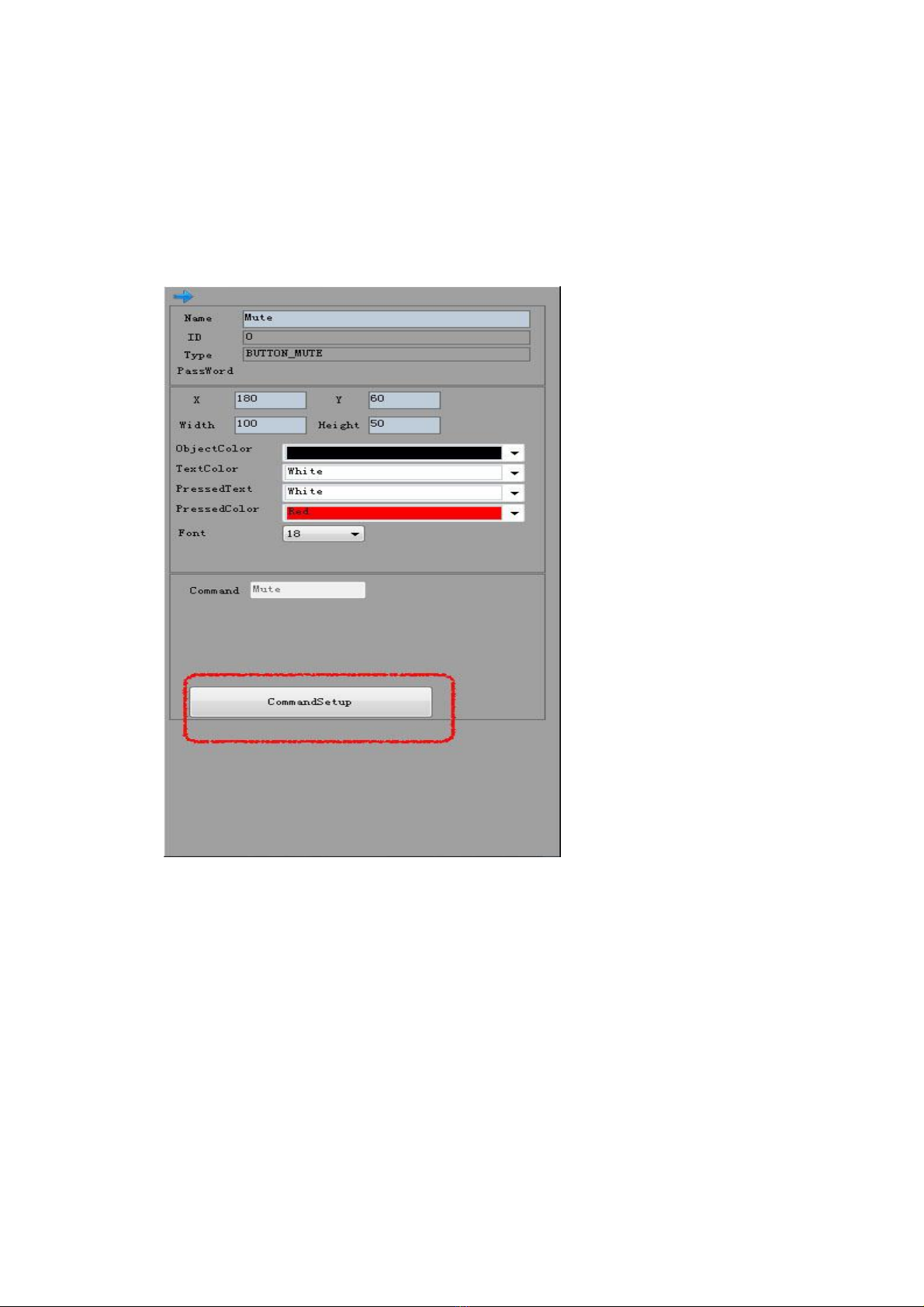

You can edit the text, font, color and size in the properties menu as follows,

(C-3)

II.Command Setup

To make the controlled object effective, definitions of a targeted unit should be properly

configured in <Command Setup> sub category.

(C-3)

Click the tab enter pop-up menu

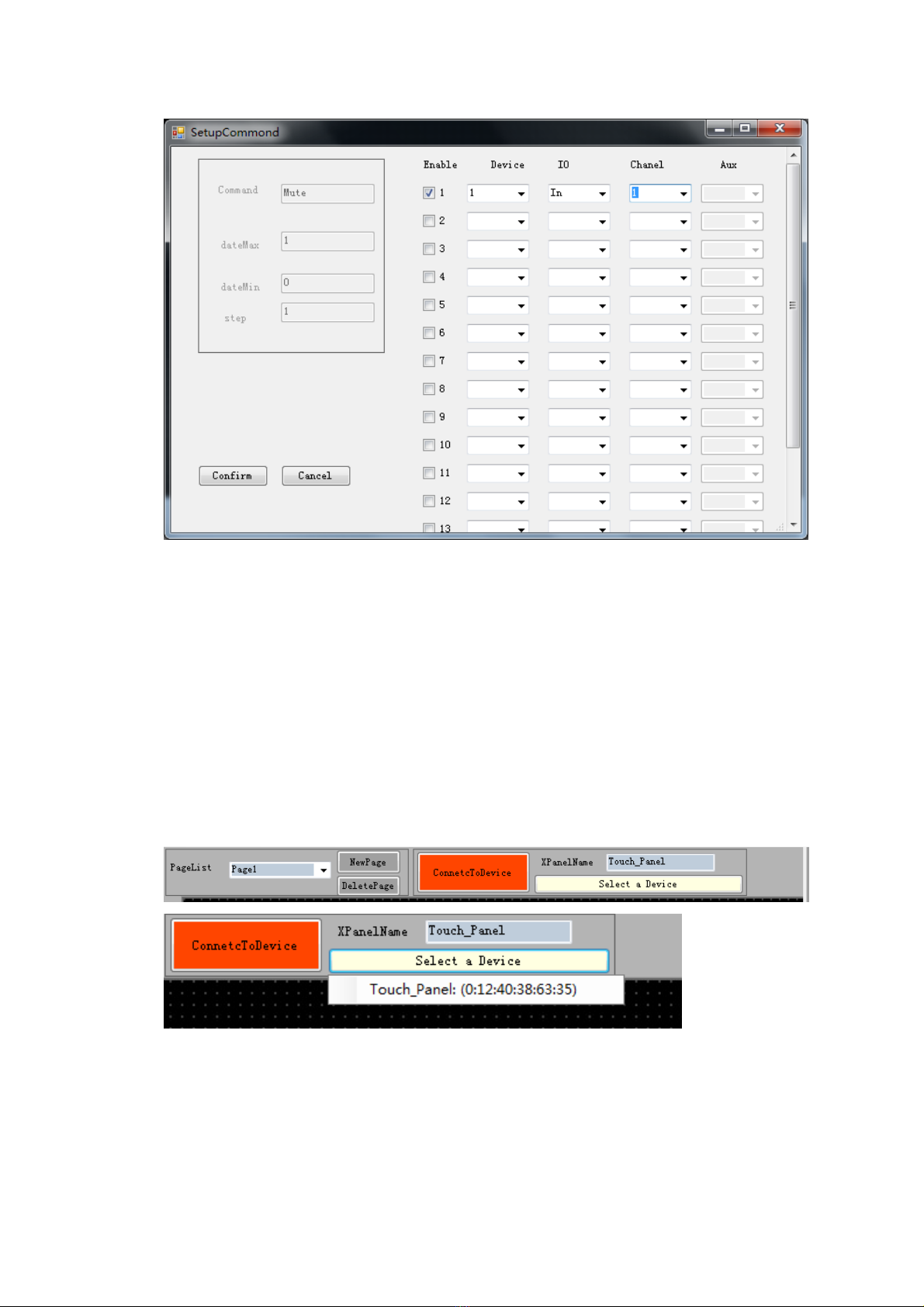

(C-4)

In the <Command Setup> menu, each row stands for one unit; selected function can

be activated per I/O or per channel. Max. 16 devices can be defined for one object.

After finish, click <Confirm> to save the settings and return, or <Cancel> to discard.

III.Project Upload

Next step is to upload the finish project into XPanel Touch.

（C-5 XPanelTouch Name+MAC Addr）
