1.0 Components:

When you purchase the Diana Instant Hot Water tank, contents

include:

1. X-301 boiler

2. DLX-580 faucet

3. Feed water shut-off valve

4. Feed water adapter

5. ¼” feed water tube

2.0 Material required (Not provided)

►ruler or measuring tape ►open-end wrench ►gloves

►35mm drill bit - if no sink hole exists ►tubing cutter ►safety glasses

►small drill bit for starter holes ►pliers ►bucket or pan

►hand or electric drill

3.0 Faucet Compatibility

Only "Open Vent" faucets function with an instant hot water dispenser tank. Connecting a standard

faucet will damage the tank and void the warranty.

IMPORTANT INFORMATION

This hot water dispenser produces instant hot water of approximately 98°C (208°F) as dispensed

from the faucet. This product is not intended to produce a continuous flow of hot water. The

standard model will produce up to 60 cups of water per hour at approximately 98°C (208°F). Due to

high water temperature, for safety reasons, the tank is not under pressure. Consequently, there is a

slight delay of water flow after the faucet has been turned on. This is normal and indicates that the

priming chamber is functioning properly.

•Do not extend the hot water outlet tube.

•Minimum working pressure: 220kPa (system might not work properly if the pressure is below the

requirement).

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ ALL INSTRUCTIONS CAREFULLY

When using all electrical appliances, basic safety precautions should always be followed including the

following:

1. Read all instructions.

2. To protect against electrical shock, do not place cord, plugs or appliance in water or other

liquid.

3. Do not operate any appliance with a damaged cord, plug, or after the appliance malfunctions.

4. Do not use outdoors or in damp area.

5. Do not let cord hang over edge of table or counter, or touch hot surfaces.

6. Do not use appliance for other than intended household use.

7. When using the appliance, provide 4 to 6 inches of air space around the entire unit for air

circulation.

8. Do not attempt to service this product. Repairs should be done by authorized service

personnel.

9. Do not let children operate. The water can cause severe burns.

4.0 SAVE THESE INSTRUCTIONS.

The alert symbols displayed at right point to important safety information to make you aware of

potential hazards that can cause serious injury or death. Please pay special attention to the

information following these alerts and warning. Failure to comply with these instructions can result in

property damage, serious injury or death.

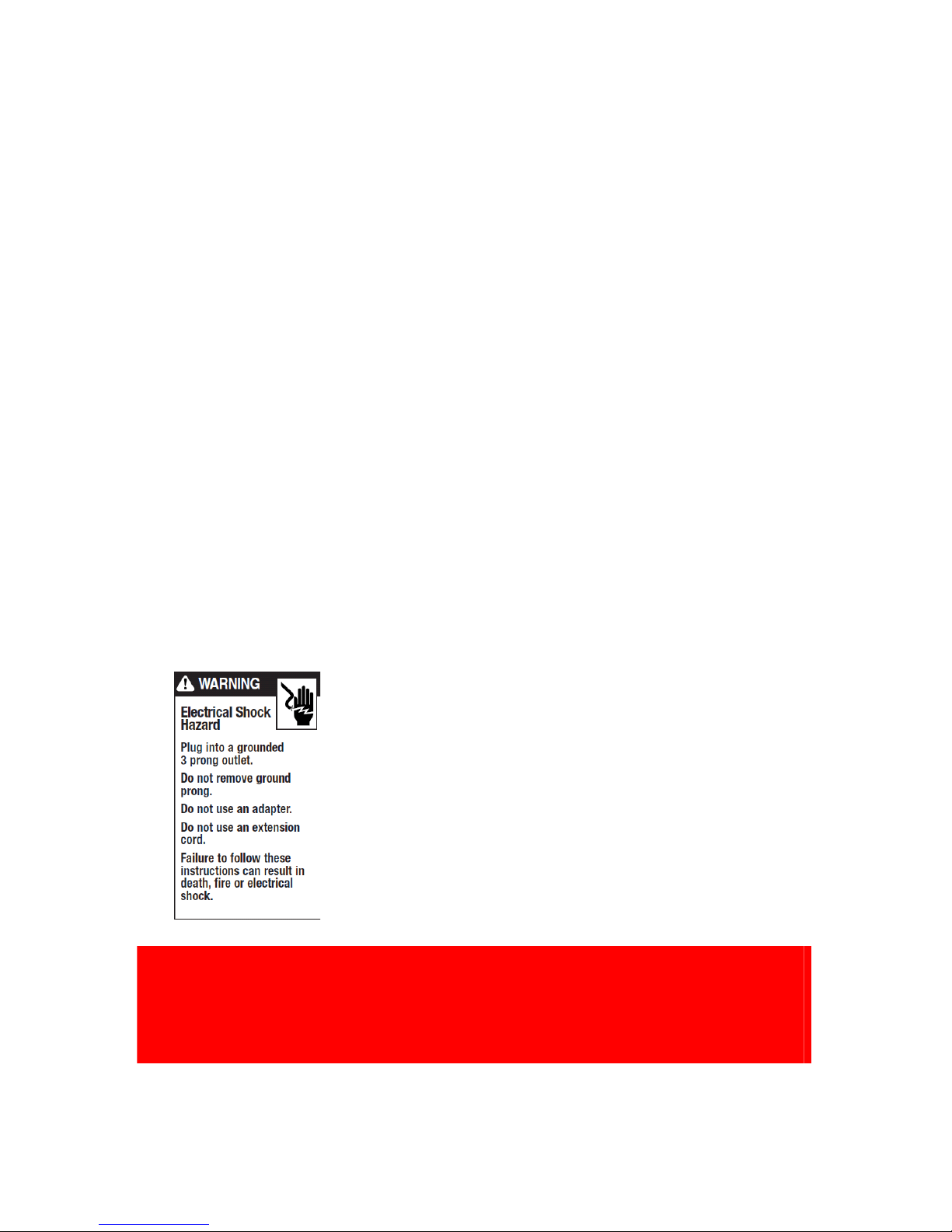

4.0.1 ELECTRICAL REQUIREMENTS (Recommended Ground Method)

For your personal safety, the hot water dispenser is equipped with a power supply cord having a 3-

prong ground plug. To minimize possible shock hazard, the cord must be plugged into a mating 3-

prong, ground type outlet, grounded in accordance with all local codes and ordinances.

If a mating outlet is not available, it is the personal responsibility and obligation of the customer to

have a properly ground, 3-prong outlet installed by a qualified electrician.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician

determine that the ground path is adequate.

A 220 volt, 60Hz, AC only 15 or 20 ampere fused, grounded electrical supply is required. It is

recommended that a separate circuit serving only your hot water dispenser be provided.

Note: Use an outlet that cannot be turned on/off by a switch

PRESSURE FREE HOT WATER DISPENSER CONCEPT

Unlike other household water dispenser, this dispenser tank is not pressurized for safety reasons. For

a conventional household water heater, the faucet valve is placed after the heater tank resulting in a

pressurized tank. For a hot water dispenser, the faucet valve is placed before the tank, creating an

"open vent" style faucet and consequently no pressure is built up inside the tank.

5.0 OVERVIEW

Make sure you have all necessary parts, tools as suggested on manual cover.

1. Determine a convenient location to mount your faucet. This can be existing sink hole in the

sink top, or you may drill another hole into the sink. As you determine the location of your

faucet, consider the container you will use with appliance, such as a large cooking pan.

Location of the hole should also provide easy access for tank connections.

2. The thickness of the sink must be less than 70mm.

3. Before connecting to the power source, the dispenser must be filled with water and the

thermostat turned to the OFF position.

4. Do not use an extension cord with this appliance. Appliance must be within 914mm of the

power source.

5. Plumbing connections must comply with all local codes and ordinances.

6. Do not use any pipe sealing compounds as they may get inside the dispenser causing an

objectionable taste and odour.

IMPORTANT: Observe all governing codes and ordinances.

Faucet may be installed in spray hose opening in sink or drilled hole. If drilling another hole is needed,

the 35mm max. dia. hole is required.

Tank must be mounted vertically.

Quick-connector fittings connects to cold water supply line

See step 4 of installation for optional connections and instructions.

6.0 INSTALLATION

Before you begin

1. Determine where you will install your hot water dispenser. The faucet can be mounted in an

existing hole in the sink, or drill a 35mm hole in your sink.

2. Stainless Steel: You need a 35mm knockout punch available at most hardware stores or drill

a hole with an expandable drill.

3. Porcelain: Proper tools are required to drill through a porcelain or cast iron sink. If you are

not familiar with this process you should consider having this done by a professional plumber.

Do not attempt to drill without these special tools as you may severely damage your sink.

BE SURE TO CONFIRM YOUR FAUCET'S COMPATIBILITY WITH THIS APPLIANCE. FAUCET

MUST BE "OPEN VENT STYLE".

STEP 1 - Mounting Tank

Position tank vertically beneath faucet so flexible tube from the faucet reaches the centre faucet

supply tube on the tank.

Be sure dial is in OFF position during installation

NOTE: The tank must be positioned so the hose to the faucet does not twist

or kink

STEP 2 - Faucet Installation

Follow the installation instruction of the faucet manual.

STEP 3 - Connect Faucet to Tank

1. Connect 1/4" faucet copper line to the rear tube at the top corner of the tank with the quick-

connect fitting supplied with the appliance. Push line straight into quick-connect fitting as far

as possible for both connections.

2. Connect silicone tube to the centre outlet tube on top of tank.

3. Use cable ties to fix the connection tightly. It will create a secure connection when properly

installed.

Be sure the hose is not twisted or kinked. Hose may be shortened if necessary.

NOTE: DO NOT lengthen the hot water hose - dispenser performance will be impaired and

warranty will be void.

STEP 4 - Connect Cold Water Supply

Refer to installation instructions included with faucet if necessary.

Cold water is supplied to the tank through the faucet. Connect the cold water line to the faucet using

the 1/4" supply line and the quick-connect fitting.

Make sure the cold water connecting to the faucet is filtered. It is suggested that a shut-off

valve be installed between this connection and the cold water supply line.

Another common installation method is with the use of a saddle valve if a saddle valve is used; follow

the manufacturer's installation guides.

Connection to a hot water supply is not recommended. If a water filter is used, water pressure

to the tank should not drop below 240kPa or 35psi (2.4 bar).

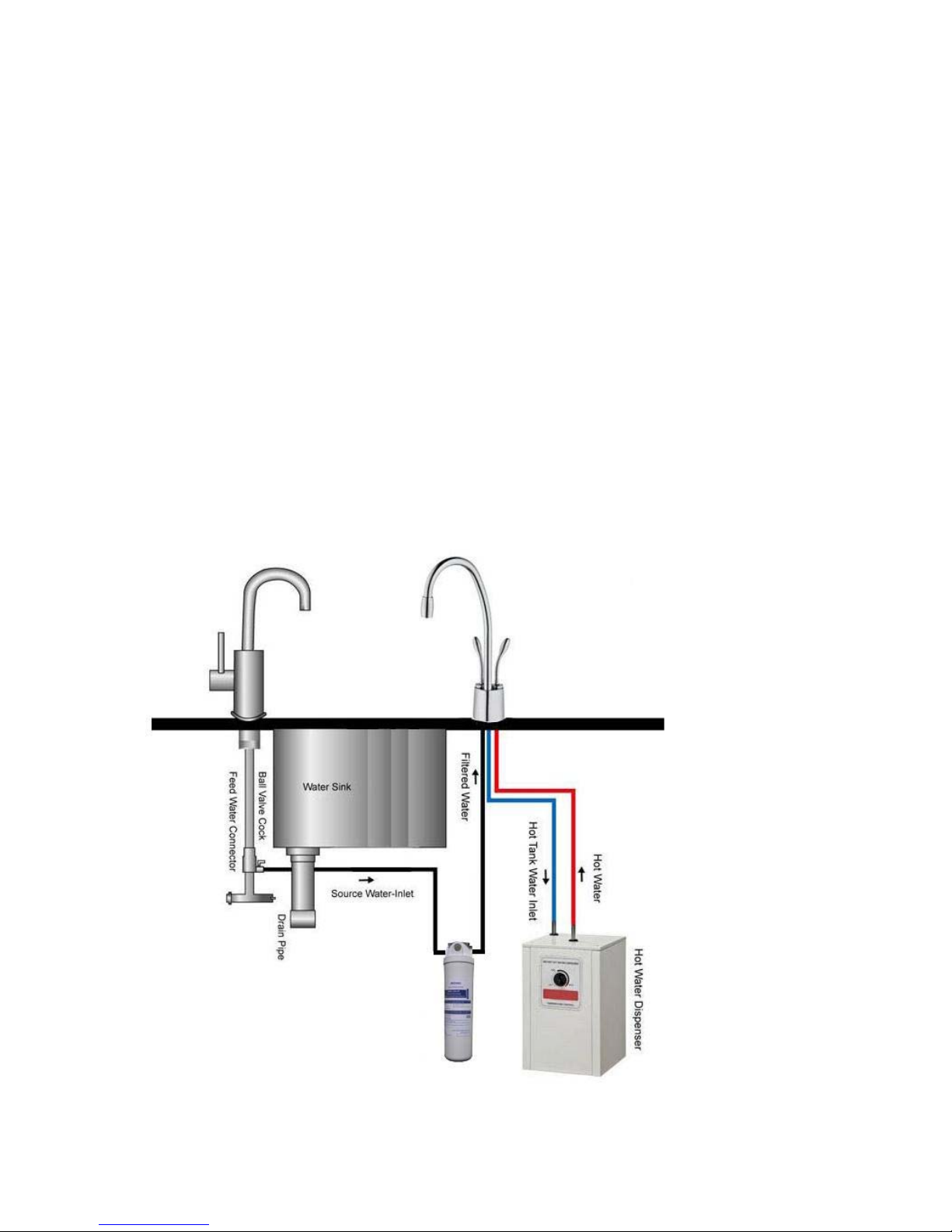

Installation Diagram

STEP 5 - Check for Leaks

1. Open valve in water line.

2. Turn faucet on (push to unlock) to fill tank (about1 minute). When tank is full, water will flow

from faucet.

3. Turn faucet off. Check for leaks.

STEP 6 - Prepare for Power

Double check the thermostat control dial is in the OFF position. Thermostat control dial controls the

water temperature, not the water flow or delivery.

IMPORTANT INFORMATION

This dispenser is equipped with a Self re-setting thermal fuse

Turn the thermostat to OFF position and fill tank with water before plugging the power cord from the

tank into an electrical outlet.

If tank is empty and the thermostat set in the ON position when the power cord is

Connected, the self re-setting fuse in the heater control will disconnect the current to the heater after

approximately one minute, thus protecting the heater from a "dry start" failure. The fuse in the heater

control will self-reset after approximately 1/2 hour. Turn on the water supply to the tank and continue

the installation.

Continued misuse will cause damage to the appliance and is detectible thus, voiding the warranty.

STEP 7 - Test Installation

1. Plug electrical cord into a grounded 3-prong outlet.

2. Do not use an outlet controlled by an off/on wall switch. Turn thermostat control dial

clockwise to the highest position. Maximum temperature will be reached in about15 minutes

and dispenser will be ready for use. Lower the temperature setting by turning thermostat

control dial counter clockwise if you notice vapour or a boiling noise. To raise or lower the

water temperature, rotate the thermostat dial. At the LOW setting of thermostat dial water

temperature will be approximately 60(±5)0C and the HIGH setting of the thermostat dial water

temperature will be approximately93(±5) 0C.

7.0 CLEANING AND MAINTENANCE

Seasonal Shutdown

To prevent damage or mineral build up water must be drained regularly.

1. Unplug dispenser tank to power supply.

2. Turn thermostat control dial to OFF position (fully counter clockwise).

3. Turn faucet on and run water until water is cold.

4. Place a 3 L container under the drain plug at bottom of the tank.

5. Use a screwdriver to remove the screw and O-ring in the drain tube opening. When tank is

fully drained replace O-ring and screw. Tighten to reseal the drain.

NOTE: Do not plug appliance into power supply if tank is empty.

8.0 TROUBLESHOOTING

The following situations are not covered by the One Year Replacement Warranty.

1.0 Water is not hot: (assuming cold water supply is connected properly and valve is open).

•Check if dispenser is plugged in.

•Turn thermostat control dial fully clockwise. This may produce boiling water in approximately

15 minutes and possibly be accompanied by a gurgling sound in the tank and/or water

"sputtering" from the faucet.

•If the water boils, turn thermostat control dial slightly counter clockwise until the gurgling

and/or "sputtering" stops. This should take place within 20 seconds. Turn control dial an

additional 3mm counter clockwise at the tip of the dial. Wait 15 minutes and check the

temperature of the water.

•Check for blown fuse or circuit breaker is tripped (also see IMPORTANT NOTE explaining

the self re-setting thermal fuse in step 6 of installation).

NOTE: The thermostat activates the heater after water temperature in the tank drops approximately

8oC from the maximum setting. The dispenser does not produce a continuous flow of hot water.

2.0 Hot water drips or sputters from faucet:

•Turn thermostat control dial counter clockwise

•Check that the hose connecting the faucet to the dispenser tank is not clogged, twisted or

kinked.

•Check for proper installation of copper tubing from faucet to dispenser tank and faucet to

water line. If connected cross-connected, valve may be damaged.

3.0 Water does not flow right away or at all:

•Due to high temperature and for safety reasons, the tank is not under pressure causing a

slight delay in water flow.

•Make sure all valves on water supply are open.

•Check hose from faucet for twisting or tight bending.

4. Water boils or vapour appears:

•Lower temperature setting by turning thermostat control dial counter clockwise.

Note: If lowering the thermostat setting does not stop the boiling, unplug the power supply cord and

contact customer service.

For further technical support contact:

Email: [email protected]

Ph: 1300 366 295

sential Pty Ltd

78 Daly Street Belmont Western Australia 6104

Ph: 1300 366 295 Fax: (08) 9277 2266 Email: [email protected].au www.xsential.com.au
