Xtreem ATOM II Bedienungsanleitung

INSTRUCTION MANUAL

EXTREME FUN FOR EVERYONE

TOM

™

• Keep hands, hair and loose clothing away

from the rotors when the power switch is

turned on.

• Always lift off from a flat surface. Never

hold the flying quadcopter in your hand

when lifting off.

• Stay away from obstacles and electrical

hazards.

• Keep your quadcopter within line of sight -

if line of sight to the controller is lost, you

may lose control of the quadcopter.

• Turn off the controller and quadcopter when

not in use.

• Read and obey all warnings and safety

guidelines in this manual.

• The supplied USB charger is specifically

designed to charge the LiPo battery. Never

use other charging equipment.

• The quadcopter is not intended for use by

children under eleven (11) years old. Adult

supervision is required at all times.

• Regularly examine for any damage to the

plugs, enclosure, rotors and other parts.

Replace any damaged or loose parts before

attempting to fly.

CHOKING HAZARD - Small

parts, keep out of reach of

small children.

DANGER - Never insert sharp

objects, pins or screws into

the

quadcopter

as this may

puncture the internal battery.

WARNING - Do NOT fly near

eyes or face.

CAUTION - Do NOT touch

the running rotors or fly over

someone’s head.

• Never completely exhaust the battery.

When the quadcopter starts to lose

power, turn it off and charge it as soon as

practicable.

• Never charge battery unattended.

• Charge battery in an isolated, controlled

environment. Keep far away from

flammable materials.

• Do not expose to direct sunlight; there is a

risk that the battery may overheat, ignite

and/or explode.

• Do not disassemble, modify, heat, or short

circuit the battery.

• Do not drop the battery or subject it to

strong impacts.

• Do not allow the battery to get wet.

• Only charge the battery with the supplied

charging equipment. Using other charging

equipment will void your warranty, may

damage the battery and poses a risk of fire

or explosion.

• In the unlikely event of leakage or explosion,

use sand or a chemical fire extinguisher to

extinguish the batteries.

• The battery must be disposed of

responsibly.

• The controller requires 4 x 1.5V AA alkaline

batteries (not included).

• Installing/Replacing batteries must be

undertaken by a competent adult.

• Do not mix new and old batteries or types of

batteries (i.e. alkaline/standard).

• Promptly remove exhausted batteries

Battery leakage and corrosion can damage

the controller.

• Dispose of used batteries responsibly.

! !

LiPo Battery Information

The quadcopter is equipped with a Lithium Polymer battery. These kind of batteries are light and powerful,

as their chemistry is based on lithium, a light and extremely volatile metal.

Battery Safety Information

SAFETY PRECAUTIONS

NOTICE: Before using the Atom, read this instruction manual carefully, and obey all

warnings and caution labels - seriously, it’s no fun if someone gets hurt.

OK *

Left control stick

Trim reset

Instinctive Mode or

High/Low Speed Flip

Battery

compartment

ON/OFF

Power

Right control stick

Mode

switch

Forward /

Backward trim

OVERVIEW OF THE CONTROLLER

(Mode 1) Sideways trim

(Mode 2) Rotation trim

(Mode 1) Rotation trim

(Mode 2) Sideways trim

HDMI

• Before charging, be sure to turn off the Atom using the ON/OFF switch located

above the charging port on the back of the Atom. If left on, the Atom won’t charge.

• Don’t use USB hubs, USB 1.0 or USB 1.1 ports; these may not have enough current

to properly charge the Atom.

• The USB charging plug only fits into the Atom’s charging port one way. Do not

force it in.

• You’ll know the Atom is fully charged when the indicator light on the USB

connector glows red. Promptly remove the charging plug once charging is

complete.

• Charge time varies depending on the Atom’s battery condition. It typically takes up

to 50 minutes to fully charge the Atom from an empty battery.

• You do not have to fully charge the Atom to fly. Shorter charge time will result in

reduced flying time.

PREPARING FOR FLIGHT

OFF Stable, level surface

PREPARING FOR FLIGHT

OK *

After the controller and Atom have linked up

successfully, the status lights on the Atom

stop blinking and turn solid.

The Atom is now ready for takeoff!

If it’s placed at an angle, the Atom’s

auto-stabilization system function

can be disrupted.

OK *

Down

Forward

Backward

Rotate

Side to side

Your controller comes in two modes - mode 1 and 2. Each

time you turn on the controller, it is, by default, operating in

mode 1. You can quickly configure the controller to operate in

mode 2 before turning it on. Simply press and hold the Mode

Switch button and then power on the controller as shown on

the right.

Flight mode 1 (Default)

Flight mode 2

OK *A

USING YOUR CONTROLLER

During a flight, it is normal for the Atom to go off-course slightly sometimes. But if it drifts

continually without any input from the control sticks, you have to adjust the trim positions

to compensate for the drifting. The trim ‘fine-tunes’ the speed of the motors. Just press

the appropriate trim button opposite to the movement repeatedly until the Atom is flying

as straight as possible.

OK *OK *

Forward/Backward trim Forward/Backward trim

Rotation trim Rotation trim

Sideways trim Sideways trim

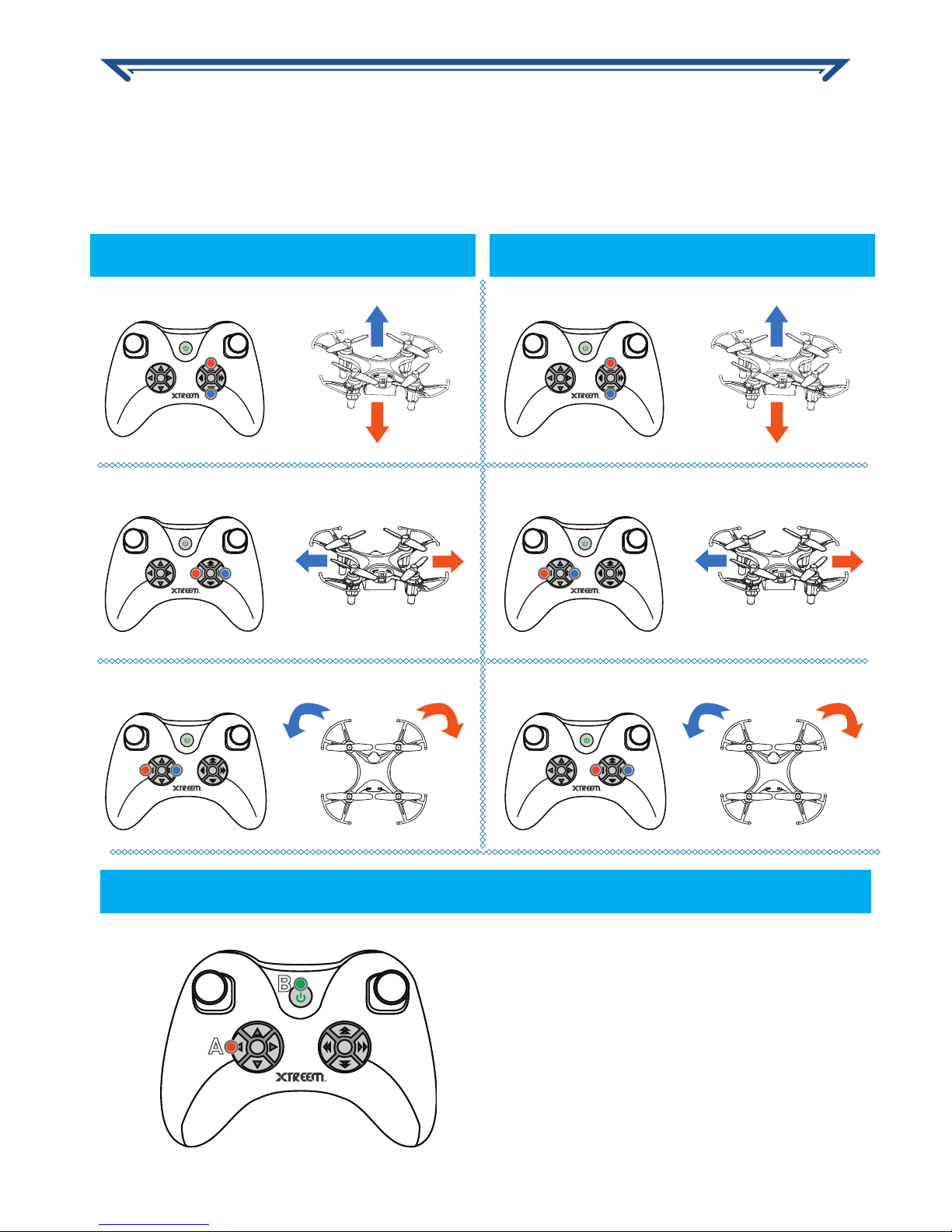

CORRECTING NAVIGATIONAL DRIFTS

Resetting trims to default position

Flight mode 1 Flight mode 2

CORRECTING NAVIGATIONAL DRIFTS

Make sure the controller is off.

Press and hold the Trim Reset

button then press the ON/OFF

Power button to turn on the

controller.

Instinctive mode

In Instinctive mode, your Atom flies in the direction you move the right stick of the controller

relative to its defined reference heading, regardless of the way Atom is oriented.

Follow the instructions below to operate the Atom in

Instinctive mode:

1. Power on the Atom and the controller.

2. Place the Atom on the ground, facing it in the

direction of where you’ll be flying it toward (e.g., a

nearby hill in the skyline).

3. Link the controller. When the Atom initially links

up with the controller, it remembers a reference

heading that it is pointed at (e.g., the direction of

the hill) throughout the flight.

4. To activate Instinctive mode during flight, press

and hold the Instinctive mode button on the

controller for 2 seconds; the controller beeps 8

times.

From now onward, the direction where the Atom

is facing is irrelevant to its control. All forward,

backward, right and left controls are done through the

right stick.

Using the hill as the reference heading in our example,

when you push forward on the right stick, the Atom will

move in the direction of the hill. If you pull back on the

stick, the Atom will move backward away from the hill.

Move the right stick left or right and the Atom will fly left

or right relative to its reference heading.

Front

Rear

Left Right

Front

Rear

Left Right

Sometimes it’s easy to lose sight of your Atom’s orientation when it has flown too far away or

especially during night flying. Now there’s a quick way to bring it back closer to your position!

ATOM FEATURESATOM FEATURES

To exit Instinctive mode and revert back to navigating the

Atom

using normal flight mode

controls, press and hold the Instinctive mode button again for 2 seconds until the controller

produces a long beep.

ATOM FEATURES

Mastered basic maneuver techniques? It’s time to

progress to some of the more advanced flying maneuvers

like 360° flips.

To perform a 360° flip, first bring the Atom to about 3

meters above the ground. Then, press and hold the Flip

button on the controller and move the right stick in the

direction you want to flip. Immediately after flipping the

Atom, you need to quickly apply some throttle to restore

balance and minimize a sudden loss of altitude.

Want to perform thrilling stunts in high speed? The

High/Low Speed button on the controller allows you

to toggle between high and low speed modes. Press

once (the controller beeps twice) to fly the Atom in high

speed mode. Press again (the controller beeps once) to

revert back to the default low speed mode .

360° flip

High / Low Speed mode

3 m

This stunt requires lots of practice and best done in wide-open spaces that are free of

obstructions. For optimal control, fly on a clear day without wind.

The higher up the Atom is from the ground when attempting flips, the more space it will have to

recover properly afterward.

Give your Atom that extra speed boost.

• Check that the propellers are firmly secured in their slots before each takeoff.

• Small adjustments made slowly and carefully are the best way to fly well. Be careful

when easing off the throttle – if the Atom stalls, it will fall to the ground and even if

you jam the throttle back on, it might not be able to recover in time.

• Once the Atom is up in the air, practise hovering and keep it in one spot by making

very slight adjustments to the throttle. You’ll find that because it is micro-size, even

the lightest of breeze can effect on the stability of the Atom.

• While positioning the Atom into a steady hover, slowly decrease the throttle until it

lands. Try practising landings on the bonus landing pad game and have some fun

with your friends!

• Use the controller’s left and right sticks at different angles and positions to design

and execute some graceful, arcing turns. Quick thrusts of the stick in different

directions can create some unique tricks or stunts.

• Perform “pirouettes” by rotating around 360° in the air.

• When the battery is starting to run low, the Atom will respond slowly to the

controller or be unable to maintain altitude easily. Before power to the motors is

cut off entirely, gradually move the left stick all the way down to slow the propellers

until you can land the Atom safely.

• Regularly inspect and clean any dirt trapped around the rotors using a soft brush.

Accumulation of dirt puts additional stress on the motor and may cause the rotor to

spin unevenly or even stop spinning completely.

• Wipe the toy clean with a slightly damp cloth

• Do not submerge in water. This will damage the electronic components.

• Always remove the batteries from the controller when not being used for extended

durations.

FLYING GUIDE

CARE & MAINTENANCE
