Yale Assure Lock Lever Touchscreen YRL226 Technische Daten

P/N YRL-LTSINSTL-FUL Rev D

® ®

Yale Assure Lock Lever Touchscreen

Installation and Programming Instructions

(YRL226)

#7 wood & #8-32

machine x 20mm

Combination screws

M4 x 22mm

Pan head machine

screws

#8-32 x 5/16"

Machine screws

Optional

Network Module

Battery Cover

Key

AA Alkaline

Batteries

Latch

Strike Plate

Interior Mounting Plate

Interior Lock

Battery Cover

Template

Keys

Levers

Cylinder

FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN DAMAGE TO THE PRODUCT AND VOID THE FACTORY WARRANTY

Before you begin

for step-by-step installation

instructions & to register

your product

DOWNLOAD

THE BILT APP

WARNING

This product can expose you to lead which is known to the state of

California to cause cancer and birth defects or other reproductive harm.

For more information go to www.P65warnings.ca.gov.

P/N YRL-LTSINSTL-FUL Rev D

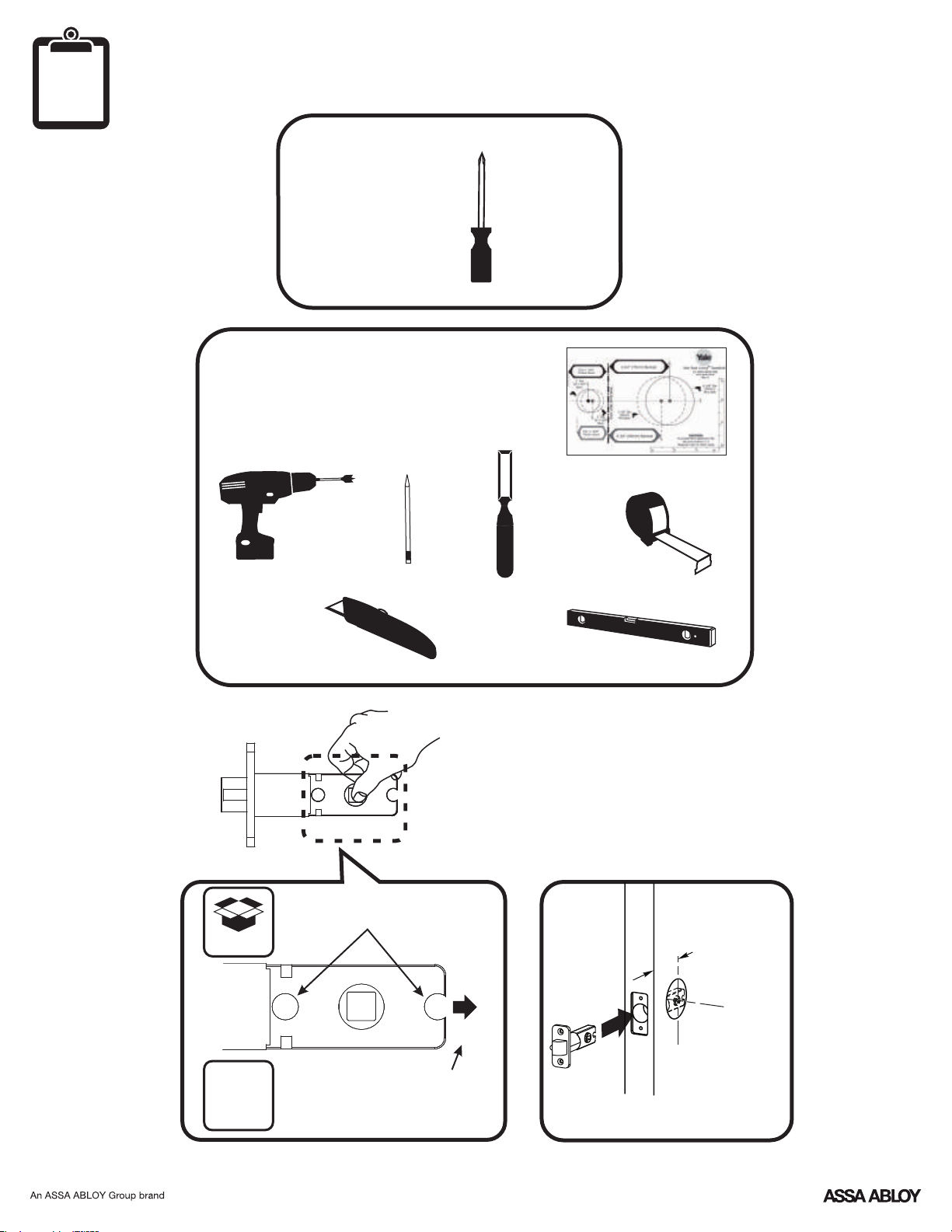

Preparing to Install

Utility Knife

Drill Wood Mortise

Chisel

Pencil Tape

Measure

Level

Tools necessary only for new

doors or adjusting existing prep.

Template

Tools Needed

Standard

Phillips Head

Screwdriver

*Backset

*2-3/8" (60mm) or 2-3/4" (70mm)

2-3/8" through bolt posts

2-3/4" through bolt posts

Note: Adjustment based on

backset

optional

default

PULL

P/N YRL-LTSINSTL-FUL Rev D

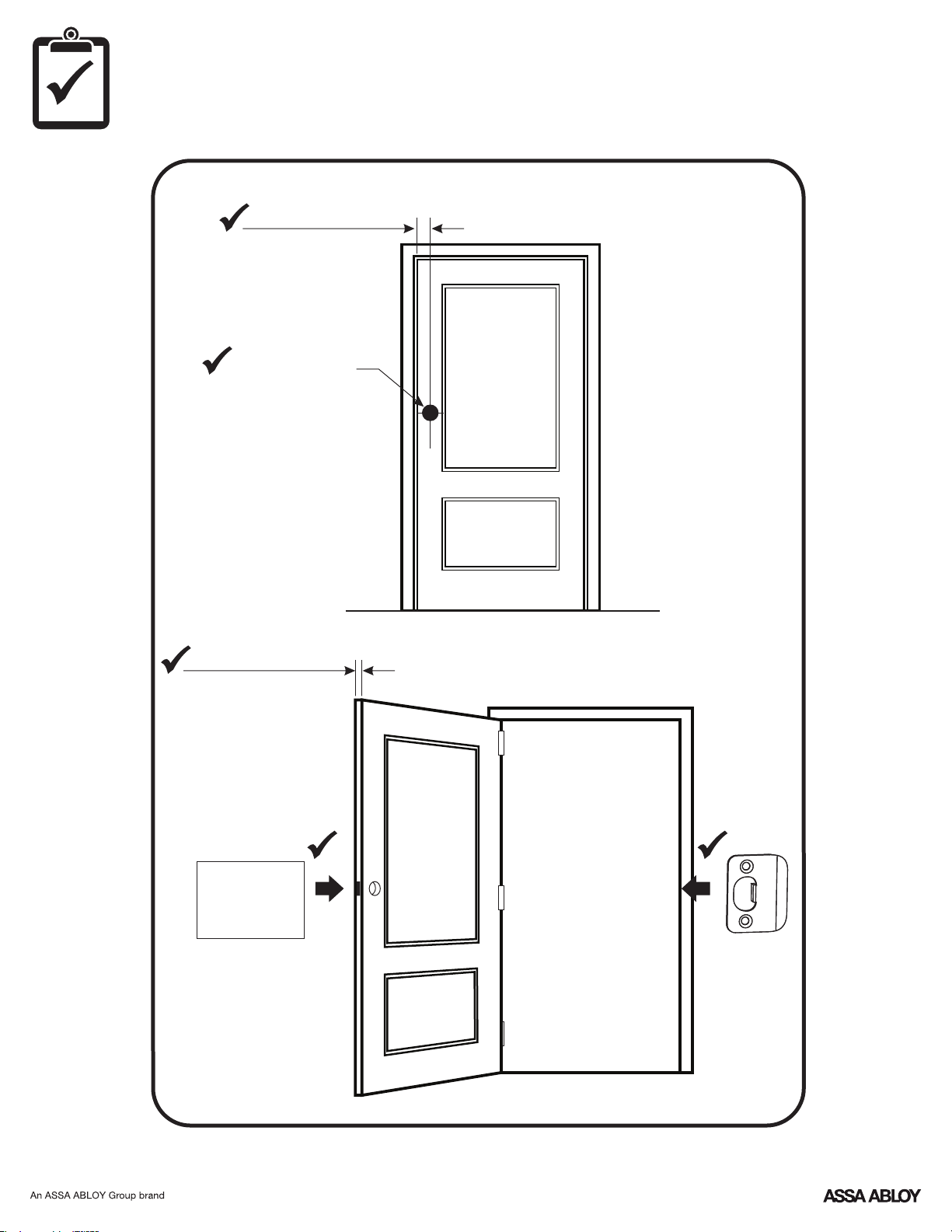

Checking Measurements

See

Door Prep

Template

2-3/8" or 2-3/4"

(60mm or 70mm)

Backset

2-1/8" (54mm)

Diameter

1-3/8" or 1-3/4"

(35mm or 44.5mm)

Door Thickness

P/N YRL-LTSINSTL-FUL Rev D

?Determining Door Handing

Left Hand Right Hand

Face a door swinging open

away from you.

If it swings open to the right,

it is a right hand door. If it

swings open to the left, it is a

left hand door.

Exterior

Inswinging Door

Interior Left Hand

Reverse

Right Hand

Reverse

Face a door swinging open

toward you.

If it swings open to the right, it

is a right hand reverse door. If it

swings opens to the left, it is a

left hand reverse door.

Exterior

Outswinging Door

Interior

Curve of latchbolt must contact strike plate first.

Frame

Door

Latchbolt Curve

Strike

Plate

Exterior

Interior

Outside of Door

P/N YRL-LTSINSTL-FUL Rev D

Preparing Door & Frame

Necessary for new doors or adjusting existing prep.

1" (25mm)

Deep

Drill holes 1/2 way

through door then

complete from other side

to prevent splitting.

2-1/8"

(54mm)

Dia.

2-3/8" (60mm)

2-3/4" (70mm)

Backset

(25mm)

Dia.

See

Door Prep

Template

Inside

of Door

Frame

P/N YRL-LTSINSTL-FUL Rev D

1Installing Latch & Strike Plate

Right Hand Installation Shown

Outside of Door

Frame

P/N YRL-LTSINSTL-FUL Rev D

Outside of

Right Hand Door

Inside of

Right Hand Door

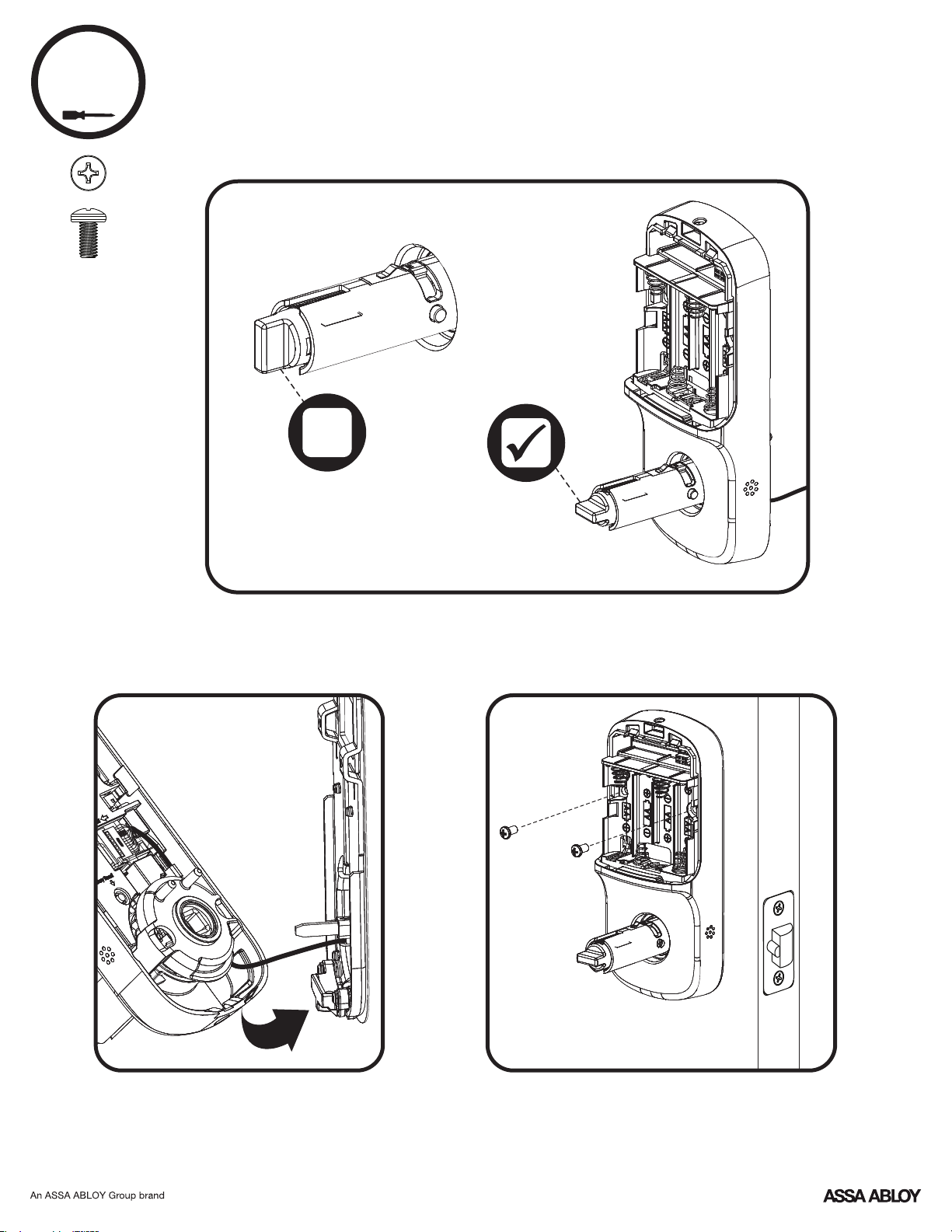

Installing Touchscreen

Right Hand Installation Shown

“TOP” mark must be

on top surface and tailpiece

in vertical position.

Incorrect orientation will

cause lock to fail.

P/N YRL-LTSINSTL-FUL Rev D

3Installing Interior Mounting Plate

Right Hand Installation Shown

Inside of

Right Hand Door

Inside of

Right Hand Door

P/N YRL-LTSINSTL-FUL Rev D

Attaching the Cable Assembly

Right Hand Installation Shown

Inside of

Right Hand Door

P/N YRL-LTSINSTL-FUL Rev D

Installing Interior Lock

Right Hand Installation Shown

Inside of

Right Hand

Door

“Click”
