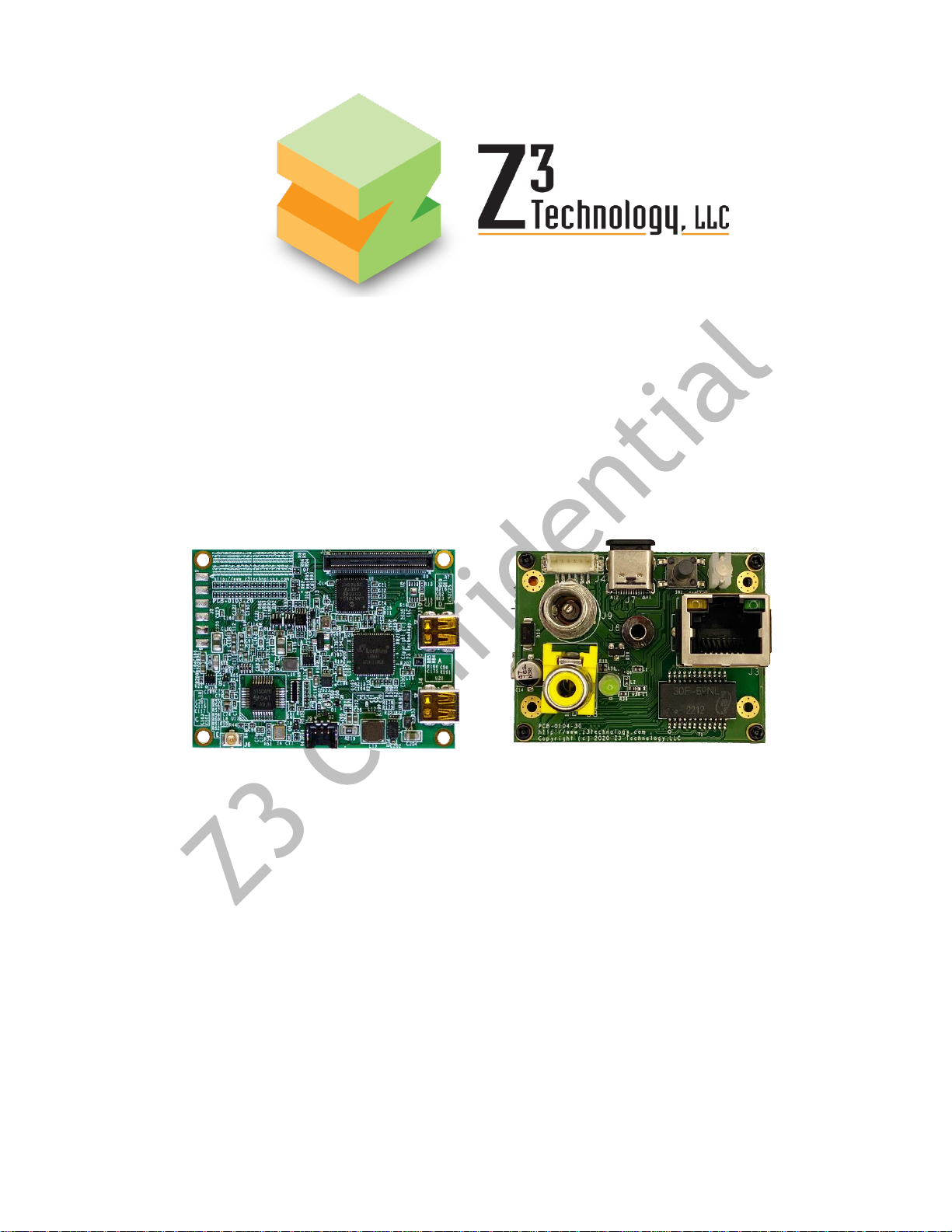

Z3 Technology Q603-RPS Montageanleitung

Q603-RPS

Hardware Guide

DOC-USR-0259-02

Version 1.1

November 18, 2022

This document contains proprietary and confidential information of Z3 Technology, LLC ("Z3"). This document may

not be used, reproduced, disclosed, or disseminated to anyone without the prior written approval of an authorized

representative of Z3.

CONFIDENTIAL DOC-USR-0259-02

______________________________________________________________________________________

Z3 Technology, LLC ♦ 100 N 8th ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702

REVISION HISTORY

Version

Date

Change Note

Author

1.0.0

09/01/21

Initial Version

CF/BM

1.1.0

11/18/22

Added Q603-15 in Section 4


 CONFIDENTIAL                             DOC-USR-0259-02

3
______________________________________________________________________________________
Z3 Technology, LLC ♦ 100 N 8th ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702

TABLE OF CONTENTS
0 INTRODUCTION ...............................................................................................................................................5
0 30-0103 ............................................................................................................................................................6
1 30-0103 Connections.............................................................................................................................6
2 Connection to a Sony 4K Camera Block ............................................................................................7
3 Connection to the Sony FCB-EV7520A Camera...............................................................................10
4 Connection to a Generic HDMI Camera...........................................................................................13
5 Connect to a HDMI Monitor................................................................................................................13
6 Composite Input ..................................................................................................................................14
0 30-0104 ..........................................................................................................................................................15
1 RS485 and RS232 Serial Port Header................................................................................................15
2 USB Type C Jack...................................................................................................................................16
3 Presets Clear Switch, SW1.................................................................................................................16
4 Status LED.............................................................................................................................................16
5 DC Power Jack .....................................................................................................................................16
6 Serial Console Port..............................................................................................................................16
7 Ethernet RJ45 Port..............................................................................................................................16
8 Composite Video Input .......................................................................................................................16
9 Genlock Indication ..............................................................................................................................16
0 30-0146 ..........................................................................................................................................................17
0 THERMAL CONSIDERATIONS........................................................................................................................19


 CONFIDENTIAL                             DOC-USR-0259-02

4
______________________________________________________________________________________
Z3 Technology, LLC ♦ 100 N 8th ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702

LIST OF FIGURES
Figure 1 30-0103 3 -Board Stack........................................................................................................................ 5
Figure 2 Top side of 30-0103 .............................................................................................................................. 6
Figure 3 Bottom side of 30-0103 ....................................................................................................................... 7
Figure 4 Q603-RPS Connected to the FCB-ER8300 ......................................................................................... 8
Figure 5 Correct KEL Ribbon Cable Wiring Diagram....................................................................................... 8
Figure 6 Q603-RPS Connected to a Sony Block Camera .............................................................................. 10
Figure 7 Correct KEL Ribbon Cable Wiring Diagram......................................................................................11
Figure 8 Top side of 30-0104 ............................................................................................................................ 15
Figure 9 Q603-15 PCB Layout …………………………………………………………………………………………………………….17
Figure 10 J2 & J7 Pinouts & Connectors…………………………………………………………………………………………….18

LIST OF TABLES
Table 1 J5 pin assignment – 4K Camera ......................................................................................................... 10
Table 2 PCB J8 and Sony EV7520 Pin Out....................................................................................................... 12
Table 3 PCB J4 Pin Out ...................................................................................................................................... 13
Table 4 PCB J10 Pin Out .................................................................................................................................... 14
Table 5 PCB J6 Pin Out ...................................................................................................................................... 14
Table 6 J4 Pin Assignments ............................................................................................................................... 15
Table 7 J1 Q603-15 pin out connectors…………………….…………………………………………………………………………….……….17
Table 8 J2, J3, J4, J5, J6, J7 Q603-15 pin out connectors……………………………………………………………………………….17
Table 9 J3 Q603-15 pin out connectors……………………………………………………………………………………………………………..18

CONFIDENTIAL DOC-USR-0259-02

______________________________________________________________________________________

Z3 Technology, LLC ♦ 100 N 8th ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702

1.0 INTRODUCTION

The Z3-Q603-RPS is a compact video encoder system. The system offers encoding capabilities of H.265/HEVC

and H.264 video up to 4K resolutions.

Together with the 30-0101 QCS603 CPU module board, the 30-0103 and 30-0104 boards form the Z3-Q603-

RPS video encoder system. The 30-0103 and 30-0104 boards provide power and I/O connectivity to the Z3-

Q603-RPS system.

The 30-0103 board contains all the power supplies and circuits necessary to implement the various inputs

and outputs. It is designed to attach directly to the CPU module, and has the following features:

•Micro-HDMI jack for A/V output, up to 4K resolution at 30 fps

•Micro-HDMI jack for A/V input up to 4K resolution at 30 fps

•Composite video input supporting NTSC and PAL standards

•KEL connector for HD video cameras with LVDS interface format

•KEL connector for 4K video cameras with HDMI/TMDS interface

The 30-0104 board contains all the large jacks, bus driver electronics and associated ESD protection. It is

intended to mount directly to the 30-0103 forming a 3-board stack, and has the following features:

•Threaded DC jack for DC power input

•RJ45 jack and magnetics for Gigabit Ethernet

•RS485 bus driver for PTZ control

•RS232 bus driver for the serial console port and auxiliary RS232 port

•RCA jack for composite video input (30-0104-30 and later)

•USB Type-C jack

•Switch for clearing presets

•Status LED

•Genlock indication LED

Figure 1 30-0103 3 -Board Stack

CONFIDENTIAL DOC-USR-0259-02

______________________________________________________________________________________

Z3 Technology, LLC ♦ 100 N 8th ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702

2.0 30-0103

2.1 30-0103 Connections

The 30-0103 board has the following connections:

Figure 2 Top side of 30-0103

CONFIDENTIAL DOC-USR-0259-02

______________________________________________________________________________________

Z3 Technology, LLC ♦ 100 N 8th ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702

Figure 3 Bottom side of 30-0103

2.2 Connection to a Sony 4K Camera Block

J5 provides connectivity support for 4K cameras such as the FCB-ER8300, ER8530, ER8550 and FCB-EW9500H

with Sony-style 30-pin KEL jacks. These cameras have HDMI interface and power input on pins 27-30 of the

KEL jack.

WARNING: ONLY USE THE CORRECT KEL RIBBON CABLE PROVIDED BY Z3 TECHNOLOGY.

Using an incorrect type of KEL cable will likely permanently damage the camera body and/or encoder.

WARNING: Always insert the KEL plug with the shiny flat side facing up. Do not force the KEL plug into

the jack. Doing so is likely to cause permanent damage to the jack.

Please note that LVDS camera blocks, such as the FCB-EV7520, must use jack J7 of the Q603-RPS

encoder systems. Connecting the wrong camera block to the encoder will result in permanent damage

to the camera and/or encoder.

CONFIDENTIAL DOC-USR-0259-02

______________________________________________________________________________________

Z3 Technology, LLC ♦ 100 N 8th ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702

KEL makes two versions of ribbon cables that physically fit when connecting the encoder to the camera. One

cable is “straight thru”, with pin 1 connected to pin 1, and another is a “cross” type, with pin 1 connected

to pin N (N=30 in this case).

Z3 Technology provides the correct cable as part of the Q603-RPS complete starter kit system. The KEL cable

is also sold separately (ordering part number: CBL-0025-01). Please ONLY USE THE CABLE PROVIDED BY Z3

TECHNOLOGY to connect the Sony FCB-ER8300 to the I/F Front End PCB of the Q603 30-0103.

The correct cable is the “straight thru”, with pin 1 connecting to pin 1. The figure below shows the straight

cable. Note how the connectors at the ends of the cable are positioned in opposite orientation so that pin 1

on one side connects to pin 1 on the other side.

Figure 5 Correct KEL Ribbon Cable Wiring Diagram

The KEL ribbon cable between the Q603-RPS 30-0103 and the FCB-ER8300 block camera is the only

Shiny flat side

Figure 4 Q603-RPS Connected to the FCB-ER8300

Sony Camera Block

(Sold Separately)

KEL Ribbon Cable

(Sold Separately)

CONFIDENTIAL DOC-USR-0259-02

______________________________________________________________________________________

Z3 Technology, LLC ♦ 100 N 8th ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702

connection necessary between the camera and the encoder. The KEL ribbon cable provides the following

connectivity:

▪Power from the encoder to the camera

▪Video from the camera to the encoder

▪Sony VISCA™controls, bidirectional, using a serial port

This connector provides a direct connection with the Sony FCB-ER8300 block camera. Make sure to use the

KEL ribbon cable provided or approved by Z3 Technology. Risk of permanent damage to the camera or

encoder exists if a non-approved cable is used.

The connector used is a KEL USL00-30L.

The pin assignments on J5 are shown in the table below.

Please note that the pin numbering of J5 on the Interface Front End PCB is opposite of that on the Sony FCB-

ER8300 camera.

(J5)

(4K

Camera)

Signal

Notes

DC Input

Power from encoder to camera. Power

comes directly from DC input jack or

PoE module, whichever is active.

RESET

Encoder reset signal to camera

VISCA_TXD

Serial control, camera to encoder

VISCA_RXD

Serial control, encoder to camera

GND

No connect

4K Camera signal USB_D+

No connect

4K Camera signal USB_D-

GND

No connect

4K Camera signal USB_VBUS

+5V Power

Output from camera, used for HDMI

detect

Hot Plug Detect

Used by HDMI interface

No connect

GND

Video output from camera to encoder

TMDS Data2 +

TMDS Data2 -

GND

TMDS Data 1+

TMDS Data 1-

GND

TMDS Data 0+

TMDS Data 0-

GND

TMDS Data Clock+

CONFIDENTIAL DOC-USR-0259-02

______________________________________________________________________________________

Z3 Technology, LLC ♦ 100 N 8th ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702

GND

Table 1 J5 pin assignment – 4K Camera

2.3 Connection to the Sony FCB-EV7520A Camera

J7 provides connectivity support for LVDS cameras with Sony-style 30-pin KEL jacks such as FCB-EV7520,

EV7100 series, FCB-EV9500L cameras and other cameras compatible with the Sony LVDS connection. These

cameras have 4 or 8 lanes of LVDS interface and power input on pins 14-18 of the KEL jack.

Attention: the FCB-EV9500M camera is *NOT* compatible with the J7 jack.

WARNING: ONLY USE THE CORRECT KEL RIBBON CABLE PROVIDED BY Z3 TECHNOLOGY.

Using an incorrect cable can permanently damage the camera body or encoder.

WARNING: Always insert the KEL plug with the shiny flat side facing up. Do not force the KEL plug into

the jack. Doing so is likely to cause permanent damage to the jack.

WARNING: ONLY USE THE SONY FCB-EV7520 CAMERA ON THE J7 JACK.

Using an incorrect camera is likely to permanently damage the camera body and/or encoder.

Please note that the Sony 4K camera blocks, such as the FCB-ER8300, must use jack J5 of the Q603-RPS

encoder systems. Connecting the wrong camera block to the encoder will result in permanent damage

to the camera and/or encoder.

Figure 6 Q603-RPS Connected to a Sony Block Camera

KEL makes two versions of ribbon cables that physically fit when connecting the encoder to the camera. One

cable is “straight thru”, with pin 1 connected to pin 1, and another is a “cross” type, with pin 1 connected

to pin N (N=30 in this case).

Z3 Technology provides the correct cable as part of the Q603-RPS complete starter kit system. The KEL cable

is also sold separately (ordering part number: CBL-0025-01). Please ONLY USE THE CABLE PROVIDED BY Z3

TECHNOLOGY to connect the Sony FCB-EV7520A to the I/F Front End PCB of the Q603-RPS.

The correct cable is the “straight thru”, with pin 1 connecting to pin 1. The figure below shows the straight

cable. Note how the connectors at the ends of the cable are positioned in opposite orientation so that pin 1

Sony Camera Block

(Sold Separately)

KEL Ribbon Cable

(Sold Separately)

Inhaltsverzeichnis

Andere Z3 Technology Computerhardware Handbücher

Z3 Technology

Z3 Technology Z3-HE2160-RPS Bedienungsanleitung

Z3 Technology

Z3 Technology Z3-DM368-SDI-RPS Bedienungsanleitung

Z3 Technology

Z3 Technology FSDI2-DCK-1X Bedienungsanleitung

Z3 Technology

Z3 Technology Z3-DM368-VI-RPS Bedienungsanleitung

Z3 Technology

Z3 Technology FVXK-13A-RPS Bedienungsanleitung

Z3 Technology

Z3 Technology Z3-DM8168-PCI-RPS Bedienungsanleitung

Z3 Technology

Z3 Technology HE4K-DCK-10 Bedienungsanleitung

Z3 Technology

Z3 Technology FV4K-1XA Bedienungsanleitung

Z3 Technology

Z3 Technology FV2K-1XA Bedienungsanleitung

Z3 Technology

Z3 Technology Z3CAM Bedienungsanleitung

Z3 Technology

Z3 Technology HETM-DCK-21 Bedienungsanleitung

Z3 Technology

Z3 Technology Z3-DM8107-SDI2-RPS Bedienungsanleitung

Z3 Technology

Z3 Technology Z3-SBE264-10 Bedienungsanleitung

Z3 Technology

Z3 Technology Z3-LEO-1X Bedienungsanleitung

Z3 Technology

Z3 Technology Z3-DM8168-APP-41 Bedienungsanleitung

Z3 Technology

Z3 Technology FSDI-13A-RPS Bedienungsanleitung

Z3 Technology

Z3 Technology Z3-DM8168-RPS Bedienungsanleitung

Z3 Technology

Z3 Technology Z3-Q603-RPS Bedienungsanleitung

Z3 Technology

Z3 Technology Z3-DM8168-DVR-RPS Bedienungsanleitung

Z3 Technology

Z3 Technology Z3-DM368-ZDVR Bedienungsanleitung

Z3 Technology

Z3 Technology DM816 Series Bedienungsanleitung

Z3 Technology

Z3 Technology SBE264-10-RPS Bedienungsanleitung

Z3 Technology

Z3 Technology Z3-DM8168-PCI-RPS Bedienungsanleitung

Z3 Technology

Z3 Technology Z3-DM368-RPS Bedienungsanleitung

Beliebte Computerhardware Handbücher anderer Marken

EMC2

EMC2 VNX Series Betriebsanleitung

Panasonic

Panasonic DV0PM20105 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Bedienungsanleitung

Gigabyte

Gigabyte B660M DS3H AX DDR4 Bedienungsanleitung

Raidon

Raidon iT2300 Bedienungsanleitung

National Instruments

National Instruments PXI-8186 Bedienungsanleitung

Hauppauge

Hauppauge WinTV-HVR-2250 Bedienungsanleitung

Kontron

Kontron CP6002 Bedienungsanleitung

Manhattan

Manhattan 702843 Bedienungsanleitung

Aphex

Aphex 230 Bedienungsanleitung

AMD

AMD Phenom II Betriebshandbuch

Intel

Intel NUC 12 Pro Bedienungsanleitung

dbx

dbx Zone Pro 1260 Bedienungsanleitung

Galaxy

Galaxy GHDX2-2430S-24F4D Bedienungsanleitung

Intel

Intel AXXRMFBU4 Bedienungsanleitung

Kontron

Kontron DIMM-PC/MD Bedienungsanleitung

ST X-NUCLEO-SAFEA1B Betriebsanleitung

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Bedienungsanleitung
