Z3 Technology DME-01 Bedienungsanleitung

User Instructions

H.264 HD Multimedia System

Z3-DME-01 Digital Media Encoder & Streamer

Model Name: Z3-DME-01

DOC-USR-0018-02

Manual Version 1.06.03

Software Version 1.06.03

June 27, 2013

Before attempting to connect or operate this product, please read these

instructions carefully and save the manual for future use.

Z3-DME-01 V1.06.03

Revision History

Version

Date

Change Note

Author

1.0.4.08

5/13/12

Original System

1.04.15

6/05/12

Updated Software Version

1.04.19

7/06/12

Updated Software Version

1.04.20

7/16/12

Address Update

1.05.00

8/21/12

Updated Software Version

1.05.00a

9/04/12

FCC & CE Certification

1.05.09

5/20/13

Updated Software Version

1.05.09a

5/21/13

Formatting, pictures

1.06.03

6/27/13

Updated Software Version

“Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the

equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.—Consult the

dealer or an experienced radio/TV technician for help.”

_________________________________________________________________________

Z3 Technology, LLC ♦100 N. 8th St. STE 250 ♦Lincoln, NE 68508-1369 USA ♦+1.402.323.0702

Z3-DME-01 V1.06.03

CONTENTS

1.0 GENERAL INFORMATION............................................................................................................................. 4

1.1 PREFACE................................................................................................................................................... 4

2.0 INCLUDED PARTS LIST................................................................................................................................ 5

3.0 FEATURES..................................................................................................................................................... 6

4.0 OPERATING CONTROLS .............................................................................................................................. 7

5.0 SYSTEM CONNECTIONS............................................................................................................................... 8

5.1 PC SETUP................................................................................................................................................. 8

5.2 WEB SERVER - ENCODER........................................................................................................................ 9

5.3 LOCAL IP SETTINGS – ENCODER.......................................................................................................... 10

5.4 ENCODER CONFIGURATION OPTIONS................................................................................................ 10

5.5 WEB SERVER – DECODER...................................................................................................................... 11

5.6 IP SETTINGS – DECODER ...................................................................................................................... 12

5.7 DECODER CONFIGURATION OPTIONS................................................................................................ 13

6.0 STREAMING OPERATION........................................................................................................................... 14

6.1 TRANSPORT STREAM............................................................................................................................ 14

6.2 REAL-TIME TRANSPORT PROTOCOL................................................................................................... 14

7.0 DYNAMIC BIT-RATE & FRAME-RATE CHANGE........................................................................................ 15

8.0 APPENDIX A: SERIAL CONTROL ............................................................................................................... 16

8.1 DEFAULT SERIAL OUTPUT - ENCODER............................................................................................... 16

8.2 DEFAULT SERIAL OUTPUT - DECODER............................................................................................... 17

9.0 UPDATING FIRMWARE............................................................................................................................... 18

9.1 WEB PAGE.............................................................................................................................................. 18

9.2 SD CARD................................................................................................................................................. 18

10.0 TROUBLESHOOTING ............................................................................................................................. 19

_________________________________________________________________________

Z3 Technology, LLC ♦100 N. 8th St. STE 250 ♦Lincoln, NE 68508-1369 USA ♦+1.402.323.0702

Z3-DME-01 V1.06.03

1.0 GENERAL INFORMATION

1.1 PREFACE

The Z3-DME-01 Digital Media Encoder is a cost optimized compact 123mm x 179mm system that supports

H.264 High Profile encode up to 1080p at 30 frames per second. This solution works in multiple applications

such as low cost broadcast encoders, low bandwidth video security, satellite uplink, remote monitoring and

industrial applications. The Z3-DME-01 provides immediate access to multi-format HD video, integrated

system peripherals and production-qualified codecs.

The Z3-DME-01 offers multi-format, multi-channel HD video up to 1080p30. The Z3-DME-01 features HD

performance, compact size, and low latency while having less power consumption than a PC-based encoder

platform.

_________________________________________________________________________

Z3 Technology, LLC ♦100 N. 8th St. STE 250 ♦Lincoln, NE 68508-1369 USA ♦+1.402.323.0702

Z3-DME-01 V1.06.03

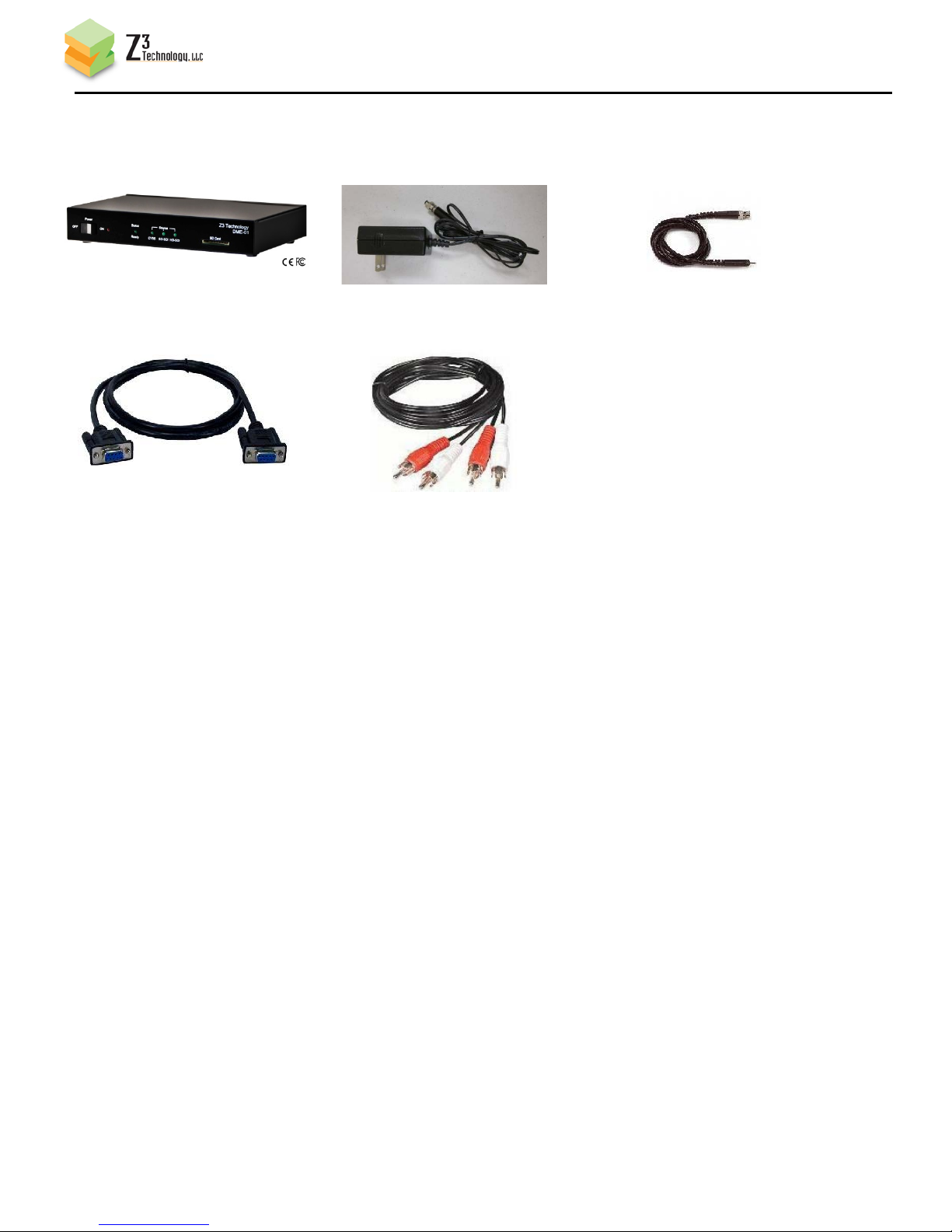

2.0 INCLUDED PARTS LIST

Z3-DME-01

Power Supply

BNC to BNC Cable

DB-9 Serial Cable

RCA to RCA Cable

_________________________________________________________________________

Z3 Technology, LLC ♦100 N. 8th St. STE 250 ♦Lincoln, NE 68508-1369 USA ♦+1.402.323.0702

Z3-DME-01 V1.06.03

3.0 FEATURES

The Z3-DME-01 is a high definition, low cost, network-enabled media encoder with the following features:

HD resolutions up to 1920x1080 including 1080i, 1080p30 and 720p

Supported video includes H.264 and MPEG-2

Standard Definition encoding for ISDB-T, DVB-H, and other standards

Low latency encode mode

Video Inputs: HD-SDI, Composite

Input video re-sizer supports 1/2, 2/3 and 3/4 of standard resolutions

Video Output Interfaces: Ethernet and ASI

Outputs RTP or MPEG-2 Transport Stream

Supports fractional resolutions and frame rates

Video Frame Rate: 50Hz or 60Hz

SD Card interface for local storage and firmware updates

RS232 serial port for configuration and control

Web-based configuration software

_________________________________________________________________________

Z3 Technology, LLC ♦100 N. 8th St. STE 250 ♦Lincoln, NE 68508-1369 USA ♦+1.402.323.0702

Z3-DME-01 V1.06.03

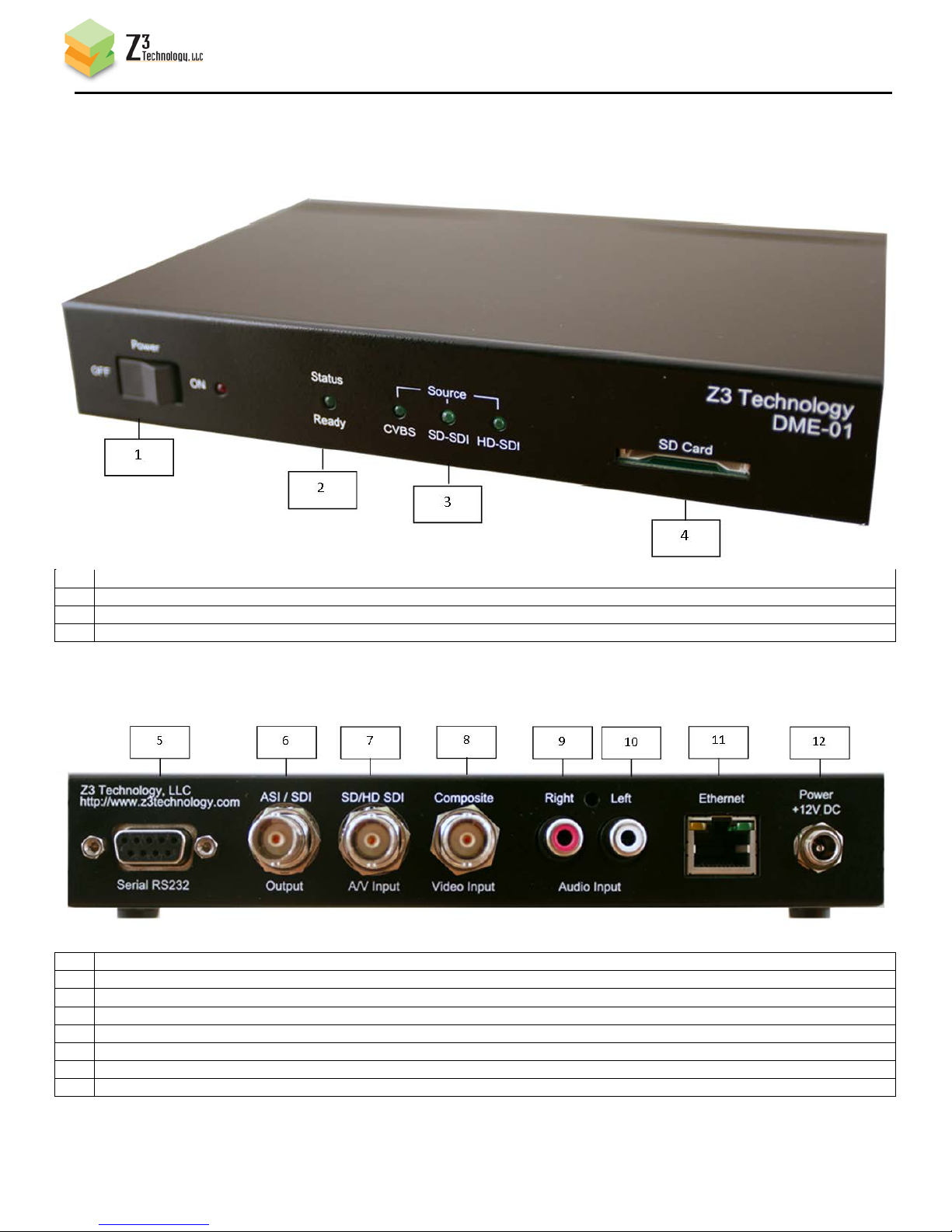

4.0 OPERATING CONTROLS

FRONT VIEW

Power On/Off switch

Ready - Status Light

3 Source – Status Light

SD Card Slot

REAR VIEW

RS-232 Port

ASI/SDI Out

SD/HD SDI In

Composite In

Analog Audio In R

Analog Audio In L

Ethernet

Power IN +12VDC

_________________________________________________________________________

Z3 Technology, LLC ♦100 N. 8th St. STE 250 ♦Lincoln, NE 68508-1369 USA ♦+1.402.323.0702

Z3-DME-01 V1.06.03

5.0 SYSTEM CONNECTIONS

The System can be controlled via the Web Server on the Z3-DME-01. It can also be controlled via the serial

port.

5.1 PC SETUP

Initially, the simplest way to setup the networked PC to communicate with the Z3-DME-01 is to put the PC

on the same subnet as the Z3-DME-01. The IP address of the Z3-DME-01 can be found on the bottom side of

the Z3-DME-01. The Windows PC can be setup on the same subnet by using these parameters:

NOTE: The static IP of the computer cannot be the same as the static IP of the Z3-

DME-01

Microsoft Windows users

1. Go to the Start Menu and select

Control Panel

2. Click on Network and Sharing Center

3. Click on View Status

4. Click on Properties.

5. Click Internet Protocol (TCP/IP) and

click Properties.

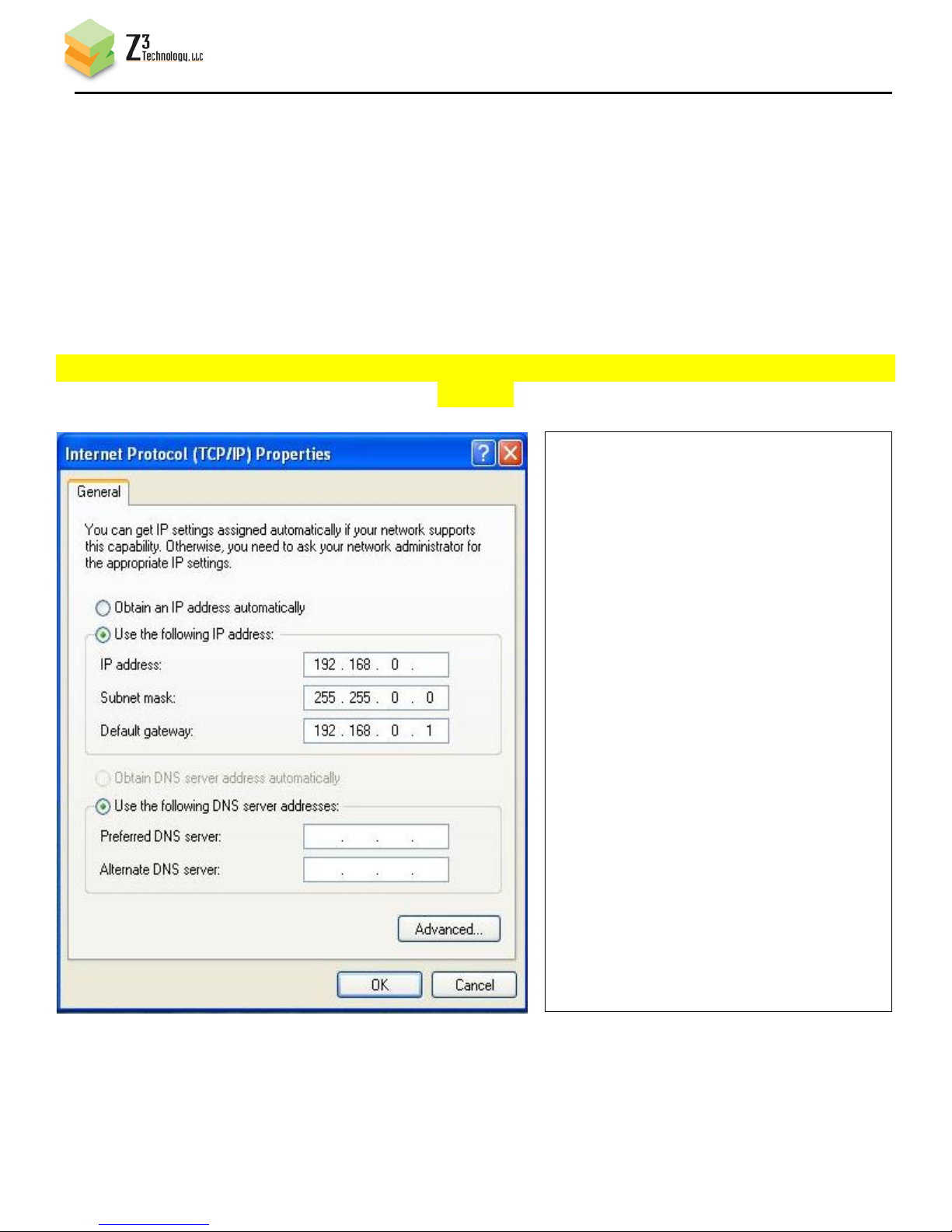

6. In the Internet Protocol (TCP/IP)

Properties window, select "Use the

following IP address" if not already

selected and specify the IP address

you wish to use. While entering this

data you'll also need to specify the

subnet mask and default gateway.

Linux users

The below information is for how to specify

and adjust your network settings through the

command prompt. Changing your network

settings will require root access.

1. Get to the command prompt.

2. Move to the /etc/sysconfig/network

directory.

3. Edit the interfaces file and adjust your

network settings in this file.

_________________________________________________________________________

Z3 Technology, LLC ♦100 N. 8th St. STE 250 ♦Lincoln, NE 68508-1369 USA ♦+1.402.323.0702

Z3-DME-01 V1.06.03

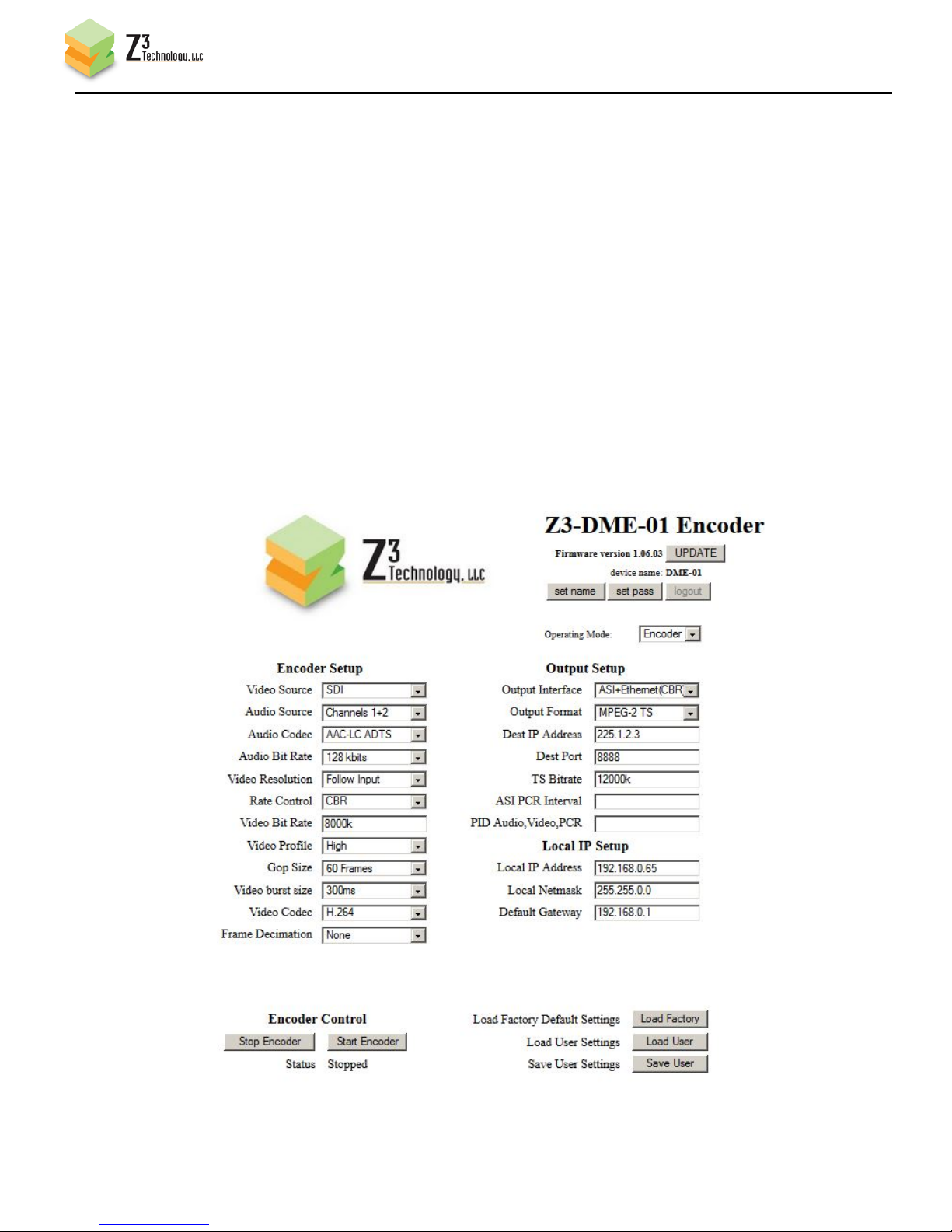

5.2 WEB SERVER - ENCODER

Note: If you use unicast on the encoder, you must also use unicast on the VLC receiver. If you

use multicast on the encoder, you must also use multicast on the VLC receiver.

1. Power on the Z3-DME-01

2. Wait one minute or until LED “Status 1” on the unit lights up

3. Connect the Ethernet cable from the Z3-DME-01 unit directly to the PC

4. Disable all wireless connections

5. For a client PC to access the Z3-DME-01 factory default settings, set the IP address of the PC to

192.168.XX.XX (See 5.1 PC Setup)

6. Open Firefox or Internet Explorer 8 (or above) as your web browser.

7. Type the IP address of the Z3-DME-01 in your web browser (http://192.168.XX.XX) and the Z3-

DME-01 Encoder web configuration menu will appear

8. Configure the Z3-DME-01 with your desired settings

9. Press “Start Encoder” on the Encoder Control menu.

10. The title in the top-right of the browser should now say “DME-01 Encoder” as pictured here in the

example.

_________________________________________________________________________

Z3 Technology, LLC ♦100 N. 8th St. STE 250 ♦Lincoln, NE 68508-1369 USA ♦+1.402.323.0702

Z3-DME-01 V1.06.03

5.3 LOCAL IP SETTINGS – ENCODER

•In the Local IP Settings Section type in your desired Local IP settings

•Hit “Save User” to save your desired settings

•Power cycle the Z3-DME-01

•The new IP settings will now take effect

5.4 ENCODER CONFIGURATION OPTIONS

Encoder Setup

1 Video Source SDI, Composite

2 Audio Source Analog Jacks, Channels 1+2, Channels 3+4, Channels 5+6, Channels 7+8

3 Audio Codec AAC-LC ADTS, AAC-LC LATM, SBTV-D LATM, PCM, AC-3 Passthru, MPEG-1 Layer 2,

Nonex

4 Audio Channels Stereo, MonoMix, MonoLeft, MonoRight

5 Audio Bit Rate

(kbps) 32, 64, 96, 128, 192, 256, 320, 384

6 Video

Resolution Follow Input, 1080i, 3/4 1080i, 720p, 4/5 720p, 16:9 PAL, D1 NTSC, D1 PAL, PAL

PAR, 4-CIF, VGA, 640x360, 2-CIF, 2-SIF, CIF, SIF, QVGA, WQVGA, Custom

9 Rate Control CBR, VBR

A Video Bit Rate Custom, Default = 8000k

B Video Profile Baseline, Main, High

C Gop Size

(Frames) 15, 30, 60, 120, 240

D Video Burst Size

(ms) 150, 200, 300, 400, 500, 600, 800, 1000, 1200, 1400, 1600, 1800, 2000

E Video Codec H.264, MPEG-2

F Frame

Decimation None, 1/2, 1/3, 1/4, 1/5, 1/6, 1/8, 1/10

G Video Delay Custom

H Audio Delay Custom

Output Setup

I Output Interface Ethernet, ASI, ASI+Ethernet

J Output Format RTP, MPEG-2 TS, MPEG-2 TS over RTP

K Dest IP Address Custom

_________________________________________________________________________

Z3 Technology, LLC ♦100 N. 8th St. STE 250 ♦Lincoln, NE 68508-1369 USA ♦+1.402.323.0702

Inhaltsverzeichnis

Andere Z3 Technology Medienkonverter Handbücher

Z3 Technology

Z3 Technology Z3-HE4K-01-SW-02 Bedienungsanleitung

Z3 Technology

Z3 Technology Z3-DM8148-RPS Bedienungsanleitung

Z3 Technology

Z3 Technology Z3-MVE-10 Bedienungsanleitung

Z3 Technology

Z3 Technology Z3-HE4K-01 Bedienungsanleitung

Z3 Technology

Z3 Technology Z3-MVE-20 Bedienungsanleitung

Z3 Technology

Z3 Technology Z3-MVP-02 Bedienungsanleitung

Z3 Technology

Z3 Technology DME-05 Bedienungsanleitung

Z3 Technology

Z3 Technology Z3-HE4K-R Bedienungsanleitung

Z3 Technology

Z3 Technology HE4K-DCK-RPS Bedienungsanleitung

Z3 Technology

Z3 Technology HE4K-DCK-RPS Bedienungsanleitung

Z3 Technology

Z3 Technology MVE-20 Bedienungsanleitung

Z3 Technology

Z3 Technology Z3-SBE264-DVR-13 Bedienungsanleitung

Z3 Technology

Z3 Technology HE4K-DCK-10 Gebrauchsanweisung

Z3 Technology

Z3 Technology Z3-DME-02 Bedienungsanleitung

Z3 Technology

Z3 Technology Z3-MVE-100 Bedienungsanleitung

Z3 Technology

Z3 Technology HE4K-DCK-1X Bedienungsanleitung

Z3 Technology

Z3 Technology Z3-DME-02 Bedienungsanleitung

Z3 Technology

Z3 Technology Z3-HE4K-01 Bedienungsanleitung

Z3 Technology

Z3 Technology Z3-DME-03 Bedienungsanleitung

Z3 Technology

Z3 Technology EUS Z3-MVE-150 Bedienungsanleitung

Z3 Technology

Z3 Technology FSDI-DCK-1X Bedienungsanleitung

Z3 Technology

Z3 Technology BLD265-SC2 Bedienungsanleitung

Z3 Technology

Z3 Technology HE2K-DCK-10 Bedienungsanleitung

Z3 Technology

Z3 Technology Z3-DME-20 Bedienungsanleitung

Beliebte Medienkonverter Handbücher anderer Marken

SoundTraxx

SoundTraxx Blunami BLU-2200 Bedienungsanleitung

SPROLINK

SPROLINK VA1 Bedienungsanleitung

Acclaim Lighting

Acclaim Lighting DDC-1-AC Bedienungsanleitung

Nikon

Nikon AF-S TC-20E III Bedienungsanleitung

Axis

Axis AXIS Q7406 Bedienungsanleitung

Omega

Omega TAC80B-J Bedienungsanleitung

Zoom

Zoom Thunderbolt TAC-2R Bedienungsanleitung

OST

OST iConverter 10/100M Bedienungsanleitung

Vertiv

Vertiv Netsure Bedienungsanleitung

birddog

birddog MINI Bedienungsanleitung

Roland

Roland GI-10 Bedienungsanleitung

Wallenstein

Wallenstein WX310 Bedienungsanleitung

Pace

Pace MSS 200-1 Bedienungsanleitung

Solar Converters

Solar Converters EQ 12/24-50 Bedienungsanleitung

CYP

CYP EL-7400V Bedienungsanleitung

TIE

TIE MIDI 1i1o Bedienungsanleitung

DCS

DCS Vivaldi Upsampler Bedienungsanleitung

Westermo

Westermo MCW-211 SERIES Bedienungsanleitung
