Dear customer,

Please read these operating instructions carefully

and pay particular attention to the safety notes

indicated in the first pages. We recommend that you

keep this instruction booklet for future reference and

pass it on to any future owners.

Transport damages

When unpacking the appliance, check that it is not

damaged. If in doubt, do not use it and contact the

Service Centre.

The symbols you will see on some paragraphs of this booklet have the following meaning:

The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly

important for your safety or correct functioning of the appliance.

The information marked with this symbol provides additional instructions and practical tips on the use of

the appliance.

Tips and information about economical and ecological use of the machine are marked with this symbol.

Our contribution to the protection of the

environment: we use recycled paper.

ENGLISH

Maintenance 18

Bodywork 18

Door seal 18

Detergent dispenser drawer 18

Drain pump 18

Water inlet filter 19

Emergency emptying out 19

Frost precautions 19

Something not working? 20-21

Warnings 4-5

Disposal 5

Tips for environmental protection 5

Technical specifications 6

Installation 7

Unpacking 7

Positioning and levelling 7

Water inlet 7

Water drainage 8

Electrical connection 8

Your new washing machine 9

Description of the appliance 9

Detergent dispenser drawer 9

Use 10

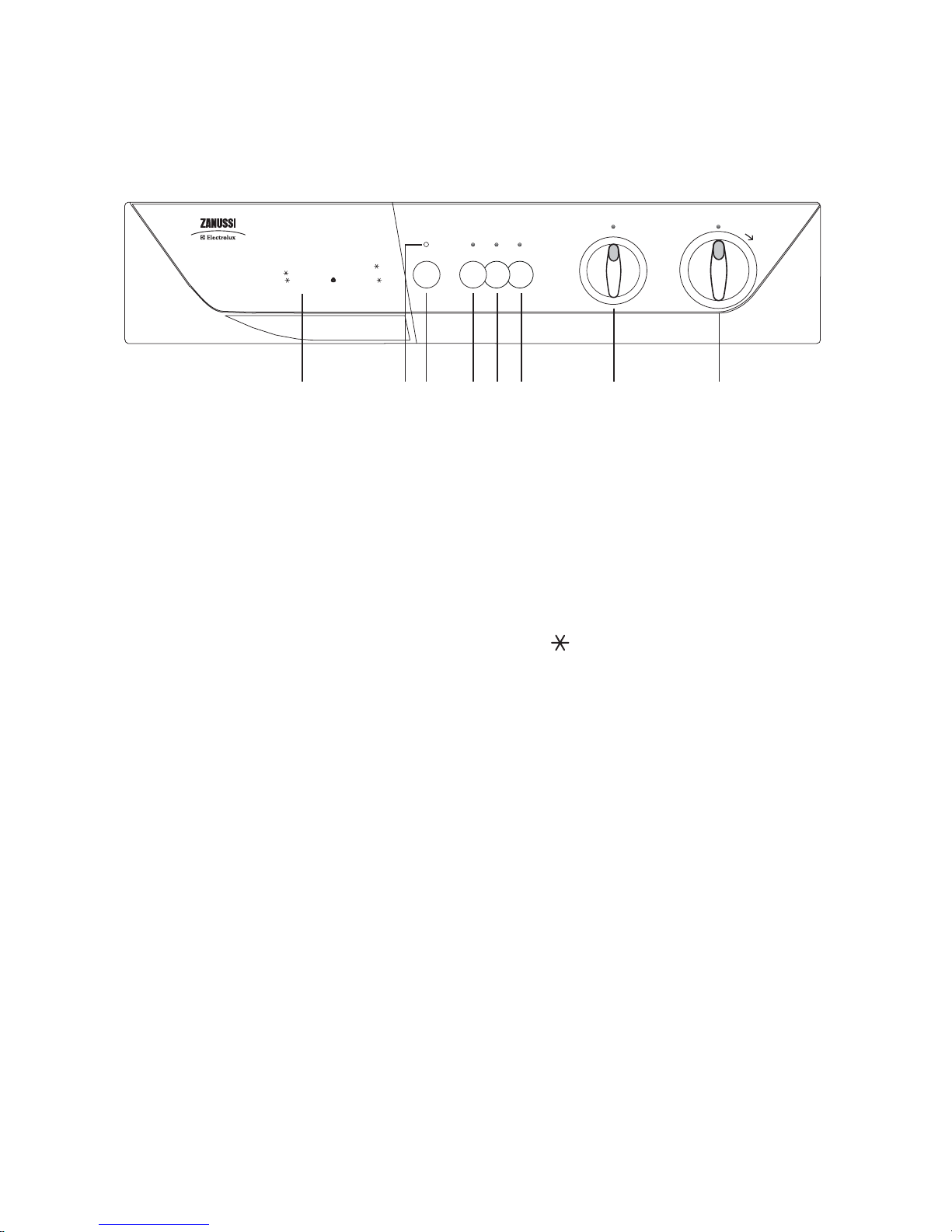

Control panel 10

Controls 10

Washing hints 11

Sorting the laundry 11

Temperatures 11

Before loading the laundry 11

Maximum loads 11

Laundry weights 11

Removing stains 11

Detergents and additives 12

International wash code symbols 13

Operating sequence 14-15

Washing programmes 16-17

Contents

Installation

• All internal packing must be removed before using

the appliance. Serious damage may be caused to

the machine or adjacent furniture if the protective

transit devices are not removed or are not

completely removed. Refer to the relevant

paragraph in the instruction book.

• Any electrical work required to install this appliance

must be carried out by a qualified electrician.

• Any plumbing work required to install this

appliance must be carried out by a qualified

plumber.

• After having installed the machine, check that it is

not standing on its electrical supply cable.

• If the appliance is placed on a carpeted floor,

ensure that air can circulate freely between the

feet and the floor.

Use

• This appliance is designed for domestic use. It

must not be used for purposes other than those for

which it was designed.

• Only wash fabrics which are designed to be

machine washed. Follow the instructions on each

garment label.

• Do not overload the appliance. Follow the

instructions in the instruction book.

• Make sure that all pockets are empty. Objects such

as coins, safety pins, pins and screws can cause

extensive damage.

• Do not machine wash garments saturated with

petroleum, methylated spirits, trichlorethylene, etc.

If such fluids have been used to remove stains

prior to washing, wait until they have completely

evaporated from the fabric before placing

garments in the appliance.

• Place small items such as socks, belts, etc. in a

cloth bag or pillowcase to prevent them getting

trapped between the drum and the tub.

• Use only the recommended quantities of fabric

softener. An excessive amount could damage the

laundry.

Warnings

• Leave the porthole door slightly ajar when the

appliance is not in use. This preserves the door

seal and prevents the formation of musty smells.

• Always check that water has emptied out before

opening the door. If not, drain the water following

the instructions in the instruction book.

• Always unplug the appliance and shut the water

tap after use.

General safety

• Repairs to the machine must be carried out only by

qualified personnel. Repairs carried out by

inexperienced persons could cause serious

danger. Contact your local Service Centre.

• Never pull the power supply cable to remove the

plug from the socket; always take hold of the plug

itself.

• During high temperature wash programmes the

door glass may get hot. Do not touch it!

The following warnings are provided in the interests of overall safety. You must read them carefully before

installing or using the appliance.

ENGLISH

Disposal

Tips for environmental protection

Packaging materials

The materials marked with the symbol are

recyclable.

>PE<=polyethylene

>PS<=polystyrene

>PP<=polypropylene

This means that they can be recycled by disposing of

them properly in appropriate collection containers.

Machine

Use authorised disposal sites for your old appliance.

Help to keep your country tidy!

The symbol on the product or on its packaging

indicates that this product may not be treated as

household waste. Instead it shall be handed over to

the applicable collection point for the recycling of

electrical and electronic equipment. By ensuring this

product is disposed of correctly, you will help prevent

potential negative consequences for the environment

and human health, which could otherwise be caused

by inappropriate waste handling of this product. For

more detailed information about recycling of this

product, please contact your local city office, your

household waste disposal service or the shop where

you purchased the product.

To save water, energy and to help protect the

environment, we recommend that you follow these

tips:

• Normally soiled laundry may be washed without

prewashing in order to save detergent, water and

time (the environment is protected too!).

• The machine works more economically if it is fully

loaded. Do not overload!

• With adequate pre-treatment, stains and limited

soiling can be removed; the laundry can then be

washed at a lower temperature.

• Measure out detergent according to the water

hardness, the degree of soiling and the quantity of

laundry being washed.

Child safety

• Children are often not aware of how dangerous

electrical appliances can be. When the machine is

working, children should be carefully supervised

and not be allowed to play with the appliance.

• The packaging components (e.g. plastic film,

polystyrene) can be dangerous to children - danger

of suffocation! Keep them out of children’s reach.

• Keep all detergents in a safe place out of children’s

reach.

• Make sure that children or pets do not climb into

the drum. To avoid this the machine incorporates a

special feature. To activate this device, rotate the

button (without pressing it) inside the door

clockwise until the groove is horizontal. If

necessary use a coin.

To disable this device and restore the possibility of

closing the door, rotate the button anti-clockwise

until the groove is vertical.

• When the appliance is to be scrapped, cut off the

electrical supply cable and destroy the plug with

the remaining cable. Disable the door catch in

order to prevent children from becoming trapped

inside while playing.

P1131

DIMENSIONS Height 85 cm

Width 60 cm

Depth 54 cm

MAXIMUM LOAD Cotton 5 kg

Synthetics 2 kg

Delicates 2 kg

Woollens 1 kg

SPIN SPEED 750 rpm max. (F 750)

850 rpm max. (F 850)

POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz

TOTAL POWER ABSORBED 2200 W

MINIMUM FUSE PROTECTION 10 A

WATER PRESSURE Minimum 0,05 MPa

Maximum 0,8 MPa

This appliance complies with the following EEC Directives:

73/23/EEC of 19/02/73 relating to low voltage

89/336/EEC of 03/05/89 relating to electromagnetic compatibility.

Technical specifications

ENGLISH

Unpacking

All transit bolts and packing must be

removed before using the appliance.

You are advised to keep all transit devices so that

they can be refitted if the machine ever has to be

transported again.

1. Using a spanner, unscrew and remove the two

rear bottom screws. Slide out the two plastic pins.

2. Lay the machine on its back, taking care not to

squash the hoses. This can be avoided by

placing one of the corner packing pieces between

the machine and the floor.

3. Remove the polystyrene block(s) from the bottom

of the machine. Unscrew and remove the four

feet. Release the two plastic bags.

4. Very carefully slide out the left polythene bag,

removing it towards the right and then downwards.

5. Very carefully slide out the right polythene bag,

removing it towards the left and then upwards.

P1127

P1126

P1123

P0001

P1129

6. Set the machine upright and remove the

remaining rear screw. Slide out the relevant pin.

7. Plug all the holes with the plugs which you will

find in the envelope containing the instruction

booklet.

Positioning and levelling

Install the machine on a flat hard floor.

Make sure that air circulation around the machine is

not impeded by carpets, rugs etc. Check that the

machine does not touch the wall or other kitchen

units.

Carefully level by screwing the adjustable feet in or

out. Never place cardboard, wood or similar

materials under the machine to compensate for any

unevenness in the floor.

Water inlet

Connect the water inlet hose to a tap with a 3/4"

thread.

The other end of the inlet hose which connects to the

machine can be turned in any direction. Simply

loosen the fitting, rotate the hose and retighten the

fitting, making sure there are no water leaks.

P0021

P1088

P1051

P0002

P1128

Installation

The inlet hose must not be lengthened. If it is too

short and you do not wish to move the tap, you will

have to purchase a new, longer hose specially

designed for this type of use.

Important!

Before connecting up the machine to new pipework

or to pipework that has not been used for some time,

run off a reasonable amount of water to flush out any

debris that may have collected in the pipes.

Water drainage

The end of the drain hose can be positioned in three

ways:

Hooked over the edge of a sink using the plastic

hose guide supplied with the machine. In this

case, make sure the end cannot come unhooked

when the machine is emptying.

This could be done by tying it to the tap with a piece

of string or attaching it to the wall.

In a sink drain pipe branch. This branch must be

above the trap so that the bend is at least 60 cm

above the ground.

Directly into a drain pipe at a height of not less

than 60 cm and not more than 90 cm.

The end of the drain hose must always be

ventilated, i.e. the inside diameter of the drain pipe

must be larger than the outside diameter of the drain

hose.

The drain hose must not be kinked.

For a correct functioning of the machine the

drain hose must remain hooked on the proper

support piece situated on the top part of the back

side of the appliance.

P1118

P0022

Electrical connection

This machine is designed to operate on a 220-230 V,

single-phase, 50 Hz supply.

Check that your domestic electrical installation can

take the maximum load required (2.2 kW), also

taking into account any other appliances in use.

WARNING: THIS APPLIANCE MUST BE

EARTHED.

The manufacturer declines any liability

should this safety measure not be

observed.

The appliance is supplied with a 13amp plug fitted.

In the event of having to change the fuse in the plug

supplied, a 13amp ASTA approved (BS1363A) fuse

must be used.

Should the plug need to be replaced for any reason,

proceed as described below.

The wires in the mains lead are coloured in

accordance with the following code:

Green and Yellow - Earth

Blue - Neutral

Brown - Live

The wire coloured green and yellow must be

connected to the terminal marked with the letter «E»

or by the earth symbol or coloured green and

yellow.

The wire coloured blue must be connected to the

terminal «N» or coloured black.

The wire coloured brown must be connected to the

terminal marked «L» or coloured red.

Upon completion there must be no cut, or stray

strands of wire present and the cord clamp must be

secure over the outer sheath.

WARNING:

A cut off plug inserted into a 13 amp socket

is a serious safety (shock) hazard.

Ensure that the cut off plug is disposed of

safely.

GREEN & YELLOW

BROWN

CORD CLAMP

BLUE

13 A

P1041

ENGLISH

This new machine, patented by Electrolux, meets all modern requirements for effective treatment of laundry

with low water, energy and detergent consumption.

Further savings are achieved by washing small loads of laundry, since water and electricity consumption is

proportional to the quantity and type of laundry being washed.

•The possibility of selecting the programme, the temperature and all options offered by this machine gives

you truly “customised” washing.

• The RINSE HOLD function (stop with water in drum) can be selected for cotton, synthetics, delicates and

wool: the laundry is left immersed in the final rinse water to avoid the formation of creases.

•The special WOOL programme with its new delicate wash system treats your woollens with extreme care.

• The automatic cooling of the washing water from 90° to 60°C before draining will prevent old drain pipes

from being deformed.

• The unbalance detection device prevents vibration during spinning.

•The Eco valve allows total use of detergent and reduces water consumption so saving energy.

1 Detergent dispenser drawer

2 Programme chart

3 Control panel

4 Door handle

5 Drain pump

6 Adjustable feet

Detergent dispenser drawer

Prewash

Main wash

Fabric softener, starch

Your new washing machine

Description of the appliance

ON/OFF HALF

LOAD

SPIN

REDUCTION

RINSE

HOLD

PROGRAMME

TEMPERATURE

F 850

AWHITE COTTONS WITH PREW.

BWHITE COTTONS

ACOLOURED COTTONS WITH PREW.

BCOLOURED COTTONS

CCOLOUR CARE

DRINSES

FSOFTENERS

GSPIN

60°C - 90°C

30°C - 60°C

- 40°C

HSYNTHETICS WITH PREW.

JSYNTHETICS

KDELICATES

LWOOL

MDELICATE RINSE

NSHORT SPIN

PDRAIN

30°C - 60°C

30°C - 40°C

- 40°C

MADE IN ITALY

AQUACYCLE

C0069

Use

1 Detergent dispenser drawer and

programme chart

2 Mains on light

This light is on whilst the machine is operating and

goes out at the end of the programme.

3 “ON/OFF” button

By depressing this button the machine is switched on.

By depressing it again the machine is switched off.

4 “HALF LOAD” button

Select this button to reduce water consumption on

the rinse cycle when washing a half load of cottons

or linens (maximum load size = 2,5 kg).

5 “SPIN REDUCTION” button

By depressing this button the final spin speed is

reduced as follows:

- from 850 to 400 rpm on programmes for cotton and

linen

- from 750 to 400 rpm on programmes for synthetics,

delicates, wool and Q (SHORT SPIN).

6 “RINSE HOLD” button

By depressing this button on all programmes the

water of the last rinse is not emptied out to prevent

the fabrics from creasing.

To drain the water and spin the laundry, depress this

button again.

To drain water only, select programme R (DRAIN).

7 “TEMPERATURE” selector dial

Turn this dial to select the washing temperature.

Position = cold wash.

8 “PROGRAMME” selector dial

To select the required programme, turn this dial

clockwise until the programme letter is exactly

opposite the pointer.

Before selecting a programme or changing a

programme in progress the machine must be

switched off by depressing ON/OFF button.

13246 75 8

ON/OFF HALF

LOAD

SPIN

REDUCTION

RINSE

HOLD

PROGRAMME

TEMPERATURE

FBU 85

AWHITE COTTONS WITH PREW.

BWHITE COTTONS

BCOLOURED COTTONS

CCOLOUR CARE

DSHORT CYCLE

FRINSES

GSOFTENERS

HSPIN

60°C - 90°C

30°C - 60°C

- 40°C

JSYNTHETICS WITH PREW.

KSYNTHETICS

MDELICATES

NWOOL

PDELICATE RINSE

QSHORT SPIN

RDRAIN

30°C - 60°C

30°C - 40°C

- 40°C

MADE IN ITALY

AQUACYCLE

LSHORT CYCLE - 40°C

Control panel

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Zanussi Electrolux Waschmaschine Handbücher

Zanussi Electrolux

Zanussi Electrolux F1003W Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZWF1211W Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux FA 8432 Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ELECTROLUX ZWT 10120 Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux U31302 ZWF 16581 Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZWF 1011 W Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZWC 1300W Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZWF1421W Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZWT 8121 Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZWA 3100 Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZWA 385 Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux FA4412 Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux F855 Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux F1045 W Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZWF 14109 Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux F 1415 Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZWF 1020W Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZWF 1231 W Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZWF 1630 W Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZWA 5120 Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZWV 1651S Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux FC 1200W Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux FD 1026 Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZWF 1012 W Bedienungsanleitung

Beliebte Waschmaschine Handbücher anderer Marken

Tricity Bendix

Tricity Bendix AW 1000 W Produkthandbuch

Panasonic

Panasonic NA-F60L5WRB Bedienungsanleitung

GE WSLP1500 Handbuch

Electrolux

Electrolux EWF1284EDW Bedienungsanleitung

Bosch

Bosch WAN2829BSN Bedienungsanleitung

LG TV2516DV3B Bedienungsanleitung

LG TH2517DSAV Bedienungsanleitung

VESTEL

VESTEL CMH-XL 7510 TE Bedienungsanleitung

AEG

AEG 74335 Bedienungsanleitung

Johnson

Johnson JWF721A Bedienungsanleitung

Beko

Beko WTE7604XLW0 Bedienungsanleitung

Danby

Danby DTT100A1WDB Montageanleitung

Amica

Amica WA 14 Ex Bedienungsanleitung

Daewoo

Daewoo DWD-F1222 Bedienungsanleitung

Bosch

Bosch WAS28461AU Bedienungsanleitung

Miele

Miele PW 6080 Vario Bedienungsanleitung

Finlux

Finlux FLX108CF220 Bedienungsanleitung

Whirlpool

Whirlpool 3LBR5132AN0 Bedienungsanleitung
