ZANUSSI

P R O F E S S I O N A L

REFRIGERATED TABLES - 4 COMPARTMENTS

CONCEPT SERIES

1/1 GN GREY "RILSAN" GRID 4 4 3 2

INCLUDED ACCESSORIES

Power supply - V, phases, Hz 230 V, 1N,

230 V, 1N,

Net weight - kg. 186 186 194 198 214

installed-electric 0.34 0.34 0.34 0.34 0.34

Power - kW

at evaporation temperature - °C -20 -20 -20 -20

Refrigerant power

Refrigeration power - W 343 343 343 343 343

Refrigerant quantity - g. 210 210 210 210 210

Refrigerant type R404a R404a R404a R404a R404a

N° defrost in 24 hrs. 4/20 4/20 4/20 4/20 4/20

Compressor power - HP 1/4 1/4 1/4 1/4 1/4

Door hinges 2 Left+2

Right

2 Left+2

Right

2 Left+1

Right

1 Left+1

Right

N° of drawers 2x1/2 4x1/2 8x1/2

Min/Max internal humidity - % 57 57 57 57 57

Top material 304 AISI Galvanized

Steel

304 AISI 304 AISI 304 AISI

Without worktop l

height 543 543 543 543 543

depth 580 580 580 580 580

Internal dimensions - mm

height 850 800 850 850 850

depth/with open doors 700, 1102 700, 1098 700, 1102 700, 1102 700, 1102

width 2204 2204 2204 2204 2204

External dimensions - mm

Cooling unit Built-In Built-In Built-In Built-In Built-In

Gross capacity (D.I.N. 8952) - l. 560 560 560 560 560

Operating mode Ventilated Ventilated Ventilated Ventilated Ventilated

Operating temperature - min/max °C -2/10 -2/10 -2/10 -2/10 -2/10

HB4P

728243

HB4PNT

727107

HB3P2C

728244

HB2P4C

728245

HB8C

728246

CHARACTERISTICS MODELS

TECHNICAL DATA

RANGE

COMPOSITION

Zanussi Professional have designed

and produced a complete range of

refrigerated tables, that combines

the dual function of worktop and

refrigerated table. This versatility

allows notable savings in space

whilst offering functional and

modular solutions to kitchen

requirements.

FUNCTIONAL AND

CONSTRUCTION

FEATURES

� 150mm height-adjustable feet.

� Internal and external doors, front

and side panels and worktop in 304

AISI stainless steel.

� Rounded internal corners for ease

of cleaning.

� Refrigerated compartment

designed to accommodate GN 1/1

containers.

� Digital control panel.

� Suitable to operate in ambient

temperatures up to +43°C.

Temperature range: -2/+10 °C.

� Forced air circulation for rapid

cooling and an even temperature

distribution.

� Automatic evaporation of defrost

water. Drain outlet.

� Access to all components from the

front.

� In compliance with H

requirements.

� C.F.C. and H.C.F.C. free.

� High-density expanded

polyurethane foam, 50 mm in

thickness, with cyclopenthane

injection.

� Developed and produced in ISO

9001 and ISO 14001 certified factory.

DBAD70 2010-05-28 The Company reserves the right to alter technical specifications without prior notice.

www.zanussiprofessional.com

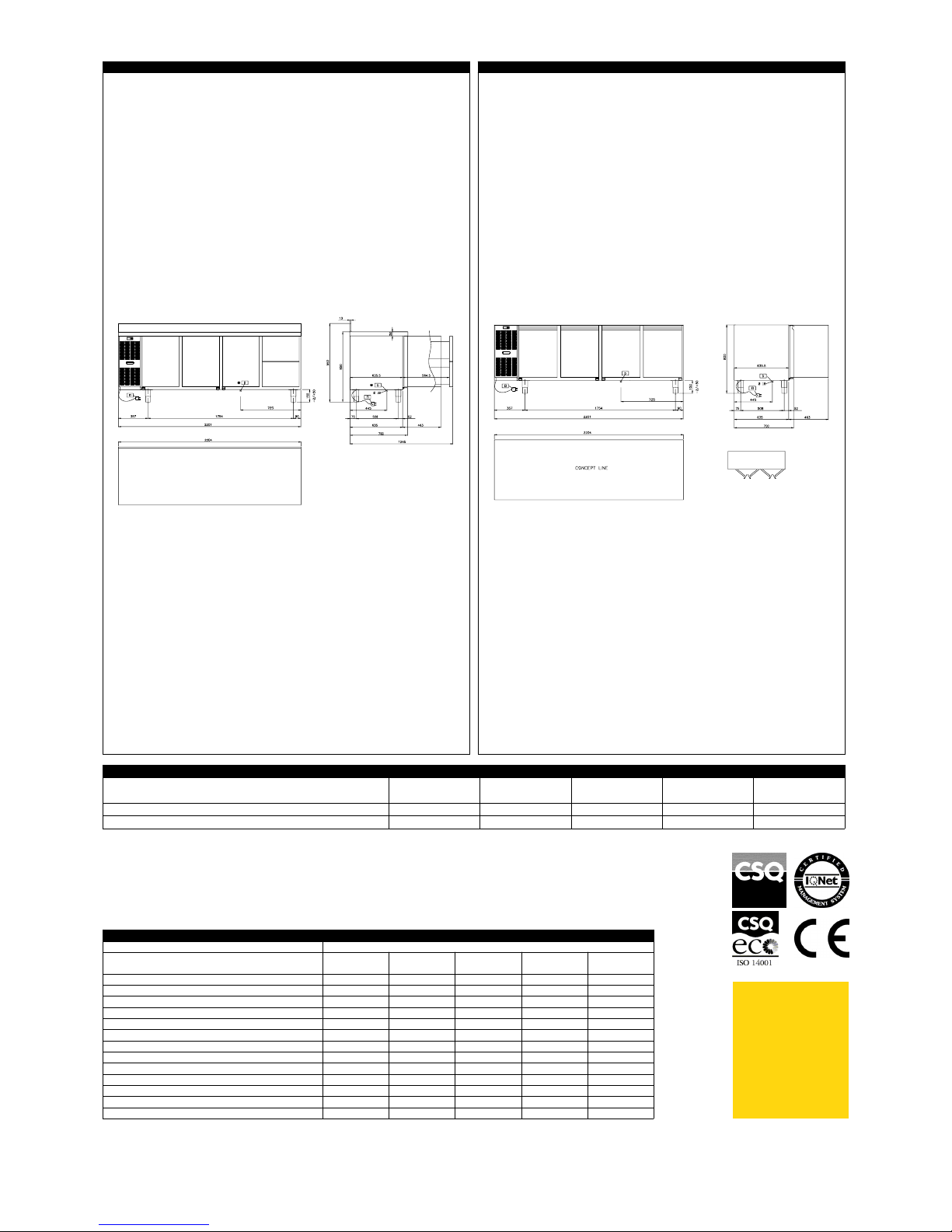

ZANUSSI

P R O F E S S I O N A L

WORKTOP+UPSTAND FOR 4 DOOR REFRIG.TABLE 880116

WORKTOP FOR 4 DOOR REFRIGERATED TABLES 880198

S/S STRUCTURE TO SUPPORT 6 GRIDS (R+L) 880140 880140 880140 880140

PRINTER FOR HACCP BASIC VERSION REFRIG. 881457 881457 881457 881457 881457

LOCK KIT FOR REFRIGERATED TABLES 880130 880130 880130 880130 880130

KIT INTEGRATED HACCP-DIG. REFR. (IR33) 880205 880205 880205 880205 880205

KIT HACCP EKIS 922166 922166 922166 922166 922166

KIT DOOR REVERSIBILITY FOR REF.TABLES 880046 880046 880046 880046

KIT 4 WHEELS (2 W/BRAKE)+4 (40MM)SPACERS 880025 880025 880025 880025 880025

KIT 2 S/S GRIDS GN1/1 FOR REFRIG.TABLES 880139 880139 880139 880139

DRAWER KIT-1/3+2/3 (BOTTLES)-REF.TABLES 880126 880126 880126 880126 880126

3x1/3 DRAWER KIT FOR REFRIGERATED TABLES 880115 880115 880115 880115 880115

2x½ DRAWER KIT FOR REFRIGERATED TABLES 880118 880118 880118 880118

HB4P

728243

HB4PNT

727107

HB3P2C

728244

HB2P4C

728245

HB8C

728246

ACCESSORIES MODELS

OPTIONAL ACCESSORIES

EI - Electrical connection 230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50

D - Water drain 18mm 18mm 18mm 18mm 18mm

HB4P

728243

HB4PNT

727107

HB3P2C

728244

HB2P4C

728245

HB8C

728246

LEGEND

728243, 728246, 728245, 728244 727107
