Zanussi ZRT48201WA Bedienungsanleitung

ZRT48201WA

ZRT48201XA

EN User Manual

FR Guide d’utilisation



EN -1-

Index

BEFORE USING THE APPLIANCE ..................................................................... 2

General warnings .........................................................................................................2

Old and out-of-order fridges .........................................................................................4

Safety warnings............................................................................................................4

Installing and operating your fridge ..............................................................................5

Before Using your Fridge..............................................................................................6

THE VARIOUS FUNCTION AND POSSIBILITIES ............................................... 7

Information about New Generation Cooling Technology ..............................................7

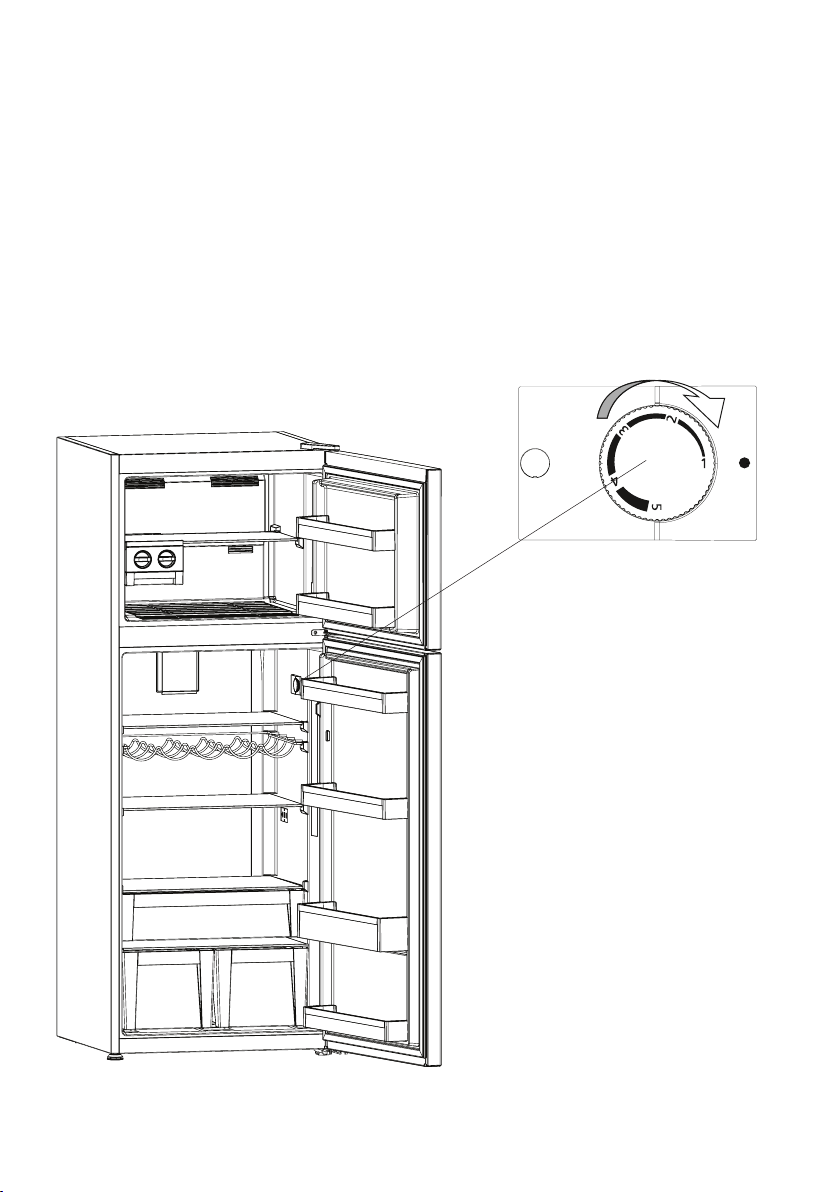

Thermostat Setting .......................................................................................................8

Warnings about Temperature Adjustments...................................................................8

Accessories ..................................................................................................................9

Icematic..................................................................................................................................9

Chiller Shelf..........................................................................................................................10

Fresh dial .............................................................................................................................10

Adjustable door shelf ..........................................................................................................10

ARRANGING FOOD IN THE APPLIANCE ........................................................ 11

Refrigerator Compartment..........................................................................................11

Freezer Compartment ................................................................................................11

CLEANING AND MAINTENANCE ..................................................................... 13

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION ........... 15

Repositioning the Door...............................................................................................15

BEFORE CALLING YOUR AFTER SALES SERVICE....................................... 15

Tips for saving energy ................................................................................................17

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS .................... 18

EN -2-

PART - 1. BEFORE USING THE APPLIANCE

General warnings

WARNING: Keep ventilation openings, in the appliance enclosure

or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to

accelerate the defrosting process, other than those recommended

by the manufacturer.

WARNING: Do not use electrical appliances inside the food

storage compartments of the appliance, unless they are of the

type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability of the

appliance, it must be xed in accordance with the instructions.

• If your appliance uses R600a as a refrigerant – you can learn

this information from the label on the cooler- you should

be careful during shipment and installation to prevent your

appliance’s cooler elements from being damaged. Although

R600a is an environmentally friendly and natural gas. As it is

explosive, in the event of a leak due to damage to the cooler

elements, move your fridge from open ame or heat sources

and ventilate the room where the appliance is located for a

few minutes.

• While carrying and positioning the fridge, do not damage the

cooler gas circuit.

• Do not store explosive substances such as aerosol cans with

a ammable propellant in this appliance.

• This appliance is intended to be used in household and similar

applications such as;

- staff kitchen areas in shops, ofces and other working en-

vironments

EN -3-

- farm houses and by clients in hotels, motels and other resi-

dential type environments

- bed and breakfast type environments;

- catering and similar non-retail applications

• If the socket does not match the refrigerator plug, it must be

replaced by the manufacturer, its service agent or similarly

qualied persons in order to avoid a hazard.

• A specially grounded plug has been connected to the power

cable of your refrigerator. This plug should be used with a

specially grounded socket of 16 amperes. If there is no such

socket in your house, please have it installed by an authorized

electrician.

• This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the hazard

involved. Children shall not play with the appliance. Cleaning

and user maintenance, shall not be made by children without

supervision.

• If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similar qualied persons

in order to avoid a hazard.

• This appliance is not intended for use at altitudes exceeding

2000 m.

EN -4-

Old and out-of-order fridges

• If your old fridge has a lock, break or remove the lock before discarding it, because

children may get trapped inside it and may cause an accident.

• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore,

take care not to harm environment when you are discarding your old fridges.

Disposal of your old appliance

This symbol on the product or package implies that the product should not be

treated as domestic waste. Instead, it should be delivered to applicable waste

collection places recycling electrical and electronic equipment. You will contrib-

ute to avoid potential negative results regarding environment and human health,

which will arise due to wrong waste procedure for the product by ensuring that this

product is annihilated properly. Recycling materials will help natural resources be preserved.

For more detailed information regarding recycling of this product, please contact local mu-

nicipality, domestic waste annihilation service or the shop you have purchased the product.

Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle

and recovery purposes.

Notes:

• Please read the instruction manual carefully before installing and using your appliance.

We are not responsible for the damage occurred due to misuse.

• Follow all instructions on your appliance and instruction manual, and keep this manual

in a safe place to resolve the problems that may occur in the future.

• This appliance is produced to be used in homes and it can only be used in domestic

environments and for the specied purposes. It is not suitable for commercial or common

use. Such use will cause the guarantee of the appliance to be cancelled and our company

will not be responsible for the losses to be occurred.

• This appliance is produced to be used in houses and it is only suitable for cooling / storing

foods. It is not suitable for commercial or common use and/or for storing substances

except for food. Our company is not responsible for the losses to be occurred in the

contrary case.

Safety warnings

• Do not use multiple receptacles or extension cord.

• Do not plug in damaged, torn or old plugs.

• Do not pull, bend or damage the cord.

• This appliance is designed for use by adults, do not allow children to

play with the appliance or let them hang off the door.

• Do not plug-in or out the plug from the receptacle with wet hands to

prevent electrocution!

EN -5-

• Do not place glass bottles or beverage cans in the freezer department.

Bottles or cans may explode.

• Do not place explosive or ammable material in your fridge for your

safety. Place drinks with higher alcohol amount vertically and by closing

their necks tightly in the fridge department.

• When taking ice made in the freezer department, do not touch it, ice may

cause ice burns and/or cuts.

• Do not touch frozen goods with wet hands! Do not eat ice-cream and ice cubes

immediately after you have taken them out of the freezer department!

• Do not re-freeze frozen goods after they have melted. This may cause health issues

like food poisoning.

• Do not cover the body or top of fridge with lace. This affects the performance of your fridge.

• Fix the accessories in the fridge during transportation to prevent damage to accessories.

Installing and operating your fridge

Before starting to use your fridge, you should pay attention to the following points:

• Operating voltage for your fridge is 220-240 V at 50Hz.

• We do not take the responsibility of the damages that occur due to ungrounded usage.

• Place your fridge in a place that it would not be exposed to direct sunlight.

• Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores,

and should be at least 5 cm away from electrical ovens.

• Your fridge should never be used outdoors or left under the rain.

• When your fridge is placed next to a deep freezer, there should be at least

2 cm between them to prevent humidity on the outer surface.

• Do not place anything on your fridge, and install your fridge in a suitable

place so that at least 15 cm is available on the upper side.

• The adjustable front legs should be adjusted to make sure your appliance

is level and stable. You can adjust the legs by turning them clockwise (or in the opposite

direction). This should be done before placing food in the fridge.

• Before using your fridge, wipe all parts back with warm water added with a tea spoonful

of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after

cleaning.

If your refrigerator has a fan condenser:

The condenser of your fridge is placed at the bottom of cabinet. As a result of that, details

that arranges the distance between the refrigerator and the back wall at where you place the

fridge, exist at the cover of the bottom of cabinet. You can move the fridge towards the back

wall until that point.

Plastic for distance setting

EN -6-

If your fridge doesn’t have a fan condenser, in other words, back side of your fridge

is like below:

• Install the plastic distance guide (the part with black vanes

at the rear) by turning it 90° as shown in the gure to

prevent the condenser from touching the wall.

• Refrigerator should be placed against a wall with a free

distance not exceeding 75 mm.

Before Using your Fridge

• When it is operated for the rst time or after transportation, keep your

fridge in the upright position for 3 hours and plug it on to allow efcient

operation. Otherwise, you may damage the compressor.

• Your fridge may have a smell when it is operated for the rst time; the smell will fade

away when your fridge starts to cool.

EN -7-

PART - 2. THE VARIOUS FUNCTION AND POSSIBILITIES

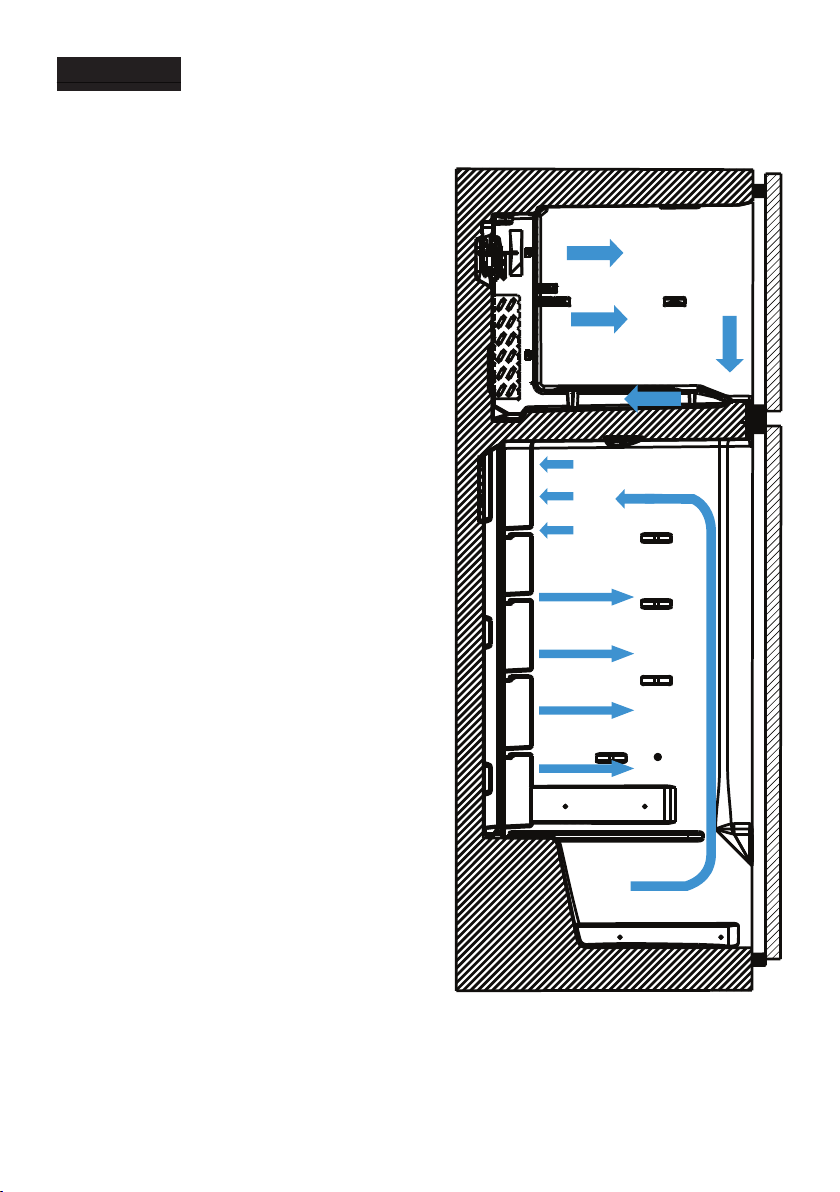

Information about New Generation Cooling Technology

Fridges with new generation cooling technology

have a different working system than static fridges.

In normal fridges, humid air that enters into fridge

and the water vapor that comes out from the foods,

accumulates frost formation in freezer compart-

ment. In order to melt this frost, in other words

defrost, the fridge has to be stopped. During the

stopping period, to keep the foods cold, user has

to extract the food to outside of fridge and user

has to clear the ice during this period.

In the fridges with new generation cooling tech-

nology, situation in the freezer compartment is

completely different. With the aid of fan, cold and

dry air is blown out through many points into the

freezer compartment. As a result of the homoge-

nously blown cold air, even in the spaces between

shelves, foods are frozen equally and correctly.

On the other hand there will be no frost formation.

In the refrigerator compartment, there will be

nearly same conguration with freezer compart-

ment. Air, that is emitted with the fan, located at

the top of refrigerator compartment, is cooled while

passing through the gap behind the air duct. At the

same time, air is blown out through the holes on

the air duct so that cooling process is successfully

completed in the refrigerator compartment. Holes

on the air duct are designed such that the air distri-

bution becomes homogenous in this compartment.

As there is no air passage between freezer and

refrigerator compartment, there will be no odor

mixing.

As a result of these, your fridge with new genera-

tion cooling technology, gives you, ease of use

beside the huge volume and esthetic appearance.

EN -8-

Thermostat Setting

Freezer and refrigerator thermostat automatically regulates the inside temperature of the

compartments. By rotating the knob from position 1 to 5, colder temperatures can be obtained.

In cold seasons, you can set lower positions in order to decrease the energy consumption.

Thermostat level;

1 – 2 : For short-term storage of food in the freezer compartment, you can set the knob

between minimum and medium position.

3 – 4 : For long-term storage of food in the freezer compartment, you can set knob

medium position.

5 – MAX : For freezing the fresh food. Th appliance will work longer. After you get the cold

condition you must position to its original position.

Warnings about Temperature

Adjustments

• Temperature adjustments should be

made according to the frequency of

door openings and the quantity of

food kept inside the fridge.

• This fridge is designed to work in all

ambient temperature. In the ambi-

ent temperatures colder than -5 oC,

preserving food in the refrigerator

compartment isn’t suggested be-

cause the foods that you put into

refrigerator compartment, will have

a temperature close to ambient

temperature. Consequently, they will

freeze. You can keep your foods until

-5 oC in refrigerator compartments.

With the aid of special algorithm that

is designed by engineers, foods can

be preserved in the freezer compart-

ment, colder than -5 oC ambient

temperature.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Zanussi Kühlschrank Handbücher

Zanussi

Zanussi ZD21/6R Bedienungsanleitung

Zanussi

Zanussi ZXAK82FR Bedienungsanleitung

Zanussi

Zanussi ZWAN82ES Bedienungsanleitung

Zanussi

Zanussi 726453 Bedienungsanleitung

Zanussi

Zanussi ZRA33103WA Bedienungsanleitung

Zanussi

Zanussi ZRG15800WA Bedienungsanleitung

Zanussi

Zanussi ZRB34315WA Bedienungsanleitung

Zanussi

Zanussi ZI 1612 Bedienungsanleitung

Zanussi

Zanussi ZBA 6190 Bedienungsanleitung

Zanussi

Zanussi Z 18/8 K Bedienungsanleitung

Zanussi

Zanussi ZRW106N Bedienungsanleitung

Zanussi

Zanussi Z16/12R Bedienungs- und Sicherheitshinweise

Zanussi

Zanussi 12R-Z21 Bedienungs- und Sicherheitshinweise

Zanussi

Zanussi ZBB6284 Bedienungsanleitung

Zanussi

Zanussi ZFC 85 L Bedienungsanleitung

Zanussi

Zanussi Z1175 TPR Bedienungsanleitung

Zanussi

Zanussi ZRG614SW Bedienungsanleitung

Zanussi

Zanussi ZRX51100WA Bedienungsanleitung

Zanussi

Zanussi ZCR 85 L Bedienungsanleitung

Zanussi

Zanussi ZXC 60/25 Bedienungsanleitung

Zanussi

Zanussi ZRB36104WA Bedienungsanleitung

Zanussi

Zanussi ZTB2000A-A Bedienungsanleitung

Zanussi

Zanussi ZRG16602WA Bedienungsanleitung

Zanussi

Zanussi ZBB47460DA Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
