ZBT ZBT-WE826 Bedienungsanleitung
Zhibotong(ShenZhen)Electronics CO., Ltd
Manual
Mode ： ZBT-WE826
Producer ：Wireless Router
Remark：
ZBT reserves the right to revise this publication and to make changes in the content hereof
without obligation to notify any person or organization of such revisions or changes. Any update
please browse http://www.zbt-china.com
All copyrights reserved. No reproduction by any means is allowed without
acknowledgement
Zhibotong(ShenZhen)Electronics CO., Ltd
Table of Contents
1. Product Overview
1.1 Simply Description………………………………………………………………
1.2 Main Feature.……………………………………………………………………
1.3 Specification……………………………………………………………………
2. Hardware Description
2.1 Product Appearance……………………………………………………………
2.1.1 Front Panel………………………………………………………………………………
2.1.2 Back Panel………………………………………………………………………………
2.2 Reboot……………………………………………………………………………
2.3 System Requirements…………………………………………………………
2.4 Install Condition…………………………………………………………………
3. TCP/IP Setting
4. Configuration Guide
4.1 Start and Login …………………………………………………………………
4.2 Status………………………………………………………………………………
4.2.1 Overview…………………………………………………………………………………
4.2.2 Firewall…………………………………………………………………………………
4.2.3 Routing List ……………………………………………………………………………
4.2.4 System Log ……………………………………………………………………………
4.2.5 Kernel Log………………………………………………………………………………
4.2.6 Processes………………………………………………………………………………
4.2.7 Realtime Graphs…………………………………………………………………………
4.3 System……………………………………………………………………………
4.3.1 System……………………………………………………………………………………
4.3.2 Administration…………………………………………………………………………
4.3.3 Software…………………………………………………………………………………
4.3.4 Startup……………………………………………………………………………………
4.3.5 Schedule Tasks…………………………………………………………………………
4.3.6 Mount Points, LED Configuration……………………………………………………
4.3.7 Backup/Flash Firmware…………………………………………………………………
4.3.8 Reboot………………………………………………………………………………………
Zhibotong(ShenZhen)Electronics CO., Ltd
4.4 Service……………………………………………………………………………
4.4.1 Dynamic DNS……………………………………………………………………………
4.5 Network……………………………………………………………………………
4.5.1 Interfaces ………………………………………………………………………………
4.5.2 Wireless……………………………………………………………………………………
4.5.3 DHCP/DNS、Hostnames, Static Routes………………………………………………
4.5.4 Firewall……………………………………………………………………………………
4.5.5 QOS ………………………………………………………………………………………
4.6 Log Out……………………………………………………………………………
4.7 Flash Firmware……………………………………………………………………
5.FAQ ……………………………………………………………………………………
Zhibotong(ShenZhen)Electronics CO., Ltd
1. Product Overview
1.1 Simply Description
ZBT-WE826 provide an easy way to expend your wired Ethernet to wireless. It work
well on gateway, and you could configure it via Web. It could meet both enterprise and the
home’s requirements economically, its user could browser the internet and time and anywhere.
It has multi-function ,highly-perfomance and easy install. Will be your best choice to build your
own WLAN. About the wireless security, WE826 provide multi-protection, support unable SSID
broadcast , also provide 64/128/152 bit WEP encryption , support for WPA / WPA-PSK,
WPA2/WPA2-PSK security mechanism , in order to protect your data .Comply with 802.11n/
802.11g/ 802.11b/ 802.113/802.113u standard has 300Mbps , Our smart antenna management,
makes the ZBT-WE826 performs much better than other similar product in WiFi transmission
distance, perfectly compitable with other network device.
1.2 Features and Specification
1.2.1 Main Features
Provide 5 10M/100M Ethernet ports
DHCP server
Support RTS/CTS protocol , ensure the communication quality
Roaming technology , efficient wireless connect
DHCP serve static IP address
Web manage
1.2.2 Specification
Comply with 802.11n/802.11g/802.11b/802.113/802.113u standard
Support TCP/IP、DHCP、ICMP protocol
Auto MDI/MDIX port
Indictor LED, power adapter(12V 1A)
Work temperature 0℃- 40℃
Operating Humidity：10%~90% non-condensing
2. Hardware Description
2.1 Panel Layout
2.1.1 Front Panel
Zhibotong(ShenZhen)Electronics CO., Ltd

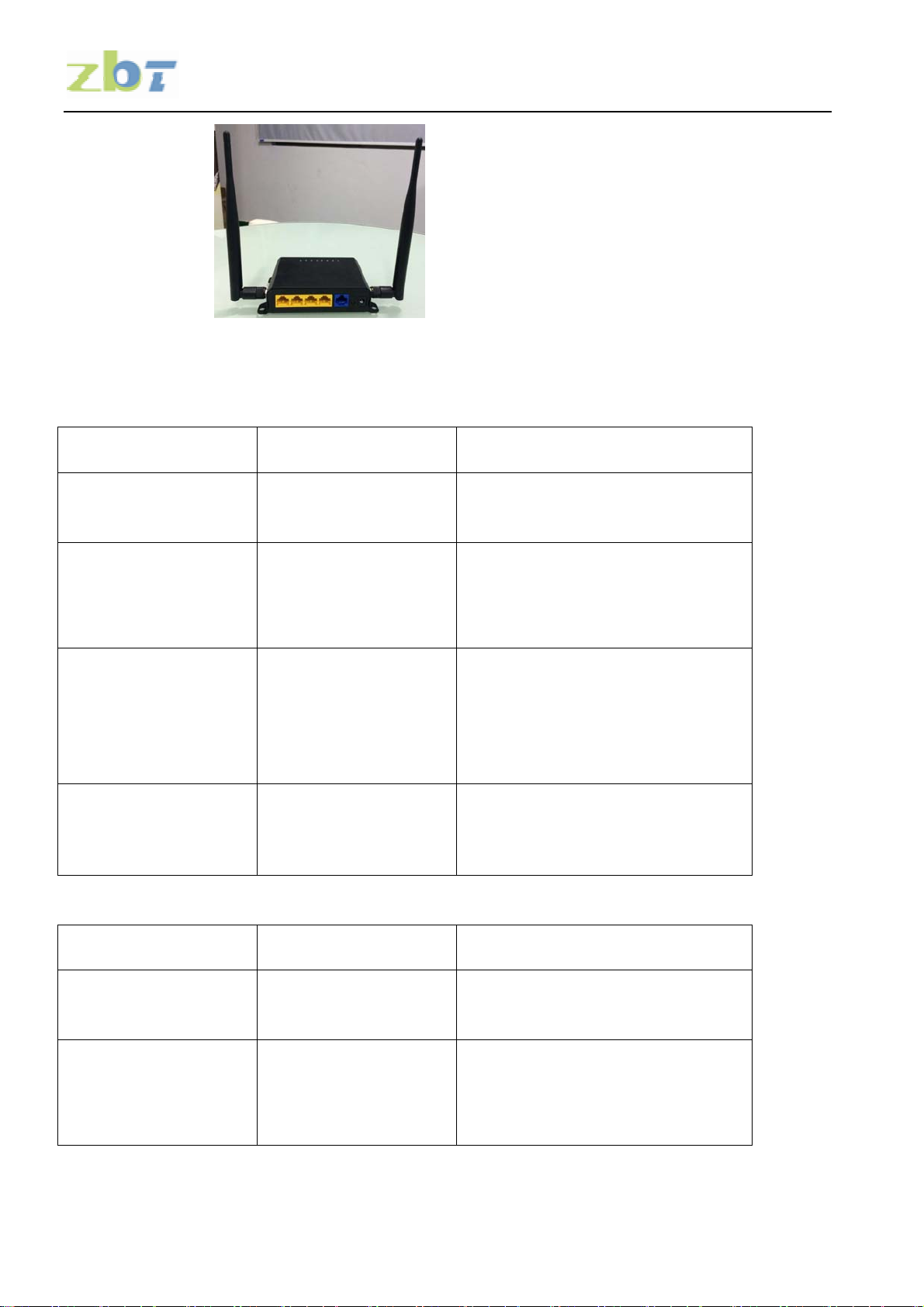

Pic 2-1 Front Panel
Indictor LED (Will adjust with the specific mode)
Indictor LED Description Function
POWER Power LED Keep ON - Power in
Keep Off - No Power
Mode or USB Mode or USB LED Flashing - Mode or USB work
Keep Off - Mode or USB not work
LAN LAN LED
On - The relevant port connect
Off - No connect to the relevant
port
Flashing- Data transmission on
the relevant port
WLAN Wifi LED Off - Wireless function unable
On - Wireless function enable
Interface((Will adjust with the specific mode)
Interface Description Function
USB USB2.0 Port External USB device or USB net
card
Micro SD(TF) Micro SD(TF) slot External Micro SD card slot, data
exchange
2.1.2 Back Panel
Zhibotong(ShenZhen)Electronics CO., Ltd

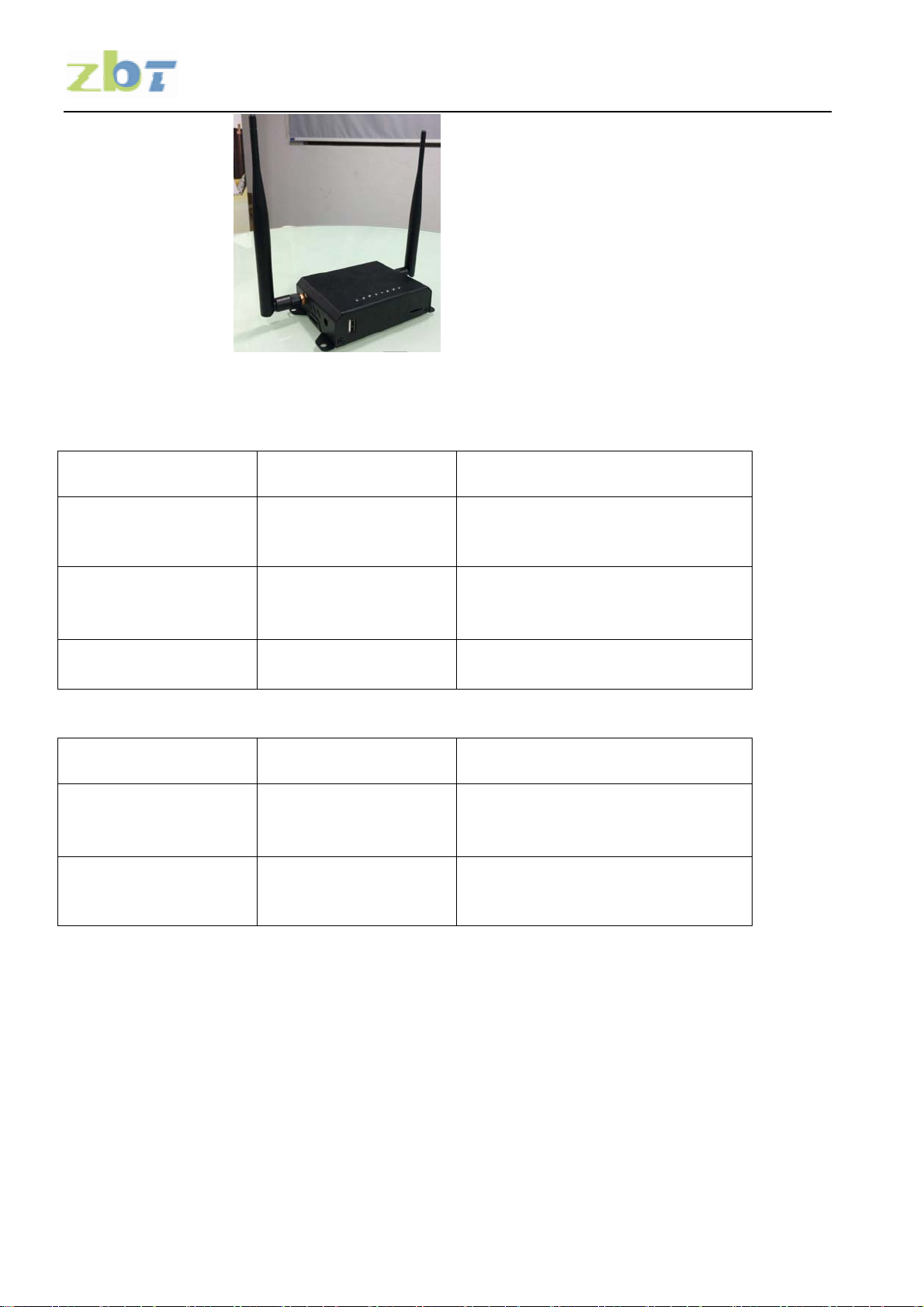

Pic 2-2 Back Panel
Port(Will adjust with the specific mode)
Port Description Function
DC Power Port Connect the supplied power
adapter.
LAN LAN Port (RJ45) Connect to the devices in the
LAN, such as HUB, switches or
PC
WAN WAN Port (RJ45) Connect to the WAN device, data
exchange with the internet
Button(Will adjust with the specific mode)
Button Description Function
REST/WPS REST/WPS
Multi-function button
Rest: Press for 8 seconds
WPS: Press one times.
Antenna 2* 5Dbi omni antenna Wireless data transfer and
receive
2.2 Rest
If you want to rest to the factory default settings, please refer the below steps
1) To plug the power adapter.
2) When the router works normally, press the REST/WPS button for 8 seconds.
3) All the router’s LEDs will off and then on again, wait until it work normally.
4) When above 3 steps done, the router will rest to the factory default setting.
Warming:
Before steps finishing, don’t cut the power off, or it will break your router.
2.3 System Requirements.
Zhibotong(ShenZhen)Electronics CO., Ltd
Network card and Ethernet cable
TCP/TP net software (Windows 95 or higher version has pre-install)
IE 5.0 or higher version
2.4 Install Condition
When you install the router, please refer the below
Put the device horizontally
Keep away from any heat device
Do not put it in some place which is too dirty or too humidity.
Remark:
The environment will effect the transfer distance , recommend using environment:
Temperature: 0~40℃℃ ,Humidity: 10%~95% RH
3. TCP/IP Configuration
Before using the device, you need to configure the network correctly, this manual is based
on the Windows 2000/XP, the IP of the device is 192.168.1.1 , subnet mask is 255.255.255.0 .
Firstly, connect your PC to the LAN port, and then you can configure the IP of your PC in 2
ways.
Set the IP
Set your PC’s IP as 192.168.1.xxx(xxx could be any number in 2~254), subnet mask
to be 255.255.255.0 , default gateway 192.168.1.1 , DNS server 192.168.1.1
Auto set the IP by the DHCP server.
Set the TCP/IP to “automatically get IP address”, after setting , you could use the
Ping command to check if the device has connected to the PC. For an example, in

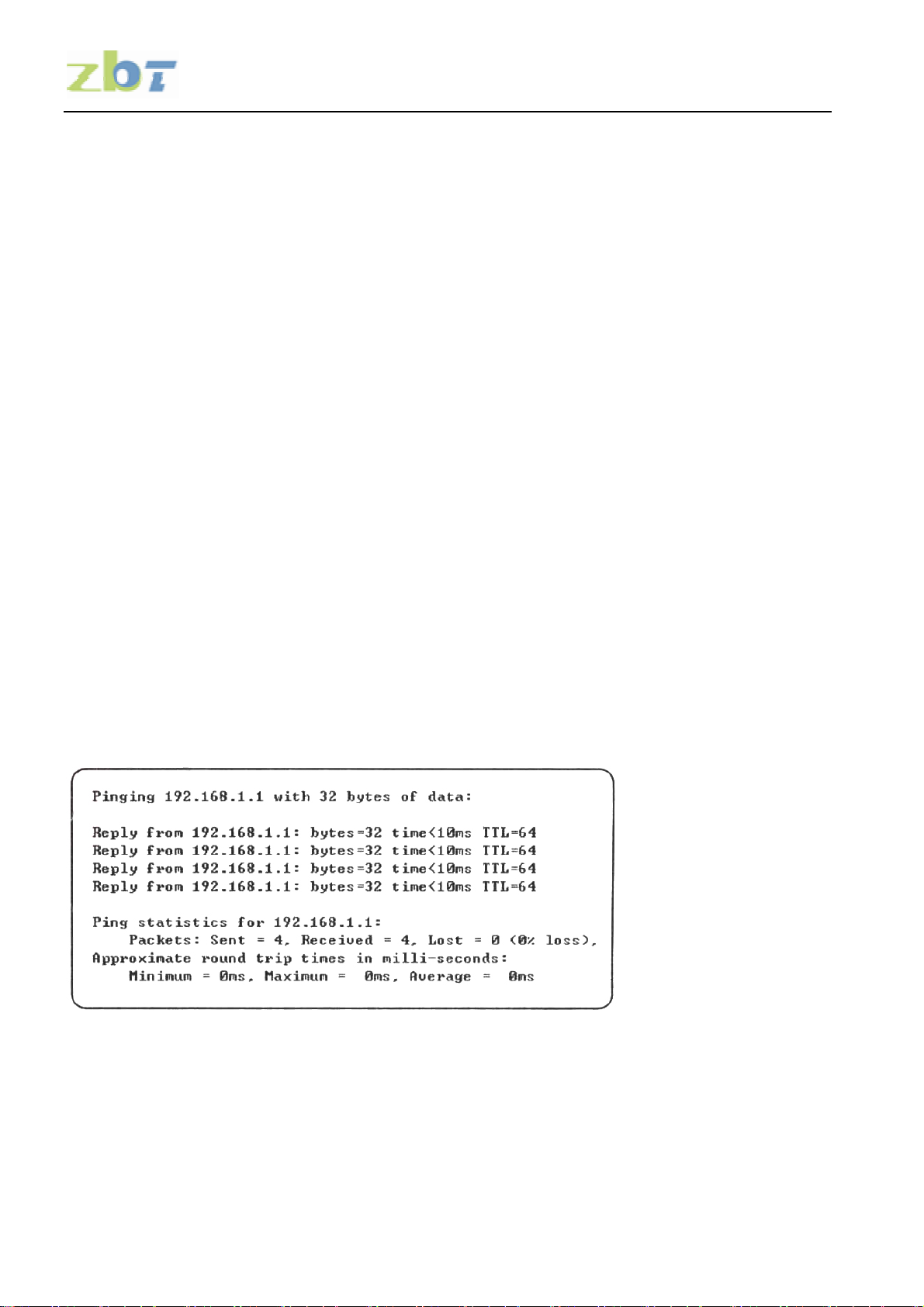

Windows 2000, run the cmd.exe , and the enter ping 192.168.1.1 If the screen shows as
the below, means OK, the device connected to the PC.

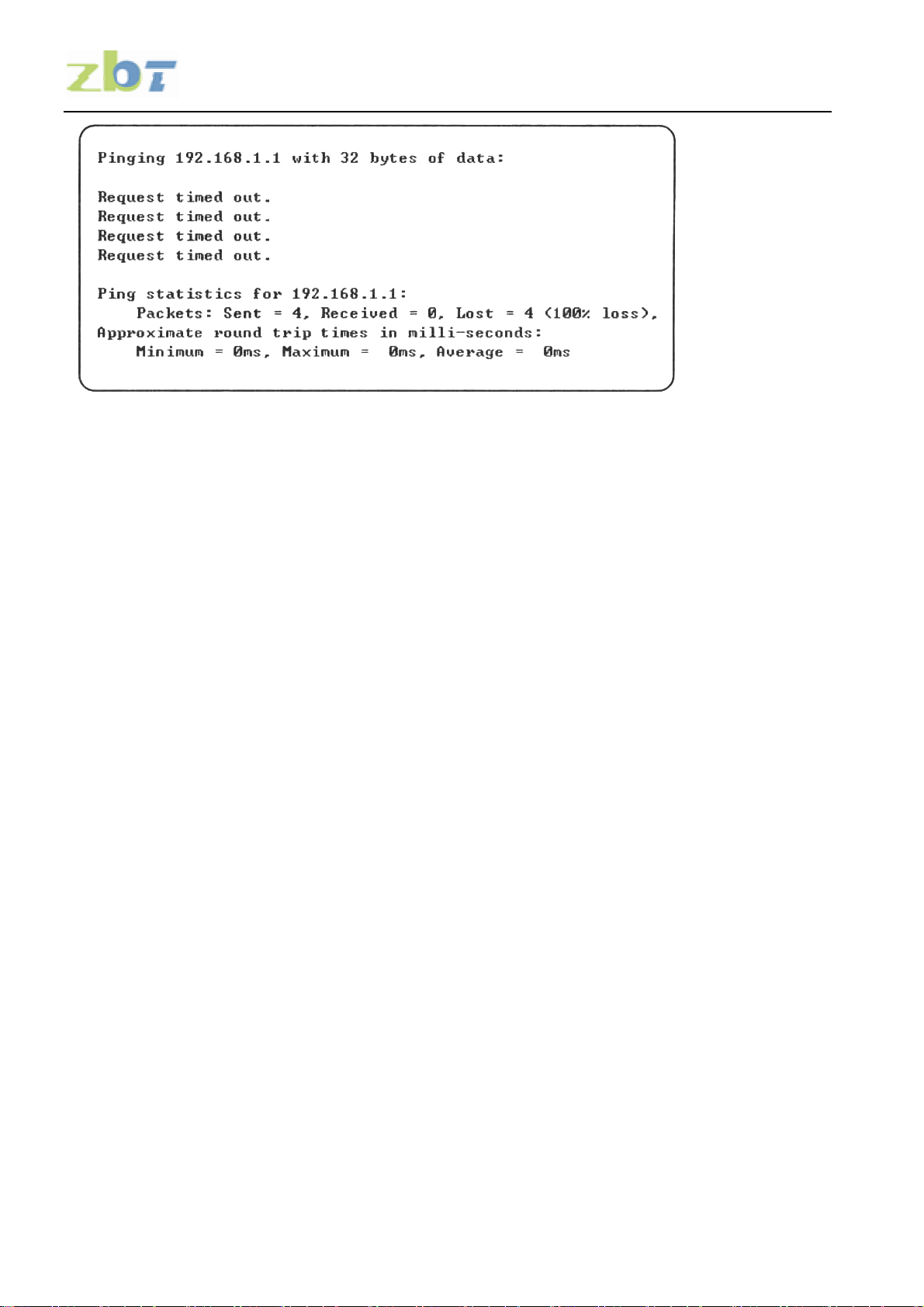

If it shows as below, it means fail
Zhibotong(ShenZhen)Electronics CO., Ltd
When it fails to connect, you could check as below.
1)：If the hardware connect in right way?
>>The relevant LED to the PC must be on
2)：If your PC’s TCP/IP sets right?
>>If the IP of the device is 192.168.1.1 , your PC’s IP must be 192.168.1.xxx(xxx should
be 2~253)
4. Configuration Guide
4.1 Start and Login
The router provide the UI based on the IE, this solution could work in any MS Windows,
Macintosh or UNIX system . Run the browser, unable the VPN (if the VPN is working) , and then
input the 192.168.1.1 in browser. After doing that, you will see the login page, you should enter it
as the administer, which means you should enter the username: root /Password: admin , and
then click the “log in”
The system of the ZBT-WE826 is OpenWrt
Zhibotong(ShenZhen)Electronics CO., Ltd

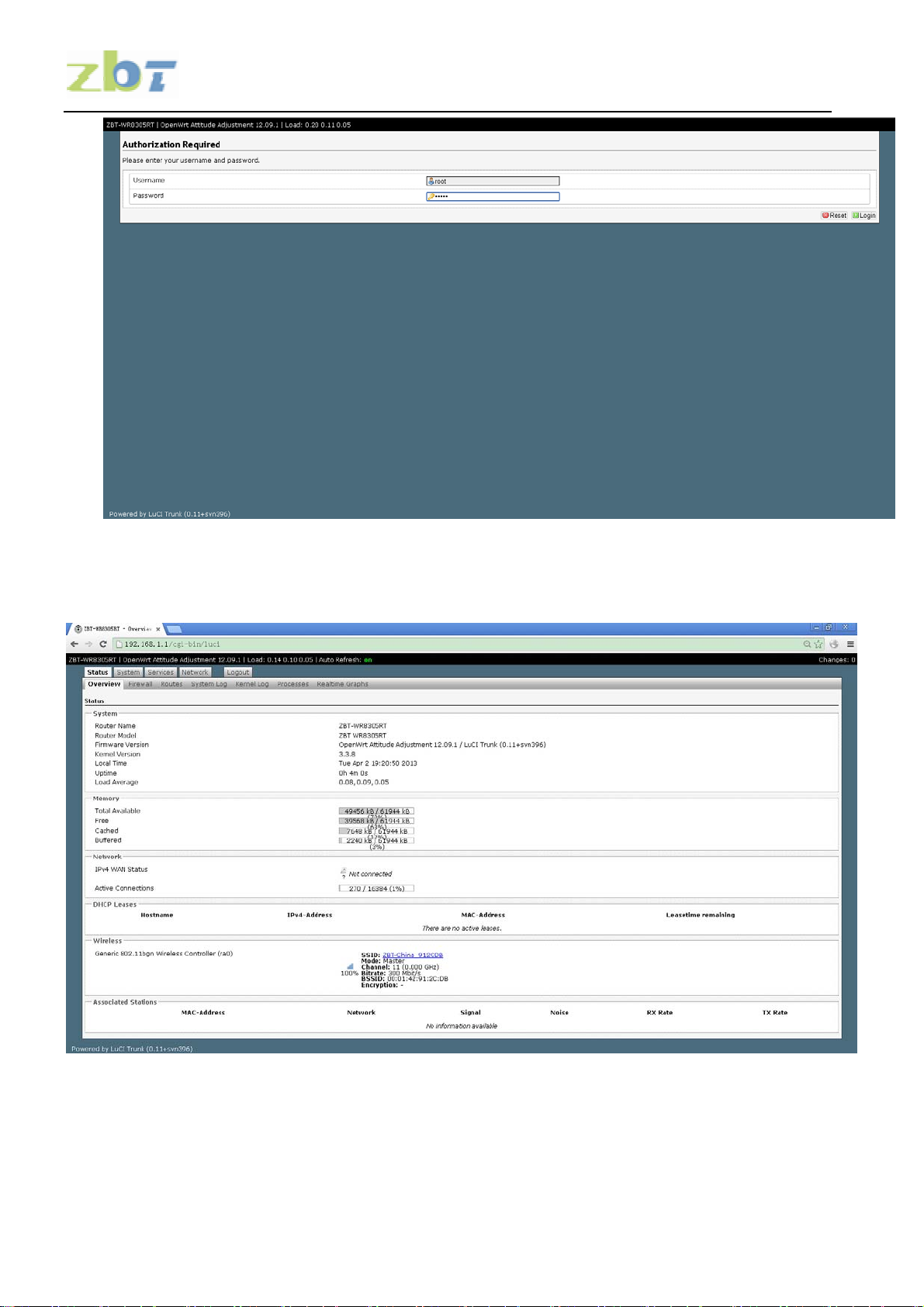

4-1 Log in webpage
When everything goes well, the browser will show as the 4-2. There are several tag, click
some tag, you could configure relevant function settings.
4-2
I will explain each menu.
4.2 us
4.2.1 Overview
Zhibotong(ShenZhen)Electronics CO., Ltd

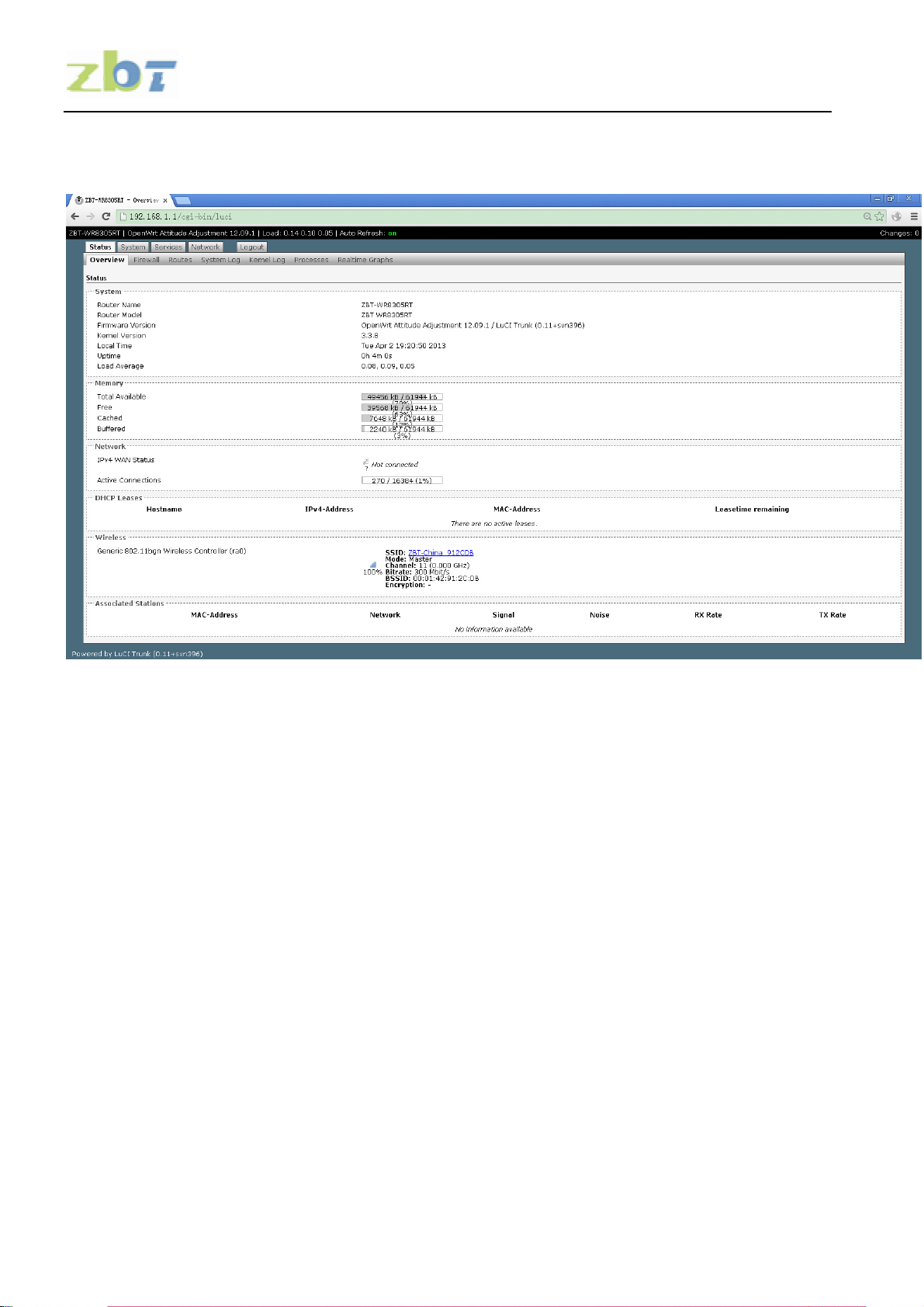

Click the “Overview” You could check the running information, included system
information, Memory, network, DHCP leases, wireless and associate stations, as 4.2.1
4.2.1 Status
System: Router name, Router model, Firmware version, Kernel version, Local Time, Uptime,
Load average.
Memory: Total available , Free, Caches, Buffered
Network: The connection status of the WAN port.
DHCP Leases: Show the IP address ,MAC, and the Lease time
Wireless: It is about the wireless status , will included SSID, Mode, Work Channel, Bitrates,
the MAC of the wireless interface , the Encryption of the transmission.
Associate: Shows the status of all the device connect to the router via Wireless
4.2.2 Firewall
Click the firewall tag, you could check the firewall status of the device
