Zephyr Essentials ZAN-E30CS Installationsanleitung

Use, Care, and Installation Guide

Model Number:

Serial Number:

www.zephyronline.com

ZRO-E30DS

ZRO-M90DS

FEB17.0201 © Zephyr Ventilation LLC.

ZRV-E30BGC ZRV-M90BGC

ZRV-E30BGG ZRV-M90BGG

ZRV-E30BBSGG ZRV-M90BBSGG

ZAN-E30CS ZAN-E30CBS

ZAN-M90CS ZAN-M90CBS

ZSA-E30DB ZSA-E30DW

ZSA-E30DS ZSA-E30DBS

ZSA-M90DB ZSA-M90DW

ZSA-M90DS ZSA-M90DBS

www.zephyronline.com

SAFETY NOTICE................................................................. 2-3

LIST OF MATERIALS....................................................... 4

INSTALLATION

Ducting Calculation Sheet....................................... 5

Mounting Height & Clearance................................ 6

Ducting Options........................................................... 7

+RRG6SHFL¿FDWLRQV................................................... 8 - 11

Mounting the Hood..................................................... 12

Ductless Recirculating.............................................. 13

FEATURES & CONTROLS

ICON Touch Controls................................................ 14 - 15

MAINTENANCE

Hood and Filter Cleaning......................................... 16

ACT CONVERSION..................................................................... 17

WIRING DIAGRAMS................................................................... 18

FAN CURVE DIAGRAMS......................................................... 19 - 20

TROUBLESHOOTING................................................................ 21

LIST OF PARTS AND ACCESSORIES.............................. 22

WARRANTY.................................................................................... 23

PRODUCT REGISTRATION.................................................... 24

Table of Contents

Important Safety Notice

READ AND SAVE THESE INSTRUCTIONS

www.zephyronline.com

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE.

WARNING

TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

a. Use this unit only in the manner intended by the manufacturer, if you have questions, contact the manufacturer.

b. Before servicing or cleaning unit, switch power off at service panel and lock panel to prevent power from being switched on accidentally.

When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service

panel.

CAUTION

For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors. Take care when using cleaning

agents or detergents. Suitable for use in household cooking area.

WARNING

TO REDUCE THE RISK OF RANGE TOP GREASE FIRE:

a. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly

on low or medium settings.

E $OZD\VWXUQKRRG21ZKHQFRRNLQJDWKLJKKHDWRUZKHQÀDPLQJIRRG

F &OHDQYHQWLODWLQJIDQVIUHTXHQWO\*UHDVHVKRXOGQRWEHDOORZHGWRDFFXPXODWHRQIDQRU¿OWHU

d. Use proper pan size. Always use cookware appropriate for the size of the surface element.

H .HHSIDQ¿OWHUVDQGJUHDVHODGHQVXUIDFHVFOHDQ

f. Use high setting on hood only when necessary.

g. Don’t leave hood unattended when cooking.

h. Always use cookware and utensils appropriate for the type of and amount of food being prepared.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP FIRE, OBSERVE THE FOLLOWING:

D 6027+(5)/$0(6ZLWKDFORVH¿WWLQJOLGFRRNLHVKHHWRUPHWDOWUD\WKHQWXUQRIIWKHEXUQHU%(&$5()8/7235(9(17%8516

,IWKHÀDPHVGRQRWJRRXWLPPHGLDWHO\(9$&8$7($1'&$//7+(),5('(3$570(17

b. NEVER PICK UPA FLAMING PAN – You may be burned.

c. DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.

d. Use an extinguisher ONLY if:

1. You know you have a Class ABC extinguisher, and you already know how to operate it.

 7KH¿UHLVVPDOODQGFRQWDLQHGLQWKHDUHDZKHUHLWVWDUWHG

 7KH¿UHGHSDUWPHQWLVEHLQJFDOOHG

 <RXFDQ¿JKWWKH¿UHZLWK\RXUEDFNWRDQH[LW

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

D ,QVWDOODWLRQZRUNDQGHOHFWULFDOZLULQJPXVWEHGRQHE\TXDOL¿HGSHUVRQVLQDFFRUGDQFHZLWKDOODSSOLFDEOHFRGHVDQGVWDQGDUGV

,QFOXGLQJ¿UHUDWHGFRQVWUXFWLRQ

E 6XI¿FLHQWDLULVQHHGHGIRUSRZHUFRPEXVWLRQDQGH[KDXVWLQJRIJDVHVWKURXJKWKHÀXHFKLPQH\RIIXHOEXUQLQJHTXLSPHQWWRSUHYHQW

back-drafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National

)LUH3URWHFWLRQ$VVRFLDWLRQ1)3$DQGWKH$PHULFDQ6RFLHW\IRU+HDWLQJ5HIULJHUDWLRQDQG$LU&RQGLWLRQLQJ(QJLQHHUV$6+5$(DQG

the local code authorities.

c. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

d. Ducted fans must always vent to the outdoors.

e. NEVER place a switch where it can be reached from a tub or shower.

f. Make sure the power is off before installing, wiring or maintenancing.

Important Safety Notice

WARNING

TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

CAUTION

7RUHGXFHULVNRI¿UHDQGWRSURSHUO\H[KDXVWDLURXWVLGH'RQRWYHQWH[KDXVWDLULQWRVSDFHVZLWKLQZDOOVFHLOLQJV

attics, crawl spaces or garages.

Not for use over an outdoor grill.

OPERATION

$OZD\VOHDYHVDIHW\JULOOHVDQG¿OWHUVLQSODFH:LWKRXWWKHVHFRPSRQHQWVRSHUDWLQJEORZHUVFRXOGFDWFKRQWRKDLU¿QJHUV

and loose clothing.

The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation,

maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to

negligence and the warranty of the unit automatically expires due to improper maintenance.

*NOTE: Please check www.zephyronline.com for revisions before doing any custom work.

ELECTRICAL REQUIREMENTS

Important:

Observe all governing codes and ordinances.

It is the customer’s responsibility:

 7RFRQWDFWDTXDOL¿HGHOHFWULFDOLQVWDOOHU

- To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70

latest edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and

all local codes and ordinances.

,IFRGHVSHUPLWDQGDVHSDUDWHJURXQGZLUHLVXVHGLWLVUHFRPPHQGHGWKDWDTXDOL¿HGHOHFWULFLDQGHWHUPLQHWKDWWKH

ground path is adequate.

Do not ground to a gas pipe.

&KHFNZLWKDTXDOL¿HGHOHFWULFLDQLI\RXDUHQRWVXUHWKHUDQJHKRRGLVSURSHUO\JURXQGHG

Do not have a fuse in the neutral or ground circuit.

*National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269

** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575

This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit

protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to

Electrical Diagram on product.

$FDEOHORFNLQJFRQQHFWRUQRWVXSSOLHGPLJKWDOVREHUHTXLUHGE\ORFDOFRGHV&KHFNZLWKORFDOUHTXLUHPHQWVSXUFKDVH

and install appropriate connector if necessary.

www.zephyronline.com

(3) Wire Nuts

(2) M6 x 1-1/2” (3) M6 x 1” (2) M4 x 8

PARTS NOT SUPPLIED

- Ducting, conduit and all installation tools

- Cable connector (if required by local codes)

- Extension duct cover accessory

- Recirculating kit accessory

HARDWARE PACKAGE CONTENTS

PARTS SUPPLIED

1 - Hood with internal blower

1 - Duct cover wall bracket

1 - Duct cover assembly (top and bottom)

1 - 6” round backdraft damper (pre-installed)

2 - Aluminum mesh filters (ZRV x 1)

1 - Hardware package

(4) 3/16 x 1/4 pan-head

machine screws

(ZRV ONLY)

List of Materials

Duct pieces To t a l

Equivalent number

length x used =

3-1/4” x 10”

Rect.,

straight

1 Ft. x ( ) = Ft.

3-1/4” x 10”

Rect.to

6” round

transition

5 Ft. x ( ) = Ft.

3-1/4” x 10”

Rect.to

6” round

transition

900 elbow

20 Ft. x ( ) = Ft.

6”, 7”, 8”, 10”

Round,

900

15 Ft.

x ( ) = Ft.

6”, 7”, 8”, 10”

Round,

450

9 Ft. x ( ) = Ft.

Ft.

6”, 7”, 8”, 10”

Round,

straight

1 Ft. x ( ) = Ft.

Subtotal column1 =

Duct pieces To t a l

Equivalent number

length x used =

6”, 7”, 8”, 10”

Round, wall

cap with

damper

30 Ft. x ( ) = Ft.

Ft.

6”, 7”, 8”, 10”

Round

roof cap

30 Ft. x ( ) = Ft.

Subtotal column2 =

Subtotal column1 =

Total ductwork =

MaximumDuct Length:For satisfactory air movement,

the total duct length

should not exceed 100 equivalent feet.

6” roundto

3-1/4” x 10”

rect.

transition

1 Ft. x ( ) = Ft.

6” roundto

3-1/4” x 10”

rect.

transition

900 elbow

16 Ft. x ( ) = Ft.

7” roundto

3 1/4” x 10”

rect.

transition

8 Ft. x ( ) = Ft.

7” roundto

3-1/4” x 10”

rect.

transition

900 elbow

23 Ft. x ( ) = Ft.

elbow

7” to 6” or

8” to 7” Round

tapered

reducer

25 Ft. x ( ) = Ft.

3-1/4” x 10”

Rect.900

elbow

15 Ft. x ( ) = Ft.

3-1/4” x 10”

Rect.450

elbow

9 Ft. x ( ) = Ft.

3-1/4” x 10”

Rect.900

flat elbow

24 Ft. x ( ) = Ft.

3-1/4” x 10”

Rect.

wallcap

with damper

30 Ft. x ( ) = Ft.

Ft. x ( ) = Ft.

6”, 7“, 8”

Round

in-line

damper

Installation – Ducting Calculation Sheet

Installation – Mounting Height & Clearance

www.zephyronline.com

DUCTING

A minimum of 6” round duct must be used to

PDLQWDLQPD[LPXPDLUÀRZHI¿FLHQF\

Always use rigid type metal ducts only. Flexible

GXFWVFRXOGUHVWULFWDLUÀRZE\XSWR

Use calculation worksheet to compute total duct

ZRUN3DJH

ALWAYS, when possible, reduce the number of

transitions and turns. If a long duct run is required,

increase duct size from 6” to 7” or 8”.

If turns or transitions are required: Install as far

away from duct opening and as far apart between

the two transitions as possible.

Minimum mount height between range top to hood

bottom should be no less than 26”.

Maximum mount height should be no higher than

34”.

It is important to install the hood at the proper

mounting height. Hoods mounted too low could

UHVXOWLQKHDWGDPDJHDQG¿UHKD]DUGZKLOHKRRGV

mounted too high will be hard to reach and will

ORRVHSHUIRUPDQFHDQGHI¿FLHQF\

If available, also refer to range manufacturer’s

height clearance requirements and recommended

hood mounting height above range. Always check

your local codes for any differences.

Duct cover extension kit available for ceiling

heights up to 12 feet. Turn to page 22 for part

number and ordering information.

DAMAGE-SHIPMENT / INSTALLATION:

 3OHDVHIXOO\LQVSHFWXQLWIRUGDPDJHEHIRUH

installation.

 ,IWKHXQLWLVGDPDJHGLQVKLSPHQWUHWXUQWKH

unit to the store in which it was bought for

repair or replacement.

 ,IWKHXQLWLVGDPDJHGE\WKHFXVWRPHUUHSDLU

or replacement is the responsibility of the

customer.

 ,IWKHXQLWLVGDPDJHGE\WKHLQVWDOOHULIRWKHU

WKDQWKHFXVWRPHUUHSDLURIUHSODFHPHQWPXVW

be made by arrangement between customer

and installer.

26” min.

34” max.

min. A

min. B

max. C

min. D

min. E

max. F

36”

ZAN ZSA ZRV ZRO

Standard Duct Cover

Extension Duct Cover

ZAN ZSA ZRV ZRO

41”

45”

77”

103” (8’ 7”)

107” (8’ 11”)

147” (12’ 3”)

23”

27-1/2”

42-1/2”

85” (7’ 1”)

89-1/2” (7’ 5-1/2”)

112-1/2” (9’ 4-1/2”)

41”

46”

80”

103” (8’ 7”)

108” (9’)

150” (12’ 6”)

28”

32”

45”

90” (7’ 6”)

94” (7’ 10”)

115” (9’ 7”)

46”

50”

80”

150” (12’ 6”)

110” (9’ 2”)

112” (9’ 4”)

27”

31”

48”

89” (7’ 5”)

93” (7’ 9”)

118” (9’ 10”)

43”

47”

81”

105” (8’ 9”)

109” (9’ 1”)

151” (12’ 7”)

A : Minimum Ducted Hood Height

B : Minimum Recirculating Hood Height

C : Maximum Hood Height

D : Minimum Ducted Ceiling Height

E : Minimum Recirculating Ceiling Height

F : Maximum Ceiling Height

26-1/2”

30-1/2”

47-1/2”

88-1/2” (7’ 4-1/2”)

92-1/2” (7’ 8-1/2”)

117-1/2” (9’ 9-1/2”)

WARNING FIRE HAZARD

NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages.

All exhaust must be ducted to the outside, unless using the recirculating option.

Use single wall rigid metal ductwork only.

)DVWHQDOOFRQQHFWLRQVZLWKVKHHWPHWDOVFUHZVDQGWDSHDOOMRLQWVZFHUWL¿HG6LOYHU7DSHRU'XFW7DSH

Some Ducting Options

Installation – Ducting Options

Roof Pitch w/

Flashing & Cap

side wall cap

w/ gravity damper

Soffit or crawl space

(blower

housing)

ductless

recirculating

side wall cap

w/ gravity damper

(blower

housing)

www.zephyronline.com

Installation – +RRG6SHFL¿FDWLRQ=$1

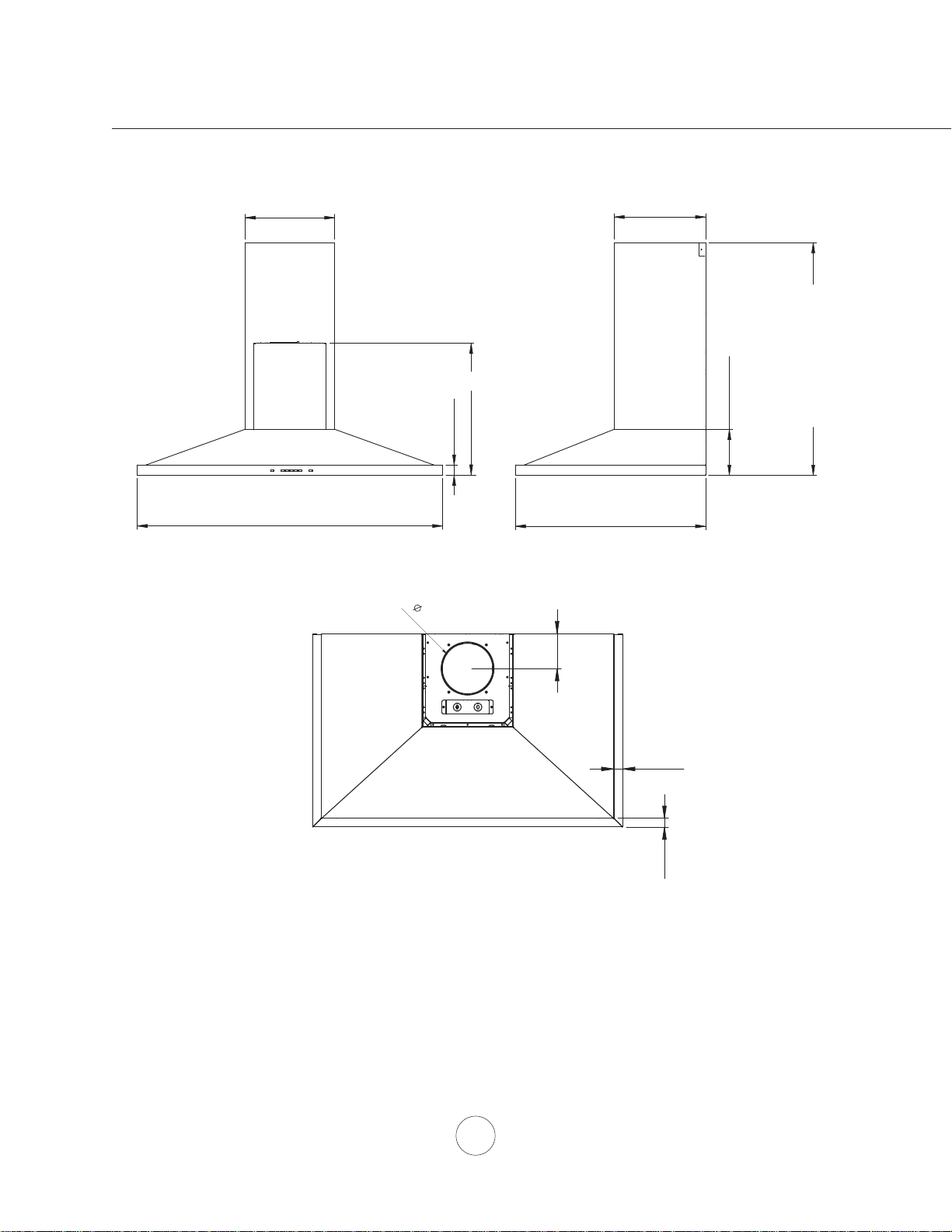

10 3/8”

1 3/16”

29 15/16”, 35 7/16”

10 5/8”

22 1/16”

5 5/16”

STANDARD

min. ducted - 27”

min. recirc. - 31”

max. - 48”

Z1C-00AN, Z1C-00ANBS

EXTENSIONS

min. ducted - 43”

min. recirc. - 47”

max. - 81”

18 7/16”
