CRANE 4

User Guide

ZHIYUN-EN-v1.00

Contents

■

■Product■List

Product■List■ ······················ 1

■

■Get■to■Know■CRANE 4

Get■to■Know■CRANE 4■ ················ 3

■

■Battery■and■Charging

Battery■and■Charging■·················· 4

■

■Mounting■and■Balancing

Mounting■the■Tripod■ ·················· 5

Mounting■the■Camera■·················· 5

Installing■TransMount■Wrist■Rest■2S■and■TransMount■Extendable■

Sling■Grip■2S■(hereinafter■referred■to■as■“Sling■Grip”■and■“Wrist■

Rest”■)■ ························ 10

Balancing■······················· 13

■

■How■to■Use■CRANE 4

Button■Description■··················· 15

Display■Screen■Description■■ ··············· 16

Icon■Description■ ···················· 17

Menu■Description■ ··················· 19

Motor■Torque■Adjustment■················ 23

Bluetooth■Shutter■Control■················ 24

Gimbal■Mode■Description■ ················ 25

Manual■Reposition■ ··················· 28

Use■with■TransMount■Video■Transmission■Transmitter■(AI)■

(hereinafterreferred■to■as■"transmitter■AI")■ ········· 29

■

■How■to■Use■the■App

Downloading■the■App■·················· 33

How■to■Connect■ ···················· 33

ZY■Play■Feature■Description■ ··············· 35

■

■Firmware■Upgrade■&■Calibration

Circumstances■When■Calibration■Is■Needed■ ········ 36

Six-side■Calibration■··················· 36

Motor■Fine-Tuning■ ··················· 38

Firmware■Upgrade■ ··················· 38

■

■Product■Specifications

■

■Disclaimer■and■Warning

Reading■Tips■ ····················· 43

WARNING■······················· 43

Safe■Operation■Guidelines■················ 44

■

■Warranty■Card

Warranty■Period■ ···················· 45

Warranty■Exclusions■ ·················· 45

Warranty■Claim■Procedure■················ 45

■

■Contact■Card

Product List

Before using this product, please check carefully that all the following items are included in the product

package. In case that any item is found missing, please contact ZHIYUN or your local selling agent.

CRANE 4 x1 Lower-layer Quick Release Plate x1

Tripod x1 Upper-layer Quick Release Plate x1

Lens Support x1

Lens Support Lock Screw x1 Camera Backing Base x1

Quick Start Guide x1 USB Type C Cable x1

Product List

Type-C to Mini USB LN-NBUC-A01

Camera Control Cable x1

Type-C to Micro USB LN-MBUC-A02

Camera Control Cable x1

Type-C to Type-C USB LN-UCUC-A02

Camera Control Cable x1

Type-C to Multi USB LN-UCUS-A03

Camera Control Cable x1

Fill Light Reflector x1 Storage Case x1

1/4" Screw x3x3

M4 Wrench x1* Sling Grip x1 *

Wrist Rest x1*

Items marked“*” are included in CRANE 4 COMBO.

Product List

Get to Know CRANE 4

1.Upper-layer Quick Release Plate

Lock Switch

2.Lower-layer Quick Release Plate

3.Upper-layer Quick Release Plate

Latch

4.Upper-layer Quick Release Plate

5.Quick Release Plate Latch

6.Level Mount

7.Camera Installation Latch

8.Quick Release Plate Safety Lock

9.Quick Release Plate Leveling Base

10.Quick Release Plate Leveling

Base

Latch

11.Pan Axis Latch

12.Pan Axis Motor

13.Joystick

14.Photo/Video Button

15.Mode Switch

16.Gimbal Base

17.Sling Grip/Phone Clamp

Installation Screw Hole

18.Tilt Axis Motor

19.Camera/Image Transmission

Control Port

20.Roll Axis Latch

21.Roll Axis Motor

22.Touchscreen

23.Gimbal Handle

24.Tripod

25.Tilt Axis Lock Switch

26.Focus Motor Control Port

27.Roll Axis Lock Switch

28.Level Mount Safety Lock

29.Pan Axis Lock Switch

30.Fill Light Control Wheel

盫

盬

盭

目盯

盰

盱盲盳盫盪

盫

盬

盫

盭

盫

目

盫

盯

盫

盰

盫

盱

盫盲

盫盳

盬盪

盬盫

盬盬

盬盭

盬目

盬盯

盬盰

盬盱

盬盲

盬盳

盭盪

盭盫

盭盬

盭盭

盭目

盭盯

盭盰

盭盱

盭盲

盭盳

目盪

目盫

31. Power Button

32. Wrist Rest Screw

Hole

33. Firmware Upgrade/

Charging Port

34. Fill Light

35.1/4" Threaded Hole

36. Lens Support

Get to Know CRANE 4

37.Quick Release Plate Leveling

Base Latch

38.Lens Support Lock Screw

39.Level Mount Lock Screw

40.Trigger Button

41.Adjustment Wheel

Battery and Charging

CRANE 4 adopts built-in battery. When using CRANE 4 for the first time, please activate the

gimbal by fully charging the battery to ensure the proper function of the gimbal.

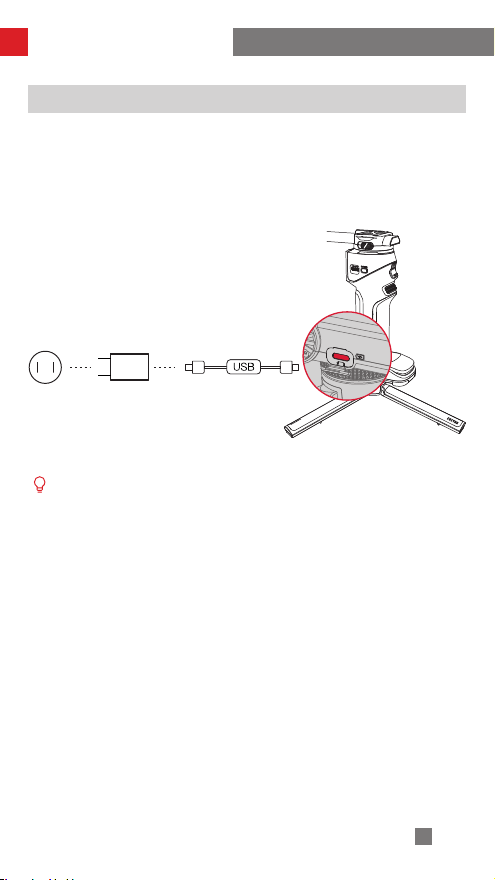

Charging method: Use provided USB Type-C cable to connect the USB charger (not

included in the package) to charge CRANE 4. It is recommended to use USB chargers that

meet the PD protocol. (supports 25W PD charging at most).

Battery and Charging

AC Power

（100-240V）

USB Chager

USB Type-C Cable

· USB charger is not provided.

· Please power off CRANE 4 to charge.
