Zhiyun CRANE - M2 S Bedienungsanleitung

The following features are available in

this PDF document.

Quick Keyword Search

Enter the keyword in the search box

and hit the search button

Quick Jump between

Chapters

Click the title of a speci󽘀c chapter on

the Contents to jump to it

*Reading software such as Adobe Reader is needed to support

the functions above.

CRANE - M2 S

User Guide

ZHIYUN-EN-v1.00

Contents

■Product List

Product List ······················ 1

■Get to Know CRANE-M2 S

Get to Know CRANE-M2 S ················ 3

■Battery and Charging

Battery and Charging ·················· 4

■Mounting and Balancing

Mounting the Tripod ·················· 5

Mounting the Camera ················· 5

Mounting the Phone ·················· 9

Mounting the Action Camera ·············· 10

Balancing ······················· 10

■How to Use CRANE-M2 S

Buttons Description ·················· 13

Display Screen Description ··············· 14

Icon Description ···················· 15

Menu Option Description ················ 16

Motor Torque Adjustment ··············· 17

Gimbal Modes Description ··············· 19

Manual Reposition ··················· 22

Changing Fill Light Filters ················ 23

■How to Use the App

Download the App ··················· 24

How to Connect ···················· 24

ZY Play Feature Description ··············· 25

■Firmware Upgrade and Calibration

Firmware Upgrade ··················· 26

Six-side Calibration ·················· 27

■Product Specifications

■Disclaimer and Warning

Reading Tips ····················· 31

Warnings ······················· 31

Safe Operation Guidelines ··············· 32

■Warranty Terms

Warranty Period ···················· 34

Warranty Exclusions ·················· 34

Warranty Claim Procedure ··············· 34

■Contact Card

Product List

Before using this product, please check carefully that all the following items are

included in the product package. In case that any item is found missing, please

contact ZHIYUN or your local selling agent.

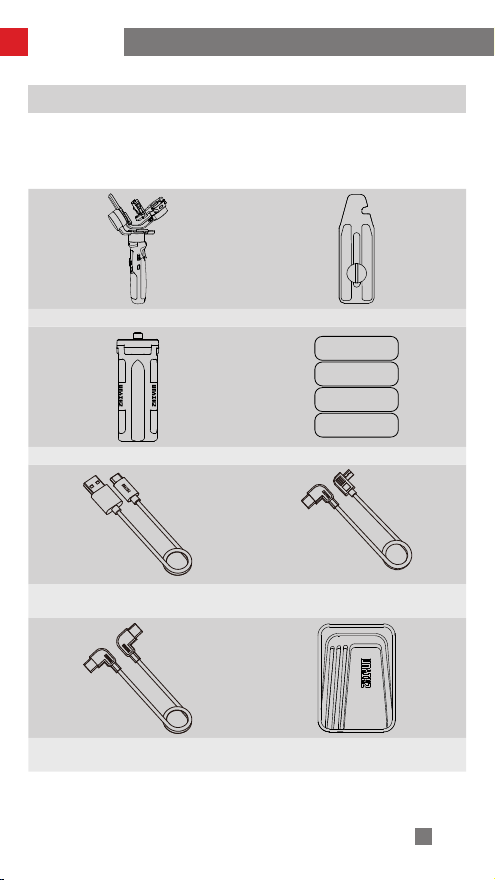

Main Device x1 Quick Release Plate x1

Tripod x1 Fill Light Filters x4

USB Type-C Cable x1 Type-C to Micro USB LN-UCMA-D02

Camera Control Cable x1

Type-C to Type-C LN-UCMC-D06

Camera Control Cable x1 EPP Storage Box* x1

Phone Clamp** x1 TransMount EasyGo Backpack** x1

Quick Start Guide x1

Item marked “*” is included in CRANE-M2 S.

Items marked “**” are included in CRANE-M2 S COMBO.

Product List

Get to Know CRANE-M2 S

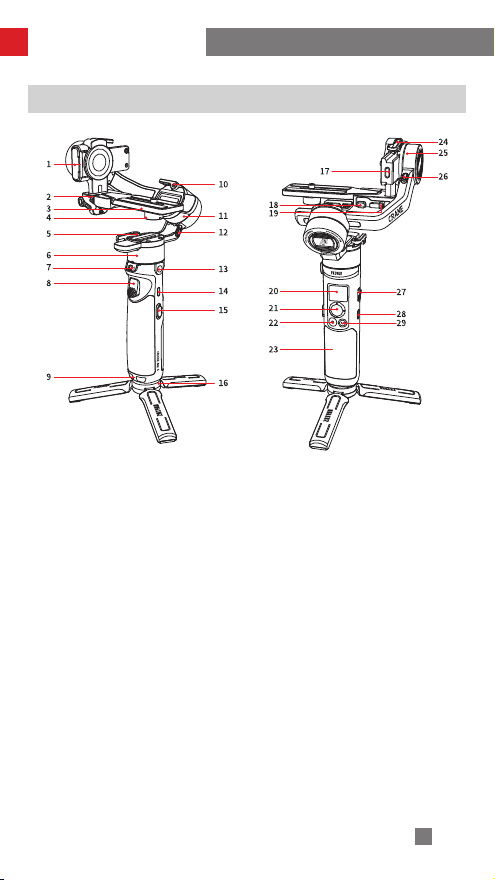

1. Fill Light

2. Level Mount Lock Screw

3. Quick Release Plate

4. 1/4" Camera Lock Screw

5. Pan Axis Latch

6. Pan Axis Motor

7. Pan Axis Lock Switch

8. Trigger Button

9. Wrist Strap Hole

10. Roll Axis Latch

11. Roll Axis Motor

12. Roll Axis Lock Switch

13. 1/4 Expansion Port

14. Type-C Charging/Firmware

Upgrade Port

15. Fill Light Switch

16. Tripod

17. Camera Control Port

18. Quick Release Plate Release

Button

19. Quick Release Plate Safety Lock

20. Display Screen

21. Joystick

22. Video Filming Button

23. Handle

24. Tilt Axis Latch

25. Tilt Axis Motor

26. Tilt Axis Lock Switch

27. Power Button

28. Menu Button

29. M Button

Battery and Charging

CRANE-M2 S is equipped with built-in battery. When using CRANE-M2 S for the

first time, please fully charge the battery to activate and to ensure the proper

function of the gimbal.

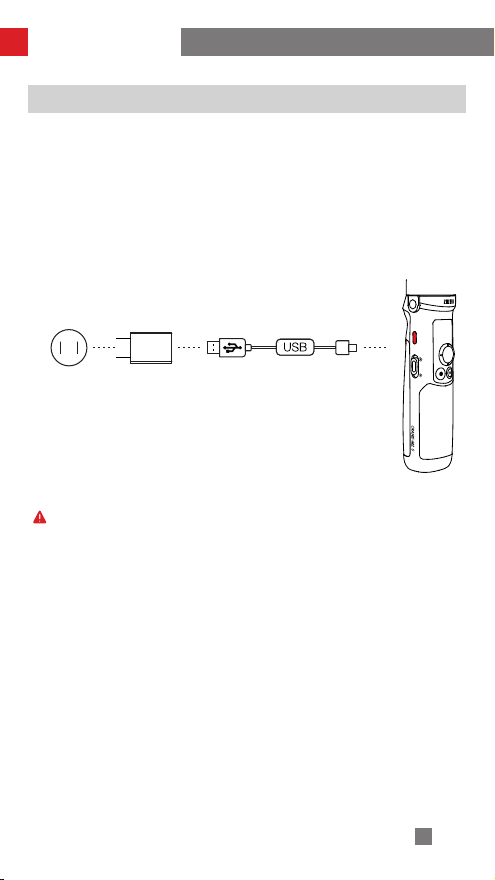

Charging method: Use provided USB Type-C cable to connect the USB charger

(not provided, recommend chargers that meet the USB Power Delivery

Speci󽘀cation, supports 12W at most) to the charging port of CRANE-M2 S.

Battery and Charging

CRANE-M2 S

AC Power

（100-240V)

USB Charger

USB Type-C Cable

The gimbal is equipped with high-energy-density battery, which may cause

fire, economic loss, or personal injury when not properly used and stored.

Please read the disclaimer and warning herein as well as the description on

the battery label carefully before using the battery.

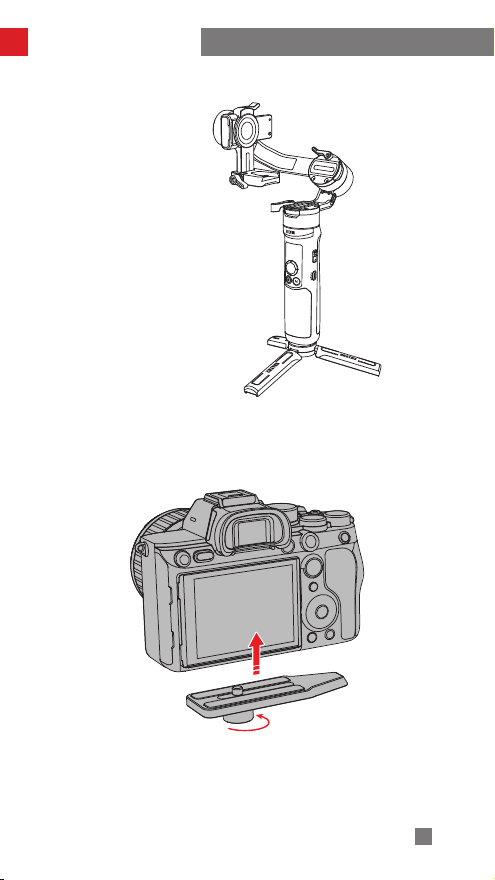

Mount the tripod to the

bottom of the CRANE-M2 S

handle, then unfold the tripod

and place the CRANE-M2 S on

a flat surface.

Mounting the Tripod

Mounting the Camera

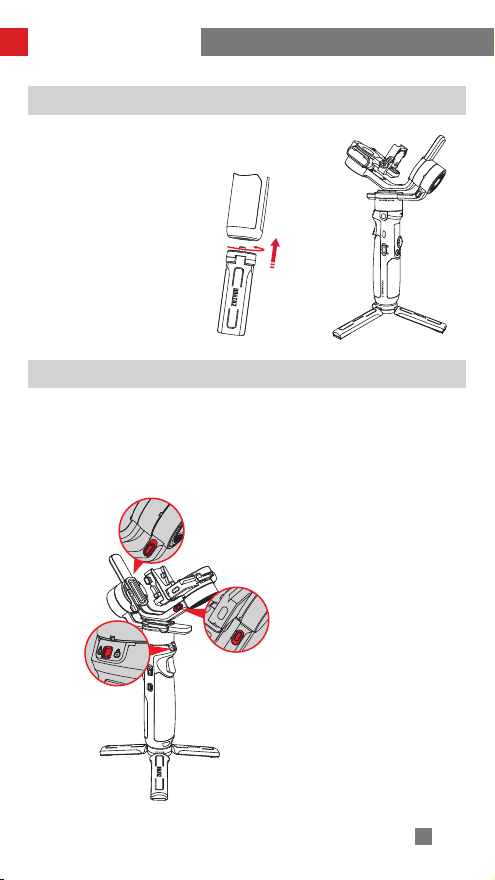

1. Each axis of the gimbal is equipped with a lock switch. You can use these lock

switches to lock the axis for convenient installation and storage. The storage

state is the default state. Please toggle the lock switch to unlock the three

axes, expand the gimbal as shown in the image, and lock the axes again for

convenient camera installation.

Lock state for storage

Mounting and Balancing

Lock state for installation

2. Mount the camera on the quick release plate. Tighten the screw.
