ZKTeco FaceDepot 7B Bedienungsanleitung

Version: 1.0

Date: October 2018

Quick Start Guide

FaceDepot 7B-

Power

GND

+12V

Overview

Flash

Camera

7 inch touch screen

Microphone

Fingerprint sensor

Card reading area

Magnetic

tamper switch

Speaker

FP & RFID Reader (Optional)

Connection

interface

Lock

AUX

Alarm

Exit

Button

Sensor

AL+

AL-

COM

BUT

GND

SEN

GND

Auxiliary

input

Wiegand

Out

+12V

GND

INWD0

INWD1

W0D

W1D

RS232

RS485

12V

485A

GND

TXD1

RXD1

GND

TXD2

RXD2

RS232

485B

Connection interface

Reset

USB port

Connection

interface

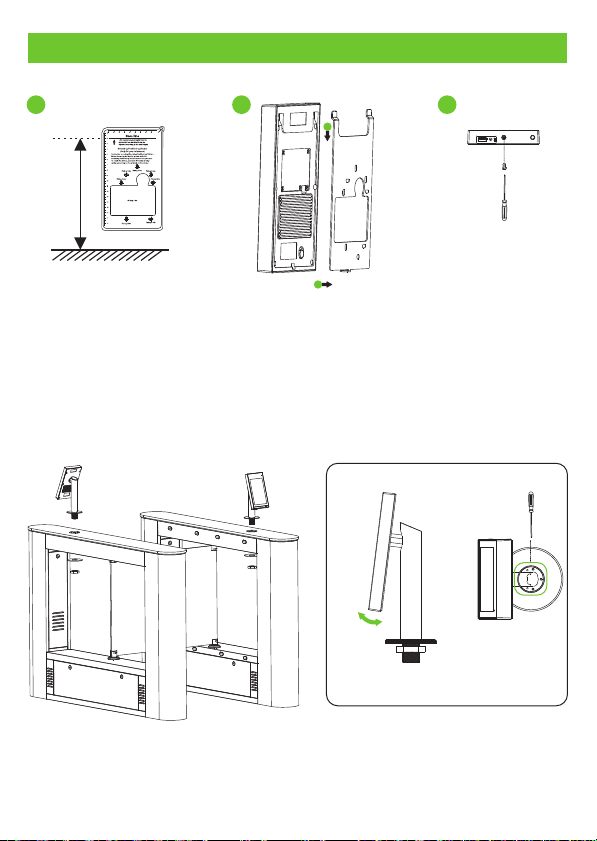

Device Installation

1.5m

1 2 3

①

②

①Attach the mounting template sticker to the wall, and drill holes according

to the mounting paper. Fix the back plate on the wall using wall mounting

screws.

②Attach the device to the back plate.

③Fasten the device to the back plate with a security screw.

Method 1: Installation on the wall

Please route the wire through the bracket before installation.

1. Drill a hole on the barrier gate.

Insert the bracket into the hole and fix it with a nut.2.

3. Adjust the angle of the device.

Method 2: Install on the barrier gate

Adjust the device

1. Adjust the angle of the device.

2. Fix the screws.

Note: If you want to install FP & RFID reader, please insert the reader after step .j

TCP/IP

Alarm

Smoke

detector

Lock

Exit Button

Door Sensor

Card

Reader

ZKBioSecurity

Standalone Installation

AUX

AL+

AL-

COM

BUT

GND

SEN

GND

Door Sensor, Exit Button & Alarm Connection

Door Sensor

Alarm

Alarm's power switch

Exit Button

Smoke detector

Note: On this document, we just guide you to connect some normal components,

if you want more connection of SRB, external fingerprint reader and so on, please

check user manual document.

Lock Relay Connection

Wiegand Input Connection

The system supports Normally Opened Lock and Normally Closed Lock.

DC12V

GND

+12V

F 107R

AUX

AL+

AL-

COM

BUT

GND

SEN

GND

DC12V

GND

+12V

F 107R

AUX

AL+

AL-

COM

BUT

GND

SEN

GND

The NO LOCK (normally opened at power on) is connected with 'NO' and

'COM' terminals, and the NC LOCK (normally closed at power on) is connected

with 'NC' and 'COM' terminals. T NC Lock below:ake as an example

Normally Closed Lock

DC12V

1) Device not sharing power with

the lock

2) Device sharing power with

the lock

WD0

WD1

+12V

GND

Wiegand Reader

+12V

IDW1

IDW0

GND

Barrier Connection

Ethernet Connection

Default IP address: 192.168.1.201

Subnet mask: 255.255.255.0

Click [Settings] > [Network Settings] > [TCP/IP Settings] > [DHCP], input the IP address

and click [OK].

IP address: 192.168.1.130

Subnet mask: 255.255.255.0

6RJ 45

ZKBioSecurity

Note: In LAN, IP addresses of the server (PC) and the device must be in the

same network segment when connecting to ZKBioSecurity software.

Barrier gate

12V

RXD2

TXD2

GND

RXD1

TXD1

485B

485A

GND

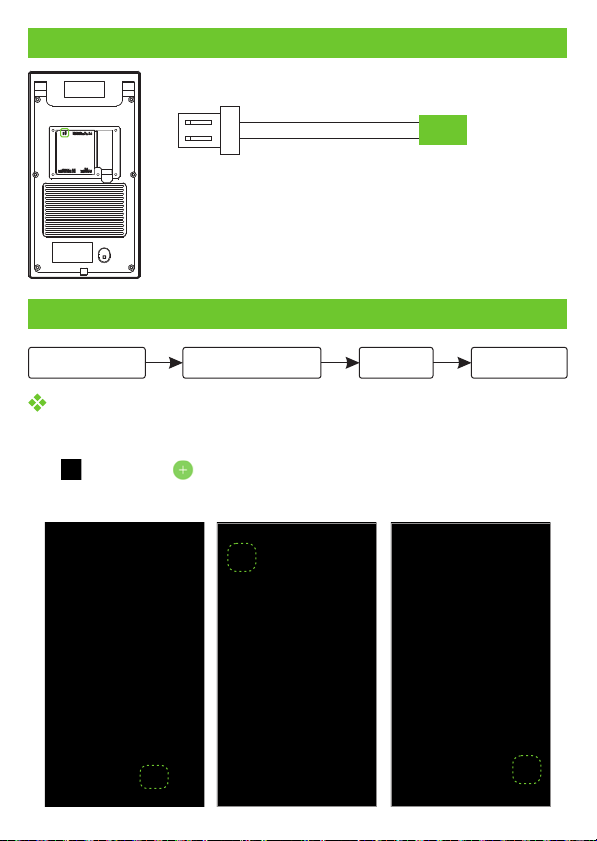

Quick Start

User Registration

User Authentication

View records

Verified

User registration

Click > Employee > to register new employee. Enter employee name, ID,

password.

GND

12V DC

Recommended power supply

1) 12V ± 10%, at least 00mA.30

2) To share the power with other devices, use a power supply

with higher current ratings.

Power Connection

USB

Update

Access

Settings

Employee

LData

Manage System

Settings

1. Click [Access] > [Access Device] > [Device] > [Search Device] to add the device to

the software.

When the device has set the server address and port, in can be added automatically.

Step 1

Step 2

Step 3

Note:

1. It's recommended to register multiple administrators.

2. It's recommend enroll user's face in 0.5m distance, it's

good for 1.4~1.8m height person.

05m.

1.5m

14m18m.-.

We recommend use ZKBioSecurity 3.1.5.0 or above.

Please set the IP address and cloud service server address on the device.

Step 4

to register users.

Cloud server IP address Server port

The users will display in [Personnel] > [Temporary Personnel], click [Review].

2. Click [Personnel] > [Person] > [New] to register users in the software.

3. Add users to access levels.

4. Click [Access] > [Device] > [Device Control] > [Synchronize All Data to Devices].

For more details, please refer to the ZKBiosecurity User Manual.

Once ZKBioSecurity software installation, users could enroll face via broswer

application on their own mobile phone.

Note: The icons or in the standby interface indicates that the network

connection or the server is abnormal. Please check the network cable and network

connection.

View records

View records on the software

Click [Access] > [Report] on the software to view the records.

Verification is successful

User Authentication

Terminal could detect face in 0.3m to maximum

3m distance. The device switches to face

verification interface automatically once it detect

bright of environment change. The verification

result shows as right image.

ZK Building, Wuhe Road, Gangtou,

Bantian, Buji Town, Longgang

District, Shenzhen China 518129

Tel: +86 755-89602345

Fax: +86 755-89602394

www.zkteco.com

related company. All other product and company names mentioned are used for identification

purposes only and may be the trademarks of their respective owners. All specifications are
