ZKTeco EFace10 Bedienungsanleitung
Installation Guide
EFace10
Version: 1.0
Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the
actual product and the written information in this manual.
With Backplate:
1
How to Install the Device?
Attach the mounting template sticker to the wall, and drill holes according to the
mounting paper.
1.
Fix the Backplate on the wall using the wall mounting screws.
2.
Attach the device to the Backplate.
3.
Fasten it with a security screw.
4.
4
11
Note: Features and parameters with mark are not available in all devices. ★
1.5m
2
With Back Cover :★
4
11
Attach the mounting template sticker to the wall, and drill holes according to the
mounting paper.
1.
Fix the Back Cover on the wall using the wall mounting screws.
2.
Attach the device to the Back Cover.
3.
Fasten it with a security screw.
4.
Wall Mount
11
Desktop Placement
1. Attach the Back Cover to the Device.
Fasten it with a security screw.
2.
1.3m
IP address: 192.168.1.130
Subnet mask: 255.255.255.0
3

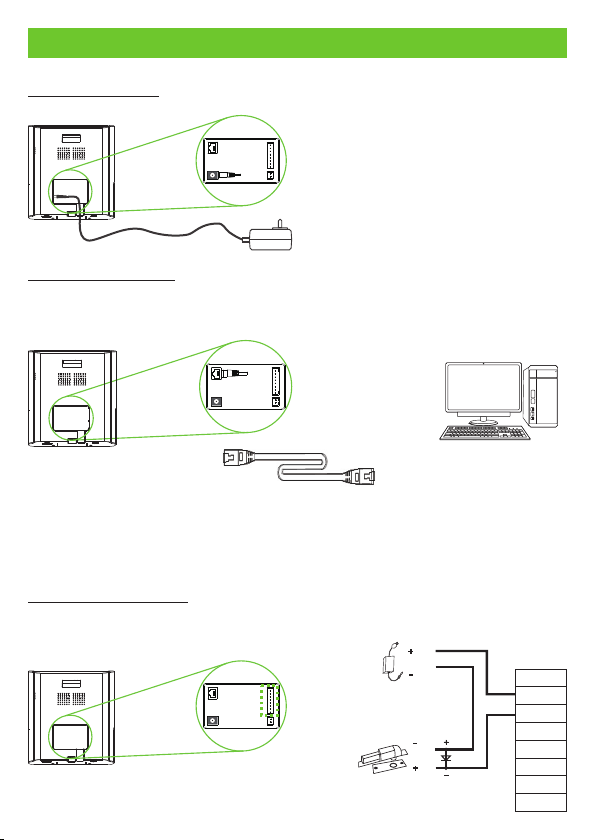

Wiring Diagram
Power Connection:
Recommended AC Adapter
12V ± 10%, at least 1500mA.
To share the power with other
devices, use an AC Adapter with
higher current ratings.
1.
2.
Ethernet Connection:
Connect the device and computer software over an Ethernet cable. As shown in the
example below:
Default IP address: 192.168.1.201
Subnet mask: 255.255.255.0
Click on [COMM.] > [Ethernet] > [IP Address] , input the IP address and click on [OK].
Note: In LAN, the IP addresses of the server (PC) and the device must be in the
same network segment when connecting to the ZKBioAccess IVS software.
Lock Relay Connection:
Device not sharing power with the lock
FR107
NC Lock
DC12V
AUX
+12V
NC
COM
NO
BUT
SEN
GND
ZKBioAccess IV S
4
Door Sensor, Exit Button & Auxiliary Input Connection:
Download Center
Scan the QR Code to download the User Manual, Installation Guide and Quick Start
Guide.
QR Code (Download Center)
AUX
+12V
NC
COM
NO
BUT
SEN
GND
NO COM
Exit Button
Smoke
Detector
Sensor
Detector
Power
ZKTeco Industrial Park, No. 32, Industrial Road,
Tangxia Town, Dongguan, China.
Phone : +86 769 - 82109991
Fax : +86 755 - 89602394
www.zkteco.com
Copyright © 2021 ZKTECO CO., LTD. All Rights Reserved.
