ZMODO Pan and Tilt Camera Bedienungsanleitung
Pan & Tilt Camera
Quick Start Guide
Conn ect with
Camera
Light Sensor
Microphone
LED Light Indicator
PIR Motion Sensor
Speaker
Power Port
What’s in the box :
PT Camer a
Quick S ta rt G ui de
Connect with
Quick Start Guide
Power Adapter
PT Camera
Door / Window
Sensors
1Getting to know your Camera
2
Make sure that you have a strong WiFi connection at the
location of your camera. Visit www.zmodo.com/support
for advice on improving your WiFi signal range.
Download and install the “Zmodo” app from Google
TM M ®
Play or the App StoreT (compatibility: iOS 9.0+ or
TM
Android 4.0+). Launch the app and sign up for a free
Zmodo account. All of your devices will be bound to this
account.
We are constantly working to improve our product and app. Please visit
www.zmodo.com/support for updated instructions, manuals, and more.
2
This quick start guide will help you configure your PT
Camera for initial use. For detailed instructions and
troubleshooting, please visit:
www.zmodo.com/support
Before you begin:
Mobile Setup
Power on your PT camera with the supplied power adapter.
Make sure you know the SSID (WiFi network name) and
password of the 2.4GHz WPA-PSK/WPA2-PSK WiFi
network that you want your camera to connect to. Your
network cannot be hidden.
Zmodo
Make sure your network has at least 2Mbps upload speed
to view and 4Mbps upload speed when using the Zmodo
Cloud Service for each camera.
Select the “Zink” connection method
to connect your PT camera. Your PT
camera will be added to your Zmodo
account.
Connect with
Beam
Log in and press in the upper
right corner. Select "Add Device".
+
This device can be set up with a Zmodo Beam. If you own a
Beam, please follow the instructions in your Beam quick guide to
connect your device instead.
2
1
3
5Select the network named “ZMD_SAP”
and connect to it.
Note: If you see a "No Internet Connection" error
message, please ignore it and connect anyway.
Follow the on-screen instructions and
select “Tap here to begin setup” to go
to the WiFi settings page on your
smartphone.
Note: If you are using an iOS device, you will need to
manually go to the WiFi settings page on your
smartphone.
4
3Tap to proceed (If you’re setting
up multiple PT cameras at once, tap
to add additional units).
√
4
7If you see this screen, the app will
connect your PT camera to your WiFi
network. This may take a few minutes.
Once it’s completed, please skip to
step 11.
If you do not see this screen, please
proceed to step 8.
Note: If you are connecting multiple devices, you
will need to wait for the app to find and connect all
devices.
8If this app interface appears, please
press “Tap here to select WiFi”.
Note: If you are using an iOS device, you will need to
manually go to the WiFi settings page on your
smartphone.

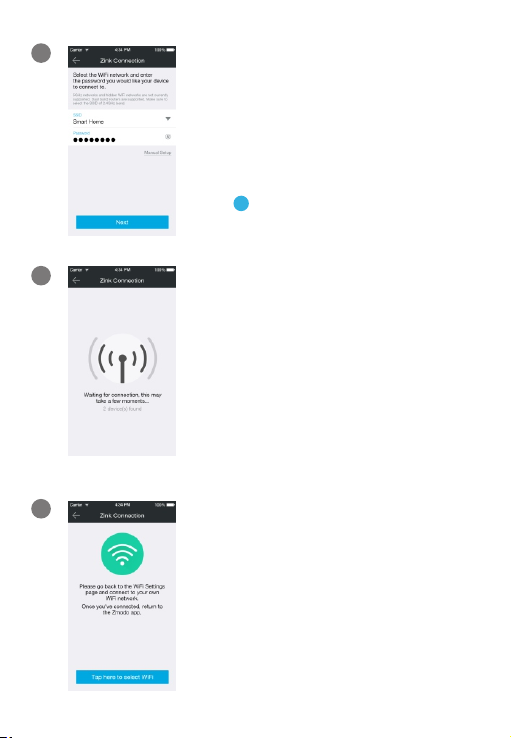

Return to the Zmodo app page and
select or enter the SSID and password
of the WiFi network that you want your
PT camera to connect to.
Note: The WiFi name and password are case-
sensitive.
Tap to proceed.
√
6
5
9Select the WiFi network that your PT
camera will connect to, and connect to
it. Return to the Zmodo app once your
mobile device is connected to the WiFi
network.
10 The app will automatically search for
your PT camera and connect it to the
WiFi network. This may take a few
minutes.
Note: If you are connecting multiple devices, you
will need to wait for the app to find and connect
all devices.
11 Name your PT camera and set a
password for it. Tap to proceed.
√
Note: The password provides an additional layer
of security for your devices. You will not need to
use this password when accessing your devices
from the Zmodo app. It is not required, but it is
highly recommended.
6
Your PT camera has been successfully
configured! You can now share or view
your PT camera.
12
7
Remove the film to expose the adhesive on the bracket,
and install sensors as shown below. Please make sure
that the two portions of the sensor are no more than
2cm apart when closed.
2
Window Sensor
Position
Connect your door / window sensors
Tap the gear icon in the upper right corner to access
your PT camera's Device Settings, and select the
"Accessories" option. Select the icon to add an +
accessory. Remove the plastic tab from your sensor,
and follow the in-app instructions to complete pairing.
1
Monitor your doors and windows
When a door or window is opened, your PT camera
can automatically turn to see what happened and alert
you. Follow the instructions to configure your door /
window sensor and set a preset location for your PT
camera to turn to whenever a sensor is triggered.
3
Door Sensor
Position
8
Make the Preset Settings
When the door / window sensor has been successfully
added, tap the gear icon in the upper right corner to
access your PT camera's Device Settings, select the
"Preset Setting" page and press the option.+
1
Select the door / window sensor that you want to
configure. Using the preview image, rotate the PT
camera to the desired position, and complete the rest of
the steps. Name the preset, and press "Save" to save
the settings.
2
