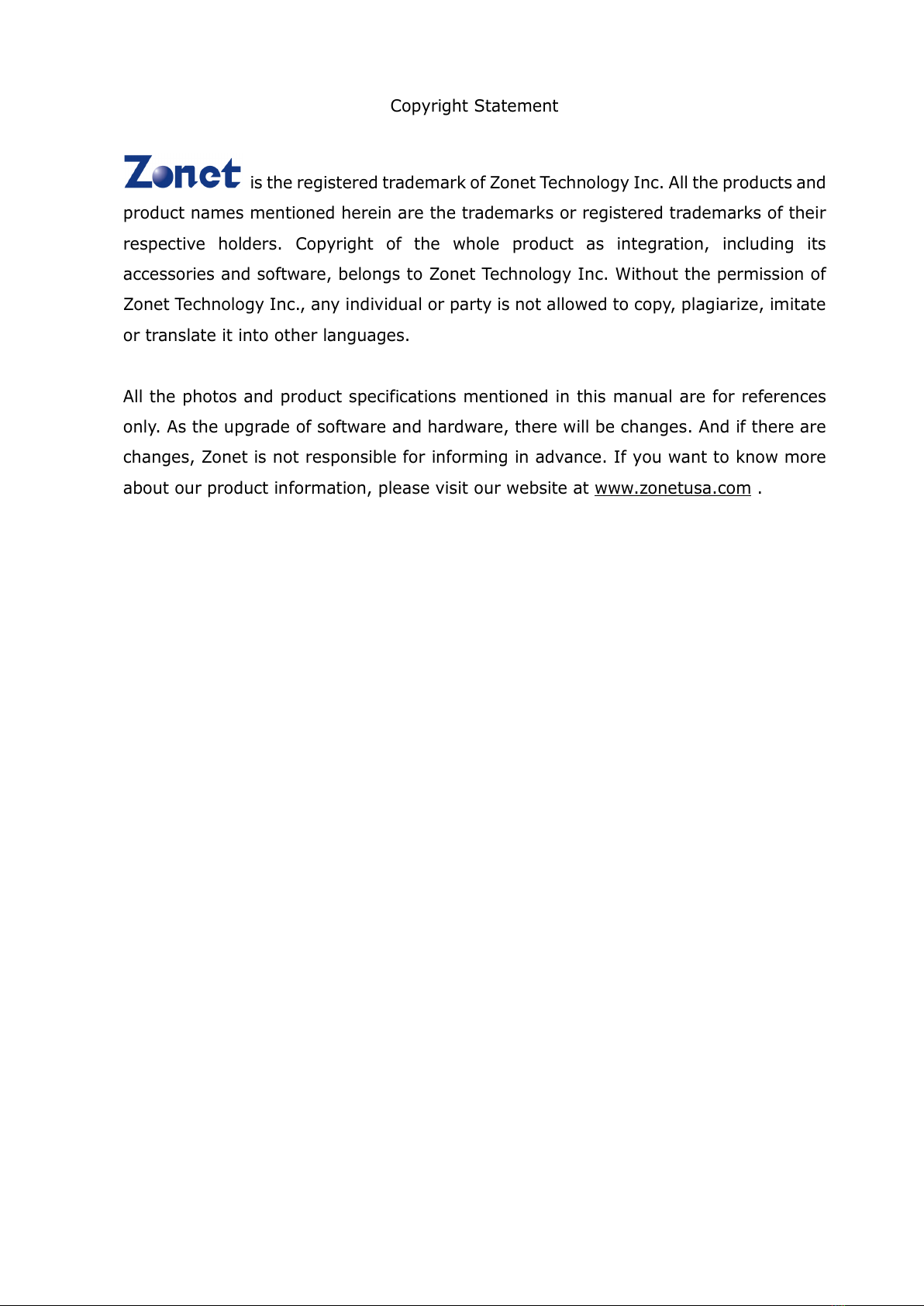

is the registered trademark of Zonet Technology Inc. All the products and

product names mentioned herein are the trademarks or registered trademarks of their

respective holders. Copyright of the whole product as integration, including its

accessories and software, belongs to Zonet Technology Inc. ithout the permission of

Zonet Technology Inc., any individual or party is not allowed to copy, plagiarize, imitate

or translate it into other languages.

All the photos and product specifications mentioned in this manual are for references

only. As the upgrade of software and hardware, there will be changes. And if there are

changes, Zonet is not responsible for informing in advance. If you want to know more

about our product information, please visit our website at www.zonetusa.com .

All manuals and user guides at all-guides.com

802.11n ireless USB Adapter

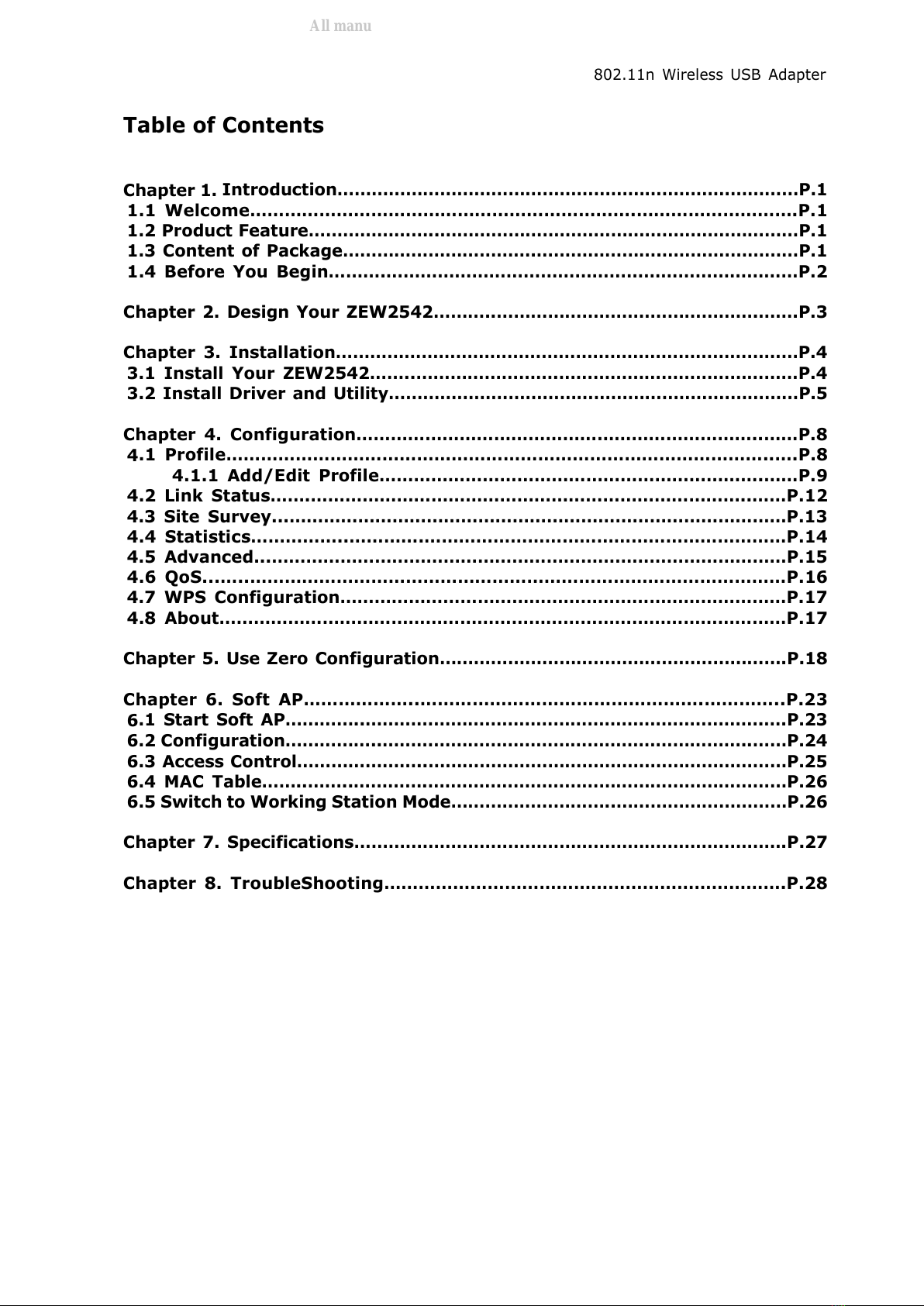

Table of Contents

Chapter 1. Introduction………………………………………………………………………P.1

1.1 Welcome………………………………………………………….……………………….P.1

1.2 Product Feature…………………..………………………………………………………P.1

1.3 Content of Package…………………………….………………….……………………P.1

1. Before You Begin……….………………………………………………………………P.2

Chapter 2. Design Your ZEW25 2………..……………………………………….…….P.3

Chapter 3. Installation………………………………………………………………………P.

3.1 Install Your ZEW25 2……..…………………….……………………………………P.

3.2 Install Driver and Utility………………………………………………………………P.5

Chapter . Configuration……………………………………………………………..……P.8

.1 Profile…………………………………………………………………………………..….P.8

.1.1 Add/Edit Profile………………………………………………………….……P.9

.2 Link Status…….…………………………………………………………………..……P.12

.3 Site Survey...……………………………………………………………………………P.13

. Statistics……………..………….………………………………………………………P.1

.5 Advanced...………………………………………………………………………………P.15

.6 QoS...…..…………………………………………………………………………………P.16

.7 WPS Configuration……………………………………………………………………P.17

.8 About………………………………………………………………………………………P.17

Chapter 5. Use Zero Configuration…………………………………………………….P.18

Chapter 6. Soft AP………………..………………………………………….…………..P.23

6.1 Start Soft AP…………..…………………………………………………………….….P.23

6.2 Configuration……………..………………………………………………………..……P.2

6.3 Access Control…………………..………………………………………………………P.25

6. MAC Table……..……..………….………………………………………………………P.26

6.5 Switch to Working Station Mode………………………..…………………………P.26

Chapter 7. Specifications………………………………………………………………….P.27

Chapter 8. TroubleShooting…………………………………………………………….P.28

All manuals and user guides at all-guides.com

802.11n Wireless USB Adapter

Chapter 1 Introduction

1.1 Welcome

Thank you for purchasing Zonet Z W2542-802.11n wireless USB adapter. Z W2542

connects you with I 802.11n(Draft 2.0) networks at receiving rate up to an incredible

300Mbps! By using the reflection signal, 802.11n's “Multiple In, Multiple Out” (MIMO)

technology increases the range and reduces “dead spots” in the wireless coverage area.

Unlike ordinary wireless networking of 802.11b/g standards that are confused by

wireless reflections, MIMO can actually use these reflections to increase four times

transmission range of 802.11g products. Besides, when both ends of the wireless link are

802.11n products, MIMO technology can utilize twice radio band to increase three times

transmission speed of ordinary 802.11g standard products, and can comply with

backwards 802.11b/802.11g standards.

Soft AP supported by Z W2542 can help you establish wireless LAN networking with

lowest cost. Besides, WPS (PBC and PIN) encryption method can free you from

remembering the long passwords. Complete WMM function makes your voice and video

more smooth.

1.2 Product Feature

Complies with I 802.11n (Draft 2.0), I 802.11g, I 802.11b standards

Provides USB 2.0 interface

Provides 300Mbps receiving rate and 150Mbps sending rate

Supports 20MHz/40MHz frequency width



Supports Soft AP to establish your wireless LAN networking with lowest cost

Supports 64/128-bit W P, WPA, WPA2 encryption methods and 802.1x security

authentication standard

Supports WPS (PBC and PIN) encryption method to free you from remembering

long passwords

Supports WMM to make your voice and video more smooth

Supports Windows 2000 / XP / 2003 / Vista

1.3 Contents of Package

One Z W2542

One USB Cable

One Installation CD w/User Manual

One Quick Installation Guide

Contact your local authorized reseller or the store purchased from for any items

damaged and/or missing.

All manuals and user guides at all-guides.com

802.11n ireless USB Adapter

1. Before You Begin

You must have the following:

A laptop computer/desktop PC with an available USB 2.0/1.1 slot

Minimum 300MHz processor and 32MB memory

At least 100MB of available disk space

indows 2000, 2003, XP, 2003, Vista

A CD-ROM Drive

USB controller properly installed and working in the laptop computer

802.11n or 802.11b/g Access Point (for infrastructure Mode) or another 802.11n or

802.11b/g wireless adapter (for Ad-Hoc; Peer-to-Peer networking mode.)

All manuals and user guides at all-guides.com

802.11n ireless USB Adapter

Chapter 2 Designing Your ZEW25 2

ZE 2542 supports up to 300Mbps connections. It is fully compliant with the

specifications defined in 802.11n (Draft 2.0) standard.

1. USB Connector

2. Connector Cap (To protect USB connector when not in use)

3. Link/Activity LED

4. PS Button (Press to activate PS pairing mode)

The status LED indicators of ZE 2542 is described in the following.

Lnk/Act ON : Indicates a valid connection / transmitting or receiving data

Lnk/Act OFF: Indicates there’s no wireless activity.

All manuals and user guides at all-guides.com

all-guides.com

802.11n ireless USB Adapter

Chapter 3 Installation

3.1 Install Your ZEW25 2

Power on your PC, let the operating system boot up completely, and log in as

needed.

Hold ZE 2542 and insert it into a USB slot.

Select Cancel when “Found New Hardware” window appears.

All manuals and user guides at all-guides.com

802.11n ireless USB Adapter

3.2 Install Driver and Utility

NOTE:

Snap-shot screens of the following installation procedure are based on Windows

XP. Installation procedures will be similar for other windows operating systems.

Insert Installation CD to your CD-ROM drive. B

owse CD and double-click

setup.exe

in Driver folder to execute it. The wizard will run and install all necessary

files to your computer automatically.

Click

to accept the Agreement. Or click

Cancel

to cancel the installation

Select

Ralink

Configuration Tool

Microsoft Zero Configuration Tool

then

click

It’s recommended to select Ralink Configuration Tool, which provides

fully access to all function of ZE 2542.

b. If you prefer to use the wireless configuration tool provided by indows XP

or Vista, please select

Microsoft Zero Configuration Tool.

All manuals and user guides at all-guides.com

802.11n ireless USB Adapter

Select

Optimize for WiFi mode

Optimize for performance mode

then click

All manuals and user guides at all-guides.com

802.11n ireless USB Adapter

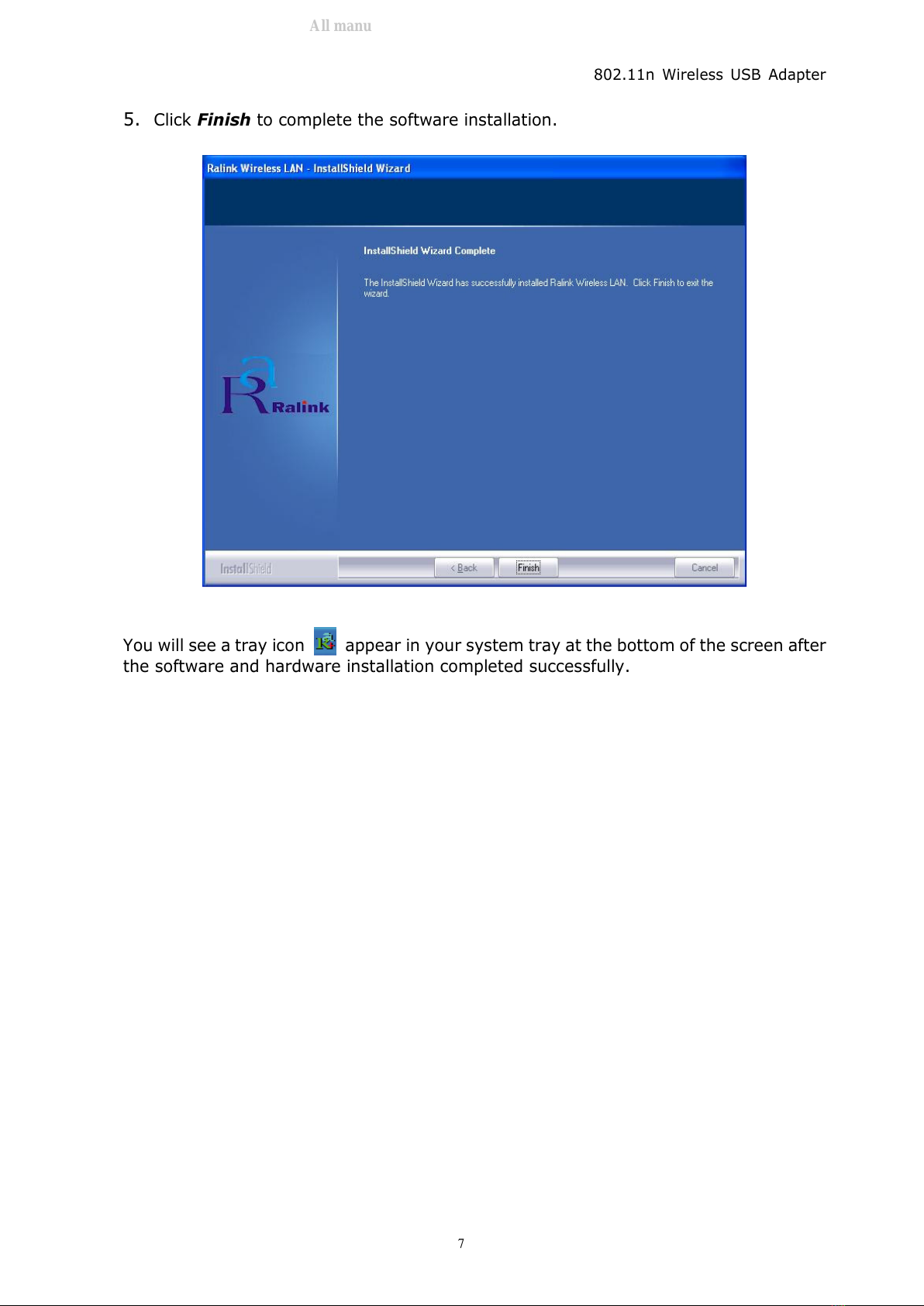

Click Finish to complete the software installation.

You will see a tray icon appear in your system tray at the bottom of the screen after

the software and hardware installation completed successfully.
