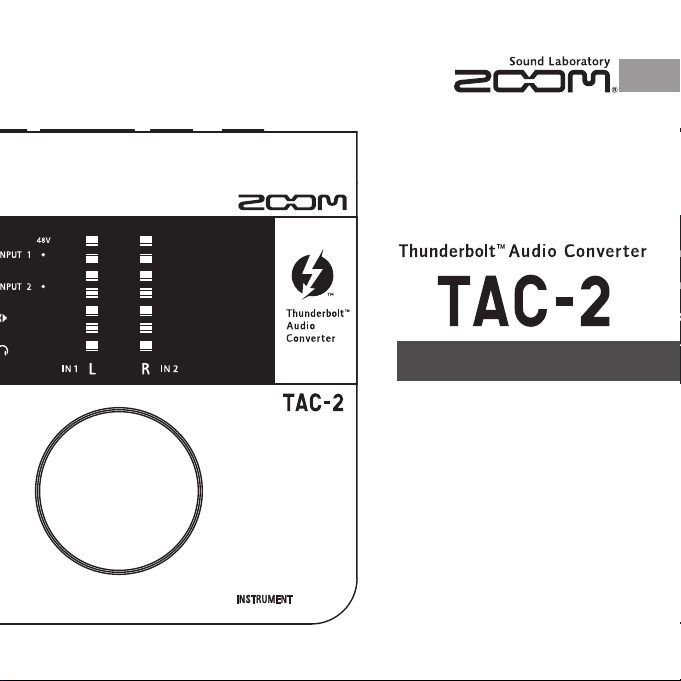

Zoom Thunderboolt TAC-2 Bedienungsanleitung
Operation Manual
© 2013 ZOOM CORPORATION
Copying or reprinting this manual in part or in
whole without permission is prohibited.
2
Introduction
Introduction ……………………………… 2
Usage and safety precautions………… 3
Part Names ……………………………… 4
Installing the driver …………………… 7
Turning the Power ON ………………… 8
Playback ………………………………… 9
Recording ……………………………… 11
Troubleshooting ……………………… 13
Specifications ………………………… 14
2-in/2-out Thunderbolt™ audio converter
The audio converter usesThunderbolt™, the latest generation of high-speed interface technology.
With this, we have realized a system with low latency that was not possible using USB 2.0. Since it also
supports recording and playback at up to 24-bit/192kHz, it can also be used for the playback of high-
resolution sound sources delivered with superior audio quality over the Internet.
Attention to audio performance
The entire system reproduces the original audio faithfully. An asynchronous transfer system
that is not impacted by computer jitter is used along with the latest AD/DA converter, which
supports 192kHz.
High-performance mic preamps
Burr Brown brand mic preamps that can provide a maximum of +60dB amplification and
+48V phantom power are used for each of the inputs.
dedicated mixer application
Use this application to make internal mixer and monitoring effect settings. For details about
, see the ZOOM website (http://www.zoom.co.jp/downloads/).
Contents
Introduction
3
Usage and safety precautions
Usage and safety precautions
SAFETY PRECAUTIONS
In this operation manual, symbols are used to highlight warnings
and cautions that you must read to pre vent accidents. The
meanings of these symbols are as follows.
Warning
Something that could cause serious injury or death
Caution
Something that could cause injury or damage to the
equipment
Other symbols used
An action that is mandatory
An action that is prohibited
Caution
Warnings
Alterations
Do not open the case or modify the product.
Caution
Precautions
Product handling
Do not drop, bump or apply excessive force to the unit.
Be careful not to allow foreign objects or liquids enter the unit.
Operating environment
Do not use in extremely high or low temperatures.
Do not use near heaters, stoves and other heat sources.
Do not use in very high humidity or where it could be splashed by water.
Do not use in places with frequent vibrations.
Do not use in places with much dust or sand.
Connection cables and input/output jacks
Always turn the power OFF for all equipment before connecting any
cables.
Always disconnect all connection cables and the AC adapter before
moving the unit.
Volume
Do not use at a loud volume for a long time.
Usage Precautions
Interference with other electrical equipment
In consideration of safety, the has been designed to minimize its
emission of electromagnetic waves and to suppress interference from external
electromagnetic waves. However, equipment that is very susceptible to interference
or that emits powerful electromagnetic waves could result in interference if placed
nearby. If this occurs, place the and the other device farther apart. With
any type of electronic device that uses digital control, including the ,
electromagnetic interference could cause malfunction, corrupt or destroy data and
result in other unexpected trouble. Always use caution.
Cleaning
Use a soft cloth to clean the exterior of the unit if it becomes dirty. If necessary, use
a damp cloth that has been wrung out well. Never use abrasive cleansers, wax or
solvents such as alcohol, benzene or paint thinner.
Temperature considerations
Continuous use of this interface for long periods of time, for example, might cause it
to become warm. This is normal as long as it does not become too hot to touch.
Breakdown and malfunction
If the should malfunction or operate abnormally, disconnect it immediately.
Then, contact the retailer where you purchased it or Zoom support and provide the
following information: product model, serial number and details of the symptoms
of malfunction or abnormal operation, as well as your name, address and telephone
number.
Copyrights
• Macintosh and Mac OS are trademarks or registered trademarks of Apple Inc.
• Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation in the U.S.
and/or other countries.
• All other product names, trademarks and company names in this document are
the property of their respective owners.
Note: All trademarks and registered trademarks in this document are for
identification purposes only and are not intended to infringe on the copyrights of
their respective owners.
Recording for any purpose other than personal use from copyrighted sources,
including CDs, records, tapes, live performances, video works and broadcasts,
without permission of the copyright holder is prohibited by law.
Zoom Corporation will not assume any responsibility related to infringements of
copyrights.
4
Speakers
Headphones
Computer
Guitar
Mic

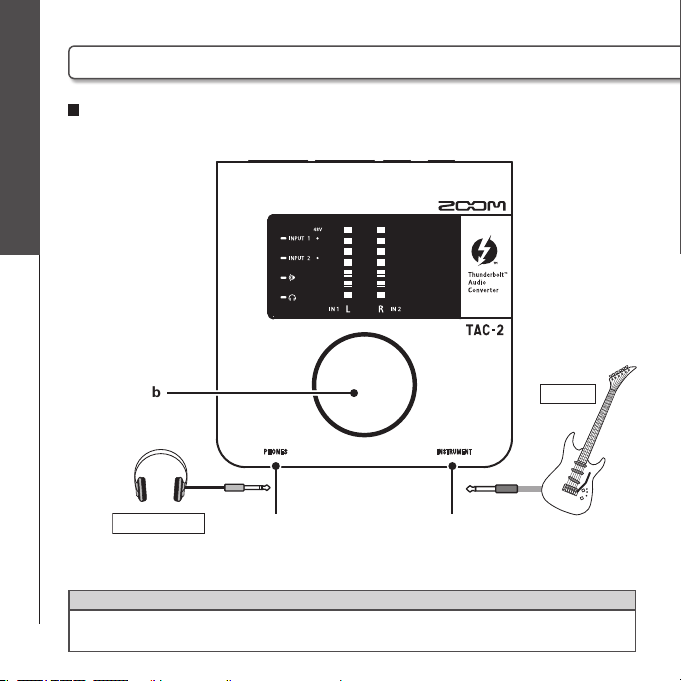

Part Names
Control knob
Use to adjust the
input gain and
volume.
PHONES jack
Connect headphones here.
INSTRUMENT input jack
Connect a guitar/bass here.
Part Names
HINT
• Press the control knob to cycle through what it controls in the following order: INPUT 1, INPUT 2,
INPUT 1+2, OUTPUT, PHONES.
Top Panel
5
Speakers
Headphones
Computer
Guitar
Mic
Part Names

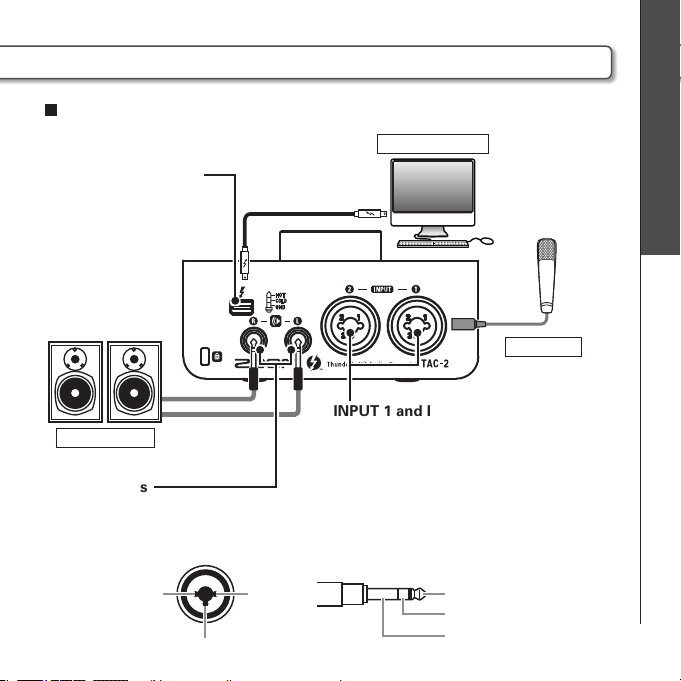

INPUT 1 and INPUT 2 jacks
Connect a mic or keyboard here.
* INPUT 1 is disabled when a cable is plugged into
the INSTRUMENT input jack.
Thunderbolt™ port
Use to connect to a
Computer.
OUTPUT jacks
Connect speakers with built-in ampliers or an amplier and speaker system.
These jacks support balanced output.
Rear Panel
XLR TRS
1：GND
2：HOT
3：COLD
TIP：HOT
RING：COLD
SLEEVE：GND
12
3
6

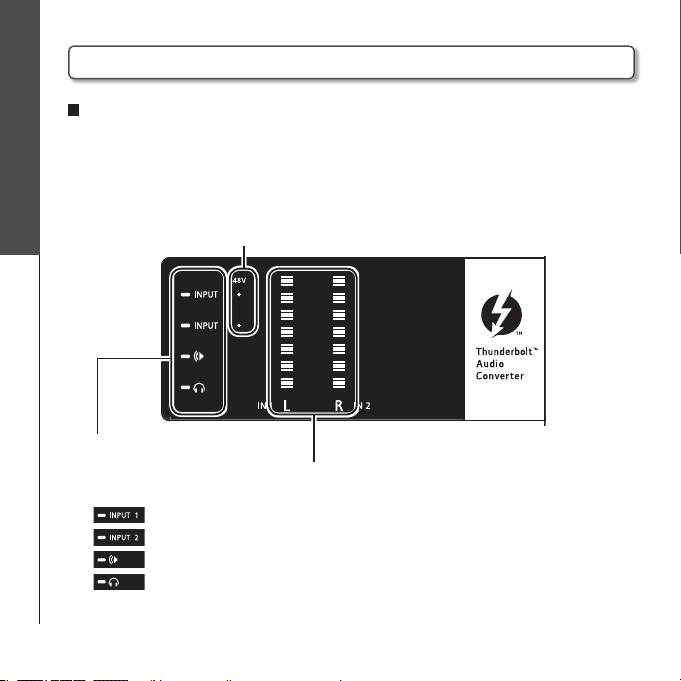

Part Names
+48V indicator
This indicator lights when phantom power is
in use and is unlit at other times.
LED meters
These show the input gain or input/output levels
according to the item currently selected for control.
If the signal clips when showing input or output
levels, the red LED at the very top lights.
Status LEDs
These show the current
control knob assignments.
Display
This shows the input gain, and input and output levels, for example.
: INPUT 1
: INPUT 2
: OUTPUT
: PHONES
Part Names (continued)
7

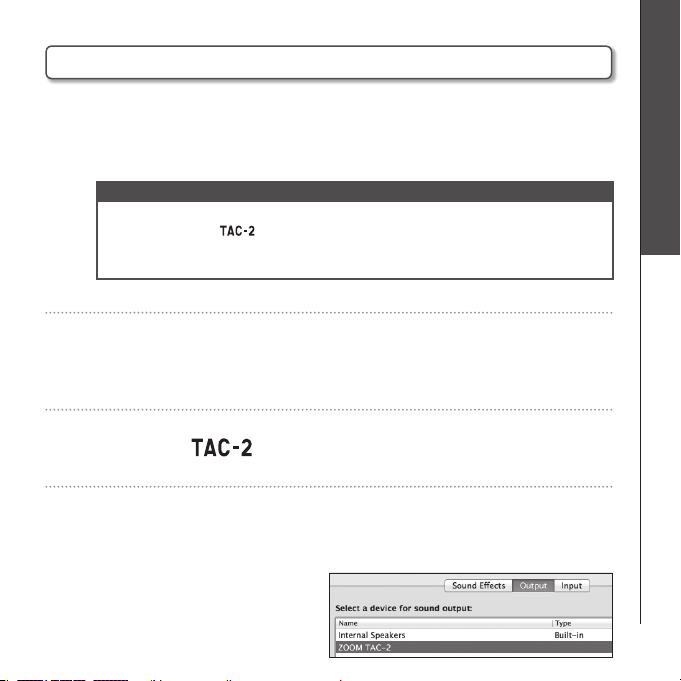

Installing the driver
Installing the driver
1. Download the ZOOM TAC-2 Driver from http://www.zoom.
co.jp/downloads/ to your computer.
NOTE
• You can download the latest ZOOM TAC-2 Driver from the above website.
• Do not connect the when installing the driver.
• The supported operating systems are as follows.
Mac OS X 10.8.5 (or later)
2. Click the ZOOM TAC-2 Driver.pkg icon to launch the installer.
Follow the instructions that appear on screen to install the ZOOM TAC-2 Driver.
3.
Connect the and the computer using aThunderbolt™ cable.
4.
Open the Sound pane of the System Preferences and set both
the Input and Output to ZOOMTAC-2.
8

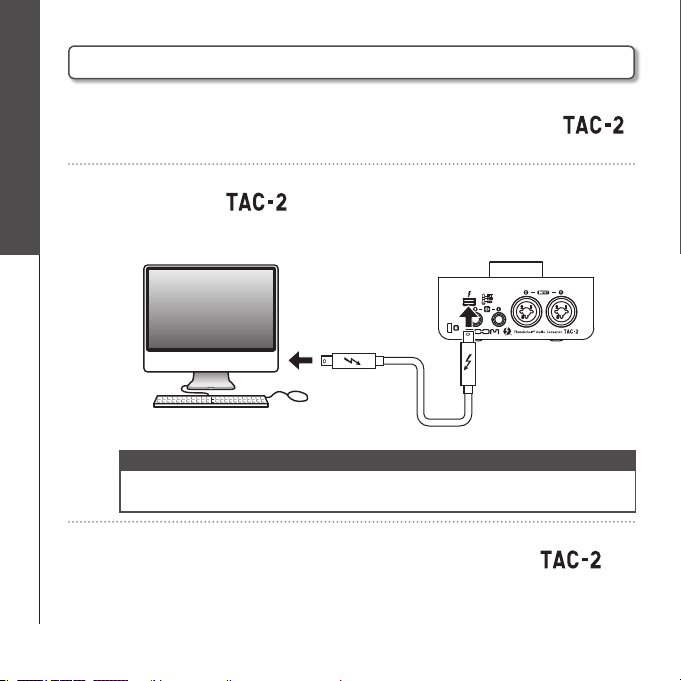

Turning the Power ON
Turning the Power ON
1.
Minimize the volume of the devices connected to the .
2. Connect the and the computer using aThunderbolt™
cable. (This turns the power on.)
NOTE
• The unit will not turn on if the driver is not installed.
Follow the instruction on page 7 to install the ZOOM TAC-2 Driver.
3. Raise the volume of the devices connected to the
.
9
Playback

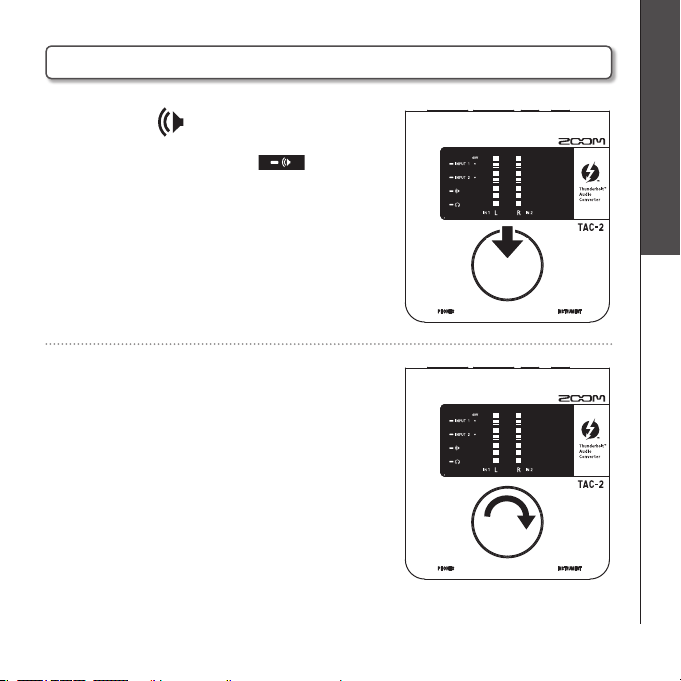

Adjusting the OUTPUT volume
1. Select .
Press repeatedly until the lights.
2. Adjust the volume.
After you finish doing this, the LED meters
will automatically resume showing the output
levels of the OUTPUT jacks.
Adjusting the OUTPUT volume
Press
Turn
10
Playback

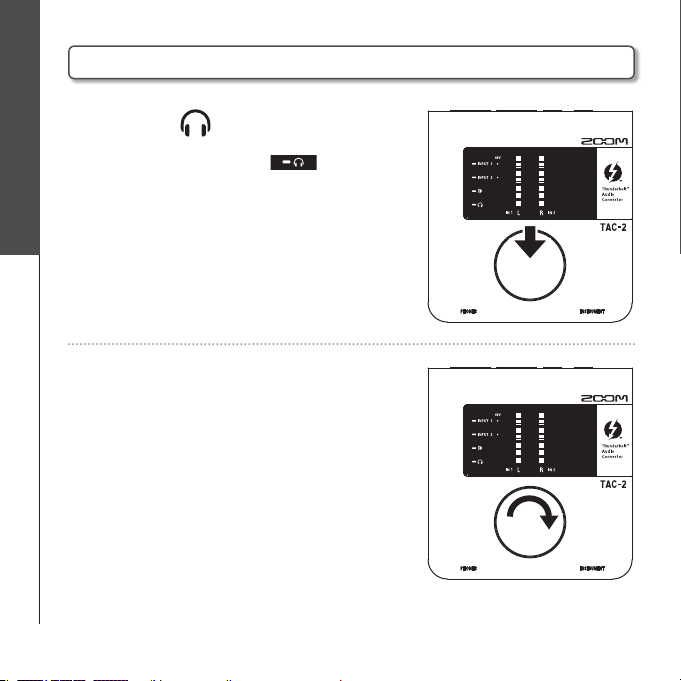

Adjusting the PHONES volume
1. Select .
Press repeatedly until the lights.
2. Adjust the volume.
After you finish doing this, the LED meters
will automatically resume showing the output
levels of the PHONES jacks.
Adjusting the PHONES volume
Press
Turn
