Zoom 4300 Bedienungsanleitung

USER’S MANUAL

Wireless Modem

with Bluetooth

BluetoothBluetooth

Bluetooth®

®®

NOTICE

NOTICENOTICE

NOTICE

This document contains proprietary information protected by copyright, and

this Manual and all the accompanying hardware, software, and

documentation are copyrighted. No part of this document may be

photocopied or reproduced by mechanical, electronic, or other means in

any form.

The manufacturer does not warrant that the hardware will work properly in

all environments and applications, and makes no warranty or representation,

either expressed or implied, with respect to the quality, performance,

merchantability, or fitness for a particular purpose of the software or

documentation. The manufacturer reserves the right to make changes to the

hardware, software, and documentation without obligation to notify any

person or organization of the revision or change.

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc.

and any use of such marks by Zoom is under license.

Bluetooth Qualified Products List (QPL) No.: BQ10007276

Other trademarks and trade names are those of their respective owners.

Contents

1 GETTING STARTED............................................................. 4

PACKAGE CONTENTS................................................................ 4

YOU WILL ALSO NEED............................................................. 4

2 TYPICAL COMPUTER INSTALLATION...................................... 6

CONNECT THE MODEM HARDWARE.............................................. 6

SET UP YOUR BLUETOOTH CONNECTION ...................................... 6

IF YOU ARE INSTALLING AOL...................................................11

IF YOU WANT TO USE YOUR MODEM FOR FAXING .........................12

3 TYPICAL PDA INSTALLATION............................................ 14

CONNECT THE HARDWARE .......................................................14

SET UP DIAL-UP NETWORKING AND ESTABLISH COMMUNICATION ......14

SET UP DUN FOR YOUR INTERNET ACCOUNT................................15

4 SERIAL PORT INSTALLATION ............................................. 17

INSTALLING THE SOFTWARE ON A WINDOWS PC ...........................17

SET UP A DIAL-UP INTERNET CONNECTION..................................19

REMOVING THE MODEM ..........................................................20

APPENDIX A: FRONT AND BACK PANEL INFORMATION.............. 21

APPENDIX B: REGULATORY INFORMATION ............................. 22

4 Wireless Modem User’s Manual

Getting Started

This User’s Manual is organized according to the different ways

that you can use your Bluetooth modem:

•Wirelessly with a Personal Digital Assistant (PDA)

•Wirelessly with a Windows®computer

•With a traditional serial cable to a PC, Macintosh, or Linux-

based machine.

Package Contents

Before beginning, make sure that your package includes the

following items.

•56K modem equipped with Bluetooth wireless technology

•Phone cord (and phone adapter if required)

•Power adapter

•CD

•Velcro® to attach the modem to the wall (optional).

If anything is missing or damaged, contact your supplier.

You Will Also Need

To set up a wireless connection to the modem, you will need a

Windows 98SE, Me, 2000, or XP computer or Personal Digital

Assistant (PDA) equipped with Bluetooth wireless technology or a

Bluetooth adapter. Many computers and PDAs include built-in

Bluetooth capability. If yours does not, you will have to purchase

an adapter separately.

1 Getting Started 5

Note: Your Zoom modem is a Bluetooth Class 1 modem. Many

of the Bluetooth adapters that are built into computers

today are Class 3. The Zoom modem works with all three

classes of Bluetooth devices, but you should be aware of

the differences. Class 1 devices can communicate over a

range of 100 meters; Class 2, 10 meters; and Class 3, 10

centimeters. If you are using different classes, the distance

over which you can communicate will be limited by the

lower class of Bluetooth device.

Alternatively, you can use your Bluetooth modem to achieve a

traditional, wired dial-up connection to the Internet. If you want to

use your modem in this way, you will need a computer with a serial

port (and a CD-ROM drive if you are using Windows), and an RS-

232 serial cable to connect the modem to your computer.

6 Wireless Modem User’s Manual

Typical Computer Installation

This chapter is for users with Windows desktop or notebook

computers. If you have a PDA, go to page 14.

There are a few basic steps associated with setting up your

Bluetooth wireless modem and establishing a dial-up

connection to the Internet.

•Connect the hardware.

•Install any necessary software (if not already installed).

•Pair the Bluetooth modem with your computer and enter

the modem’s PIN.

•Set up Dial-Up Networking (DUN).

•Enable faxing (optional).

Connect the Modem Hardware

1On the back of the modem, make sure the selectable switch is

all the way to the left, the side marked BT (for Bluetooth).

2Plug one end of the supplied phone cord into the modem’s

Line port, and plug the other end into a telephone wall jack.

3Plug one end of the included power adapter into the modem

and the other end into a wall outlet or power strip.

Set Up Your Bluetooth Connection

To set up a wireless dial-up connection to the Internet with your

Bluetooth modem, you must have a Bluetooth adapter. Some

computers have built-in adapters; if your computer doesn’t, you

will have to purchase one separately. You can check by right-

clicking on your computer’s My Computer icon, selecting

Properties, and then clicking the Hardware tab (Windows

2000/XP users only) and then the Device Manager tab. If

2 Typical Computer Installation 7

Bluetooth is installed, it will be listed under Device Manager.

Alternately, you can go to Start | Settings | Control Panel, and

click Add/Remove Programs. If Bluetooth is installed, its name

will appear in the list.

If you need to install a Bluetooth adapter, the basic instructions are

similar, regardless of the brand of adapter. For example, you would

install software from a CD and then connect the adapter to your

computer. If your adapter is not yet installed, you should install it

now, before setting up your modem’s dial-up Internet connection.

Refer to the instructions included with your adapter for proper

installation.

Important: As part of the Bluetooth adapter installation process,

an icon named My Bluetooth Places is installed on your

computer desktop.

1Windows 98Se/ME/2000 Users:

Double-click the My Bluetooth Places icon on your desktop.

(Note: If this icon is not visible, go to Start |Programs |

Bluetooth or refer to the box above.)

Windows XP Users:

Right-click the Bluetooth icon in the computer system tray and

select Quick Connect | Dial-up Networking | Find

Devices. Proceed to Step 4 on page 9.

8 Wireless Modem User’s Manual

2A folder with the same name displays. Double-click the Find

Bluetooth Devices icon. The Bluetooth software begins

searching for any surrounding remote devices (for example,

your Zoom modem).

3When the software discovers your modem, it places an icon

named Bluetooth Modem in your Bluetooth folder. Double-

click this icon.

2 Typical Computer Installation 9

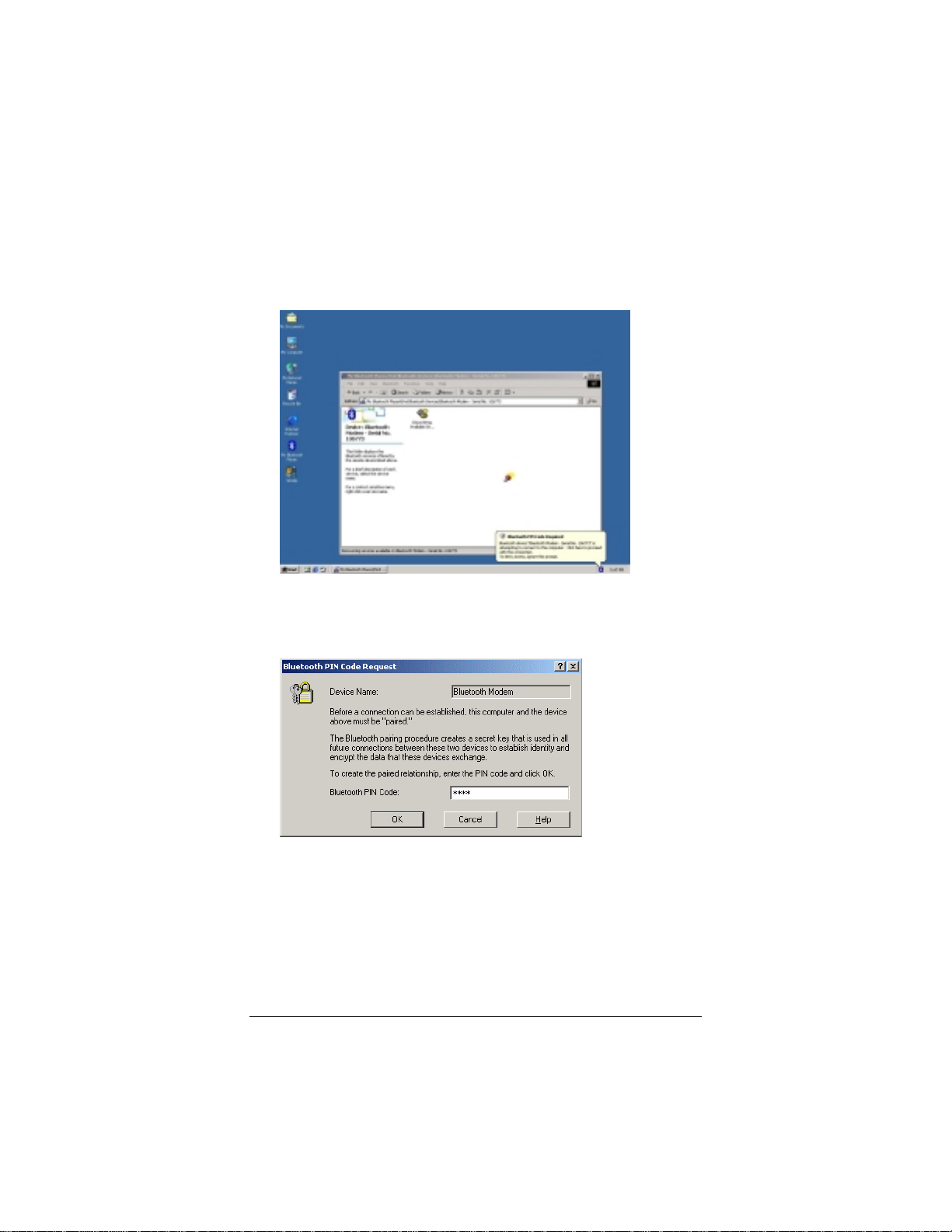

4A Bluetooth PIN Code Required box appears in your

system tray, stating the need for a PIN (personal identification

number). Windows needs this PIN to link your Bluetooth

device and computer. (A PIN is sometimes called a passkey.)

Click this dialog box.

5The Bluetooth PIN Code Request dialog box displays. Type

in the modem’s PIN and click OK.Note: The PIN is located

on the label on the bottom of your modem.

6Once the modem is paired with your computer, the My

Bluetooth folder displays several service option icons,

including:

•Dial-up Networking on BluetoothModem

•Fax on BluetoothModem

•Serial Port on BluetoothModem.

10 Wireless Modem User’s Manual

Double-click Dial-up Networking on BluetoothModem.

If you intend to use your modem with America Online (AOL)

CD software that has not yet been installed, skip to page 11.

Note: If you want to use the modem’s faxing capability, refer

to page 12.

7If this is your first time using a dial-up connection, a Location

Information dialog box will display. Enter your city or area

code and then click Close. If not, skip to Step 8.

8The Connect To dialog box displays. Enter the user name,

password, and phone number supplied by your Internet

Service Provider, and then click Connect. The modem will

dial. Once the Internet connection is established, you can open

a web browser.
