Zte R207-Z Bedienungsanleitung

R207-Z

Quick Start Guide

ZTE CORPORATION

NO. 55, Hi-tech Road South, ShenZhen, P.R.China

Postcode: 518057

Getting to Know Your Device

Appearance

The following figure is for your reference only.

1. LED Indicators

2. Power Key

3. WPS Key

4. Charging/micro-USB Jack

5. (U)SIM Card Slot

6. microSDHC Card Slot

NOTE:

The microSDHC™logo is a trademark of SD-3C, LLC.

Getting to Know Your Device

Indicators

When the device is powered on, the following icons may be lighting.

For a description of the icons, refer to the following table.

Indicator

Status

Description

Network

Red solid

Error status. Not registered to the

mobile network, no (U)SIM card

inserted or no network service

available.

Green solid

Registered to the mobile

network.

Green

blinking

Connected to the mobile network

and data is being transferred.

Wi-Fi

Blue solid

Wi-Fi is active.

Blue

blinking

WPS is active.

off

Wi-Fi is off or your device is in

sleep mode.

SMS

Blue solid

You have unread messages.

Blue

blinking

You have new messages.

off

No unread messages.

Battery

Red solid /

blinking

The battery is low. Please charge

the battery.

Green

blinking

The battery is being charged or in

standby mode.

Green solid

The battery level is middle or

high.

off

Your device is not being charged,

or the battery is not inserted.

Getting to Know Your Device

Connection Scenarios

The device can access the Internet in two ways and it allows multiple

clients to surf on the Internet at the same time. The following figures

are for your reference only.

3G Mode: A (U)SIM card can be used to access the Internet.

Internet Wi-Fi Mode: Your device can be connected to a WLAN

device (such as a hotspot device or wireless router) through Wi-Fi

to access the Internet. The WLAN device must be already

connected to the Internet.

NOTE: Your device and the WLAN device must be in different

subnets.

Installing Your Device

1. Slide the back cover and remove it.

NOTE:

Do not remove the cover rudely.

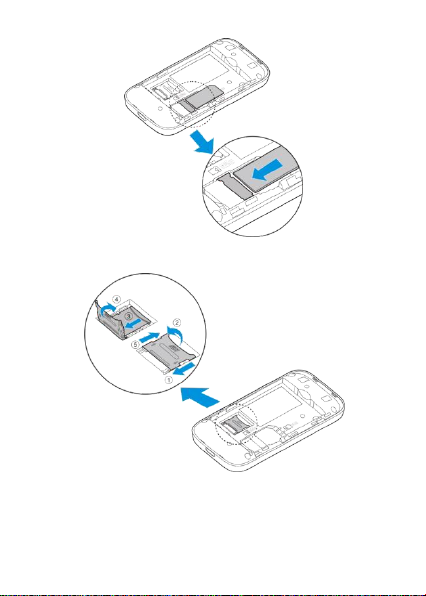

2. Install a (U)SIM card to the (U)SIM card slot.

WARNING!

Your device does not support the micro-SIM and nano-SIM card or

any other non-standard SIM cards. To avoid damaging the device, do

not use those cards or any card holders.

3. Install the microSDHC card if necessary.

4. Install the battery.

5. Close the back cover.

Connecting to Your Device

Using Wi-Fi

1. Power on your device.

2. Make sure your computer or other client devices have enabled

Wi-Fi, and search for available wireless networks.

NOTE:

Refer to your Wi-Fi-enabled client device manual for further details on

how to search for wireless networks. If you use a computer, you

need to set your computer to obtain an IP address automatically.

3. Select the Wi-Fi name (SSID) of your device, and click Connect.

4. Enter the Wi-Fi password if necessary, and click OK.

NOTE:

Refer to the chapter Getting to Know the Wi-Fi SSID and Password

to get the default Wi-Fi SSID and password.

5. Wait until the client device is connected to your device successfully.

Using a USB Cable

1. Connect a computer to your device with a USB cable.

2. Power on your device. The operating system detects and identifies

new hardware, and automatically installs the hardware.

NOTE:

If the system does not automatically launch installation, you can click

the device installation icon in My Computer to install the software.

3. Wait until the computer is connected to your device successfully.

Getting to Know the Wi-Fi SSID and

Password

You can view the label on the device to get the default Wi-Fi SSID and

password.

Logging in to the 3G Mobile Hotspot

Configuration Page

1. Make sure the connection between your device and the client

device is correct.

2. Launch the Internet browser and enter http://192.168.0.1 or

http://ufi.ztedevice.com in the address bar.

NOTE:

It is recommended that you use IE (7.0 or later), Firefox (15.0 or later),

Opera (10.0 or later), Safari (4.0 or later), or Google Chrome (10.0 or

later).

3. Enter the password to log in to the 3G Mobile Hotspot configuration

page.

NOTE:The default password is admin.

Changing the Wi-Fi SSID or Password

1. Log in to the 3G Mobile Hotspot configuration page.

2. Select Settings > Wi-Fi Settings > Basic Settings.

3. Change the Network Name (SSID) or the Pass Phrase

( Password).

4. Click Apply.

Accessing the Internet

3G Mode

After a client device is successfully connected to your device, you can

access the Internet in Automatic or Manual mode. The default mode

is Automatic.

Mode

Operation

Automatic

Your device is automatically connected to the

Internet, and you can surf on the Internet through

the client.

Manual

1. Log in to the 3G Mobile Hotspot configuration

page.

2. Select Settings > Network Settings >

Dial-up Settings > WAN Connection

Mode > Manual, and then click Apply.

3. Select Home, and click Connect or

Disconnect.

NOTE:

To modify the parameters of your device, log in to the 3G Mobile

Hotspot configuration page.

Internet Wi-Fi Mode

1. Log in to the 3G Mobile Hotspot configuration page.

2. Select Settings > Internet Wi-Fi.

3. Set the Internet Wi-Fi Switch and Preferred Network, and click

Apply.
