Zycoo CooVox U80 Bedienungsanleitung

For Medium and Large Business

IP PHONE SYSTEM

CooVox Series-U80

www.zycoo.com

Quick Installation Guide

PW R SY SWAN L AN 4 3 2 1 4 3 2 1

SL OT 2 SL OT1

CooVox

IP Phone System

1 Package Contents

2 Hardware Installation

2.1 Safety Precautions

2.2 Installation Tools

2.3 Product Installation

2.4 Physical Connection

2.5 LED Definitions

3 Basic System Configuration

3.1 Web Login

3.2 Network Configuration

3.3 Module Settings

4 Further Configuration

Table of Contents

1 Package Contents

Antenna(only for

GSM/WCDMA Module)

Warranty Card

Power Cord

IP PBX

Thank you for purchasing ZYCOO IP Phone System. These are the items

included with your IP Phone System purchase:

Quick Installation

Guide

Two mounting brackets

and fittings

2 Hardware Installations

The followings are instructions for setting up ZYCOO CooVox-U80 IP

PBX. Please refer to the illustration and follow the simple steps

below to quickly install your IP phone system.

2.1 Safety Precautions

Notes:

To avoid any device damage and bodily injury caused by improper

use, please obey the following rules.

Keep the power off during the installation.

Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good

skin contact and is well grounded.

Use only the power cord provided with IP PBX.

Make sure that the supply voltage matches the specifications indicated on the rear

panel of IP PBX.

Confirm not to bring about the overload of power circuit before turning on the

power of IP PBX, to avoid the unnecessary damage.

To avoid the electric accident, do not open or remove the cover of IP PBX when it is

working as well as off the power.

Before cleaning the device, cut off the power supply. Do not clean it by the

waterish cloth, and never use any other liquid cleaning method.

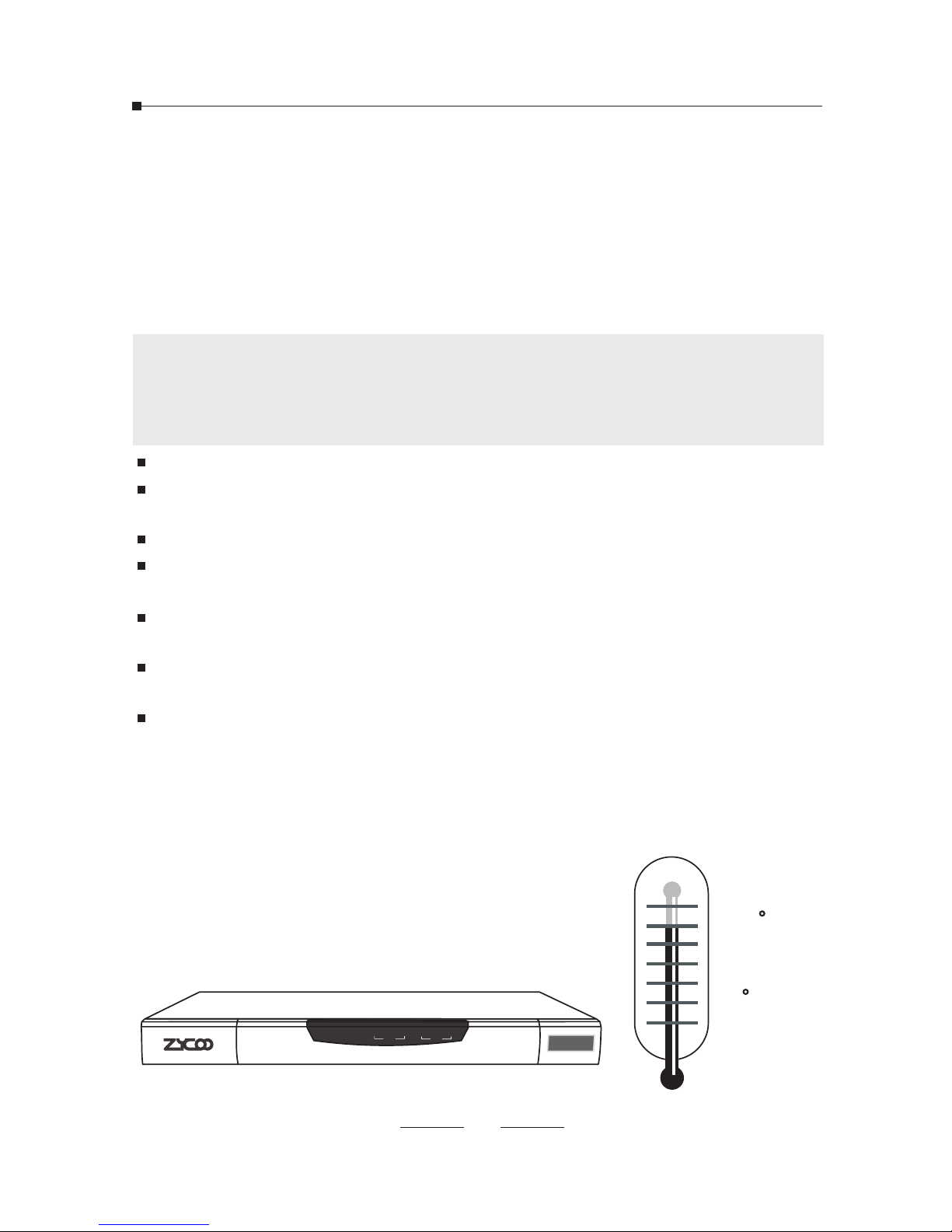

Site Requirements

40 C

0 C

PWR S YS W AN L AN 1 2 3 4

SLO T1 S LO T2 C oo Vox

IP P ho ne Sy ste m

1 2 3 4

To ensure normal operation and long service life of the device,

please install it in an environment that meets the requirements

described in the following subsection. Please keep a proper

temperature and humidity in the equipment room. Too high/low

humidity may lead to bad insulation, electricity leakage,

m e ch a ni ca l p ro pe r ty ch a n g e s a nd co r ro s io ns . To o h ig h

temperature may accelerate aging of the insulation materials and

can thus significantly shorten the service life of the device. For

normal temperature and humidity of the device, please check the

following table.

Environment

Operating

Storage

Temperature

0 C~40 C

-20 C~55 C

Humidity

10%~90%RH Non-condensing

5%~95%RH Non-condensing

Clearness

The dust accumulated on IP PBX can be absorbed by static

electricity and result in poor contact of metal contact points. Some

measures have been taken for the device to prevent static

electricity, but too strong static electricity can cause deadly

damage to the electronic components on the internal circuit board.

To avoid the effect of static electricity on the operation of IP PBX,

please attach much importance to the following items:

Dust the device regularly, and keep the indoor air clean.

Keep the device well grounded and ensure static electricity has

been transferred.

PWR S YS W AN L AN 1 2 3 4

SLO T1 S LO T2 C oo Vox

IP P ho ne Sy ste m

1 2 3 4

Electromagnetic Interference

Electronic components including capacitance and inductance on

the device can be affected by external interferences, such as

conducted emission by capacitance coupling, inductance coupling,

and impedance coupling. To decrease the interferences, please

make sure to take the following measures:

Use the power supply that can effectively filter interference from

the power grid.

Keep the devices far from high-frequency, strong-current devices,

such as radio transmitting station.

Use electromagnetic shielding when necessary.

Lightening Protection

Extremely high voltage currents can be produced instantly when

lightning occurs and the air in the electric discharge path can be

instantly heated up to 20,000℃ . As this instant current is

strong enough to damage electronic devices, more

effective lightning protection measures should be taken:

PWR S YS W AN L AN 1 2 3 4 1 2 3 4

SLO T1 S LO T2 C oo Vox

IP P ho ne Sy ste m

PWR S YS W AN L AN 1 2 3 4 1 2 3 4

SLO T1 S LO T2 C oo Vox

IP P ho ne Sy ste m

Ensure the rack and devices are well earthed.

Make sure the power socket has a good contact with the ground.

Keep a reasonable cabling system and avoid induced lightning.

Use the signal SPD (Surge Protective Device) when wiring outdoor.

Note: the device is specially designed for the usage of

communication operators’ computer room; please obey the

following requirements for installation and maintenance.

2.2 Installation Tools

Phillips screwdriver

ESD-preventive wrist wrap

Cables

2.3 Product Installation

Module Installation

This IP PBX can support installing two extension modules at the

same time.

Optional modules are as follows.

4FXS Module

4FXO Module

2FXOS Module

2GSM Module

4GSM Module

2WCDMA Module

4WCDMA Module

1PRI Module

4BRI Module

4 3 2 1 4 3 2 1

SLOT2 SLOT 1

USBHDM I LA N WAN

RST

100~240V A C

Module Combination Table

Slot1 Slot2 Feasibility

E1 Module

4BRI Module

FXO/FXS Module

GSM/WCDMA Module

Yes

Below are the rules must follow to install ZYCOO module cards.

1.Please refer to module combination table to install the

module/modules to the module slots, you must follow the feasible

combinations or there will be problems.

2.Check if the module is clean and intact.

3.Please ensure power of IP PBX is cut off.

4.Please ensure the direction of the module is correct (ZYCOO-logo

side up).

5.Push the module into the module slot through the guide rail.

6.Tighten the locking screws on the both ends of the module

Vacant

FXO/FXS Module

GSM/WCDMA

E1 Module

4BRI Module

Vacant

E1 Module

4BRI Module

FXO/FXS Module

GSM/WCDMA Module

E1 Module

4BRI Module

FXO/FXS Module

GSM/WCDMA Module

E1 Module

4BRI Module

FXO/FXS Module

GSM/WCDMA Module

E1 Module

4BRI Module

FXO/FXS Module

GSM/WCDMA Module

E1 Module

4BRI Module

FXO/FXS Module

GSM/WCDMA Module

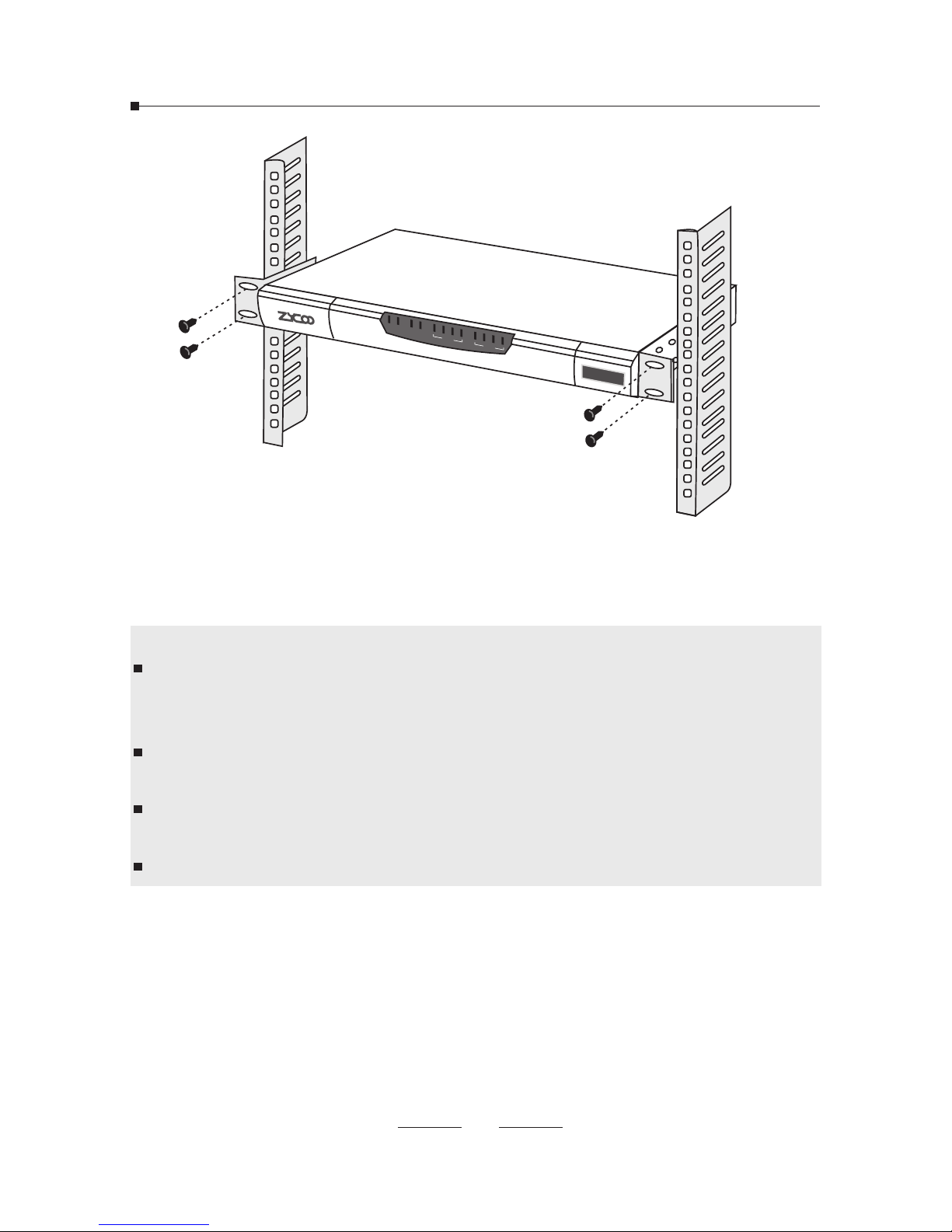

To install the device in an EIA standard-sized, 19-inch rack, follow

the instructions described below:

1.Check the grounding and stability of the rack.

2.Secure the supplied rack-mounting brackets to each side of the

device with supplied screws as illustrated in the following figure.

PWR SY S WANLAN1 2 3 4 1 2 3 4

SLOT 1 SL OT 2

Co oV ox

IP P ho ne Sy ste m

Rack-mounting Bracket

Screw

Do not touch any device on the module, just to prevent the

module from being damaged by static electricity.

This operation must be done with power cut off. The module does

not support hot-plugging.

3.Install IP PBX to the right place in the rack, and then attach the

brackets to the device.

Rack Installation

Notes:

PWRSYS WA NLAN1 2 3 4 1 2 3 4

SLOT1 SL OT 2

CooVox

IP P ho ne Sy ste m

4.After the brackets are attached to the device, use suitable screws

(not provided) to secure the brackets to the rack, as illustrated in

the following figure.

Notes:

Please ensure the correct installation for the grounding of the rack,

which is the most important guarantee of avoiding ESD, electricity

leakage, lightening, and electromagnetic interference;

Please mount devices in sequence from the bottom to top of the

rack to avoid overloading;

Please avoid any heavy thing placed on the device to avoid any

unexpected accidents;

Please ensure heat dissipation and air circulation.

Connect to Ground

Connecting the device to ground is to quickly release the lightning

over-voltage and over-current of the device, which is also a necessary

measure to protect the body from electric shock.

In different environments, the device may be grounded differently.

Two measures are given in the following, of which the Grounding bar

is better for the protection of lightening. Users can try to choose the

most appropriate measure according to different situation.
