SUPERSTACK® 3 SWITCH 3300

QUICK REFERENCE GUIDE

Hardware Features

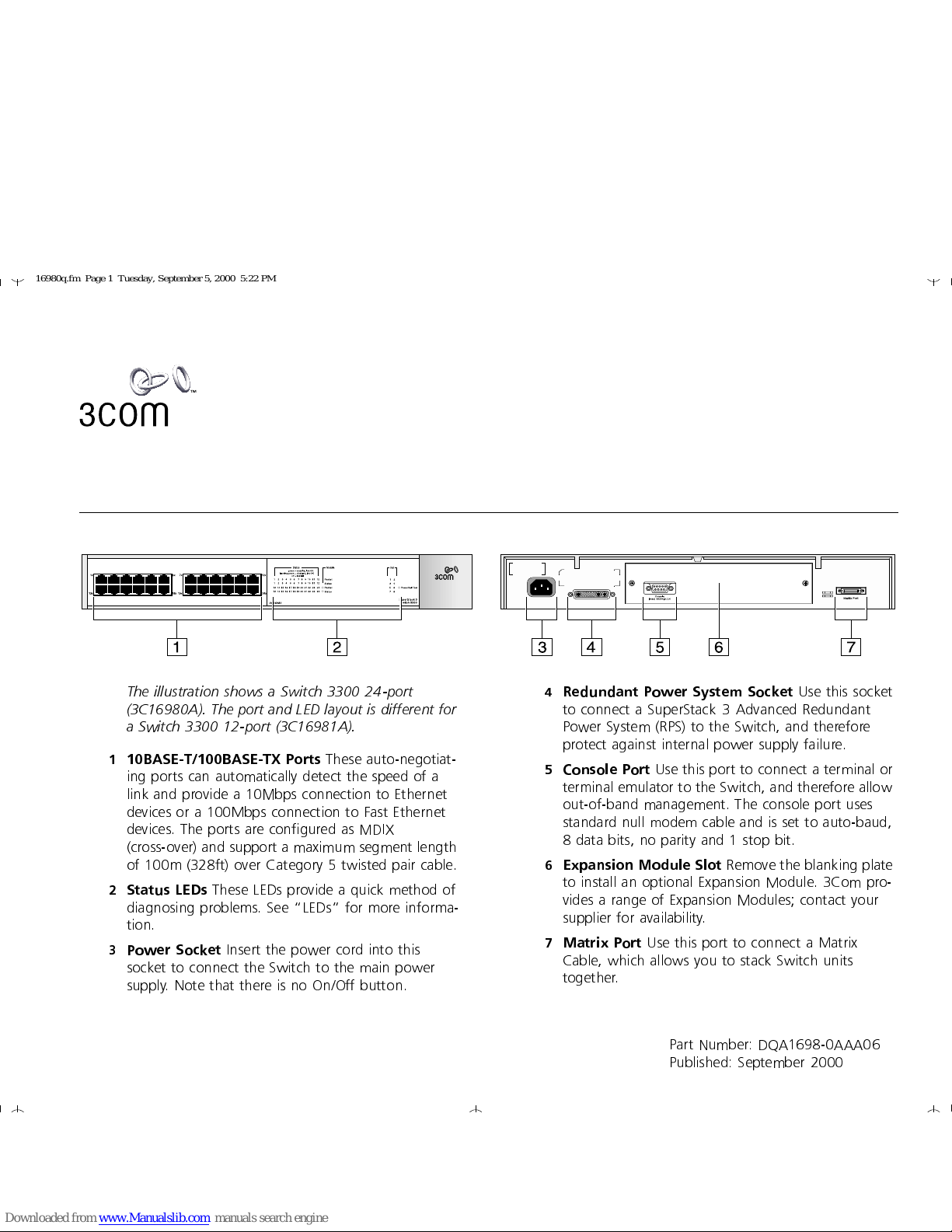

The illustration shows a Switch 3300 24-port

(3C16980A). The port and LED layout is different for

a Switch 3300 12-port (3C16981A).

10BASE-T/100BASE-TX Ports

These auto-negotiat-

ing ports can automatically detect the speed of a

link and provide a 10Mbps connection to Ethernet

devices or a 100Mbps connection to Fast Ethernet

devices. The ports are configured as MDIX

(cross-over) and support a maximum segment length

of 100m (328ft) over Category 5 twisted pair cable.

Status LEDs

These LEDs provide a quick method of

diagnosing problems. See LEDs for more informa-

tion.

Power Socket

Insert the power cord into this

socket to connect the Switch to the main power

supply. Note that there is no On/Off button.

Redundant Power System Socket

Use this socket

to connect a SuperStack 3 Advanced Redundant

Power System (RPS) to the Switch, and therefore

protect against internal power supply failure.

Console Port

Use this port to connect a terminal or

terminal emulator to the Switch, and therefore allow

out-of-band management. The console port uses

standard null modem cable and is set to auto-baud,

8 data bits, no parity and 1 stop bit.

Expansion Module Slot

Remove the blanking plate

to install an optional Expansion Module. 3Com pro-

vides a range of Expansion Modules; contact your

supplier for availability.

Matrix Port

Use this port to connect a Matrix

Cable, which allows you to stack Switch units

together.

Part Number: DQA1698-0AAA06

Published: September 2000

16980q.fm Page 1 Tuesday, September 5, 2000 5:22 PM

LEDs

Defau t Settings

Defau t Passwords

LED Color Indicates

Port Status LEDs

Packet

Yellow Packets are being transmitted/received on the

port.

Off No packets are being transmitted/received on

the port.

Status

Green A link is present, and the port is enabled.

Green

flashing A link is present, but the port is disabled.

Off No link is present.

Expansion Module Port Status LEDs

Packet

Yellow Packets are being transmitted/received on the

Expansion Module port(s).

Off No packets are being transmitted/received on

the Expansion Module port(s).

Status

Yellow A valid Expansion Module is installed.

Yellow

flashing An unrecognized Expansion Module is

installed.

Off No Expansion Module is installed.

Unit LEDs

18

Green The Switch forms a stack with other Switch

units; the LED indicates the position of the

Switch in the stack and that a link is present.

Note that although there are eight LEDs, only

four Switch units can be stacked at present.

Off The Switch is stand-alone.

LED Color Indicates

Power/Self Test LED

Green The Switch is powered-up.

Green

flashing The Switch is either downloading software or

is initializing (which includes running a Power

On Self Test).

Yellow The Switch has failed its Power On Self Test.

Off The Switch is not receiving power.

Port Status

Enabled

Port Speed

10BASE-T/100BASE-TX ports are

auto-negotiated

Duplex Mode

All fixed ports are auto-negotiated

Flow Control

Enabled in half duplex,

auto-negotiated in full duplex

Security

Disabled

Broadcast Storm Control

Enabled

Spanning Tree (STP)

Disabled

Monitor access level

User Name: monitor

Password: monitor

Manager access level

User Name: manager

Password: manager

Security access level

User Name: admin

Password: (no password)

User Name: security

Password: security

LED Color Indicates

16980q.fm Page 2 Tuesday, September 5, 2000 5:22 PM

Web Interface Map

16980q.fm Page 3 Tuesday, September 5, 2000 5:22 PM

Command Line Interface Map

■

To display sub-menus:

At the

Select menu

option

prompt, enter the

name of the menu or

menus.

■

To display parent

menus:

At the

Select menu

option

prompt, enter

■

To display the

Top-level menu:

Press the [Esc] key.

■

To obtain help:

At the

Select menu

option

prompt, enter

16980q.fm Page 4 Tuesday, September 5, 2000 5:22 PM
