Quick Start Guide

3Com Wireless 7760

11a/b/g PoE Access Point

3CRWE776075 / WL-561

The 3Com Wireless 7760 11a/b/g PoE Access Point combines high-performance, interoperability,

and ease of-use to join isolated wired networks into a cohesive wireless local area network

(WLAN). The Wireless 7760 Access Point also includes robust standards-based security features,

and supports wireless network standards including 802.11a and 802.11g.

This Quick Start Guide describes the basic steps necessary to install and configure your 3Com

Wireless 7760 11a/b/g PoE Access Point (3CRWE776075 / WL-561). Throughout this guide the

Wireless 7760 Access Point is simply referred to as the Access Point.

Before installing or moving the Access Point you must read the safety information provided in

“Safety Information” on page 3 of this manual.

About This Guide

This guide describes the basic installation of the Access Point. It covers the following topics:

•3Com Wireless 7760 Access Point Features

•Safety Information

•Step 1: Unpacking the Access Point

•Step 2: Preparing for Installation

•Step 3: Attaching the Antennas

•Step 4: Mounting the Access Point

•Step 5: Connecting Power

•Step 6: Checking the LED Indicators

•Step 7: Installing Software

•Step 8: Connecting to the Access Point

•Step 9: Configuring the Access Point

•Troubleshooting

3Com Wireless 7760 Access Point Features

Feature Description

Ethernet Port The Ethernet port provides a 10/100BASE-TX Ethernet connection to a

3Com switch. Use a suitable Category 5 cable with straight-through

signaling and standard RJ-45 connectors to connect your Access Point

to the switch on the network.

Power Port Not supported. The Access Point is powered using Power Over

Ethernet (PoE). See “Connecting Power” on page 7.

LEDs The LEDs indicate power and activity. See “Checking the LED

Indicators” on page 9 for details.

Antenna Connectors Two RSMA type antenna connectors allow you to connect antennas

that operate in 2.4 GHz and 5.3 GHz bands.

Reset Button To restore factory settings, press the reset button during power-up by

inserting a pointed object into the reset hole on the back of the

Access Point and holding for five seconds.

Serial Port Provides a serial interface to the Access Point for diagnostic use.

Mounting Bracket The mounting bracket comes attached to the Access Point and allows

the unit to be mounted on a wall or ceiling.

Power Port

Ethernet Port

Mounting Bracket

Antenna Connectors

LEDs

Serial Port

Reset Button

Safety Information

This equipment must be installed in compliance with local and national building codes, regulatory

restrictions, and FCC rules. For the safety of people and equipment, only professional network

personnel should install the Access Point.

You must read the following safety information carefully before you install or remove the

unit.

Approved Channels

Use of this product is only authorized for the channels approved by each country. For proper

installation, select your country from the country selection list.

To conform to FCC channel usage restrictions, only channels 1–11 are available by default. If

channels 1–13 are permitted for use in your country, please visit the 3Com web site for the latest

software version.

www.3Com.com

WARNING: Warnings contain directions that you must follow for your personal safety.

Follow all directions carefully.

WARNING: Exceptional care must be taken during installation and removal of the unit.

WARNING: The socket outlet must be near to the unit and easily accessible. You can

only remove power from the unit by disconnecting the power cord from the outlet.

WARNING: This unit operates under SELV (Safety Extra Low Voltage) conditions

according to IEC 950 / IEC 60950. The conditions are only maintained if the equipment

to which it is connected also operates under SELV conditions.

WARNING: There are no user-replaceable fuses or user-serviceable parts inside the

unit. If you have a physical problem with the unit that cannot be solved with problem

solving actions in this guide, contact your supplier.

WARNING: Disconnect the power adapter before moving the unit.

WARNING: RJ-45 ports. These are shielded RJ-45 data sockets. They cannot be used

as standard traditional telephone sockets, or to connect the unit to a traditional PBX or

public telephone network. Only connect RJ-45 data connectors, network telephony

systems, or network telephones to these sockets.

Either shielded or unshielded data cables with shielded or unshielded jacks can be

connected to these data sockets.

WARNING: To comply with FCC radio frequency (RF) exposure limits, a minimum

body-to-antenna distance of 20 cm (8 in.) must be maintained when the Access Point is

operational.

Informacje na temat bezpieczeñstwa

Urządzenie musi byćzamontowane zgodnie z lokalnymi i krajowymi normami, ustawami

i przepisami. W celu zagwarantowania bezpieczeństwa osób i urządzeń, instalacjęPunktu

dostępowęgo może przeprowadzaćwyłącznie wyszkolony fachowiec ds. sieci.

Przed przystąpieniem do montażu lub demontażu urządzenia należy dokładnie przeczytać

następujące informacje dotyczące bezpieczeństwa.

OSTRZEŻENIE: Ostrzeżenia zawierająwskazówki, których należy przestrzegać

w celu zagwarantowania bezpieczeństwa osobistego. Do tych zaleceńnależy

stosowaćsiędokładnie.

OSTRZEŻENIE: Podczas montażu lub demontażu urządzenia należy pracować

z wyjątkowąuwagą.

OSTRZEŻENIE: Gniazdo sieciowe powinno znajdowaćsięw pobliżu urządzenia

i byćłatwo dostępne. Z urządzenia można odciąć zasilanie wyłącznie poprzez

wyjęcie kabla zasilającego z gniazda.

OSTRZEŻENIE: Urządzenie działa w warunkach SELV (obwód bezpiecznego

niskiego napięcia) zgodnie z normąIEC 950 / IEC 60950. Warunki te sąjednak

zagwarantowane wyłącznie wtedy, gdy sprzęt, do którego podłączone jest

urządzenie, równieżpracuje w obwodzie SELV.

OSTRZEŻENIE: Wewnątrz urządzenia nie znajdująsięwymienne bezpieczniki lub

części, które mogłyby byćoddane do naprawy. W przypadku wystąpienia problemu,

którego nie można rozwiązaćza pomocąwskazówek podanych w tej instrukcji

obsługi, prosimy o kontakt z dostawcąproduktu.

OSTRZEŻENIE: Przed przeniesieniem urządzenia należy odłączyćzasilacz.

OSTRZEŻENIE: Porty RJ-45. Sąto ekranowane gniazda RJ-45 do danych. Nie są

przeznaczone do użycia jako standardowe gniazda telefoniczne lub do podłączenia

urządzenia do PBX lub publicznej sieci telefonicznej. Do tych gniazd wolno

podłączaćwyłącznie wtyki RJ-45 danych, systemów telefonii sieciowej lub telefonów

sieciowych.

Do tych gniazd można podłączaćkable danych ekranowane lub nieekranowane

z ekranowanymi lub nieekranowanymi wtykami.

OSTRZEŻENIE: W związku w ograniczeniami częstotliwości radiowej (RF),

minimalna odległość między ciałem a antenąwynosząca 20 cm (8 cali) musi być

zachowana w przypadku stosowania Punkt dostępowy.

1. Unpacking the Access Point

Make sure that you have the following items, which are included with the Access Point:

•One 3Com Wireless 7760 11a/b/g PoE Access Point

•Two external dual-band antennas (2.4 GHz and 5.3 GHz)

•One PoE (Power over Ethernet) injector

•One Ethernet cable

•Wall-mounting hardware:

•Mounting bracket (attached to the Access Point)

•One locking bar (used for securing a wall- or ceiling-mounted installation)

•Two sheet metal screws

•Two thread screws

•Two wall anchors

•Four adhesive rubber feet (used for a flat-surface installation).

•One CD-ROM containing the Setup Wizard software, the User’s Manual, and a copy of this

Quick Start Guide.

•One Warranty Flyer

2. Preparing for Installation

It is advisable to connect and check the Ethernet cable and LEDs before installing the Access Point

in a hard-to-reach location. Additionally, observe the following items before mounting or

connecting the Access Point:

Feature Description

Switch Port To connect your wireless network to your wired network, you need a

hub or switch connected to the Access Point.

Cabling Make sure that standard Ethernet cable with straight-through

signaling is installed at the site before you install the Access Point.

Make sure that the cable is highly flexible and that there is no extra

covering on the RJ-45 connector that could prevent the cable from

being routed through the mounting bracket.

Power Requirement Power is supplied using an 802.3af Power Over Ethernet (PoE)

compliant device. A PoE injector is included.

MAC Address Record the access point MAC address in a safe place before the

Access Point is installed in a hard-to-reach location.

The MAC address is printed on the back of the Access Point.

Additional MAC address labels are shipped with the Access Point.

3. Attaching the Antennas

Carefully unpack the standard detachable antennas that came with your Access Point. Thread

each antenna on to an antenna connector on the Access Point and hand-tighten them. After

network startup, you may need to adjust the antennas to fine-tune coverage in your area.

For best results, adjust the antennas so they are perpendicular to the floor and ceiling.

4. Mounting the Access Point

The access point can be mounted on the following types of surfaces:

•Wall, ceiling, or electrical box (NEMA enclosure)

•Tabletop

Wall, Ceiling, or Electrical Box Mounting

Use the mounting bracket that comes with your Access Point to install it on a wall, ceiling, or

electrical box. For additional security, use the included locking bar and a lock (not provided) to

lock the Access Point to the cradle after it is mounted to a wall.

To wall-mount the Access Point:

1Route Ethernet cable through the large opening in the cradle.

2Screw the mounting bracket to a wall, ceiling, or electrical box (NEMA enclosure):

•If mounting to a solid surface wall or ceiling, use the two sheet metal screws.

•If mounting to drywall, use the two sheet metal screws and two wall anchors.

•If mounting to an electrical box (NEMA enclosure), use the two threaded screws.

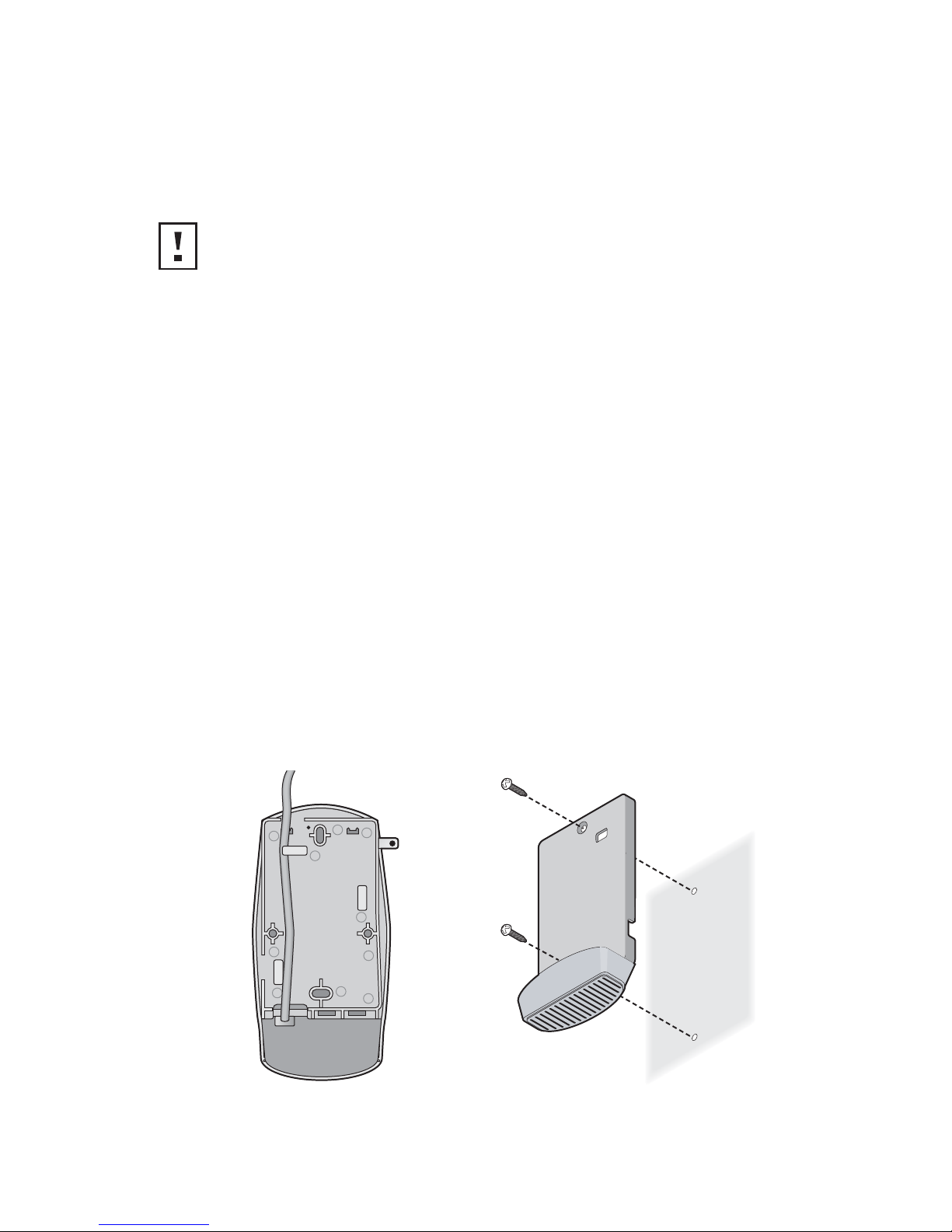

The figures below show a cable being routed through the large opening in the cradle and

then the cradle being mounted to a wall.

CAUTION: Do not handle the antenna tips, especially after they are connected to the

Access Point. This could lead to electrostatic discharge (ESD), which could damage the

equipment.

Wall-mounting the cradleRouting a cable

3Connect the Ethernet cable (for power and network connection) to the port on the front of

the Access Point.

4Snap the Access Point onto the mounting bracket.

5To install the locking bar, push the locking bar through the opening in the side of the

mounting bracket until the hole on the locking bar is exposed. Insert a lock (not provided)

through the hole on the locking bar, and then close the lock to secure it in place.

Tabletop Mounting

To install the Access Point on a flat surface such as a table or desktop:

1Remove the backing from the four rubber feet and attach them on the bottom of the

mounting bracket that is attached to the Access Point.

2Place the Access Point on the table.

3Connect the Ethernet cable (for power and network connection) to the port on the front of

the Access Point.

5. Connecting Power

The Access Point can be powered by the following methods:

•By Power Over Ethernet (PoE) supplied over the LAN by a 802.3af PoE compliant device such

as a switch or hub.

•By PoE supplied by the PoE injector included with the Access Point.

Power Over Ethernet (PoE) from the LAN

To power the Access Point using PoE provided by a switch or other 802.3af compliant device,

simply plug the network cable from the device into the Access Point’s Ethernet port.

Inserting the locking bar Securing the bar with a lock

PoE Switch/Hub

Access Point

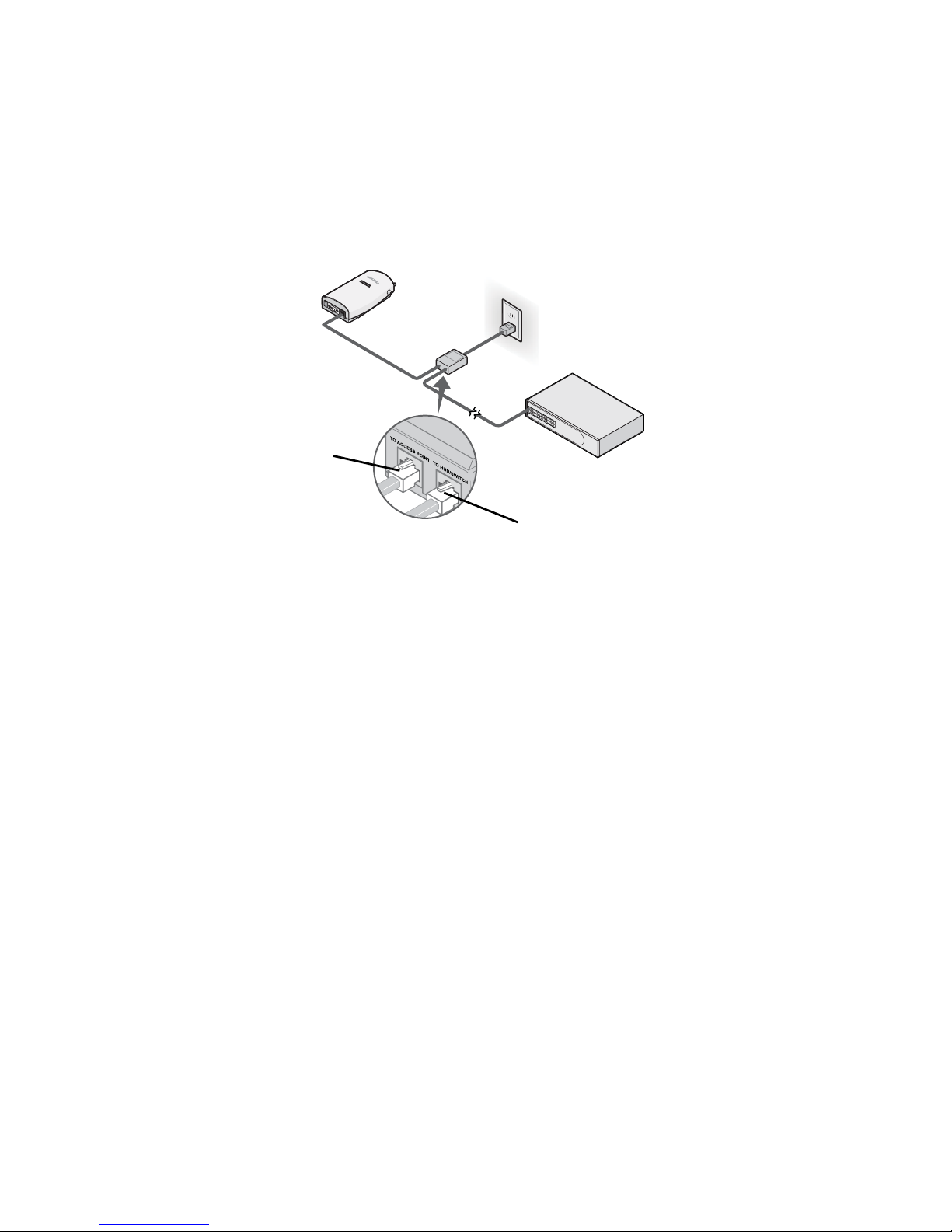

Power Over Ethernet from a PoE Injector

To power the Access Point using the 3Com PoE Injector (included with the unit), do the following:

1Connect the LAN cable from the switch or hub to the Hub/Switch port on the 3Com PoE

Injector (included with Access Point).

2Next connect a LAN cable from the Ethernet port on the Access Point to the other port on

the PoE injector.

3Plug the PoE Injector into a properly grounded electric outlet.

Switch/Hub

(non-PoE)

Access Point

To Access Point

To Switch/Hub

Inhaltsverzeichnis

Sprachen:

Andere 3Com Drahtloser Zugangspunkt Handbücher

3Com

3Com LANplex 6000 Bedienungsanleitung

3Com

3Com 7608 Bedienungsanleitung

3Com

3Com AP9152 Bedienungsanleitung

3Com

3Com 3CRWE825075A Bedienungsanleitung

3Com

3Com 3CRWEASYG73 - 11g Wireless LAN Outdoor Bedienungsanleitung

3Com

3Com 3CRWE825075A Bedienungsanleitung

3Com

3Com 3CRWE776075 Bedienungsanleitung

3Com

3Com AirConnect 9550 Bedienungsanleitung

3Com

3Com 8760 - Wireless Dual Radio 11a/b/g PoE Access... Bedienungsanleitung

3Com

3Com WL-455 Bedienungsanleitung

3Com

3Com AP9152 Handbuch

3Com

3Com 3CRWX275075A - Wireless LAN Managed Access Point... Bedienungsanleitung

3Com

3Com AP9552 Handbuch

3Com

3Com Wireless 11n USB Adapter Bedienungsanleitung

3Com

3Com 8250 Bedienungsanleitung

3Com

3Com Wireless LAN 11 Mbps Bedienungsanleitung

3Com

3Com 3CRWX375075A - Wireless LAN Managed Access Point... Bedienungsanleitung

3Com

3Com 8250 Bedienungsanleitung

3Com

3Com 3CRWE820096A - Wireless LAN Access Point... Bedienungsanleitung

3Com

3Com 3CRWE20096A - Wireless LAN Access Point 2000 Bedienungsanleitung

3Com

3Com AirConnect Handbuch

3Com

3Com AP3850 Bedienungsanleitung

3Com

3Com 8500 Bedienungsanleitung

3Com

3Com 3CRWEASYA73 / WL-575 Bedienungsanleitung

Beliebte Drahtloser Zugangspunkt Handbücher anderer Marken

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Bedienungsanleitung

Ubiquiti

Ubiquiti NanoStation NSM2 Bedienungsanleitung

Cisco

Cisco Aironet 1550 Series Bedienungsanleitung

Aruba

Aruba IAP-335 Bedienungsanleitung

Advantek Networks

Advantek Networks AWN-AP-54MR Bedienungsanleitung

IP-COM

IP-COM AP355 Bedienungsanleitung

Buffalo

Buffalo AirStation WLA-L11G Bedienungsanleitung

EnGenius

EnGenius EnStationACv2 Bedienungsanleitung

D-Link

D-Link DAP-3662 Bedienungsanleitung

xG Technology

xG Technology xMax CN1300 Bedienungsanleitung

Widelink

Widelink ezWave WAP-1100 Series Bedienungsanleitung

Edimax

Edimax CAP1200 Bedienungsanleitung

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Bedienungsanleitung

Aruba

Aruba AP-203R Bedienungsanleitung

LuXout Shades

LuXout Shades LUXSHADE MOTION Bedienungsanleitung

CreatComm

CreatComm TB5F Bedienungsanleitung

SineDigital

SineDigital MW-1500AP(H) Bedienungsanleitung

TP-Link

TP-Link AP9650 V1 Bedienungsanleitung
