WIRELESS

DATA SHEET

OVERVIEW

Reliable, secure, high-speed IEEE 802.11n wireless

networking has just been made practical. These

innovative and cost-effective Power over Ethernet

(PoE) access points—compliant with 802.11n Draft

2.0— are suitable for businesses of all sizes and are

available in two configurations:

› the 3Com®AP9552 dual-radio access point has both

2.4 and 5 GHz 802.11n radios allowing it to support

simultaneous 2.4 GHz 11b/g/n and 5 GHz 11a/n wire-

less connections

This access point is powered using a single, standard

IEEE 802.3af PoE connection, eliminating the need for

proprietary PoE injectors or bulky and inefficient

external power supplies.

This access point support the latest, most effective

authentication techniques to thwart intruders and

simplify network management. Advanced network

security with Wi-Fi Protected Access (WPA2™),

Advanced Encryption Standard (AES) and IEEE 802.1X

authentication protect communication over the

wireless LAN and help ensure only authorized users

access the network.

High-level security and network management include

support for multiple SSIDs, IEEE 802.1Q VLANs, and

secure WDS bridging.

Advanced Multiple-Input Multiple-Output (MIMO)

technology provides enhanced wireless range.

Run in stand-alone mode or with one of 3Com's WX

3000 Series wireless controllers. When working in

conjunction with a wireless controller, get all the

features that high end enterprise customers are

looking for. The wireless controller provides auto-

configuration of channels and power levels,

redundancy, quality of service (QoS) in a roaming

environment, layer 2/layer 3 roaming and enhanced

authentication and security features that surpass

those of stand-alone wireless networks.

KEY BENEFITS

ENABLING WIRELESS FREEDOM

Take advantage of the freedom of high-speed

networking without wires with the Wi-Fi®CERTIFIED™

3Com AP9552 access points. Wireless LANs (WLANS)

cost-effectively extend secure mobile access to

employees, contractors and guests, creating a more

flexible environment that supports workgroup

collaboration and mobile applications such as wireless

VoIP, scanners and other handheld IP technology.

SUPPORTS COMPLETE IEEE 802.11 STANDARDS

The 3Com AP 9552 supports all IEEE 802.11 2.4 and

5 GHz networking standards—11a, 11b, 11g and 11n

Draft 2.0.

3COM AP9552 11N

2.4+5GHZ PoE

ACCESS POINT

Secure and reliable, high-speed 11n wireless

connectivity in a cost-effective PoE access

point with advanced business-class features

PROVIDES DEPLOYMENT FLEXIBILITY WITH

POWER PROVISIONING OPTIONS

PoE provides flexible installation options. Powering

the APs with standard IEEE 802.3af PoE makes it

easier than ever to overcome installation problems by

eliminating the need for an AC power plug at each AP.

Any 3Com PoE switch or other 802.3af-compliant PoE

product supplies both power and data to the access

point through the same Category 5 or 6 Ethernet

cable, useful and more economical in hard-to-wire

locations.

SECURES AND PROTECTS WIRELESS

COMMUNICATIONS

3Com offers one of the most robust suites of

standards-based security on the market today. To

protect wireless data, WPA2 with 128-bit AES

encryption provides the latest, toughest standards-

based security; WEP encryption is also supported for

legacy clients.

To protect against unauthorized network access, the

access points support IEEE 802.1X authentication and

authorization through backend RADIUS servers using

EAP-TLS, PEAP and EAP-TTLS. MAC address access

control and peer-to-peer client restrictions provide

further security options.

PROVIDES SECURE ACCESS CONTROL

Configure up to four SSIDs per radio with different

security profiles for different groups of users. IEEE

802.1Q-compliant VLAN support works with the

multiple SSID feature to protect company confidential

files from those who should not have access, such as

guest workers.

SOLVES COMPLEX CONNECTIVITY PROBLEMS

Wireless Distribution System (WDS) bridging solves

complex wireless connectivity problems. The access

point supports both point-to-point and point-to-

multipoint WDS links for flexible network deployment

across floors or between nearby buildings.

HIGH PERFORMANCE AND RELIABILE

Desktop or notebook users can wirelessly access

network resources and applications at 802.11n Draft

2.0 speeds, ideal for multimedia applications. A host of

features and MIMO technology ensure reliable wireless

connectivity and excellent range and throughput. Wi-Fi

certification helps ensure interoperability with other

vendors.

3Com backs each product with global sales, service

and support along with technology, financial and

operational strength.

SIMPLIFIED SET UP; USE RIGHT OUT OF THE BOX

Setup and operation are designed for easy

deployment. In addition to SSID and VLAN

configuration flexibility, the AP discovery utility and

Web interface simplify secure setup. Preset defaults

get you up and running quickly.

BACKWARD COMPATIBILITY

The AP 9552 is compatible with existing IEEE 802.11a, b

and g networks.

23COM AP9552 11N 2.4+5GHZ PoE ACCESS POINT

KEY BENEFITS (continued)

33COM AP9552 11N 2.4+5GHZ PoE ACCESS POINT

FEATURES AND BENEFITS

FLEXIBLE HIGH-SPEED CONNECTIVITY

Multiple-Input Multiple-Output Advanced MIMO technology provides enhanced wireless range

(MIMO) and coverage area for improved roaming and ubiquity

Internal antennas Three built-in antennas per radio allow a compact and aesthetic design that is ideal for

wall-mounting in professional office spaces

Support for external antennas Three R-SMA connectors allow you to add optional external antennas for increased range

in bridging applications

WiFi Multimedia (WMM®) support Improves the user experience for audio, video and voice applications

Wi-Fi CERTIFIED a/b/g/n certification helps ensure interoperability with Wi-Fi certified products from other

vendors

High-speed 802.11 standards support Support for 802.11n Draft 2.0 provides the highest possible wireless speeds Provides

complete access to 2.4 and 5 GHz IEEE 802.11a/b/g and 802.11n Draft 2.0 wireless

networks

Backward compatible with 11a/b/g users Supports high speeds while protecting existing investments

ROBUST SECURITY FEATURES

IEEE 802.1X network access control IEEE 802.1X network access control and EAP authentication provide the latest, most

effective authentication techniques to help thwart intruders and simplify network

management

WPA2/WPA™(Wi-Fi Protected Access) Supports advanced 128-bit WPA/WPA2 encryption, and 40-/64- and 128-bit WEP

and WEP (Wired Equivalent Privacy) encryption for legacy wireless clients

Multiple SSID support with Create SSIDs with specific settings for each group of wireless users to

SSID isolation segment traffic; SSIDs can be bridged together or isolated

MAC address access control Filters MAC addresses on devices so that only trusted clients gain access to the WLAN

802.1Q VLAN support Groups users according to data or traffic requirements to segment traffic flow based on

business priorities.

INSTALLATION AND MANAGEMENT EASE

Web browser-based administration Familiar browser interface lets you configure and manage APs from anywhere on the

network; preset defaults simplify setup and operation

Access point discovery utility Automatically discovers AP devices to simplify configuration and management (PCs with

Windows based operating systems only).

PoE support Expands installation options by eliminating the need for power adapters and AC outlets

for APs

WDS bridging Access points can function as bridges to join LAN segments and support point-to-point or

point-to-multipoint configuration modes

SNMP support Enables the AP to be centrally managed by popular standards-based network

management applications using SNMP v1 and v2c

Syslog support Enables the access point to be centrally monitored by sending data to the network Syslog

server

Multiple mounting options The access point can be mounted in any of three convenient manners: wall-mount,

desktop mount or ceiling mount

43COM AP9552 11N 2.4+5GHZ PoE ACCESS POINT

PoE SUPPORT

Choose from several power options to match your

installation needs. First, the PoE access point can be

powered with any standard 802.3af PoE injector such

as 3CNJPSE-GIG. Note that the PoE injector should

support gigabit links for maximum performance.

Non-PoE switch

3Com 802.3af

Gigabit PoE Injector

Ethernet Data

and Power

3Com

AP9552

Access Point

The access point can also be powered using an

802.3af-compliant PoE Gigabit switch. The switch

provides both data and power through the Ethernet

cable.

Data and power

Ethernet

3Com

AP9552

Access Point

BaselineSwitch2924-PWRPlus

3CBLSG24PWR

3Com Baseline Switch

2924-PWR Plus

The Midspan solution distributes power to the PoE

access point over existing switch connections,

seamlessly extending network connectivity into hard-

to-wire locations.

Data and power Data only

Gigabit Ethernet switch

Gigabit Power over Ethernet

Multiport Midspan Solution

3Com AP9552

Access Point

53COM AP9552 11N 2.4+5GHZ PoE ACCESS POINT

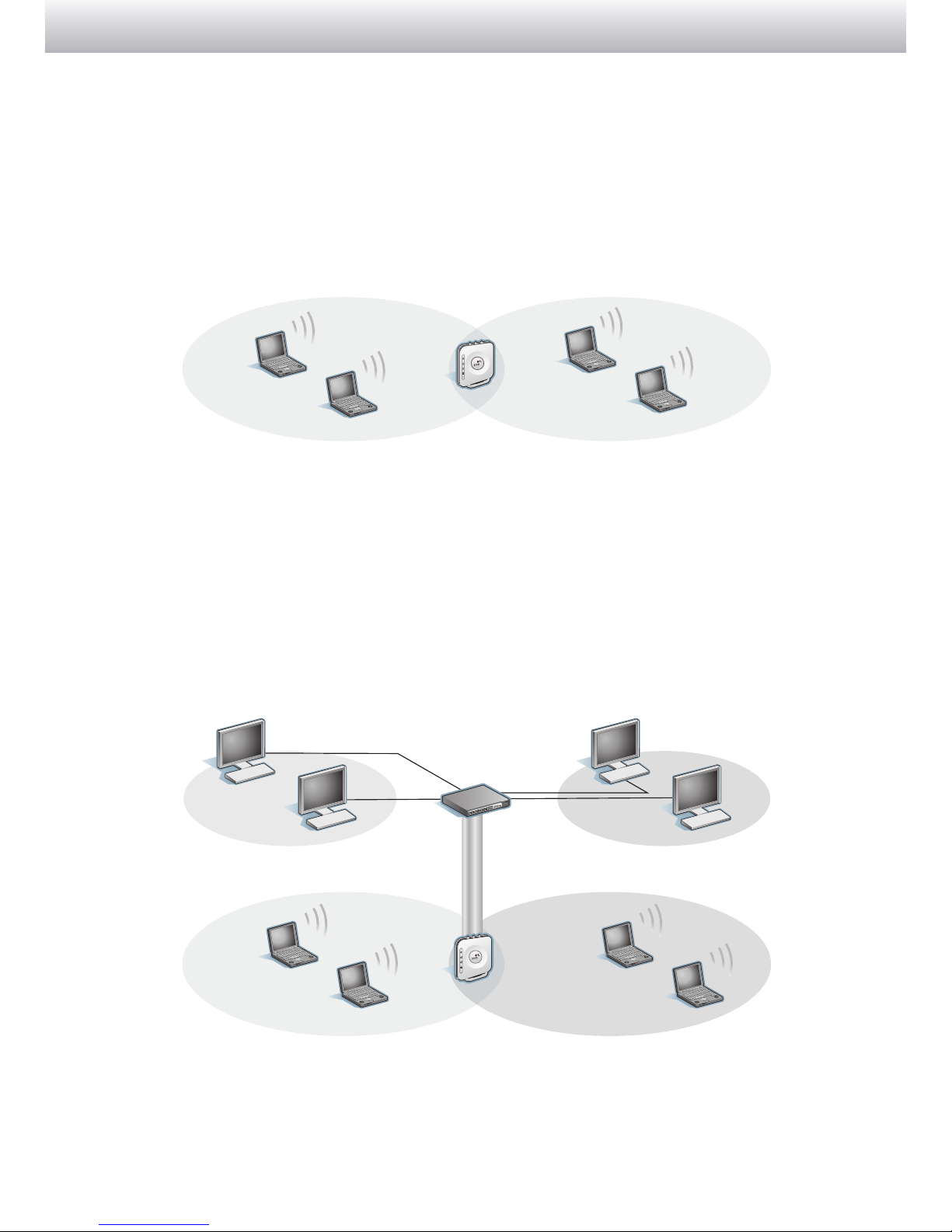

MULTIPLE SSID SUPPORT

Multiple SSID support enables many flexible

configurations, including supporting multi-generation

clients simultaneously—without losing the

performance available for 11n clients or those with

lower levels of security such as legacy WEP devices.

3Com

AP9552

Access Point

WPA2 clients

SSID1 = WPA2

Legacy WEP clients

SSID2 = WEP

MULTIPLE SSID AND VLAN SUPPORT

With a 3Com Access Point, a single Ethernet link

supports multiple VLAN traffic tunnels. Easily

segment users that need priority access or different

levels of security.

WPA2 clients

Legacy WEP clients

SSID1

SSID1 = VLAN1

SSID2 = VLAN2

VLAN1

VLAN2

SSID1 SSID2

SSID2

3Com

Baseline Switch

2924-PWR Plus

Wired desktops

VLAN2

Wired desktops

3Com AP9552

Access Point

BaselineSwitch2924-PWRPlus

3CBLSG24PWR

63COM AP9552 11N 2.4+5GHZ PoE ACCESS POINT

Wired desktops

WDS

3Com AP9552

Access Point

3Com AP9552

Access Point

3CDSG10PWROfficeConnectManagedGigabitPoESwitch

3Com

OfficeConnect

ManagedGigabit

PoE Switch

3CDSG10PWROfficeConnectManagedGigabitPoESwitch

3Com

OfficeConnect

ManagedGigabit

PoE Switch

POINT-TO-MULTIPOINT WDS LINK

A 3Com Access Point can function as a wireless bridge

in either point-to-point (PTP) or point-to-multipoint

(PTMP) modes for installation flexibility.

Wired desktops

WDS

Wired desktops

3Com AP9552

Access Point

3Com AP9552

Access Point

3Com

OfficeConnect

Managed Gigabit

PoE Switch

3CDSG10PWROfficeConnectManagedGigabitPoESwitch

3Com

OfficeConnect

Managed Gigabit

PoE Switch

3CDSG10PWROfficeConnectManagedGigabitPoESwitch

3Com AP9552

Access Point

3CDSG10PWROfficeConnectManagedGigabitPoESwitch

3Com

OfficeConnect

ManagedGigabit

PoE Switch

POINT-TO-POINT WDS LINK

The 3Com Access Point connects wired LANs with a

Wireless Distribution System (WDS) link. The APs act

as wireless bridges, forwarding traffic between LANs.

73COM AP9552 11N 2.4+5GHZ PoE ACCESS POINT

SPECIFICATIONS

MEDIA INTERFACES

IEEE 802.11a, 802.11b, 802.11g, 802.11n draft 2.0

1 RJ-45 10BASE-T/100BASE-TX/1000BASE-T port with IEEE 802.3af PoE,

auto-negotiating RJ-45 console port

DATA RATES

802.11a

54, 48, 36, 24, 18, 12, 9 and 6 Mbps

802.11g

54, 48, 36, 24, 18, 12, 9 and 6 Mbps

802.11b

11, 5.5, 2 and 1 Mbps

802.11n

MCS 0 to 15 for HT20MHz, 6.5-130 Mbps

MCS 0 to 15 for HT40MHz, 13.5-270 Mbps

FREQUENCY BAND

802.11a: 5.15-5.85 GHz

802.11b/g: 2.4-2.484 GHz

802.11n: 2.4-2.484 GHz, and 5.15-5.85 GHz

OPERATING CHANNELS:

Channel availability depends on local country regulations. Wireless LAN

system administrator must choose correct country of operation. Channels

are then automatically configured to comply with specified country regulations.

MODULATION TECHNIQUE

802.11b: DSSS (Direct Sequence Spread Spectrum)

802.11a/g/n: OFDM (Orthogonal Frequency Division Multiplexing) and

DSSS

MEDIA ACCESS PROTOCOL

CSMA/CA with ACK

OPERATING VOLTAGE

PoE: 48V DC

POWER CONSUMPTION

10.0 watts of PoE power with both radios active

STANDARDS CONFORMANCE

IEEE 802.1X, 802.3ab, 802.3af, 802.3i, 802.3u, 802.11a, 802.11b, 802.11d,

802.11g, 802.11n Draft 2.0

WMM, WPA2/WPA, Wi-Fi CERTIFIED

ANTENNA

3 internal per radio; 2T x 3R

Optional external antennas also available

SECURITY

WPA2- Enterprise

WPA2- Personal

WPA- Personal

WPA- Enterprise

AES/TKIP

WEP 64-/128-bit encryption

IEEE 802.1X EAP types:

EAP-TLS, EAP-TTLS, PEAP

MANAGEMENT

SNMP v1, v2 and v3

Remote management with Web browser over HTTP

Command line interface over Telnet

Access point discovery utility

LEDS

Power, LAN, 2.4 GHz radio, 5 GHz radio

DIMENSIONS AND WEIGHT

Length: 19.7cm (7.8 in)

Width: 19.7cm (7.8 in)

Height: 4.5 cm (1.8 in)

Weight: 1 kg (2.2 lb)

REGULATORY/AGENCY APPROVALS

Safety

UL/CSA 60950-1

EN/IEC 60950-1

Radio

FCC Part 15.247

RSS-210

EN 300 328 v1.7.1

EMC

FCC Part 15 Subpart B

EN 301 489-17

SAR

FCC Guideline for Human

Exposure IEEE C95.1

EN 50392

ENVIRONMENTAL RANGES

Operating temperature: -10 to 40°C (14 to 122°F)

Storage temperature: -40 to 70°C (-40 to 158°F)

Humidity: 10 to 95% non-condensing

SYSTEM REQUIREMENTS

Computer with an Ethernet interface configured for Internet communication

Operating system that supports an Ethernet connection with an IP stack

PACKAGE CONTENTS

3Com 11n PoE Access Point

Wall/desktop & Ceiling Mount

Screw kit

Quick Install Guide

WARRANTY AND OTHER SERVICES

One Year Limited Hardware Warranty

Limited Software Warranty for 90 days

90 days of telephone technical support

Refer to www.3com.com/warranty for details.

3Com AP9552 11n 2.4+5GHz PoE Access Point WL-605 3CRWE955275

OPTIONAL ACCESSORIES

3Com 802.3af Gigabit PoE Injector 3CNJPSE-GIG

Optional Wireless Unified Controllers

3Com WX 3008 Wireless Controller 3CRUWX300875

3Com WX 3010 Wireless Controller 3CRUWX301075

3Com WX 3024 Wireless Controller 3CRUWX302475

OPTIONAL ANTENNAS

3Com 2dBi Dual-Band Omni Antenna Kit 3CWE590

3Com 6/8dBi Dual-Band Omni Antenna 3CWE591

3Com 18/20dBi Dual-Band Panel Antenna 3CWE596

3Com 8/10dBi Dual-Band Panel Antenna 3CWE598

OPTIONAL ANTENNA CABLES

3Com Ultra Low Loss 6 Foot Antenna Cable 3CWE580

3Com Ultra Low Loss 20-Foot Antenna Cable 3CWE581

3Com Ultra Low Loss 50-Foot Antenna Cable 3CWE582

3Com R-SMA to SMA 6” Antenna Cable 3CWE586

3COM GLOBAL SERVICES

3Com Wireless LAN Site Survey, Network Health Check,

Installation Services and ExpressSM

Maintenance www.3com.com/services_quote

3Com University Courses www.3com.com/3comu

For additional information, please visit www.3com.com

83COM AP9552 11N 2.4+5GHZ PoE ACCESS POINT

3Com Corporation, Corporate Headquarters, 350 Campus Drive, Marlborough, MA 01752-3064

3Com is publicly traded on NASDAQ under the symbol COMS.

3Com, the 3Com logo, AirConnect, and OfficeConnect are registered trademarks, and Express is a service mark, of 3Com Corporation. Wi-Fi, Wi-Fi Alliance, the

Wi-Fi CERTIFIED logo, and WMM are registered trademarks, and Wi-Fi CERTIFIED, WPA, and WPA2, are trademarks, of the Wi-Fi Alliance. All other company

and product names may be trademarks of their respective companies. Wireless speed and performance depend on number of users, physical conditions, and other

electronic devices in the area. While every effort is made to ensure the information given is accurate, 3Com does not accept liability for any errors or mistakes which

may arise. All specifications are subject to change without notice. 401212-001 08/09

Visit www.3com.com for more information about 3Com network solutions.

ORDERING INFORMATION

PRODUCT DESCRIPTION MODEL 3COM SKU PRODUCT DESCRIPTION 3COM SKU

Andere Handbücher für AP9552

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere 3Com Drahtloser Zugangspunkt Handbücher

3Com

3Com 3CRWX395075A - Wireless LAN Managed Access Point... Bedienungsanleitung

3Com

3Com AP9152 Bedienungsanleitung

3Com

3Com 3CRWE825075A Bedienungsanleitung

3Com

3Com 3CRWE920G73 Bedienungsanleitung

3Com

3Com WL-306 Bedienungsanleitung

3Com

3Com 3CRWE91096A - Wireless LAN Building-to-Building... Bedienungsanleitung

3Com

3Com Wireless 11n USB Adapter Bedienungsanleitung

3Com

3Com 3CRWE820096A - Wireless LAN Access Point... Bedienungsanleitung

3Com

3Com 3CRWE776075 Bedienungsanleitung

3Com

3Com 3CRWE675075 - 11a/b/g Wireless LAN Workgroup... Bedienungsanleitung

3Com

3Com AP7760 Bedienungsanleitung

3Com

3Com AP9552 Handbuch

3Com

3Com 8250 Bedienungsanleitung

3Com

3Com 3CRWX275075A - Wireless LAN Managed Access Point... Bedienungsanleitung

3Com

3Com 3CRWX385075A - Wireless LAN Managed Access Point... Bedienungsanleitung

3Com

3Com 3CRWE20096A - Wireless LAN Access Point 2000 Bedienungsanleitung

3Com

3Com AirConnect 9550 Installationsanleitung

3Com

3Com OfficeConnect 3CRWE454A72 Bedienungsanleitung

3Com

3Com AP3850 Bedienungsanleitung

3Com

3Com 8760 - Wireless Dual Radio 11a/b/g PoE Access... Bedienungsanleitung

3Com

3Com 3CRWX375075A - Wireless LAN Managed Access Point... Bedienungsanleitung

3Com

3Com LANplex 6000 Bedienungsanleitung

3Com

3Com WL-455 Bedienungsanleitung

3Com

3Com AP9152 Handbuch

Beliebte Drahtloser Zugangspunkt Handbücher anderer Marken

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Bedienungsanleitung

Ubiquiti

Ubiquiti NanoStation NSM2 Bedienungsanleitung

Cisco

Cisco Aironet 1550 Series Bedienungsanleitung

Aruba

Aruba IAP-335 Bedienungsanleitung

Advantek Networks

Advantek Networks AWN-AP-54MR Bedienungsanleitung

IP-COM

IP-COM AP355 Bedienungsanleitung

Buffalo

Buffalo AirStation WLA-L11G Bedienungsanleitung

EnGenius

EnGenius EnStationACv2 Bedienungsanleitung

D-Link

D-Link DAP-3662 Bedienungsanleitung

xG Technology

xG Technology xMax CN1300 Bedienungsanleitung

Widelink

Widelink ezWave WAP-1100 Series Bedienungsanleitung

Edimax

Edimax CAP1200 Bedienungsanleitung

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Bedienungsanleitung

Aruba

Aruba AP-203R Bedienungsanleitung

LuXout Shades

LuXout Shades LUXSHADE MOTION Bedienungsanleitung

CreatComm

CreatComm TB5F Bedienungsanleitung

SineDigital

SineDigital MW-1500AP(H) Bedienungsanleitung

TP-Link

TP-Link AP9650 V1 Bedienungsanleitung
