3D Systems CUBE Bedienungsanleitung

Cubify app

Help Document

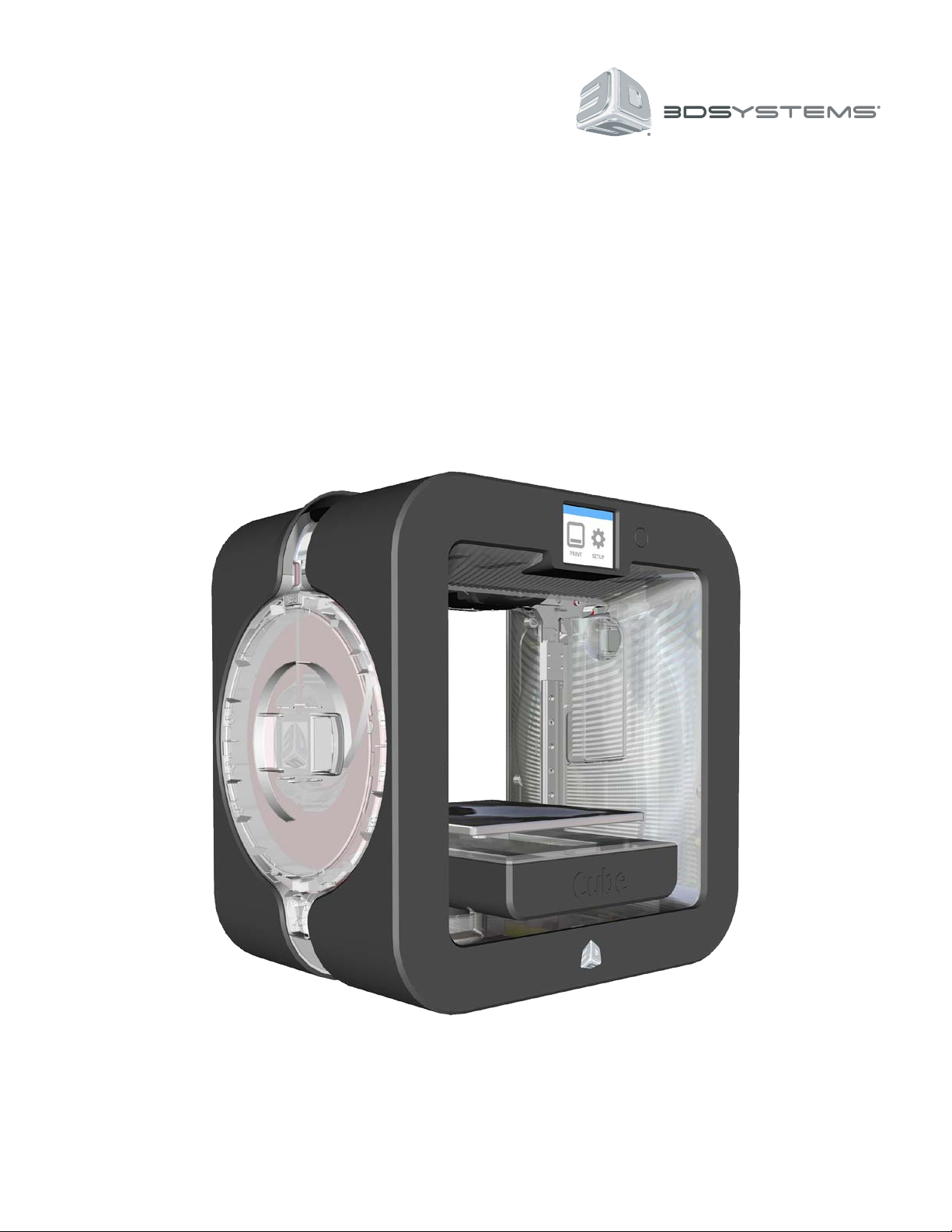

Personal 3D Printer

Cube®

3rd Generation

3D Systems, Inc. 1

TABLE OF CONTENTS

1INTRODUCTION 2

GETTING HELP 3

CONTACT 3

2SETTING UP YOUR CUBIFY SOFTWARE 4

PRINT PROCEDURE 5

UPDATE APPLICATION 11

3APP OVERVIEW 12

ACCOUNT SETTINGS 13

DESIGN FEED 14

MY SHELF 16

Item Selection 17

Delete a file 17

PRINT 18

Print Menu 20

Cube Info 22

Paint 23

3D Systems, Inc. 2

1 INTRODUCTION

Thank you for purchasing the Cube® 3D Printer. The third generation Cube® 3D printer offers a new, compact design, dual color

printing, a choice of 23 print colors in ABS and PLA plastics, touch-screen controls, printing direct from your mobile device and print

speeds 2 times faster than other printers.

Cube 3D Printer’s ready-to-print technology, provides a new dimension to your imagination and helps you share your creations with

others in the Cubify community at Cubify.com.

At Cubify.com you can:

• Upload your creations for sale

• Purchase creations from others

• Get your creations 3D printed and shipped to you

• Buy the Cube 3D Printer and Cube Cartridges

• Engage with other creative partners

If you need any additional information please contact Cubify.

This document will guide you how to use and print with the the Cubify app for Android. It contains the following chapters:

• Introduction

• Setting up Your Cubify Software

• App Overview

For more information on using the Cube printer, please see the User Guide avaliable at Cubify.com

3D Systems, Inc. 3

GETTING HELP

Select Help in the Account Settings menu to open this help document. Or check the Cube User Guide available at Cubify.com.

CONTACT

Mailing address:

333 Three D Systems Circle,

Rock Hill,

SC, 29730

E-Mail:

cubify@Cubify.com

Web:

www.Cubify.com

3D Systems, Inc. 4

2 SETTING UP YOUR CUBIFY SOFTWARE

For information on how to unpack and start using your Cube printer, see the User Guide available at Cubify.com.

Topics in this chapter:

• Print procedure

• Applying glue to print pad

• Updating the App

3D Systems, Inc. 5

PRINT PROCEDURE

Ensure that your printer and the device is on the same Wi-Fi network. For more details on connecting or printing with your Cube printer,

see the User Guide available at Cubify.com

Prepare le

To print a .stl le from your PC or mac either download the Cubify application for desktop computers, or rst upload your le to

your cubify.com account and sync the le in the app.

NOTE: To print several creations simultaneously, either combine them into a single .stl le or use the PC or Mac

software.

From My Shelf

1. In the app, open the My Shelf tab.

2. Select your le and tap Print Now.

From Design Feed

1. Open the Design Feed tab.

2. Select a design.

3. Select Print at home

4. Tap Print Now.

From Store

1. Open the Store tab.

2. Select a creation.

3. Tap Add le to cart.

4. Open the Shopping Cart, go through the checkout process.

NOTE: Some designs are not available as les to print at home.

5. The le will be added to My Shelf. Select the le and tap Print Now.

Preparing creation for print

1. Color your part by dragging and dropping color from the left and right cartridge.

2. Tap Print.

The le will now be sent to the printer.

3. After powering on your printer, press the touchscreen to begin.

3D Systems, Inc. 6

4. Select Print.

5. Using the arrows, navigate to the le name of your creation. Press Print.

If the print le requires another material is not installed, the printer will prompt

you to change the cartridge(s). Select CHANGE CARTRIDGE and refer to the

section titled Replacing A Material Cartridge in the User Guide.

If there is not enough material in the cartridge to complete the print, the print-

er will prompt you to either change the cartridges or continue using the car-

tridge until the print material has been depleted. To change the cartridge, press

CHANGE CARTRIDGE and refer to the section titled Replacing A Material

Cartridge in the User Guide. Press SKIP to continue using the remaining ma-

terial in the cartridge. You will be prompted to replace the cartridge once the

material has been depleted.

3D Systems, Inc. 7

If there is not enough material to complete the print but you want to use up the

remaining material, press accept to continue.

If the le was built with colors that are not installed, the printer will give you the

option to change either the color of the creation or the cartridge. To replace the

cartridge color to match the creation le, select CHANGE CARTRIDGE and refer

to the section titled Replacing A Material Cartridge. To change the color of the

build to one that matches an installed cartridge color, select CHANGE COLOR.

You will be given the option to select a different color among the installed cartridg-

es. Press a cartridge icon and a currently installed color will appear. Pressing it

again will select another installed color if applicable. Once you have made your

choice, press accept to continue.

The material type (PLA or ABS) installed in the printer must match the original

build le specications.

The cartridge icon with a line through it indicates a color from the original build

le that is not installed in the printer.

6. Apply a light coat of Cube Glue to the center of the print pad, as described here.

Press accept to continue.

NOTE: Ensure the glue has dried before printing.

3D Systems, Inc. 8

The printer will load the print le.The estimated time to completion is noted at

the bottom of the screen. The blue bar at the top is also a progress indicator that

shows the status of the loading process.

The print jets that will print the creation will begin heating up.

CAUTION: Do not touch the print jets until they have cooled to room

temperature.

7. After the print jets have the correct temperature the print will begin.

Press the time at the bottom of the screen to view the percentage of completion.

Press it again to view how many layers have been printed. After a few seconds,

the default time will appear again.

Press PAUSE to temporarily stop printing. Press CANCEL if you wish to cancel

the print job.

3D Systems, Inc. 9

8. Once the printer has nished printing, press accept to continue. The printer jets

will begin to cool down.

CAUTION: Do not touch the print jets until they have cooled to room

temperature.

Removing your creation from the print pad

CAUTION: Before attempting to remove your creation from the print pad, ensure that the Cube has nished printing.

Once printing has completed, the print platform and print pad will move to the bottom of the printer.

1. Grasp both of the print pad, lift upward and remove it from the print platform.

2. Submerge the print pad and the base of the part in warm water for ten minutes.

NOTE: If the part does not release from the print pad easily, allow the part to soak longer.

NOTE: IF you can not submerge the print pad in warm water, run hot water over the base of the part for ten (10)

minutes. If the part still does not release easily from the print pad after ten (10) minutes, continue to run hot

water over the part.

3. Using a rounded scraper, gently release your creation from the print pad.

CAUTION: Always move the scraper away from the body. The scraper can

cause injury if not used correctly.

NOTE: The appearance of your scraper may differ from the

illustration.

CAUTION: Exercise caution when using a tool to remove a part so the

print pad is not damaged.

4. Rinse your creation under hot water to ensure all of the glue has been removed.

5. Rinse the print pad under water to clean off any remaining glue.

6. Dry the print pad completely before reinstalling it into the printer.

CAUTION: Failure to completely dry the print pad before reinstalling it into the printer can damage sensitive

electrical components and void the manufacturer’s warranty.
