3One data 1200 Bedienungsanleitung

Your

Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

Model1200

2-port

10/100M

Media

Converter

(SM

MM)

ntroduction

The Media Converter complies with IEEE802.3, IEEE802.3u,

IEEE802.3x Standards. It is designed to convert data signal between

10/100 Base-TX and 100Base-FX fast Ethernet. It supports

10/100Base-TX and 100Base-FX applications. The data signal

converted by s uch high performance media converter can be

transmitted up to 120Km maximum by fiber-optical cable. The

Converter is equipped one optic port and two RJ45 Jacks and one

external power supply receptacle. Four LED indicators are built-in

for easy diagnosing and monitoring the status of. It can be

configured automatically for Full Duplex or Half Duplex operation.

Packing

ist

Model 1200 is shipped with following items.

1. Model1200 ×1

2. 5VDC power adapter ×1(Media converter/5VDC)

3. User manual ×1

eatures:

1. Accord to IEEE802. 1 10Base-T , IEEE802.3 u 100Base-TX,

IEEE802.3 100Base-FX

2. MDI/MDI-X auto negotiation, 10M/100M auto negotiation

3. Supports full /half duplex, Point-to-point transparent transfer

4. Power External 5VDC input

5. Plug-and-play, easy to installation

6. Can insert to 2U 19", 14 slots Rack (power external)

inout

Configuration:

Power

Model1200 adopt the power supply input is 5VDC external.

Your

Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

Ethernet(RJ45),Optical

fiber

interface

Optical

fiber

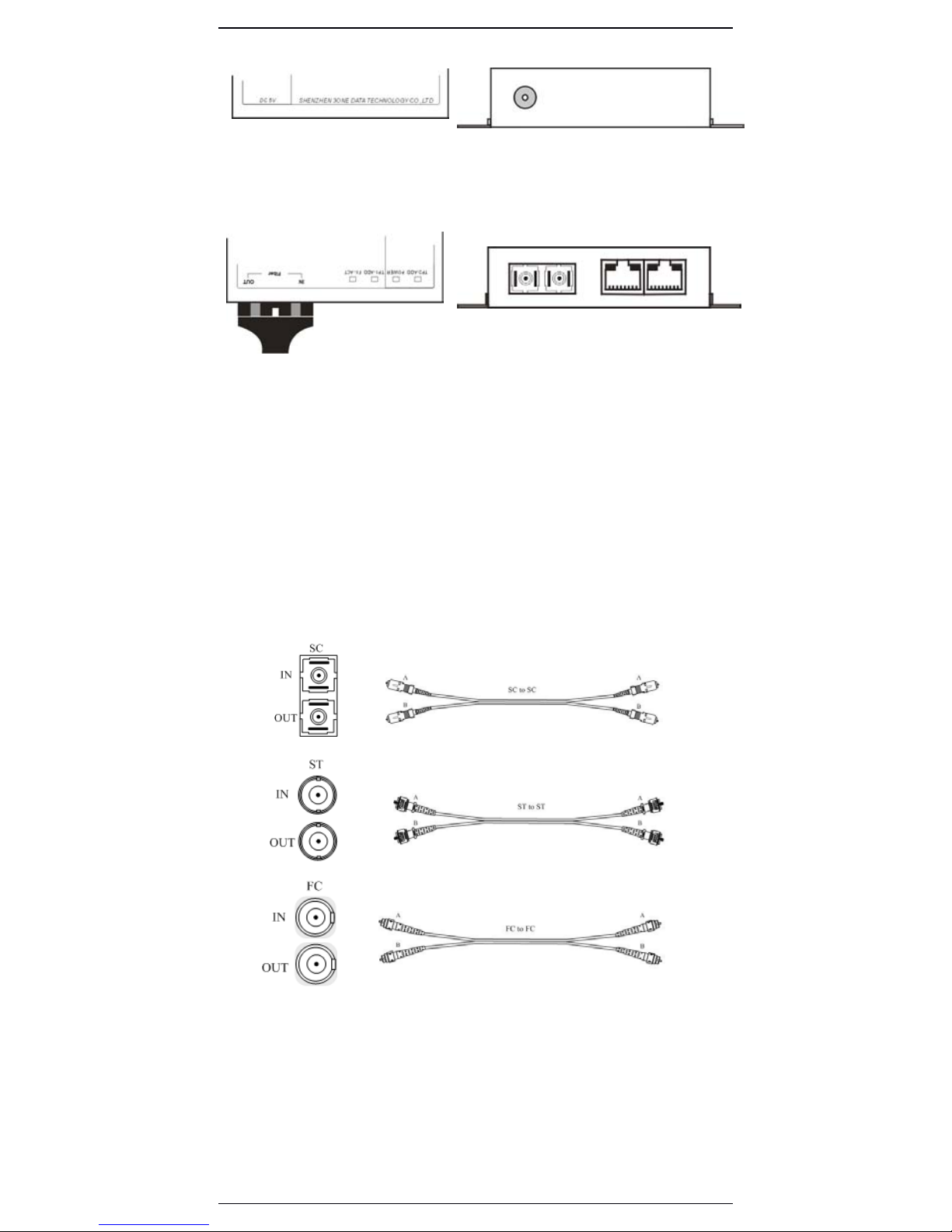

interface:

Optic fib er interface need use in pairs, OUT port is fiber send side

connect another long-range light of interface fiber receive end IN;

IN port is fiber receive side

connect long-range same fiber send

side :

Optic fib er s spent both ends mark the label (the following picture

show: A-A, B-B, can also mark another: A1-A2, B1-B2), in order to

use.

NOTE:

SC, ST or FC, for optic fiber interface, SM is look the same

to MM for form. For example,Model 1200 SM/SC,the optic fiber

interface(SC) is look the same to Model 1200 MM/SC.

Your

Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

Ethernet

interface:

2-port Ethernet( RJ45 ) interface supports MDI/MDI-X auto

negotiation, can use straight- through cable connect PC or server,

use across-over connect cable Switch or HUB.

MDI: PIN 1, 2, 3, 6 connects opposite.

MID-X: 1 → 3

2 → 6

3 → 1

6 → 2

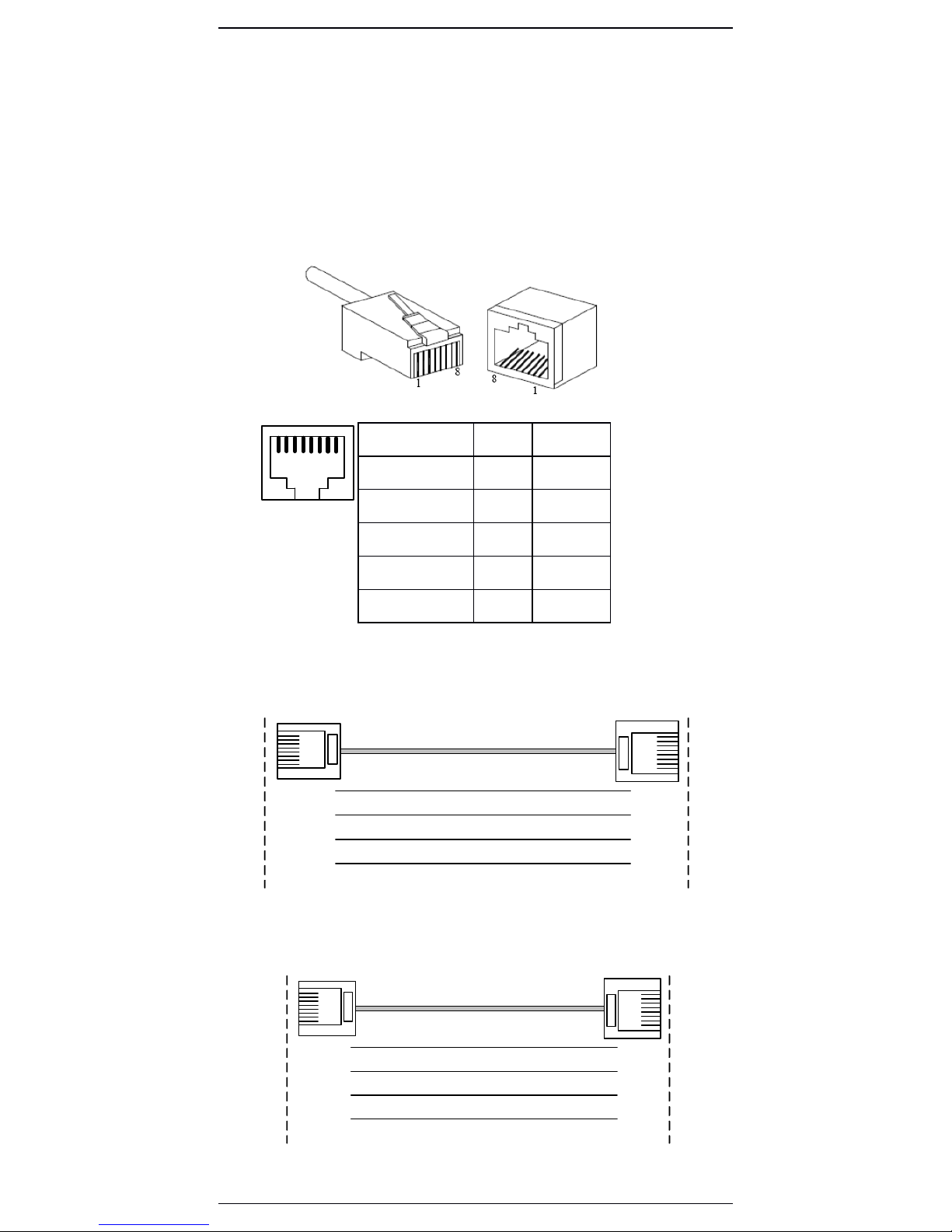

MDI/MDI-X 10Base-T/100Base-TX P IN define as follow:

Note

：

“TX ±” Transfer data ±

，

“RX ±” Receive data ±

，

“—” None 。

MDI:

MDI-X:

MDI

MDI-X

TX+

RX+

TX-

RX-

RX+

TX+

RX-

TX-

4、5、7、8

—

(

- )

(

- )

(

- )

(

- )

1 8

Your

Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

LED

indications:

Specifications:

Standards : comply with IEEE802. 1 10Base-T

IEEE802.3 u

100Base-TX, IEEE802.3 100Base-FX

RJ45 port rate: 10/100Mbps auto negotiation

Optic port rate: 100Mbps

Transfer distance: RJ45port: 100m

Fiber optic:20,40,60,80,120km(SM),

2, 5 km(MM) optional

RJ45 port cable: UTP 5E

Fiber connector: 2 ×SC, 2 ×

ST,

2×FC optional

Fiber optic cables: Single Mode:8.3/125,8.7/125,9/125 or 10/125

LED

STATE

INDICATION

FX-ACT

(Fiber Link Port)

OFF

no link

BRIGHT

link is ok

FLASH

TX or RX activity

TP1-ADD

( Ethernet Port 1 )

OFF

no link

BRIGHT

link is ok

FAST

FLASH

transmitting or receiving at

100Mbps

SLOW

FLASH

transmitting or receiving at

10Mbps

POWER

OFF

no POWER

BRIGHT

POWER is ok

-ADD

( Ethernet Port 2 )

OFF

no link

BRIGHT

link is ok

FAST

FLASH

transmitting or receiving at

100Mbps

SLOW

FLASH

transmitting or receiving at

10Mbps

Your

Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

Muti-Mode:50/125,62.5/125um

Wavelength:850nm,1310nm,1550nm

Power supply: External 5VDC input

Dimensions: 94.0mm ×71.0mm ×26.0mm

Installation: support DIN-Rail installation

Operating temp:-10 °

to 65 ° C

Storage temperature: -20 to 70 ° C

Operating humidity : 5% to 95% (no condensation)

Warranty: 5 years

Approvals: FCC,CE, RoHS approvals

Applications

Extending

10/100M

Ethernet

data

distance

Installation

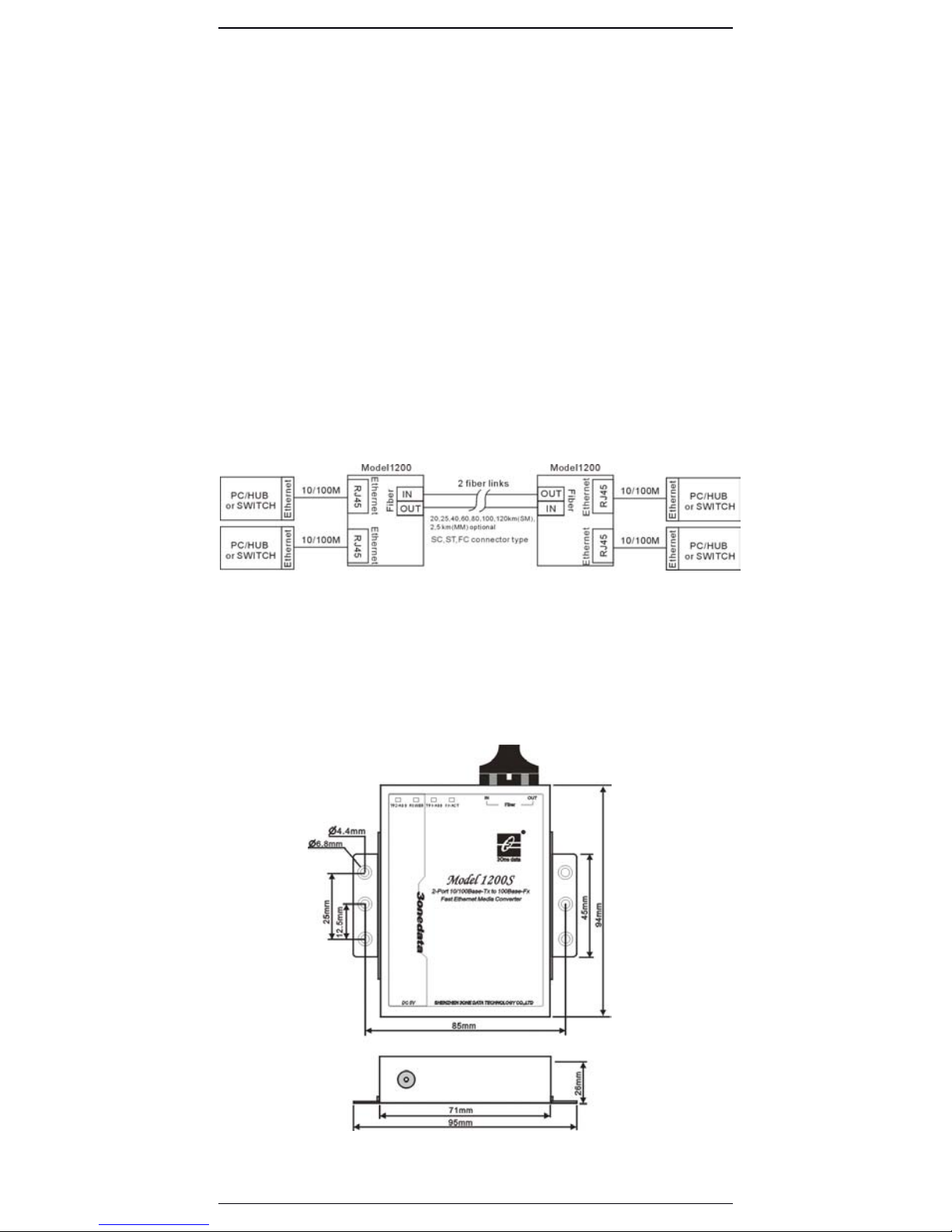

Model1200 provides DIN-rail and wall mounting two types of

installation.

Wall

mounting

installation

Your

Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

DIN-Rail

Installation

Troubleshooting

instructions:

1. Make sure the power is connected and turned on.

2. Make sure the converter Ethernet and fiber optic cables are

connected properly.

3. Check the connections according to the connection diagram.

4. Check the LED Indication status and identify possible problems

from the Indication LED table above.

Note:

1. M ed ia C o n v e r t e r is a s e n s i t i v e e l e c t r on i c i t e m , p l e a s e d o

h a n d l e w i t h e x t r a c a r e o n d e l i v e r y , s h i ft i n g a n d h u m i d i t y .

2. T h is u n i t w i l l b e w a rr a n t y f o r 5 y e a r s .

3. W h ene v e r t he r e is a p r ob l e m r e g a r d i n g t h e q u a l i t y i ss u e w i t h i n

t h e w a rr a n t y pe r i o d , w e w i l l t a k e t h e r e s p on s i b i l i t y t o r e p a i r w i t h

f r e e .

4. A ft e r t h e w a rr an t y p e r i o d , w e w i l l c h a r g e a c c o r d i ng l y

d e pend i n g o n t h e f a u l t o r d a m a g e .

5. W h ene v e r t h e r e is a f au l t , y o u c a n c o n t a c t o u r t e c h n i c a l

s u p p o r t a f t e r y o u i d e n t i f y t h e p r o b l e m a n d t h e a l a r m .

Your

Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

Common

Problems

PWR

power

supply

indicator

lamp

not

lighting

Cause:

1. Power supply not properly connected

2. Protector tube damaged

3. P ower input tie-line in reverse connection

4. Internal power supply circuit with failure

Solution

1. Check power switch and jack

2. Replace protector tube

3. Correct power supply line connection

4. Returned to the manufacturer for repair.

-ACT

indicator

lamp

not

lighting

Cause:

Optic fiber port link is fault.

Solution:

1. Check fiber optic is link or not.

2. Check fiber optic loss is high.

3. Clean the connector of optic interface.

4. Insert the well connector in place.

5. Returned to the manufacturer for repair.

TP1(2)-ADD

indicator

lamp

not

lighting

Cause:

Ethernet port link is fault.

Solution:

1. Check Ethernet(RJ45) line is link or not.

2. Check Ethernet(RJ45) port is loose.

3. Check the rate of selected media converter

4. Check the rate of Network.

5. Returned to the manufacturer for repair.

Network

packet

loss

Solution:

1. Check Ethernet rate or full/half duplex is matched or not.

2. Ethernet(RJ45) port is loose contact, or optic port is loose

contact and soiled .

3. Ethernet cable not comply with Ethernet standard.

Your

Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

Certifications:

Shenzhen

3onedata

Technology

Co.,Ltd

Tel: +86-755-26702688 Fax: +86-755-26703485

www.3onedata.com
