76 PROJECTS TT MOUNT 3.0 Bedienungsanleitung
STAY AERO. MOVE YOUR COMPUTER, NOT YOUR HEAD.
With the unique range of adjustability, the 76 Projects TT Mount allows the rider to maintain an aero position
whilst viewing key data from their computer screen.
We recommend the mount be placed behind the hands whilst in riding position and angling the screen for
optimum viewing. This will minimise head movement and helps to maintain concentration.
Standard
• Negatively impacts aerodynamics
(increased head movement)
• Limited ability for positioning
TOOLS REQUIREDCONTENTS
2.5mm
key
metric
rule
• Aero position maintained • Optimised viewing
• Perfect symmetry • 3 way adjustability
TT MOUNT 3.0 - COMPUTER MOUNT
.COM
2x Angular spacers
2x 2,3,5,10mm Spacers
2x 25,30,35,40mm
Screws
Mount
includes 20mm screws
Forwards
2.5mm
SCREW
& WASHER
BRACKET & STRAP
ANGULAR SPACER
WIDTH SPACER
HEAD
CLIP IN
COVER
CLIP IN MODULE
(AVAILABLE SEPERATELY)
COMPUTER
INSERT
Garmin or Wahoo
Backwards
Low slung
IMPORTANT
ENSURE SCREWS ENGAGE
THROUGH NUT BODY

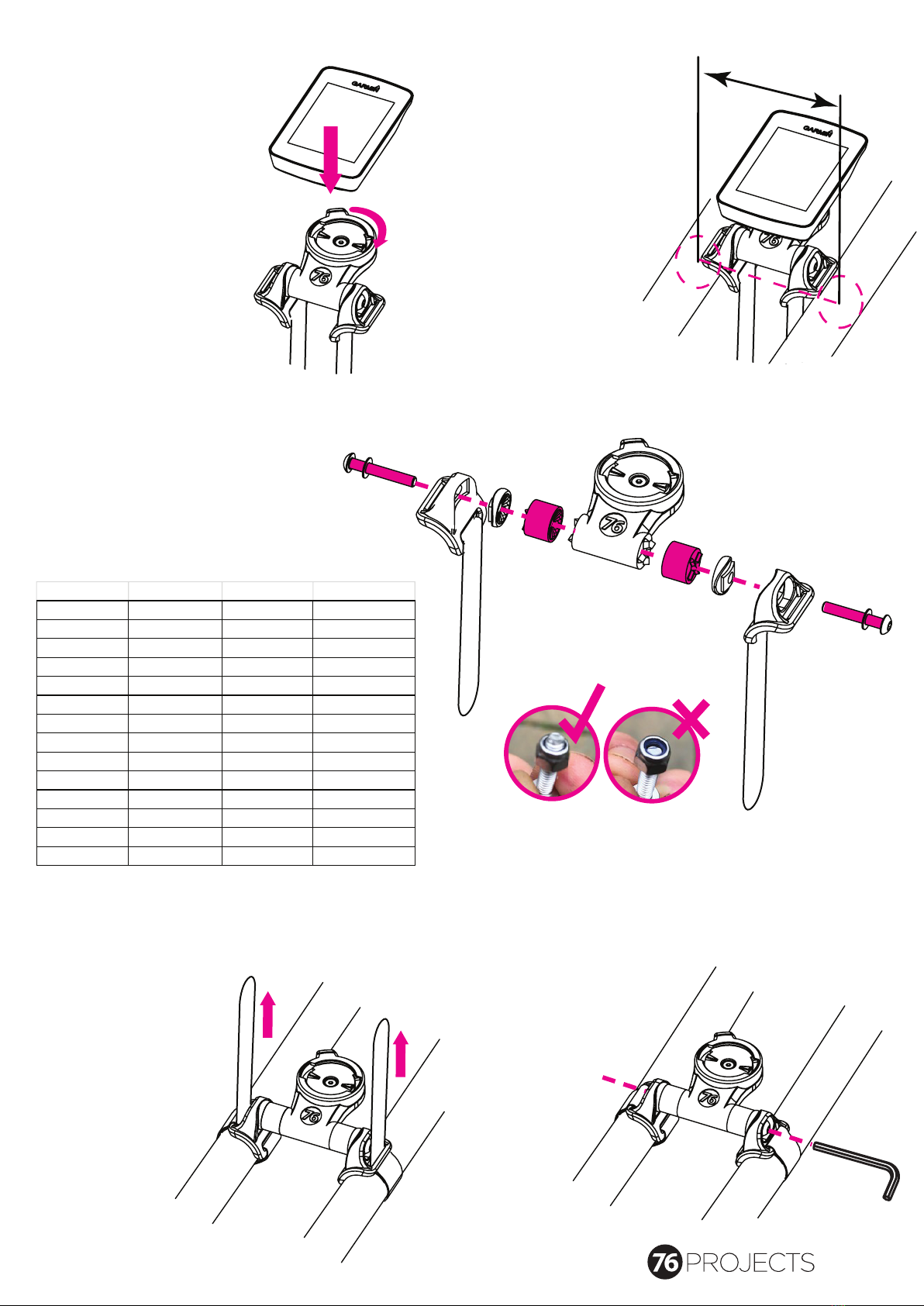

Mark position of bracket
and measure width of bar
centres.
Use guide to calculate
screws and spacers
required.
Attach Computer to mount,
undo straps and choose
approx position of mount for
optimum viewing.
Using 2.5mm allen key replace both
side screws and add spacers as
required.
Loosely secure screws to allow
brackets to freely rotate and move
during next step.
Place mount into desired
position, thread straps
through each bracket.
Pull vertically to
remove slack and
smooth down velcro.
STEP ONE STEP TWO
STEP FOUR
Align head of mount to
desired angle, tighten each
screw finger tight or until
resistance is felt.
Re adjust straps if
necessary.
Excess straps may
be cut for a neat
finish.
STEP FIVE
STEP THREE
.COM
2.5mm
? MM
¯ƱóŪėóƛė -ǗƱƛóÝŇėĞ
ƱŵŨŨ ƱŵŨŨ ¯ĐƛĞǒƣŨŨ ¯ƘóĐĞƛƣŨŨ
Ι
Ι
Ι
Ι
Ι
ΙΙ
ΙΙ
ΙΙΙ
