ABBA CDPA60 Bedienungsanleitung

CDPA60

www.ABBALightingUSA.com

INSTALLATION GUIDE

IMPORTANT SAFETY INSTRUCTIONS

LIGHTEN LAMP IS HOT!

WARNING: TO REDUCE THE RISK OF FIRE OR INJURY TO PERSONS:

Please exercise caution when using the lamp, as it tends to HEAT up rapidly.

We recommend taking necessary safety measures to ensure optimal usage.

For your safety, please refrain from touching the HOT lens, guard, or enclosure.

We recommend waiting for the product to cool down before handling it.

To prevent any fire hazards, please ensure that the lamp is kept away from

materials that may easily catch fire. We appreciate your cooperation in

maintaining a safe and secure environment.

RATED VOLTAGE 12V AC/DC

Congratulations on your purchase of this high-quality product! We want to ensure

that you have the best possible experience with it, so we kindly ask that you take a

moment to carefully read and follow all instructions before assembly, installation,

and use. By doing so, you'll not only guarantee correct function and safety, but also

optimize the full potential of this exceptional product. Thank you for choosing us as

your trusted provider of top-notch products - we truly appreciate your business!

WARRANTY

We stand behind the quality of our product and offer a 2 year warranty. Kindly ensure that you keep

the proof of purchase as it will be required for any warranty claims.

Warranty will be void if there is any damage due to improper usage or

modification to the fixture.

Failure to comply with the instruction in this manual may increase the risk of

damage or injury and will void warranty.

For safety reasons, we recommend that only a qualified professional install

this electrical product.

Before attempting to install this unit, ensure all power connections are off for

your own safety.

www.ABBALightingUSA.com

Do not instal within 10 feet of a pool, spa or fountain

CAUTION:

Fixture(s) must be installed in accordance with all local codes and ordinances.

INSTALLATION INSTRUCTION

To ensure optimal performance and safety, it is

important to use our fixtures ONLY with a low voltage

landscape transformer. This transformer reduces the

voltage from 120V to 12V, making it safe and suitable

for outdoor use.

When installing the fixture(s), please follow these

instructions carefully:

1.Prior to installation, it is imperative to verify that

the power is deactivated to guarantee your safety.

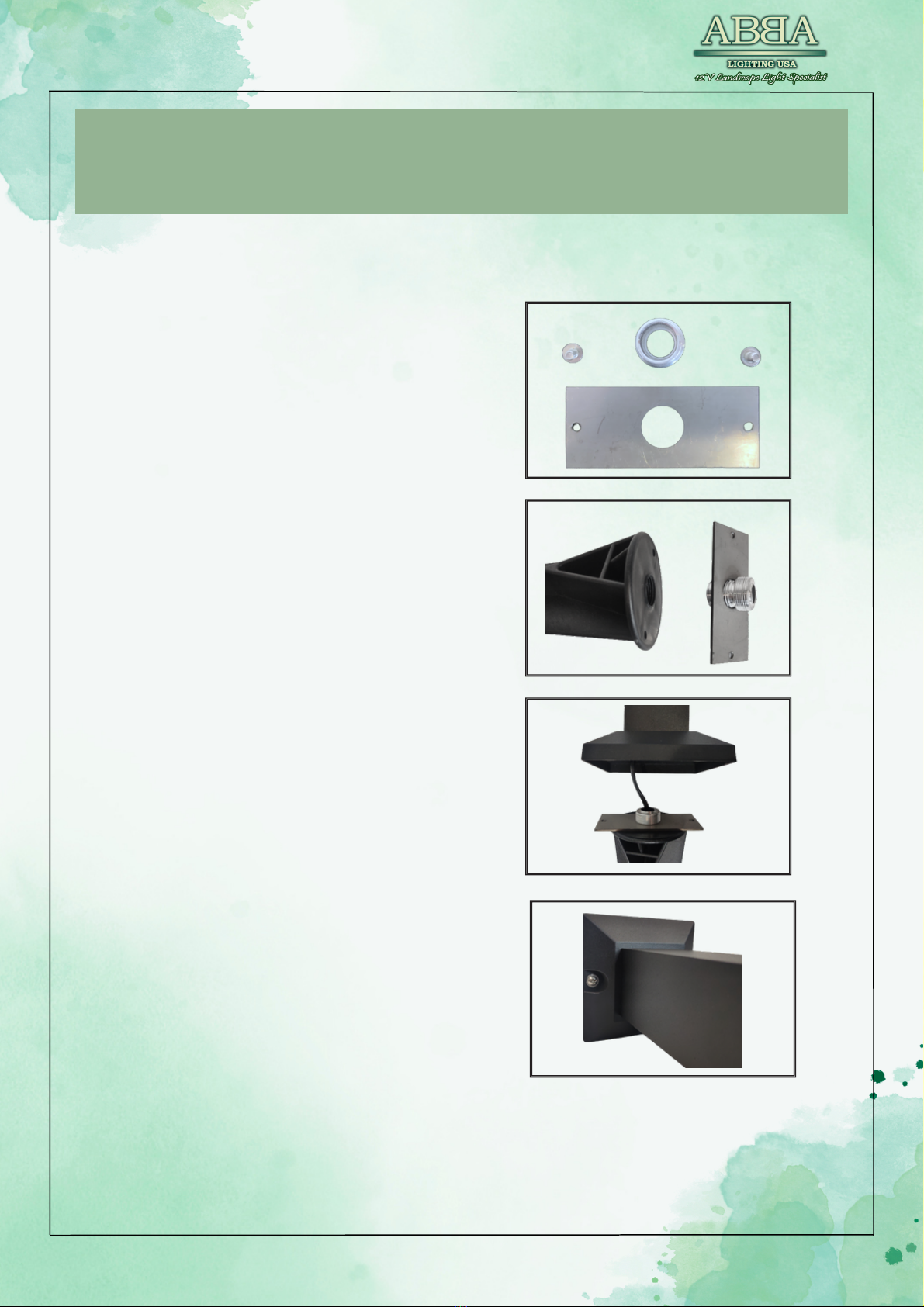

2. Securely attach the large cylindrical screw to the

ground spike using the accompanying metal plate

3. Using the two screws provided in the package,

securely attach the ground spike to the fixture in

conjunction with the metal plate.

4. To establish a dependable and enduring electrical

connection between fixture wires and the main line in

outdoor or underground installations, it is essential

to select a suitable main cable connector designed

for direct burial. This connector should be chosen

based on its ability to withstand environmental

conditions, resist moisture and corrosion, and

provide robust insulation. By adhering to industry

standards and best practices, including proper wire

stripping and secure fastening techniques, a reliable

connection can be established, ensuring optimal

performance, safety, and longevity of the system.

We recommend using WN12 waterproof wire nuts

(sold separately) for optimal connectivity.

5. Strip the insulation: Carefully strip approximately

3/4 inch (1.9 cm) of insulation from the ends of the

two wires you wish to connect. Ensure that the bare

metal ends are clean and free from any frayed

strands.

6. Align the wires: Hold the stripped ends of the two

wires together, aligning them neatly and ensuring

that no stray strands are crossing over.

www.ABBALightingUSA.com

www.ABBALightingUSA.com

Insert the wires: Insert the aligned ends of the wires

into the wire nut, ensuring that they go all the way in.

The bare ends should be completely covered by the

wire nut. Twist the wire nut: Firmly twist the wire nut

clockwise onto the wires, ensuring a secure

connection. Continue twisting until the wire nut is

tight and snug. Test the connection: Gently tug on

each wire to ensure they are securely held by the

wire nut. The connection should be firm and not

come loose. Inspect the connection: Examine the

wire nut connection to ensure there are no exposed

wires or loose strands. If any issues are detected,

remove the wire nut and repeat the process from

step 5.

Note: It's always recommended to follow local

electrical codes and regulations when performing any

electrical work. If you're uncertain or uncomfortable

with electrical tasks, it's advisable to consult a

qualified electrician. Safety should always be a top

priority when working with electrical connections.

7. For a secure and stable mounting, dig a small hole

and insert the spike into the ground, ensuring it is

vertical and firm.

8.Once the fixture(s) are securely installed, turn on

the power and enjoy the enhanced lighting

experience!

We strongly recommend that the main cable from the

transformer be buried underground for safety

reasons. Additionally, please be sure to avoid

exceeding the maximum wattage on the fixture(s) to

prevent any damage or hazards.

WN12 (Sold separately)

Main Line

Connect the wires using
