Abilica Stream SB X Bedienungsanleitung

Stream SB X

Art.nr. 300 067

Model

84602

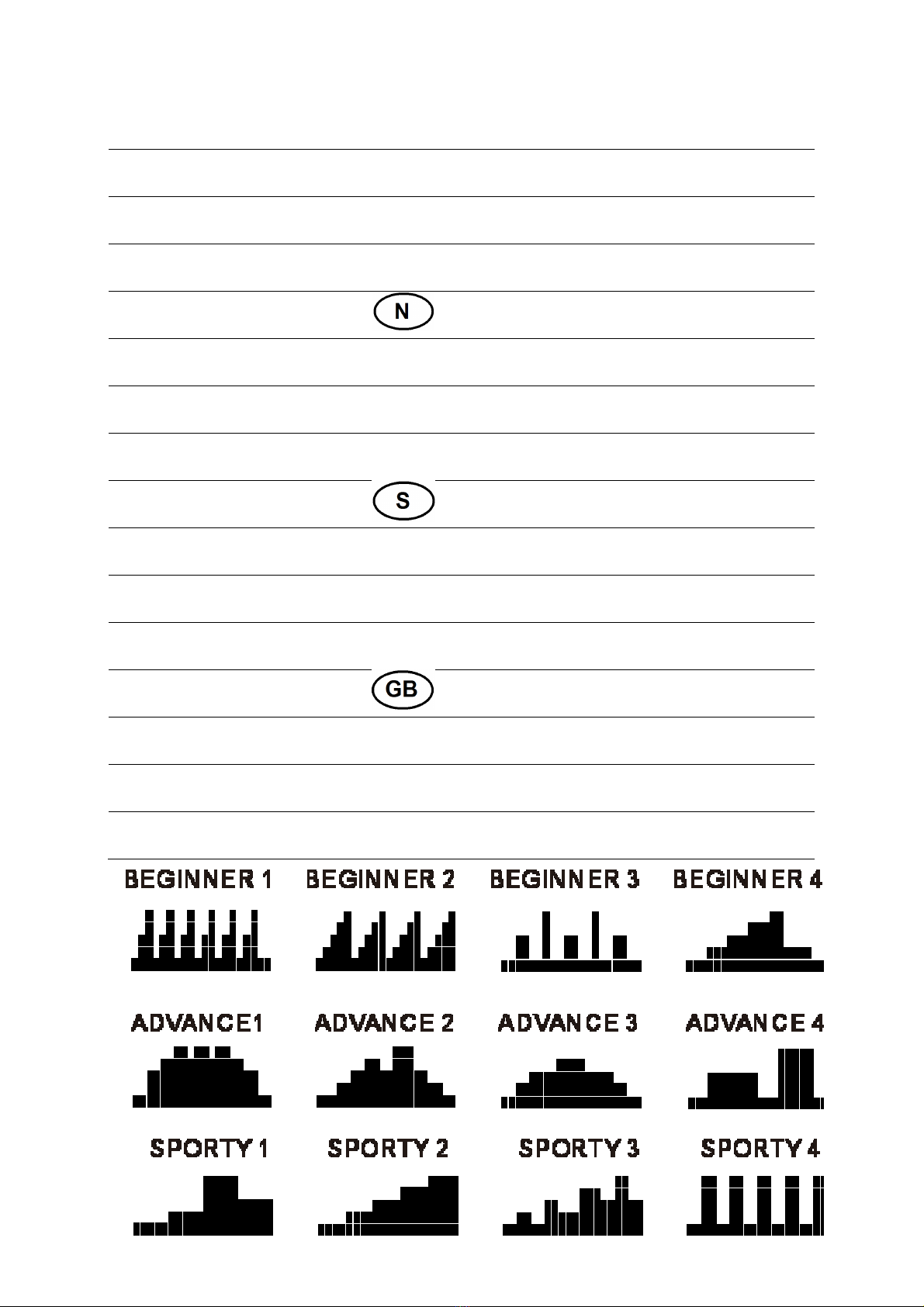

INNHOLD / INNEHÅLL / CONTENTS

3 Deletegning / Sprängskiss / Parts drawing

4 Monterings-deler/delar / Assembly parts

5 Deleliste / Dellista / Parts List

8 Montering / Assembly

13 Viktig informasjon

14 Betjening av computeren

18 Reklamasjonsvillkår

19 Kontaktinformasjon

20 Viktig information

21 Hur du använder datorn

25 Reklamationsvillkor

26 Kontaktinformation

27 Important information

28 How to operate the console

32 Warranty regulations

33 Contact information

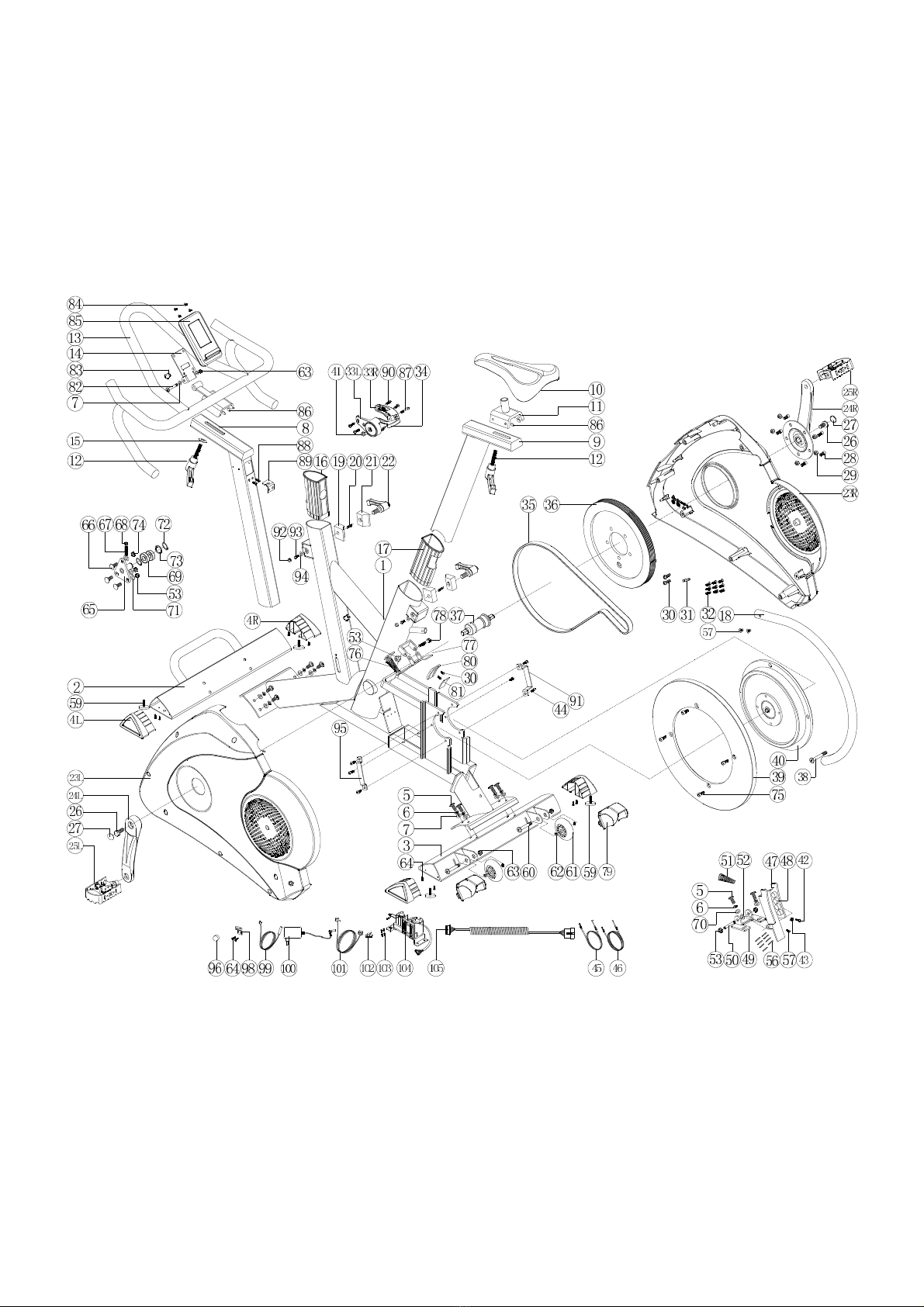

DELETEGNING / SPRÄNGSKISS / EXPLODED VIEW DRAWING

19 20 21 22

23L

24L

25L

24R

25R

23R

30 31 32

33R

33L

35 36

4748

51 52

53 56 57

60 6162

66 68

76 77

92 93

96 64 98 99

100

101

102 103 104 105 45 46

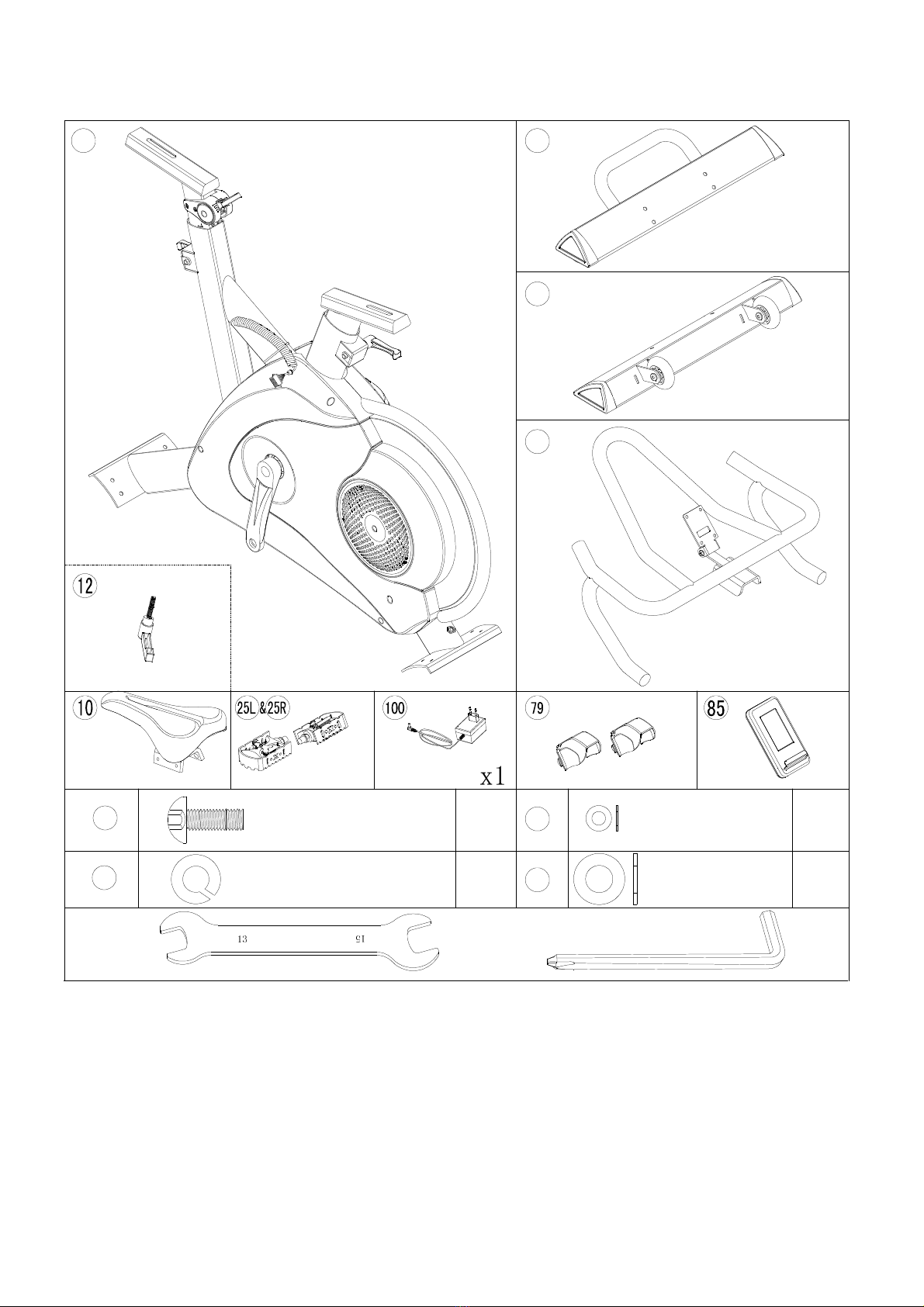

MINTERINGSDELER / MONTERINGSDELAR / ASSEMBLY PARTS

M8*1.25*20L

D15.4*D8.2*2T

D16*D8.5*1.2T

D30*D10*3.0T

DELELISTE / DELLISTA / PARTS LIST

Part no. Description Material Specification Qty.

1 main frame 1

2 front stabilizer 1

3 rear stabilizer 1

4L left triangle cap PE 95.7*57.2*51.3 2

4R right triangle cap PE 95.7*57.2*51.3 2

5 allen bolt 35# M8x1.25x20L,8.8level 10

6 spring washer 70# D15.4xD8.2x2T 10

7 flat washer Q235A D16xD8.5x1.2T 10

8 front post 1

9 seat post 1

10 seat 1178, clamp 1

11 seat adjustable tube 1

12 L knob 40L Zn alloy+45# M10*40L 2

13 handlebar 1

14 computer fixing plate 1

15 flat washer Q235A D30*D10*3.0T 1

16 cover of front post PE 80*55*147 1

17 inner insert PE 80*55*147 1

18 curved plate of flywheel 1

19 stop plate(1) AL 39*35*17 2

20 sping 72A D12.5*D1.2*20.7 2

21 stop plate(2) AL 38*35*17 2

22 L knob 50L AL+45# M10*50L 2

23L left chaincover ABS 729.2*531.9*81.5 1

23R right chaincover ABS 729.2*531.9*77 1

24L left crank 1021M 170*9/16"-20BC 1

24R right crank 1021M+SPH 170*9/16"-20BC 1

25L/R pedal JD-012,9/16",double bearing -with SPD

26 bolt 35# M8x1.0x16,10.9level 2

27 bolt cover P.E6070 D23x6.5 2

28 screw 35# M10*1.5*20L 5

29 nut Q235A M10*1.5*8T 5

30 round cross bolt Q235A M5x0.8x15L 4

31 pin ABS D6*26.5*7.7 1

32 cross screw 10# ST4.2*1.4*20L 9

33L left cover of brake ABS+15% fibre 95.4*53*33.4 1

33R right cover of brake ABS+15% fibre 95.4*53*31.2 1

34 brake handlebar Zn alloy 101.1*48.2*37 1

35 belt PK j5,1250L,HUTCHINSON 1

36 puelly AL D285-,PK,6j 1

37 BB sets 127.5L 1

38 bolt 35# M8*1.25*95L,8.8level 1

39 outer flywheel A1050 D420*17 1

40 inner flywheel FC20 D290*38 1

41 anti-loosen nut Q235A M6*1.0*6T 1

42 round cross screw Q235A M5*0.8*35L 1

43 nut Q235A M5*0.8*5T 1

44 screw 35# M6*1*15L,8.8level 6

45 tension cable 230L 1

46 lower tension cable 1300L 1

47 magnet fixing bracket 1

48 magnet FE D18*10T 8

49 magnet fixing plate 1

50 axle of magnet fixing bracket Q235A D8.2*65L 1

51 sping 72A D1.2*55L 1

52 flat washer PE D18*D8.5*1.0T 1

53 nylon nut Q235A M8*1.25*8T 5

54 xx xx

55 xx xx

56 magnet cell PE 29*3*3 6

57 cross bolt Q235A M5*0.8*10L 3

58 xx x

59 adjustable round wheel Q235A+ABS D59*M10*40L 4

60 bolt Q235A M8*1.25*40L,8.8level 2

61 round moving wheel PVC+PP D70.5*23 2

62 bushing copper steel D22.2*D8.2*7T 4

63 nylon nut Q235A M8*1.25*8T 3

64 screw 10# ST4*1.41*12L 10

65 idle wheel fixing plate 1

66 carriage bolt 35# M8*1.25*20L,8.8level 3

67 adjustable bolt Q235A M6*1.0*46 1

68 nut Q235A M6*1*5T 1

69 bearing GCr15 6203-2RS,plastic cover 2

70 flat washer Q235A D25*D8.5*2T 2

71 flat washer Q235A D18*D8.5*1.2T 2

72 C ring 65Mn S-17(1T) 2

73 curved washer 65Mn D17*D22*0.3T 1

74 nut Q235A M8*1.25*6T 1

75 screw 35# M8*1.25*16L, 4

76 spring 72A D1.4*55L 1

77 fixing plate of brake strap Q235A 125.2*62*3.0T 1

78 bolt 35# M8*52L,15MM 1

79 cover of moving wheel PP 93.2*64.7*62 2

80 brake plate NBR 54.5*37*13 1

81 cow leather cow leather 52*31*4T 1

82 bolt 35# M8x1.25x45L 8.8level 1

83 cable plug PVC D4*D12*13 2

84 cross bolt Q235A M5*0.8*10L 4

85 computer SM-2534-64,ROHS 1

86 stop plug PE D20*D5.7*7 8

87 round head screw 35# M6*1.0*50L,8.8level 1

88 screw 35# M6*1*15L,8.8level 2

89 tension fixing plate Q235A 25*24*3T 1

90 screw 10# ST4.2*1.4*15L 4

91 fixing plate (1) Q235A 105.5*35*2.5T 1

92 buffer NBR D10*5.5T 2

93 bolt 35# M5*0.8*10L,8.8level 2

94 flat washer Q235A D15*D5.2*1.0T 2

95 fixing plate (2) Q235A 105.5*10*2.5T 1

96 round magnet M02 1

97 xx x

98 sensor bracket PE 24*22*2.5T 1

99 sensor cable 250L 1

100 adaptor output:9V.1A 1

101 electric cable 700L 1

102 cable buckle NL 17.5*8.2*2.2 1

103 cross screw 10# ST4.2x1.4x12L 4

104 motor 1

105 upper computer cable 300L 1

MONTERING / ASSEMBLY

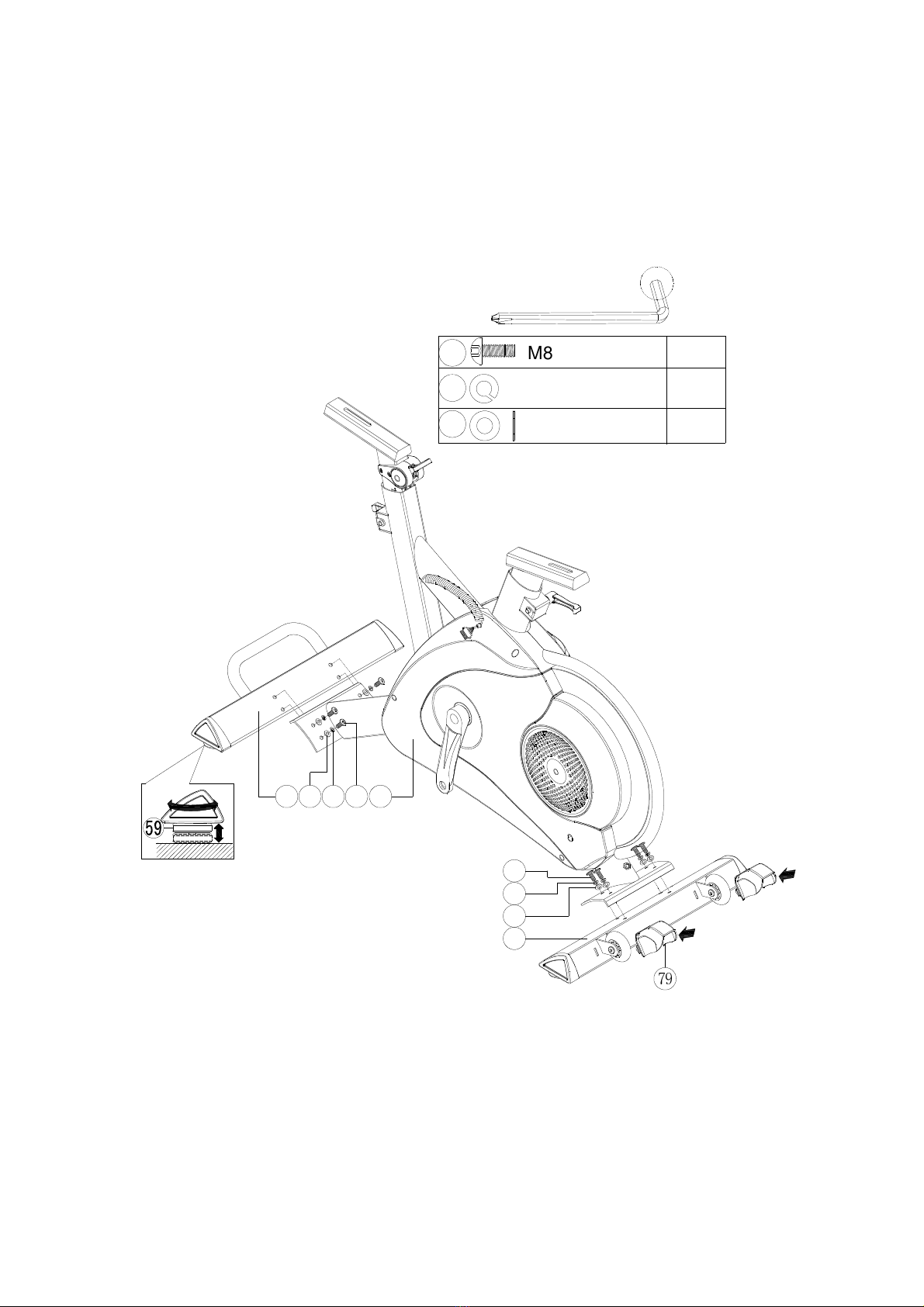

Step-1

M8*1.25*20L

(x8)

D15.4*D8.2*2T

D16*D8.5*1.2T

(x8)

DOWN

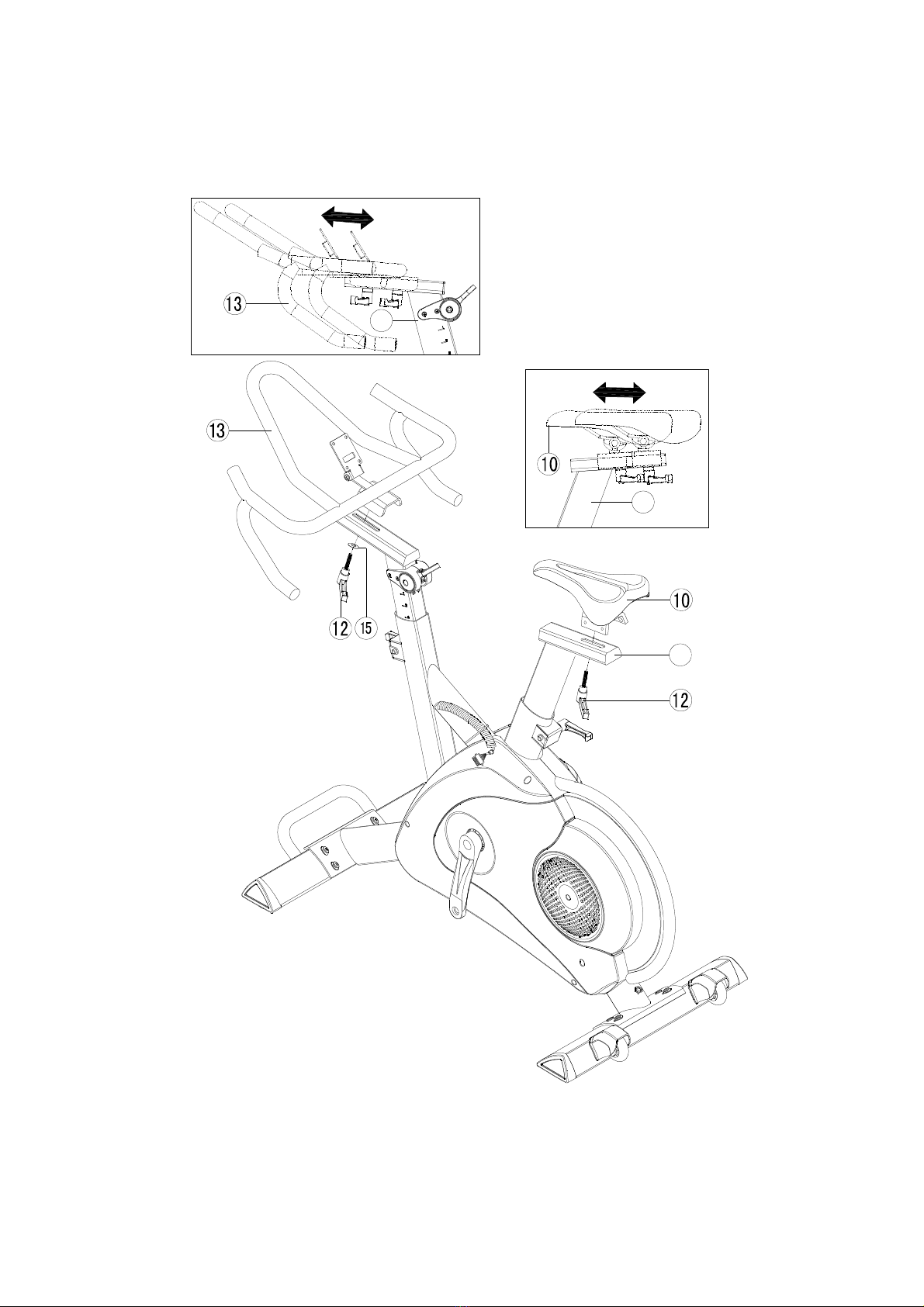

Step-2

DOWN

Step-3
