Abilica Mill 30 Bedienungsanleitung

Abilica Mill 30

For user manual in other langages, please scan code

INNHOLD / INNEHÅLL / CONTENTS

3Deletegning / Sprängskiss / Parts drawing

4Deleliste / Dellista / Parts List

9Montering / Assembly

16 DK NO Viktig informasjon

18 Drift

32 Vedlikehold

40 Kontaktinformasjon

41 SE Viktig Information

43 Drift

54 Underhåll

57 Kontaktinformation

58 GB Important information

59 Operation

77 Maintenance

80 Contact information

DELETEGNING / SPRÄNGSKISS /

PARTS DRAWING

DELELISTE / DELLISTA / PARTS LIST

Part No.

Description

Q’ty

Main Frame

Base Frame

A3L

Left Upright

A3R

Right Upright

Handlebar

Incline Bracket

A13

Belt Guide

A16L

Left Handlebar Fixing Plate

A16R

Right Handlebar Fixing Plate

A34

Safety Key Pin

A54

Controller Base

A57

Console Folding Shaft

A62

Incline Axle Screw

A64

Countersunk Washer

A67

Compression Sleeve

Console Monitor

B1-1

Console Overlay

Console Back Cover

Transport Wheel

B11L

Left Side Cover

B11R

Right Side Cover

B13

Motor Upper Cover

B14

Motor Bottom Cover

B15

Upper Side Rail

B16L

Left End Cap

B16R

Right End Cap

B17

Adjustment Wheel

B20

Round Plug

B21

Square Inner Plug

B27

Running Board Bottom Cushion

B51

Water Bottle Holder Ring

B52

Solid Side Rail

B79

Plastic Bushing

B87

Plastic Safety Key Pin

B89

Incline Bearing (16)

B93

Cord Organizer

B94

Smartphone Holder

B95

Upper Cover of Button Platform

B95-1

Button Platform Overlay

B96

Bottom Cover of Button Cover

B97

Water Bottle Holder

Part No.

Description

Q’ty

B105

Arc Shaped Foot Pad

B107

Side Rail Fixing Plate

B108

Bungee Cord

B113

IPAD Bracket

B114

IPAD Holder

B116

Incline Bearing (10)

B118

Rubber Cushion

B119

Short Cushion

B120

Long Cushion

B126L

Left Handlebar Connector

B126R

Right Handlebar Connector

B138

Buttons (PROG+START)

B139

Buttons (STOP+MODE)

Running Belt

Rear Roller

Front Roller

Running Deck

Cylinder

Motor Belt

Power Switch

Controller

C12

Incline Motor

C13

Safety Key

C14

Single Cord (Brown) 300

C15

Power Cable

C16

Console Upper Cable

C17

Console Lower Cable

C20

Magnetic Ring

C21

Inductor

C22

Filter

C23

Overload Protector

C27

Single Cord (Blue) 300

C31

Single Cord (Blown) 150

C32

Single Cord (Blue) 150

C33

Single Ground Wire

C34

Outlet

C42

Brushless Motor

C43

Left Quick Wheel Button

C44

Right Quick Wheel Button

C50

Magnetic Ring (Large)

Open End Wrench 13-15-17

Part No.

Description

Q’ty

Allen Wrench 6mm

Allen Wrench 5mm

Button Head Cap Screw, M10X60mm

D10

Button Head Cap Screw, M10X45mm

D13

Button Head Cap Screw, M8X15mm

D14

Button Head Cap Screw, M8X30mm

D15

Button Head Cap Screw, M8X40mm

D16

Button Head Cap Screw, M8X45mm

D18

Nylon Nut M10

D20

Nylon Nut M8

D74

Socket Head Cap Screw, M6x25mm

D79

Spring Washer M6

D89

Flat Washer M8

D91

Phillips Pan Head Self-Drilling Screw,

ST4.2X19

D96

Phillips Pan Head Screw, M6X12mm

D103

Phillips Pan Head Self-Drilling Screw,

ST4.2X40

D111

Spring Washer M10

D112

Hex Head Cap Screw, M6X35

D116

Socket Head Cap Screw, M10X45mm

D121

Console Compression Spring

D128

Button Head Cap Screw, M6X12mm

D21

Flat Washer M10

D22

Flat Washer M6

D23

Flat Washer M8

D25

Spring Washer M8

D34

Socket Head Cap Screw, M8X60mm

D42

Phillips Rounded Washer Head Screw,

M4X10

D44

Phillips Rounded Washer Head Screw,

M5X12mm

D45

Phillips Rounded Washer Head Screw,

M5X15mm

D48

Phillips Rounded Washer Head Self-

Drilling Screw, ST4.2X19mm

D52

Phillips Pan Head Self-Tapping Screw,

ST4.2X16mm

D58

Phillips Flat Head Self-Drilling Screw,

ST3.5X16mm

D61

Phillips Pan Head Self-Tapping Screw,

ST4.2X19

Part No.

Description

Q’ty

D130

Phillips Flat Head Self-Tapping Screw,

ST4.2X19

D134

Phillips Pan Head Self-Tapping Screw,

ST3.0X8mm

D143

Phillips Rounded Washer Head Self-

Tapping Screw, ST4.2X16

D146

Socket Head Cap Screw, M10X60

D167

Socket Head Cap Screw, M10X50mm

D172

Allen Wrench 8mm

D186

Upright Compression Spring

D187

Console Bracket Axis Screw

D188

Phillips Pan Head Screw, M5X20mm

D190

Button Head Cap Screw, M6X12

D191

Phillips Rounded Washer Head Screw,

ST4.2X19


Part No.

Description

Qty

D167

Socket Head Cap Screw, M10X50mm

D13

Button Head Cap Screw, M8X15mm

D23

Flat Washer M8

D191

Phillips Rounded Washer Head Screw, ST4.2X19

Allen Wrench 5mm

Allen Wrench 6mm

D172

Allen Wrench 8mm

Open End Wrench 13-15-17

MONTERING / ASSEMBLY

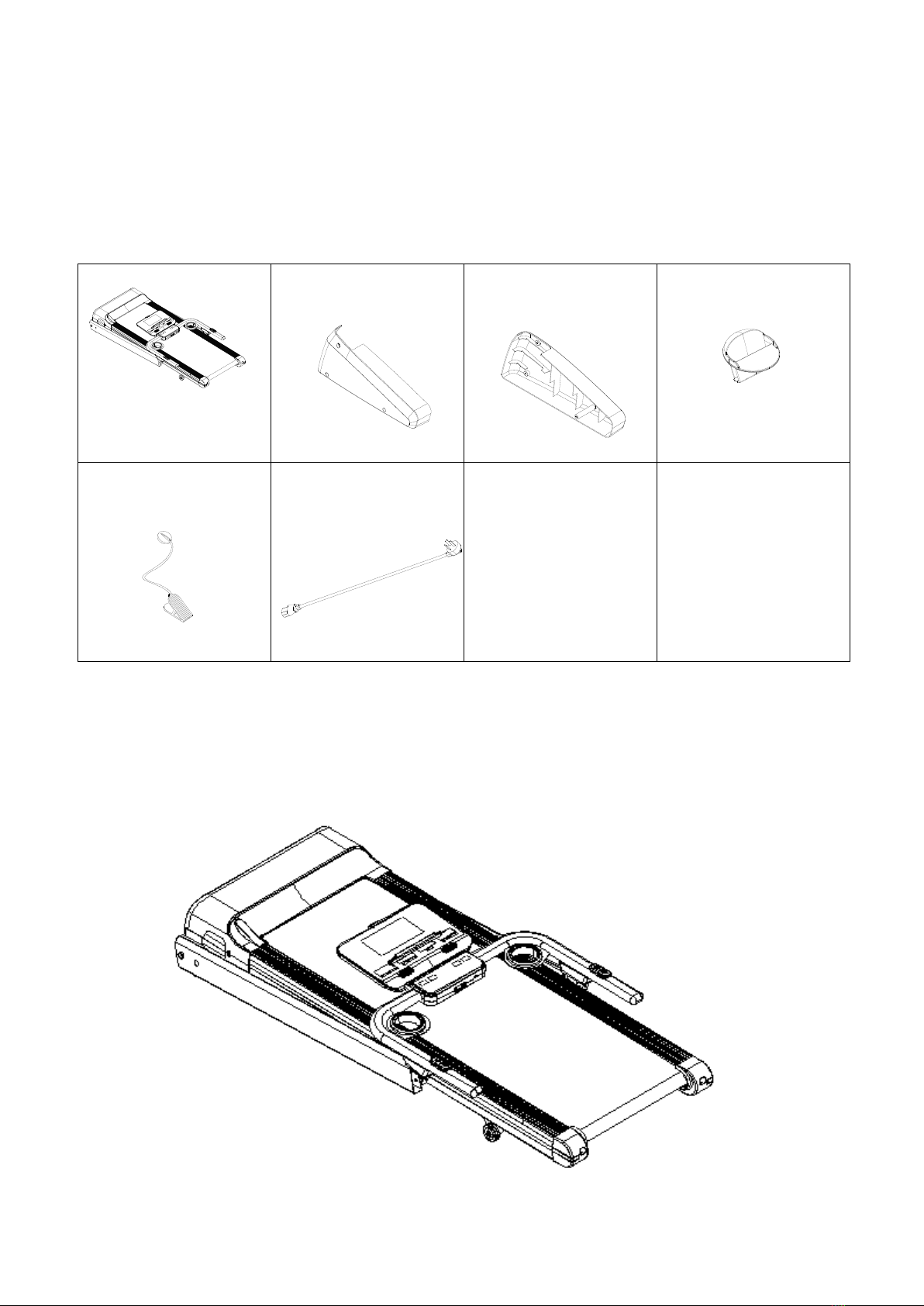

PRE-ASSEMBLY CHECK LIST / SJEKKLISTE

Main Frame: 1 SET

B11L Left Side

Cover: 1PC

B11R Right Side

Cover: 1PC

B94 Smartphone

Holder: 1PC

C13 Safety Key:1

C15 Power Cable:

1PC

ASSEMBLY INSTRUCTION

STEP 1

Move out the treadmill unit from the packaging box, and place it on the flat ground or floor.

STEP 2

Lift up the Left/ Right Uprights (A3L/A3R) by holding the Handlebar (A4) as illustrated. Tighten

the bottom of Left/ Right Uprights (A3L/A3R) by using: 2pcs of Socket Head Cap Screw

M10x50mm (D167). Then continue to tighten 2pcs of pre-assembled Socket Head Cap Screw,

M10X45mm (D116) right above the previous assembled screws
