Abocom UHL2000 Bedienungsanleitung

USB 10M HomePNA

Network Adapter

Quick Installation Guide

M73-APO08-370

REGULATORY STATEMENTS

Part15, Class B

This device complies with Part 15 of FCC rules. Operation is

subject to the following two conditions:

1. This device may not cause harmful interface, and

2. This device must accept any interface received,

including interface that may cause undesired operation.

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful

interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy,

and if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications. However, there is no guarantee that

interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio

or television reception, which can be determined by

turning off and on, the user is encouraged to try to

correct the interference by one or more of the following

measures:

 Reorient or relocate the receiving antenna.

 Increase the distance between the equipment and

receiver.

 Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

Changes or modifications not expressly approved by

party responsible for compliance could void the user

authority to operate the equipment.

FCC Part 68 Registration

This device complies with FCC Part 68 rules, and the use of

this device is subject to the following restrictions:

The FCC has established rules which permit this device to be

directly connected to the telephone network. Standardized

jacks are used for these connections. This equipment should

not be used on party lines or coin phones.

If this device is malfunctioning, it may also be causing harm

to the telephone network; this device should be

disconnected until the source of the problem can be

determined and until repair has been made. If this is not done,

the telephone company may temporarily disconnect service.

The telephone company may make changes in it's facilities,

equipment, operation and procedures; if such changes affect

the compatibility or use of this device, the telephone

company is required to give adequate notice of the situation

with the FCC.

If the telephone company requests information on what

equipment is connected to their lines, inform them of:

a. The telephone number to which this unit is connected.

b. The Ringer Equivalence Number (REN).

c. The USOC jack required.

d. The FCC Registration number.

Items (b) and (d) are indicated on the label. The Ringer

Equivalence Number (REN) is used to determine how many

devices can be connected to your telephone line. In most

areas, the sum of the REN's of all the devices on any one line

should not exceed 5.0. If too many devices are attached, they

may not ring properly.

Introductions

The USB 10M HomePNA Network Adapter is

fully compatible with the Universal Serial Bus

(USB) functionality built in Windows 98/ME,

Windows 2000 and Windows XP. It provides

you the instant connectivity to multiple PCs over

a home's existing telephone lines.

You can share network-enabled printers, transfer

files between computers, play network games,

and moreover - no switches, hubs, or even any

additional cables is required. The network runs

on standard home-grade-telephone wires just like

the ones you use everyday. Plus, it doesn’t

interfere your normal phone use.

Features

 Build a network by using your existing

telephone line

 10Mbps or 1Mbps transfer rate over

telephone lines

 Share Internet access between your PCs

 Enable file, data and printer sharing between

your PCs

 Microsoft Windows 98, ME, 2000, XP

supported

 External USB network adapter with 1 RJ-11

modular telephone port

 USB cable included – true plug & play

 HomePNA specification 2.0 compliant

 Connect up to 25 devices together on your

home phone network

- 1 -

System Requirements

 A Pentiumprocessor-based personal

computer 166MMX or above.

 At least 16 MB of RAM.

 One USB port well installed and enabled.

 Microsoft Windows 98, Windows ME,

Windows 2000, or Windows XP.

Specifications

Network Standard

 HomePNA specification 2.0

 Standard phone wiring

Supported Operating Systems

 Windows 98

 Windows ME

 Windows 2000

 Windows XP

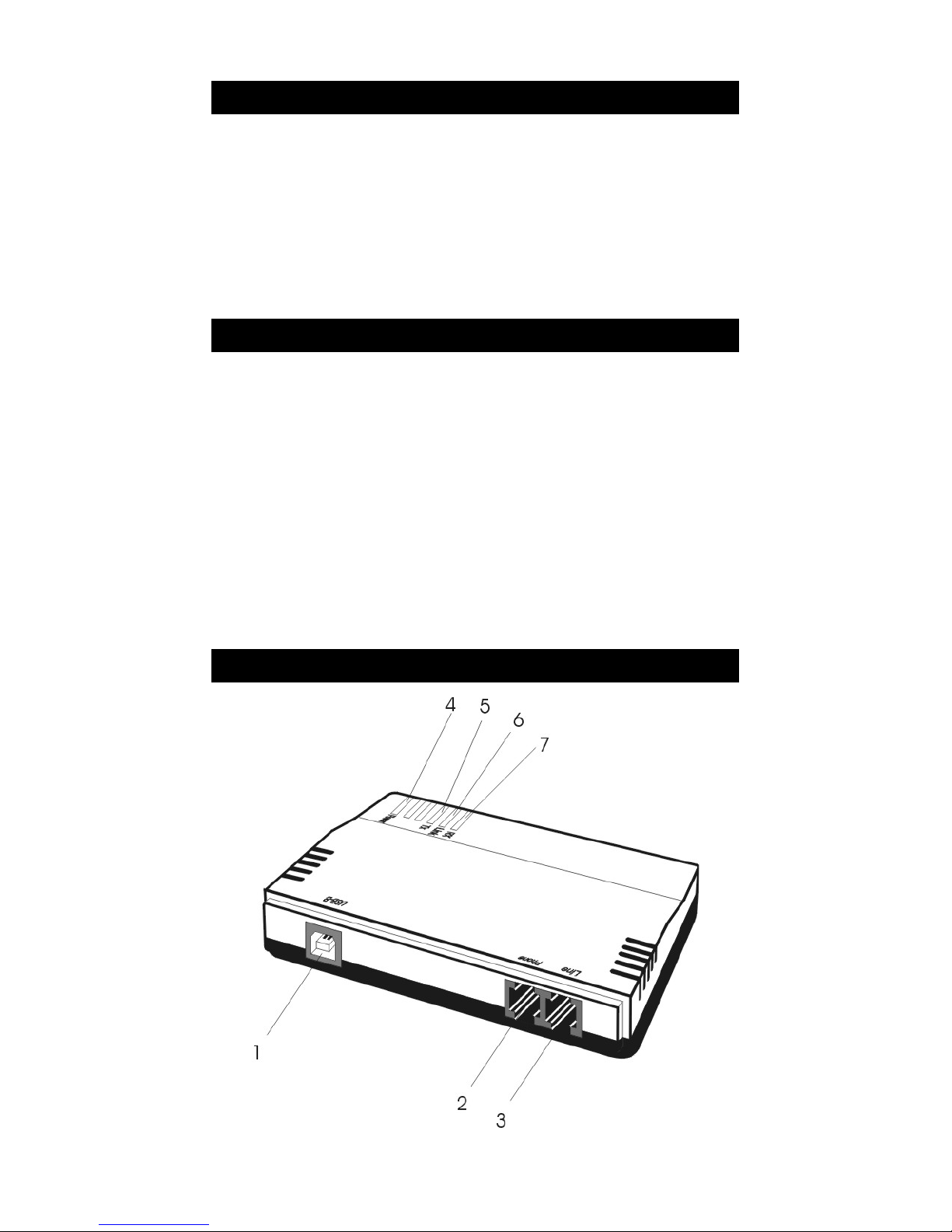

Parts Names and Functions

- 2 -

Port Functions

1USB-B USB device port.

2Phone connects the USB 10M HomePNA

Network Adapter to a phone

setting.

3Line connects the USB 10M HomePNA

Network Adapter to a phone jack.

Table 1. Connection Ports

LED Status

4POWER glows green when your PC power

is on and the device is well

connected to the USB host port of

your system.

5TX blinks amber when transmitting

data.

6Link glows green when linked with

other HomePNA compliant

devices.

7RX blinks amber when receiving data.

Table 2. Indicator LEDs

- 3 -

Hardware Installation

Before getting started

Before installation, make sure the USB port on

your computer is enabled. To learn how to

check this, see the Diagnostics section.

Getting Hooked Up

1. Locate the USB host port of your system.

Align the USB connector toward the USB

host port, push evenly and steadily until it is

seated.

2. Connect the other end of the USB

connection cable to the device port of your

USB 10M HomePNA Network Adapter

(i.e. USB B Port, refer to the section titled

“Parts Names and Functions” for details).

- 4 -

3. Windows will automatically detect the new

hardware device. Perform the following

procedures to install the device driver.

Connecting Telephone Cabling

1. Attach one end of the telephone line to the

USB 10M HomePNA Network Adapter’s

Line port.

2. Connect the other end of the line into a

phone jack in the wall.

3. Connect the USB 10M HomePNA Network

Adapter’s Phone port to a phone setting.

- 5 -

Software Installation

Windows 98 Installation

1. Once the USB 10M HomePNA Network

Adapter is well connected, Windows will

detect the new device and prompt you to

insert the network device driver. Click Next.

2. Insert the USB 10M HomePNA Network

Adapter Driver Disk into the floppy disk

drive. Select Search for the best driver for

your device… and click Next.

- 6 -

3. Specify Floppy disk drivers and click Next.

Windows will start searching for the

appropriate driver for the network device

installation.

4. Ensure that the file path is correct. Click

Next to continue.

5. Windows will copy the appropriate driver to

your system. If Windows 98 asks you to

supply your original Windows 98

installation CD-ROM, load it on the CD-

ROM drive.

- 7 -
